Tilting Rotary Furnace Dealers

• 10000 Kgs Capacity: 3000 Kgs/Hour
• Melting Capacity (Approx.): 3000 Kgs/Hour

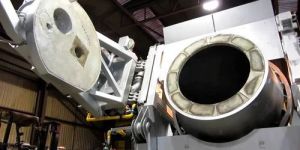

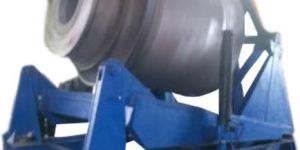

We are offering universal tilting rotary furnace, tilting type rotary furnace is a unique combination of rotary furnace and hydraulic tilting furnace. This design of furnace is capable of maintaining in short cycle of time and the dry flux melting process. Meanwhile traditional rotary furnace have been static over the recent ages however implementation of tilting technology has proven a great leap in the overall furnace melting process. With the use of tilting rotary furnace user can avail the following benefits to which was not available in the traditional rotary furnace. Faster production| less heat loss| no salt required when using oxy fuel technology| melt dross | melt mixed scrap often with contamination (tense, taint, tabor etc) | melt turnings swarf chips | melt ubc indotherm equipment corporation manufactures a wide range of sizes from 3 to 14 mâ³ (6 to 27 tons) and melting rates from 1.5 to 6 tonshr is available. Advantages of our universal tilting rotary furnaces: â�¢ choice of fuels to suit local conditions, oil, gas, if available, with or without oxygen (oxy-fuel). Â�¢ double pass burner firing system to gauge and mix the precise ratio of fuel (carbon) to oxidant (air or oxygen). Â�¢ burner is fitted with opening enabling the furnace to tilt and fire in chorus. This gives improved mixing of the material, faster melting and higher metal recovery. Â�¢ variable melting angles. The tilt rotary door design enables the furnace body to be reclined to maximize load capacity. Also known as: rotary tilting melting furnace| tilt rotary furnace| universal rotary tilting furnace| hybrid tilting rotary furnace| aluminium dross and scrap melting tilting rotary furnace| utrf| convertor furnace| mixed scrap and drosses melting furnace

• Automation Grade: Automatic
• Voltage: 240V
• Country of Origin: Made in India
• Material Loading Capacity (T): 100 Kg
• Melting Material: Iron
• Power Source: Electric

• Country of Origin: India
• Material: Stainless Steel
• Voltage: 220V
• Power: 12-15kw
• Driven Type: Electric
• Automation Grade: Automatic

• Type Of Furnace: Tilt
• Melting Material: Lead
• Power Source: Gas , Oil
• Material Loading Capacity (T): 20 Ton
• Max Temperature (degree Celsius): 100 Degree C

• Price Range: 3 Lakh to 30 Lakh
• Material Loading Capacity: 0-500 kg, 500-1500 kg
• Melting Material: Aluminium scrap
• Max Temperature (degree celcius): 500-1000
• Power (KW): 5kw to 25kw
• Finishing: Polished

• Country of Origin: Made in India
• Type Of Furnace: Tilt
• Melting Material: Aluminium
• Material Loading Capacity (T): 3 ton
• Power Source: Diesel

• Automation Grade: Automatic
• Melting Material: Aluminium
• Material Loading Capacity (T): 5000Kg
• Power Source: Gas

• Country of Origin: Made in India
• Melting Material: Aluminium
• Power Source: Electric / Gas / Diesel
•  :

• Automation Grade: Semi-Automatic
• Type Of Furnace: Fix
• Features: Excellent performance ,Low maintenance ,Optimum functionality
• Melting Material: Aluminium
• Power Source: Gas

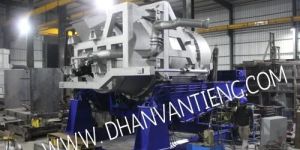

We offer a flexible and universal design of tilting rotary furnace that is the best solution for aluminum scrap recycling. All the scarp that is formed can be easily recycled to gain better results. A friction drive wheel system is maintained to rotate the furnace. Along with this a single door is also employed with either horizontal or vertical rotation that has a pendulum type switch. It involves a high efficiency system that is fixed on the furnace with tiles. It exhausts with a fume collection housing or with a rotatory joint. Traditionally these furnaces have been static in nature but now tilting deign have been added that has helped in bringing improvement in their efficiency. Now work is done in lesser time. Cost of process is low and yield is also high. Engineered rotary furnaces are used to fit the needs and demands of all clients with different requirements. The air burner is provided with fuel oil or with gas. In any case configuration can be changed for static or tilting design. The objective of our company is to design a system with high performance, coherent production tools that can help process a wide range of commercial scarp with the help of salt free technique. Latest melting practices that are present in the market are employed. These latest systems has also helped in elimination of the need of flux melting procedure. Working conditions for furnace men have improved to a great extent. It has also helped in melting a wide range of feedstock. Elimination of metal pollution has achieved as well. It has also facilitated homogeneity and charge mixing.  The chances of self-cleaning are also high with high thermal yield and low range of energy consumption. Finally faster and efficient system is achieved that has 2-3 times higher yield than that of traditional furnaces.

We are offering tilting type rotary furnace. furnaces are the advanced design of conventional rotary furnace. Ttrf are generally used in the melting plants like aluminum recycling. Aluminium dross melting. Leadzinc recycling and dross melting, all nonferrous metals. this furnace has a fabricated tilting and stationery membrane. The furnace is made up of heavy duty mild steel sections and plates with sufficient wall thickness. Furnaces will be lined with monolithic ramming mass suitable for applications upto 1200c. Furnaces lining work will be carried out at the customer end in order to avoid breakages in transportation. furnaces will be supplied with oxy fuel system suitable for the fuels like, hsd, ldo, fo, pg, ng, cog, and lpg. Additional accessories like, fuel tank, transferring, pumping system, liquid fuel handling systems, centrifugal air blower, gas handling systems & safety systems will also be supplied. technical name: central axis tilting furnace, lip axis tilting furnace,hydraulic type tiling furnace, motorised geared type, tilting furnace, gear type tilting furnace, oil fired tilting furnace, gas fired tilting furnace, crucible furnace. Batch melting furnace. application: aluminium, copper, lead, zinc melting. product description: a cubical shell furnace, which tilts by the hydraulicmotorizedgeared mechanism for pouring out the metal directly on the mouldladle for heavy castings. Indirect type melting ensures the loss of metals due to oxidationcarbon deposit by the fuel or combustion properties. Furnace is lined with refractory and insulation brick to hold the liquid metal to a temperature of 1200oc. This furnace lining by a brick is formed with extra locks mechanically to ensure the lining the tightness and holds the crucible to not to fall of while tilting the furnace. advantages: our furnaces are designed in such a way to reduce the fuel consumption. Our furnaces are lined with both refractory bricks and ceramic fibre modules, in such a way to pass the flue gas around the crucible enabling high conduction and convection heat transfer. Combustionheating equipments are designed to meet the requirements of furnace and heat transfer rate. Burner will be positioned inclined to an angle, so that the flameflue skips on the surface of the material. Better heat transfer rate through circulation and re-circulation. Our furnaces are designed for skin temperature of 65c (maximum). specialties: manual operating furnace, automatic operating furnace, air fuel ratio regulating system, mass flow control system, pressure balancing system, flue control system. optional accessories: pre heating the scrap before charging can be done. Recuperator to pass the combustion air into the burner at a temperature of 150c (minimum) for fuel saving upto 40%. capacity: 500 kgs - customers requirement. heat generated by: light oilheavy oilfurnace oil natural gas cnglpg propanebutane producer gasbio gas lining: refractory and insulation bricks based on the temperature and operation of the furnace. best fuel achieved: 110 liters of furnace oilton of gun metal.
