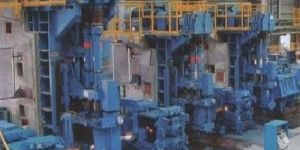

TMT Bar Rolling Mill Dealers

• Automation Grade: Automatic
• Material: MS
• Mill Type: Hot Rolling Mill
• Production Capacity: 300 ton/day
• Strip widths: Upto 1400 mm
• Mill speeds: Upto 1200 mpm
• Output thickness: Upto 0.10 mm

• TECHNICAL PARAMETRES OF BAR MILL: Type of mill - Single Strand Continuous mill, with HYQST technology. 2. Capacity of mill t/yr 1,000,000 3. Mill Floor Level m +5.00 m 4. Rolling(operating) speed, max. m/s 38 m/s(max) Etc.

Jindal Panther Rebarsare manufactured at Patratu; state-of-the-art Morgan Rebar Mill of 1.0 million tons per annum capacity. The modern mill equipped with METS (Morgan Enhanced Temperature Control System) produces TMT rebars with latest on-line HYQST (High Yield Quenching & Self Tempering technology. Thermomechanically treated (TMT) rebars involved a combination of plastic deformation of steel in austenitic stage followed by quenching and further tempering. The process controls at each critical operation ensure uniform properties in each rebar and provides the TMT rebar with a soft ferrite & pearlite fine garined core and a strong and tough tempered martensite layer imparting it with high ductility as well as strength.

We offer Bar Rolling Mill to our valuable customers. Available with us at highly reasonable market prices, these machines are known for their fully automated operation, long functional life and minimum maintenance. As per the specifications provided by the customers, these machines can be custom designed.

• Capacity: 300 ton/day
• Rolled Shape: Round Bar
• Material: Mild Steel
• Phase: Single Phase
• Voltage: 220V-240V
• Frequency: 50-60 Hz
• Finishing: Powder Coated
• Features: Corrosion Resistance

• Automation Grade: Automatic
• Capacity: 6Ton/Day
• Mill Type: Cold Rolling Mill
• Max Shear Width: 450mm
• Voltage: 240V
• Frequency: 50Hz
• Power: 2.5HP
• Power Source: Electricity
• Body Material: Cast Iron
• Surface Treatment: Paint Coated

• Production Capacity: 10-15 Ton/day
• Voltage: 240-380 V
• Automatic Grade: Automatic
• Mill Type: Hot Rolling Mill
• Capacity: 30,000 to 500,000 T per year

Starting Stock Billets 160 x 160 x 12,000 mm 130 x 130 x 12,000 mm Furnace Group Charging grate, Hot charging, Elevator, Induction online heater Finished product Rebar 8 three-strand slit TMT Rebar 10 two-strand slit TMT Rebar 12-40 mm TMT Flats, angles and channels are possible too Sub-bundles 100-400 kg Master bundles 1 MT-3 MT Furnace Capacity 80 MTh Main train Single-strand HV arrangement, two strands are HV type Roughing train : 4 off Model 600, 2 off Model 440, Free outletafter stand # 2 Intermediate train : 4 off Model 440, 4 off Model 340 Finishing train : 6 x Model 340 Associated shears Loopers : 8 off vertical, 6 off Single strand, 2 off multi strand Capacity 400,000 MTy Cooling bed group Water quenching line, Thermex® Cooling bed shear Cooling bed 66 x 10 m
