Tomato Processing Plant Dealers

We do supply the turnkey project for tomato processing line for end product as tomato puree, tomato paste and tomato ketchup.

• Country of Origin: India
• Weight: 100-1000kg, 1000-2000kg, 2000-3000kg, 3000-4000kg, 4000-5000kg, 5000-6000kg, 6000-7000kg
• Automatic Grade: Automatic, Fully Automatic, Manual, Semi Automatic
• Warranty: 1year, 2years
• Voltage: 440V
• Type: Tomato Processing Plant
• Application: Tomato Processing
• Color: Brown, Grey, Light White, Silver, White
• Condition: New, Used
• Power: 1-3kw, 3-6kw, 6-9kw, 9-12kw
• Driven Type: Electric, Hydraulic, Mechanical, Pneumatic

• End Product: Dehydrated Vegetables
• Automatic Grade: Semi-Automatic
• Condition: New
• End Packaging: Aseptic Drums
• Material of Construction: as per products
• Capacity: as per products
• Input Capacity: as per products
• PACKING TYPE: Glass Bottle Packing For Tomato Puree/Ketch-Up, Can Packing For Paste/Concentrate

• Voltage: 380V, 440V
• Automatic Grade: Automatic
• Brand Name: CentPro
• Material: Stainless Steel
• Application: Tomato Processing
• Power: 10 kW
• Phase: 3 Phase
• Capacity: 150 Ton Per Day

• Feature: Long-experience know-how, strong construction and energy saving
• Place of Origin: INDIA
• Brand Name: Shivaay Engineers
• Usage: For tomato paste, ketchup, sauce
• Packaging Capacity: 0.5125101520 ton per hour
• Production: Washing machine,Sorting conveyor,Elevator ,Crusher ,Coldhot break system etc.

Tomato ketchup processing plant home »products »tomato ketchup processing plant tomato ketchup processing plant tomato ketchup paste sauce processing plant & machinery we manufacture and install tomato processing plant & machinery for tomato paste, ketchup, sauce. We supplied tomato processing equipments such as tomato washer, conveyor, crushing, pasteurization, evaporation, filling & packaging bottles & pouches. Tomato paste processing line in cold-break and hot-break system starting from 2 to 20 tonhour with different level of automation and different feeding systems of whole tomato. Can be used to make as tomato puree tomato paste, tomato ketchup, tomato sauce and peeled tomato in cans. The packaging product in cans, bottles, pouches, aseptic bag in drum capacity of the plant :- 0.5125101520 ton per hour. Our lines are characterised from long-experience know-how, strong construction and energy saving. Complete sets of tomato ketchup & paste & puree production line: 1. Washing machine 2. Sorting conveyor 3. Elevator 4. Crusher 5. Coldhot break system 6. Tubular preheater pasteurizer 7. Pulping machine 8. Vacuum evaporator continuous forced circulation evaporator 9. Filling line-- can filling machine bottle filling machine sachet filling machine aseptic bag in drum filling machine

• power load: 500 kw,

State of art plant in 6 acres of land with production area, office cum guest house, staff and worker quarter rooms, side roads, weigh bridge, power load 500 kw, backup DG Set, required licences and government approvals. Plant is having following manufacturing lines;Dedicating line of Tomato Ketchup and different sauces 12 to 14 mt per 12 hrs shift with facility to pack in bottles and sachets, Dedicating line of Fruit Jam 3 MT per 12 hrs shift and to produce Ketchup through vacuum pan system

• Brand Name: M&T
• Material: stainless steel
• Color: Silver
• Warranty: 1year
• Country of Origin: India
• Condition: New

The Process is Follows below: ·         The fruits are initially washed in the washer and then inspected on the Inspection conveyor. The washed fruit are then elevated for further pulp / juice extraction. ·         Tomatoes are fed to the Hot break system. After heating the crush is pumped to the pulper / finisher for extraction of juice. Tomato juice is then taken for preparation of puree in Vacuum Pan. ·         The plant includes vacuum pan, which is used for manufacturing of puree. The advantage of this equipment is that the boiling point is very low thus increasing the product quality. ·         Pulp / juice is extracted in the Pulper / Finisher which is collected in the bottom rectangular collection tank. ·         Pulp is pasteurized in the corrugated tube and tube pasteurizer. The system is complete automatic in which after the required set temperature is achieved the product is transferred in the filling line for filling into cans. ·         Tomato ketchup / jam / jelly are prepared in the Steam jacketed kettles.  ·         Tomato ketchup is packed in round glass bottles which are filled on the bottling line. ·         The offer is total turnkey which includes all utilities.

We are well known for supplying of wide variety of Tomato Processing Plants.

• Feature: Low Noise, Durable
• Product Type: Kettle with Stradder
• Material: Stainless Steel
• Computerized: No
• Voltage: Volt
• Supply Ability: 1 Unit Per Day

• Automatic Grade: Automatic
• Material: Aluminium
• Brand: Deepak Engineers
• Design: Standard
• Product: Tomato
• Application: TOMATO PROCESSING PLANT

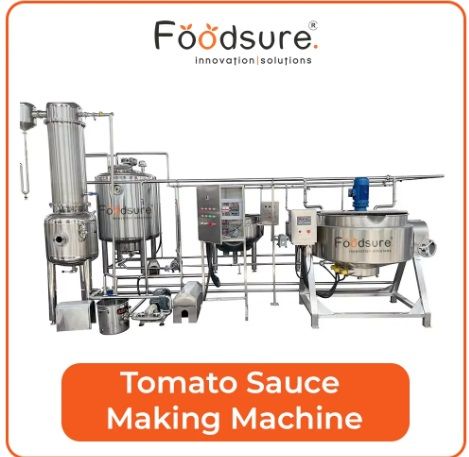

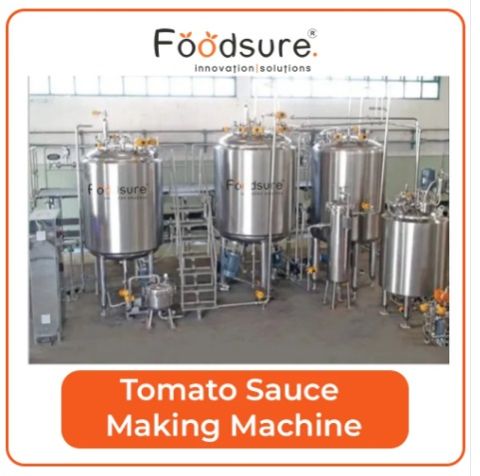

Pulp Making Machines are widely used in the Food Processing Industry In India to extract pulp from several fruits and vegetables like Mango, Guava, Litchi, Pear, Tomato, Grape, Passion fruit and many others. The Tomato Sauce Making Machine supplied by us are made from high grade tested raw materials and fit to all food regulations, The Tomato Sauce produced by this machine is of superior quality and good taste. The working efficiency of these machines depends on the size and quality of the product which is to be pulped. We offer a broad range of pulper machines with capacities ranging from 80KgHr to 3THr

• Automatic Grade: Automatic
• Country of Origin: Made in India
• End Product: Pulp/Puree
• Input Capacity: 1000 Ltrs
• Power Consumption: 3 phase, 415V
• Material of Construction: Stainless Steel , S.S.-304
• Design: Standard food grade model
• Brix Range: Suitable brix value
• Suitable For: Tomato
• Best tomato puree and tomato pulp: Tomato ketchup plant/ Puree /pulp
• End Products: Tomato puree or tomato ketchup

with firm commitment towards quality, we are manufacturing and supplying a comprehensive range of tomato puree and paste processing plant in the market. These are produced by the team of our hardworking experts following the established norms and guidelines of the industry. We have reasonably priced our range without compromising in terms of quality.

We present high quality Tomato Processing Plant in India and abroad. We also undertake turnkey projects for Tomato Processing Machine. The Tomato Processing Plant we offer is known for smooth operations, corrosion resistance, and energy efficiency. We offer Tomato Processing Plant at market leading prices. Commonly Used For MakingTomato pureeTomato PasteTomato KetchupTomato SauceStoring Peeled Tomato in cans Product Can Be Packed In CansBottlesAseptic bags in drum Capacity

Tomatoes are usually processed for paste and the processing line mainly includes five parts: fresh tomato receiving, pre-washing and sorting section; extracting section; concentrating section; pasteurizing or sterilizing section; aseptic filling section. It is mainly composed of discharge system, hydraulic convey system, bucket elevating, washing and sorting system, crushing system, pre-heating system, pulping and refining system, evaporating& concentrating system, sterilizing system, aseptic filling system. Tomato paste in aseptic drum can be further processed to ketchup, sauces, juices in tin canbottlepouch, etc.

• Voltage: 415 V
• Brand Name: Sealtech
• Material: Stainless Steel
• Power Source: Electric
• Capacity: up to 5 ton
• Frequency: 50/60 Hz

Come to us for the complete solution for product such as: Tomato saucetomato pureetomato pastetomato ketchup. We offer various integrated machines for blanching, pulping, processing of tomatoes for their puree and their final treatment for making ketchups. These plants can be of semi-automatic or fully automatic based on your customized requirement.
