Tool Grinding Machine Dealers

Functional Versatility: The instrument basically designed for sharpening and recondition wide range of high speed and carbide tipped tolls as side & face milling cutters, cylindrical cutters, angle cutters, convex & concave cutters, gear hobs, end mills, shell mills reamers, drills, taps etc. Construction: Wheel Head: It is of rigid construction and holds the spindle assembly. It can be fitted horizontally and swiveled vertically full 360 degree, for quick setting of compound angles. Wheel head is mounted on the rigid column, which can be raised/lowered up/down. Wheel head also can be adjusted 150 mm on cross direction. Wheel Head Spindle: Alloy steel hardened and ground spindle is mounted on precision preloaded radial ball bearings, which are greased packed. The grinding wheels can be mounted on both sides of the spindle and the wheels mount design is such that the spindle can be reversed. Work Table: This is mounted on the carriage and can be swiveled 45 degrees on either side of the column. This table has a smoother and rapid movement longitudinally on the carriage through a roller chain guided and supported in jibs. Slow movement is through a reduction gearbox. Change over from rapid to slow movement is through a push/pull knob. The precise movement on roller chain enables smooth, sensitive and accurate longitudinal movement even with heavy jobs. The adjustable reversing dogs on the work table are spring loaded for shockproof reversal of table. Auxiliary Table: This table is mounted on work table and in both horizontal and vertical planes. It can hold job up to 600 mm with the aid of raising blocks. It's spindle nose has ISO 50/MT 5 tapers and the spindle is mounted to taper roller bearings. Standard Equipment Universal cutter head with Mt-3 adopter sleeves Right hand, quick acting spring loaded center tail stock Left hand center tail stock Diamond holder (excluding) Plain tooth rest and extension with one blade Universal tooth rest and extension and micro adjustment to blade Center height gauge Center with morse taper no. 3 Wheel guards with guard holder - 3 nos Grounding wheels - 3 nos All necessary spanners and wrenches Suitable electrical Maintenance and instructions manual Special Accessories Cylindrical external attachment  Cylindrical internal attachment  A) swivel vice B) 2-way & 3-way swivel vice  Face, milling cutter attachment  Radius attachments  Long reamer grinding attachment  Gear milling cutter attachment  Angular wheel dressing attachment  Radius dressing attachment  Hob grinding attachment  Dust exhausting unit  Static wheel balancing unit  Collapsible bellows for column

• Brand Name: Ramato,Ramato
• Material: Casting,Casting
• Color: Black-grey
• Condition: New
• Application: Grinding Purpose
• Size: Customized
• Certification: ISO Certified
• Type: Belt Grinder
• Finishing: Polished

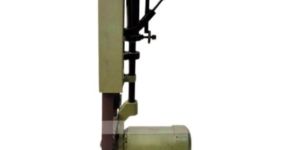

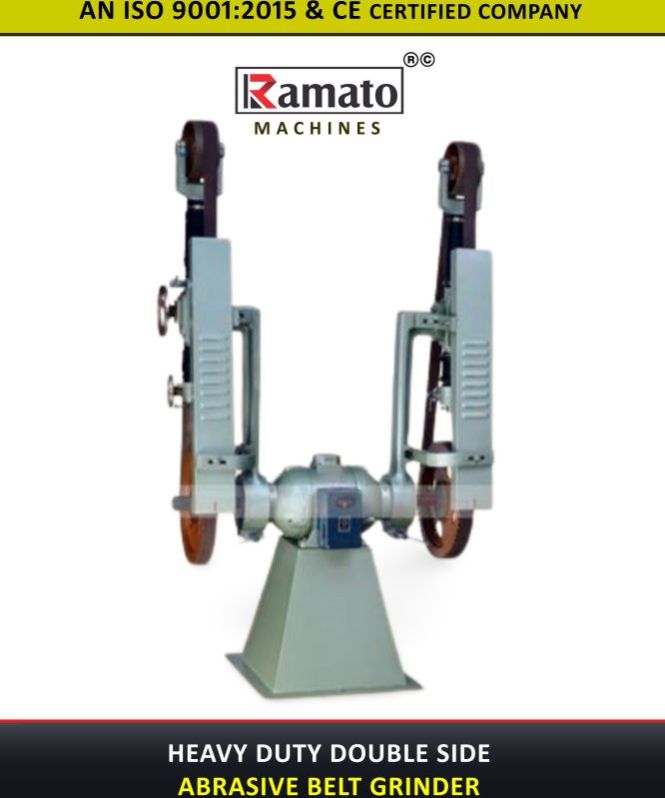

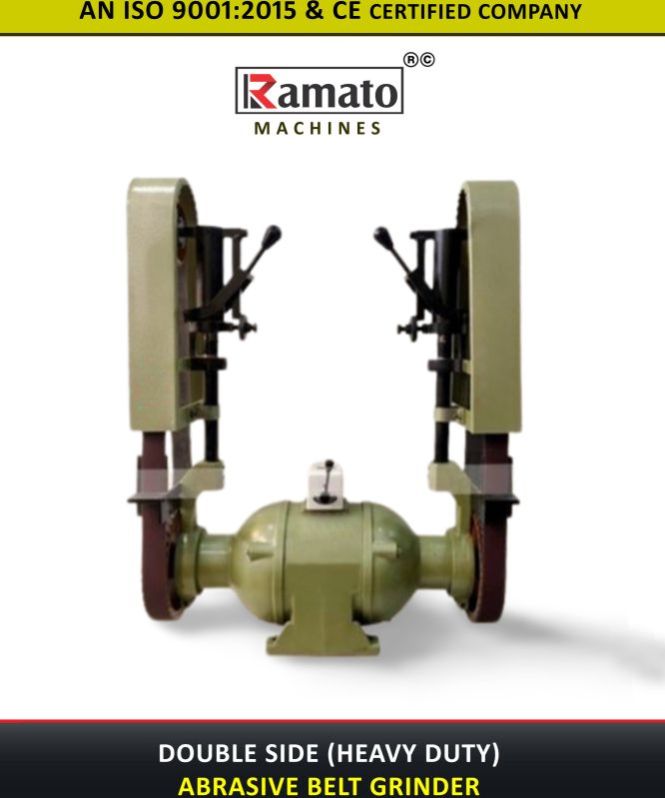

rajlaxmi machine tools offers hmp and ramato make all type of belt grinders as abrasive belt grinder, abrasive belt grinding machine, belt sander, belt and disc sander, 2x72 knife grinder, 4x36 belt sander, 4x48 wood sander, 6x48 belt and disc sander, 4x64 glass polisher, 6x64 glass polishing machine, 12x72 wide belt sander, 50x2000mm single side abrasive belt grinder, 75x2000mm double sided belt grinding machine, 50x3500mm lancer abrasive belt grinding machine, single head automatic belt grinder, lahte mounted belt grinder, three in one bench grinder, bench polisher, belt grinder, pedestal belt grinder, automatic belt grinder, hinges polishing machine, automatic polishing machine, manufacturer, dealer, exporter, supplier, rajkot gujarat bharat (india).

• Power Source: Electricity
• Speed (RPM): 500
• Voltage (V): 13
• Automatic Grade: Semi Automatic

The company is engaged in bringing forth high quality Tool Grinding Machine. Experienced engineers have designed the Tool Grinding Machine to ensure flawless performance. The Tool Grinding Machine is extensively used for grinding and mixing processes. Our Tool Grinding Machine can be availed at a reasonable price. Attributes : Sophisticated designRobust constructionLongevityHassle-free usage

"POWER MASTER" Cutting Tools Fine Grinding Machine Model-648. Features Reciprocating Table Size 400x170mm Mounted on Leaf-Spring at right hand side and adjustable tilting table on front side of the wheel on left side. Table tilting Angle (+)(-) 0 to 10 Degrees. Calibrated Slide for Linear Tool Approach. Tools Holder with Angle Guide. Drive 1.0 H.P., 3 Phase complete with Reversing Switch for clockwise and Anti-clockwise operation. Coolant Attachment comprising coolant Tank, Coolant Pump 0.075 K.W. or 0.1 H.P, Spout assembly and on-off Switch. Wheels: Left side G.C.Wheel 200 x 25 mm x 31.75. Right side Green Cup wheel 200 x 100 x 31.75. Over all Dimensions : 1150x550x1300 mm Approximate weight : 200 K.G.

We are one of the highly acknowledged firms engaged in providing Tool Grinding Machine to the customers. We are one of the successful Manufacturers, Exporters and Suppliers of Tool Grinding Machine from Punjab. Tool Grinding Machine is used in many industries for sharpening and grinding of cutters and dies of machines. It is available in different shapes and attachments with four grinding wheels. Best quality of raw material and latest technology is used for the fabrication of Tool Grinding Machine. We sell Tool Grinding Machine at market leading prices. Features : Hassle free performance Excellent functionality Rust proof body Rugged construction   Technical Specifications : One H.P. x 2600 R.P.M. Motor is fitted in it. These grinders are Industrial Duty Grinders complete with inbuilt drive suitable for operation on AC 415 Volts Three Phase or 220 / 230 V Single Phase, 50 Cycles Supply. Each grinder is complete with five grinding wheels. One fine & one coarse, two wheel Guards with exhaust outlets, two adjustable tools rests, rotary switch, condenser (only in single phase) in the base and connecting cable or terminal block.

Strict payment procedures are followed by us keeping in mind that no third party is involved in this; rely on us and we will offer you to make payments online or offline keeping all your details safe and secured. We are a quality-centralized firm and make use of only high quality material for manufacturing the offered lot. Also, we ensure that the material is sourced from the reliable places. Tool Grinding Machine has a smooth and polished surface with high precision and is available in different sizes.

• Make: TACCHELLA
• Condition: Good
• Stock No: STK0208
• Module: TACCHELLA TOOL & CUTER GRINDER
• Year of Manufacture: —
• Origin: —-

• Application: Grinding Cutters And Tools
• Type: Cutter Grinding Machine
• Certification: CE Certified
• Weight: 100-200kg, 200-300kg
• Color: Multi Colour
• Voltage: 220V
• Automatic Grade: Semi Automatic
• Power: 1-3kw, 3-6kw, 6-9kw
• Driven Type: Hydraulic
• Warranty: 5years

• Color: White, Blue, etc.
• Voltage: 110V, 220V
• Condition: New
• Power: 1-3kw
• Weight: 100-1000kg
• Automatic Grade: Automatic

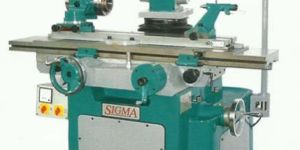

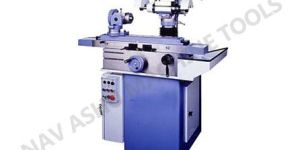

We serve the clients by making available Tool and Cutter Grinding Machine in compliance with set industrial standards. These Tool and Cutter Grinding Machines are manufactured using tested materials and offer superior quality. Our Tool and Cutter Grinding Machine is widely used for internal, external and surface grinding. Wheel-head pillar of large diameter makes our Tool and Cutter Grinding Machine highly suitable for damping vibrations. Attributes Of Our Tool and Cutter Grinding Machine High performance Durable service Low on maintenance Precision engineered

• Color: Grey
• Condition: Used
• Operating Type: Semi Automatic
• Brand Name: Hispano-suiza

TOOL & CUTTER GRINDING MACHINE Make : HISPANO - SUIZA

• Weight: 100-200kg
• Voltage: 220V
• Automatic Grade: Automatic
• Power: 1-3kw
• Driven Type: Electric
• Warranty: 1year

SAACKE UW I DA compact and flexible machine CNC Grinding Center with 5 fully controlled axes for the regrinding and manufacture of HSS- and carbide tools Automatic changing of the coolant nozzles with the grinding wheel packages Extremely quiet motor spindle with high power supply Pick-Up Tool Loader with pallets, alternative chain loader Grinding Wheel Changer with Shuttle Measuring probe for the automatic determination of the grinding wheel data

• Machine Name: Tool grinding-2-32
• Manufacturer: Christen
• Model: 02/01/32
• Country: Switzerland
• Stock-no.: S15071604
•  :

• Swing over table(Dia): 230 mm
• Maximum distance between centres: 305 mm
• Table longitudinal traverse: 325 mm
• Table cross traverse: 200 mm
• Table dimensions: 530 X 142 mm
• Tee slots width: 10 mm
• Centre of wheel above table: 290 mm
• Table swivel: 90°
• Head Swivel: 360 °
• Griding Spindle speed: 2800 rpm
• H.P. of motor: 1 HP
• Floor are occupred: 900 X 750 mm
• Height of the machine: 1550 mm

• Size of Table: 650mmx100mm
• Motor Power: 0.37/1KW/HP

For grinding of various tools and cutters like drill bits, milling cutters, reamers, taps etc. we offer high precision tool & cutter grinder machines.

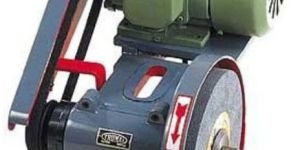

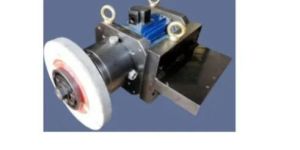

Tool Post Grinders are specially suited for use on Lathe for cylindrical internal and external grinding. Other Operation like; radius grinding,face grinding surface grinding and many more such operations could be performedeconomically by developing proper set-ups and mountings on lathe, Shapers and Planer Machines. The spindle is made of alloy steel, hardened and precision ground. The Spindle is supported on four Precision Angular Contact Bearings to take radial and axial loads.

• Port: Any Indian Port
• Weight: 4500 Kg.
• CNC or Not: CNC
• Supply Ability: 5 Unit/Units per Month
• After-sales Service Provided: Engineers available to service machinery overseas
• Certification: ISO 9001 2008
• Model Number: PMT/CNC/300 to 3000/250CH
• Max. Grinding Diameter: 300mm
• Max. Grinding Length: 300mm
• Dimension(L*W*H): 12 X 5 X 5
• Voltage: 10 HP

• Model: EEMTL71M0020
• Categories: Material Lab
• Motor power: 0.75/1 KW/HP
• Spindle speed (RPM): 3800/5600 rpm
• Longitudinal traverse (mm): 400 mm
• Cross traverse (mm): 200 mm
• Tilting in either direction: 180 degree
• Size of table: 750/115 mm

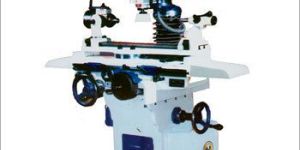

We are offering tool grinding machine. Hina universal tools & cutter grinder is a compact and unique tools & cutter grinder designed to perform almost all the regrinding operations accurately and quickly. Inspite of a very compact machine, it is rugged in design. Following are the special features incorporated in this model : a) functional parameters mm » maximum diameter of cutter that can be grind 250 mm » maximum distance between centres 300 mm » maximum length of cutting edges grind 260 mm » grinding spindle speeds 4600 rpm » swing diameter on standard cenres & work head 275 mm » working surface of table 450 x 125 » longitudinal traverse 200 mm » cross traverse 150 mm (b) packing & installation mm » base of the machine 599 x 430 » floor area occupied 765 x 1145 » height of the machine 1375 mm » weight of the machine with standard accessories 325 kg. » dimensions of packing box 1525x915x915 » gross weight approx 350 kg. » electric motor 0.5 hp - 2800 rpm

From our extensive range of machinery, we manufacture, export and supply supreme quality CNC Tool Grinding Machine. For the manufacturing of this machine, our professionals use superior quality components and pioneering technology in sync with the defined international standards. Specially designed to bend stiff and hard material pipes into small radius with ease, the offered CNC Tool Grinding Machine is available in varied models and specifications as per the application requirements of customers at reasonable rates.   Features:  Fully automatic  Easy operation  User friendly applications  Long service life Model – NCW300 – 3 Axis The CNC Tool Grinding Machine NCW 300 -3 Axis is designed for wide range of application with 3 axis CNC movement, combined with 9 manually adjustable rotating and Swivel axis, solve almost all grinding requirement. All movements are fully automatic and one operator can load several machines. Easy operation is ensured by user friendly menus, for flute, peripheral, radius taper or cylindrical grinding. In addition the spiral leads are measured with an electronic measuring probe and recorded in the control. The 3-D continuous path control with graphic display is also freely programmable and tooling data is entered vis ISO standard code to DIN 66025Simple input of grinding data with the help of direct operator dialogue, no programming knowledge is required. Short setup times and possibilities for greater economy and high grinding quality. regrinding made possible by repeatable, accurate and quick measuring of spiral lead by means of electronic measuring probe. Variable adjustable rotary and swivelling axis bring the work head in any required ( vertical or horizontal axis, up or down, left or right ) against the grinding spindle axis.

• Type: Grinder
• Voltage: 220V/380V 50Hz
• Power: 550W
• Brand Name: Shenoy
• Disc Diameter: 6 inch

• Country of Origin: India
• Type: Tool Grinders
• Certification: ISO 9001:2008
• Color: Blue
• Condition: New
• TOOL GRINDER: 220V, 415 V

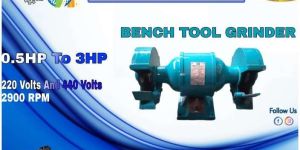

0.5 HP TO 3 HP TOOL GRINDER 2900 RPM, 220V, 415 V  50HZ

•  :
• Category: Workshop Machine
• Color: Bule & White Combo
• Maximum Diameter of cutter that can be grind: 350mm
• Motor: 2 hp
• Grinding Spindle Speed: 360mm
• Weight of the Machine (Approx): 700 Kg

TOOL CUTTER GRINDER MACHINE – INTERNAL AND EXTERNAL GRINDING OPERATION – SHARPENING AND MILLING CUTTER – HEAVY GRINDER – MODEL ATC2
