Transformer Tester Dealers

Machine Feature The advantages of TRT-27 Quick speed measurement of resistance High precision of class 0.2, good repetitiveness Digital display-of resistance and test current Automatic discharge and discharge warning True 4 terminal measurement No lead compensation required Saves 255 test results Built-in printer Optional: RS-232 interface Standard Accessories Flexible testing leads with alligator clamp -1 pair. Mains connecting cable. Earth Cable. Paper roll for printer, 1 no. Spare fuses 2 nos. Operating manual 1 no.

• Certification: ANSI 10/50IEC 60044, IEEE 30, IEEE 45
• Model: CTTx2 & CTTx5
• Memory Stick: 100 MB+
• Weight: 24.9kg
• Diamensions: 46.8 cm x 35.5 cm x 19.3 cm

Current transformer testing is an important part of the commissioning and maintenance of power systems. Protective relays can only operate adequately, under normal & fault conditions, if they receive the correct secondary current from the current transformaers. Therefore accurate CT testing to evaluate their performance under all conditions is essential to assure reliable operation of the protection system.

• Brand Name: TI
• Application: Testing
• Application: Transformer Routine Test Set
• Display Type: Digital
• Operating Temperature: Ambient
• Power: 3 Phase, AC
• Name: Transformer Routine Test Set
• Field Test: Light weight & Wheel base

We are Testing Instruments leading manufacturer of Transformer test equipment manufacturer. We also manufacturing Swithgear component testing instruments. To conduct Transformer Routine Test, we develop new equipement for easy and fast test as below listed: Transformer Voltage Ratio Test Transformer Magnetic Balance Test  Transformer Vector group Test as well Transformer no load loss Test. Testing Instruments located at Surat provide service to all over INDIA.

The DOC-2000™ is intended for de-energised distribution transformer testing. It can determine the presence of short circuits or an open circuit in the distribution transformer primary winding and also short circuits on the secondary winding. The DOC-2000™ is designed to be operated from an arial device or from the ground at the end of a hot stick without disconnecting the transformer's secondary windings. FEATURES Transformers up to 167 KVA single or three phase (Pole mount or Pad mount) Measurement by contact on the transformer primary bushing and neutral/ground Used on de-energized transformers Detects primary transformer short-circuit, open circuit, & secondary short circuits Visual and audible warning. Automatic self-test & Auto shut-off Low battery indicator Operating temperature range -25°C to 55°C

• Type: Testing Transformers
• Certification: IS : 2026
• Color: Blue
• Phase: Single Phase And Three Phase
• Application: Industrial
• Application: Industrial Use
• Feature: Proper Working
• Warrenty: 1yr
• Test Set Up: 1000 KVa

Transformer Testing Panel  :- veer electronics make transformer testing panel is designed to simplify the testing of transformer. Testing panel many function, which includes open circuit test, short circuit test, dvdf test,  hv test, each test may be conduct using simple test selection switch. All controls, instruction, and connection are panel-mounted for ease of access and viewing . features & specification :- 1.       capacity up to 1000kva (other ranges available on request) 2.       measurement : mains, open circuit test, short circuit test, dvdf test, hv test of transformer 3.       motorized control of output power 4.       test mode selector switch for easy operation 5.       over current protection for dvdf & hv test 6.       panel is mounted on a wheels for ease of movement 7.       intermediate transformer inside panel

• Brand Name: Jasma
• Display Type: Analog
• Voltage: 380 - 440 V
• Frequency: 50 - 60 Hz
• Phase: Three Phase
• Supply: AC

AJIT Transformer Oil Set is completely self contained, compact & portable unit giving smooth variable output voltage from zero to 60/80/100KV for testing the dielectric strength of insulating oil.The set has been specially designed for the testing the die electric breakdown Voltage of insulating liquids.Features : Manual or Motorised Version. Highly Sensitive Electronics Circuit Breaker Heavy Duty H.V. Transformer (Epoxy Cast) Tried, Proven & Tested design. Zero Interlock for output. Door Micro s/w for operator’s safety. Digital or Analog KV Meters. The oil cups are made of Acrylic & have removable electrodes for easy cleaning & polishing. The unique design of the lectrode holders eliminate oil leakages around shafts.ACCESSORIES SUPPLIED WITH EACH SET :1. OIL CUP WITH ONE SET OF ELECTRODES.2. ONSE SET OF GO/NO-GO GAUGES3. ONE SET OF INSTRUCTION MANUAL.SAFETYMaximum possible safety of the operator as well as the equipment is ensured by a safety conscious design. The voltage controller is inter locked at its minimum position so that H.V. can be switched ON only when the voltage controller is brought to zero after every test or interruption. The acrylic door leading to H.V. Terminals has a micro switch fitted so that opening of the acrylic door shuts the H.V. OFF.APPLICATIONAJIT oil set is completely self contained, compact & portable unit giving smooth variable output voltage from zero to 60/80/100KV for testing the dielectric strength of insulating oil. The set has been specially designed for testing the dielectric breakdown Voltage of insulating liquids as per the directions mentioned in IS 6792.OIL CELLThe oil cells are made of Acrylic & have removable electrodes for easy cleaning & polishing. The unique design of the electrode holders eliminate oil leakages around shafts.ACCESSORIES SUPPLIED WITH EACH SET : One set of instruction manual Oil Cell with one set of electrodes One set of GO/NO-GO Gauges

We present the best in class Transformer Oil Breakdown Tester, which is an equipment designed and produced to test the Electrical Stregth of Liquid Insulating Materials such as Transformer Oil, Capacitor Oil etc. The test set carries out test on these materials as per Indian Standard Specification IS 6792. This Oil Test Set is essential for Transformer & Switchgear Manufacturers, also for oil filtration units. Technical Specifications Input : 230/240 Volts 1 Ph 50 Hz AC+Output : 0-60 kV or 0-75 kV or 0-80 Kv or 0-100 kV Center Tap Earthed – Motorised & Manual Models AvailableCapacity : 600 VA for 60 Kv / 800 VA for 80 Kv / 1 KVA for 100 KvIndicating : Mains ‘ON’ & ‘HT ON’ LampsMetering Backlight LCD DisplayVoltmeter to monitor output Voltage Protection Zero Inter-Locking Arrangement Transparent Hood (Cover) on TEST CUP with door interlocking micro switchElectronic Fast Acting Over Current Tripping device sensing HT Current directly. Special Features Test To IS 6792 , IEC -156Ergonomic Design Complete User FriendlyResin Encapsulated HT TransformerTransparent High Impact Methyle Mathacrylate (Acrylic) Test CupRemovable Mushroom Head Electrode (IS: 6792 & IEC: 156)Duly Hardened Alloy Steel GO & NO GO gaugeMotorised cum Manual OperationUnit Housed in Portable Air Cooled Metal Casing.

Innovation is our forte and we strive to design and develop a precision-engineered range of Automatic Transformer Tester. These products are manufactured using latest technology and techniques by our experts. The entire range is appreciated for its automatic operation and accurate results.   Specifications:The most powerful and efficient transformer test system.One fixture: All test functions in one touch, decreasing errorSeparate fixture: High-voltage and low-voltage testing synchronously. Flexible combination Hi-pot Tester Transformer analyzer Impulse/surge tester Hi-pot tester Impulse/surge tester Transformer analyzer Impulse/surge tester Hi-pot tester Transformer analyzer

Input characteristics analysis 1) Measure Vrms(10-300V) Lrms(0.04-4A)W, PF, Hz, total harmonic and 0-50 component of harmonic 2) Accuracy: ±(0.4%reading + 0.1%range + 1digit) • Output characteristics analysis 1) Measure lamp voltage(1-60V)lamp current(03-20A)lamp power, crest factor and oscillatory frequency 2) Accuracy: Class 2 • It can print without compute, and provide the communication port for PC

Innovation is our forte and we strive to design and develop a precision-engineered range of Automatic Transformer Tester. These products are manufactured using latest technology and techniques by our experts. The entire range is appreciated for its automatic operation and accurate results.

To make payment procedures crystal clear and secured as well, we have trustworthy employees and they make certain that the transactions are done keeping in mind the guidelines and clients' convenience. Since, we are famous suppliers of Transformer Oil Tester, buyers can place order with us and quote their prices.

The latest Transformer Testing Equipment TTR available from Megger is the TTR100, a handheld, robust, lightweight and battery operated instrument. This TTR will complement several existing Megger transformer test products and will offer functions, such as winding resistance and polarity. These functions, as well as the phase angle measurement function, can be switched off when not required, With a turn ratio of 20,000:1, the TTR100 offers the highest turns ratio accuracy in the industry of 0.1%. The TTR100 features special software capabilities.

• Frequency Range:: 20Hz– 200kHz, 0.5mHz resolution
• Signal amplitude range:: 5mV to 10Vrms, 100μV resolution

Wider impedance test range and better stability for small signal test, Built-in 0-100mA0-10V bias source (standard) or 1A bias source (optional), Diode PN characteristic detection can test all parameters of network transformer.Improved high turn ratio and weak coupling transformer test ability, To display one or two groups of primary and secondary parameters is selectable in LCR test.Flexible time-labeling system: time of file setting, calibration and deduction can be saved.

• Power Source: Electric
• Application: Industrial Use

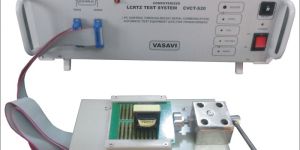

Computerized LCRTZ Test System (CVCT-S20) Ideal for fast and fool proof testing of COILS AND SMALL TRANSFORMERS like SMPS transformers, Telecom transformers (HYBRID, POT CORE, RM-CORE), Pulse transformers etc. The systems scans at one stroke, all the windings of a transformer and tests as per definition of test procedure. The test procedure can be pre-programmed and stored under User friendly menu driven software . Any semi-skilled and unskilled person can be engaged for actual testing purpose. Can Select test frequency, pin number, parameters, test conditions, limits for each test. Test any pin to any other pin any defined parameter.    PC Control Software The instrument is controlled through external PC through RS232C port. The system stores the test results to database tables. The system software works on Windows platform. View & Print Test Results (Database) All the test results will be transferred to a database files with connected file name. The database table is compatible to fox-pro table. You can import these files to other software for creating graphs and other analysis.

Tests turns ratio, phase displacement, excitation current, vector group, winding resistance and polarity. Fully automatic; fast; easy-to-use; handheld; robust; lightweight.Battery powered with power-saving and shutdown function.Alphanumeric keyboard. RS232 for data transfer and printing.Stores 200 test results and 100 user-defined transformer test settings. The latest Transformer Testing Equipment TTR available from Megger is the TTR100, a handheld, robust, lightweight and battery operated instrument. This TTR will complement several existing Megger transformer test products and will offer functions, such as winding resistance and polarity. These functions, as well as the phase angle measurement function, can be switched off when not required. With a turn ratio of 20,000:1, the TTR100 offers the highest turns ratio accuracy in the industry of 0.1%. The TTR100 features special software capabilities.
