Travelling Microscope Dealers

Slide Box, Pipette Stand, Conical Flasks, Sample Container, Beakers

Model No .: KG 069A Travelling Microscopes     2 Axis Movement. Having movement horizontally and vertically Vernier reading precise to 0.01 mm       Model No .: KG 069B Travelling Microscopes     3 Axis Movement. Horizontal, vertical and right ang3W LED transverse motion. Rack and pinion mechanism Micrometer. Resolution 10 micron.

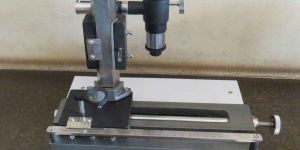

We are renowned as one of the preeminent Travelling Microscopes Exporters from India. The Travel Lab Microscopes offered by us includes a heavy cast iron base fitted with three leveling screws with the top machined over which slides a gun metal carriage. A microscope tube is attached with a 10x Ramsaden Eye Piece with cross line graticule & an Achromatic 2"or 3" focal length objective of high quality. The Motorized Traveling Microscopes travel 17 cms horizontally and 14 cms vertically and guarantees accurate vernier reading 0.02 or 0.01 mm. with swing out magnifier for reading vernier.

Model with horizontal & vertical scales. the bed is of cast iron and accurately machined. the horizontal carriage is machined and inter-ground on the guide-ways of horizontal bed. the carriage is fitted with vertical brass pillar carrying a microscope tube on a ground fitted vertical carriage. the base is fitted with two leveling screws. horizontal scale is 18 cms. and vertical 16 cms. Long. both the horizontal scale and vertical carriages are provided with slow motions, which travels app. 3 cms. In one traverse. microscope tube is provided with rack and pinion. a milky white perspex platform is provided on the horizontal bed. vernier constant 0.001 cms.

• Brand Name: KAPUR

Travelling microscope travelling microscope :- travelling microscope are specially designed to meet the requirements of research colleges, school and industrial laboratories. They are used for accurate measurements of the diameters of wool and nylon. They are also used in physics laboratory for more accurate determination of small. Further details: with horizontal and vertical scales. The bed is of cast iron and accurately machined. The horizontal carriage is machined and interground on the guide ways of the horizontal bed. The carriage is fitted with vertical brass pillar carrying a microscope tube on a ground fitted vertical carriage. The base is fitted with two levelling screws horizontal scale is 20 cm and vertical 16 cms. Both the horizontal scale and vertical carriages are provided with slow motions which travels app. 3 cms in one traverse. Microscope tube is provided with rack and pinion. A milky white perspex platform is provided on the horizontal bed. Vernier constant 0.001cms. Complete in well polished wooden case. Having stainless steel scale.

• Features: User friendly design , High accuracy , Power fine focus .

We provide our clients with travelling microscope which suit their requirements and are available in a wide range of specifications. The travelling microscope are easy to use and are accurately dimensioned. Our travelling microscope have excellent design and high quality achromatic 2"or 3" focal length objective. feature sturdy cast iron base with 3 leveling screwsmicroscope tube attached with a 10x ramsaden eye piece with cross line graticulehorizontal 17 cms, vertical 14 cms travel for motorized traveling microscopesaccurate vernier reading 0.02 or 0.01 mmswing out magnifier for reading vernier

• Country of Origin: India
• Type: Laboratory Scales
• Application: Laboratory Use
• Weight: 3-5kg
• Color: Black
• Feature: High Accuracy
• Condition: New
• Eyepieces: WF10X
• Portable Style: Non Portable
• Brand Name: MAYALAB

• Application: Science Lab
• Feature: Durable, Uv Protective
• Warranty: 1yrs
• Portable Style: Portable
• Model: GWL661

A heavy cast iron base fitted with leveling screws top machined over which slides a metal carriage which can be calmed at desired position. The stage carriers a vernier that travels over a stainless steel scale graduated in mm 0 to 16.5cms. A gunmetal pillar fixed to the stage has an embedded S.S. scale graduated 0 to 15cms and cariers a vertical travelling carriage with vernier horizontal stage for placing object is fitted with milky plate. The microscopic tube on vertical travelling carriage if focused by rack and pinion and has an achromatic objective, a ramsden eye piece 10x and a cross line graticule. Vernier read – in 0.1 mm supplied in wooden case.

• Country of Origin: India
• Type: Travelling Microscope
• Application: Science Lab
• Objective: Achromatic 2x (FL-50mm)
• Eye Piece: 10x with cross hair line
• Model: VM-1

Our Travelling microscope (VM-1) consists of a cast iron base with machined vee-top surface and is fitted with three levelling screws, one being fixed the microscopes can travel Horizontally 22 cm. and vertically 15 cms. with the help of slides. Two slow motion knobs are provided for taking accurate readings. Vernier readings 0.01 mm. or 0.02 mm. Milky cenolite sheet is provided on the base for the placing objects on horizontal stage. Nicely packed in wooden box. with following optics:   SM-6  Spectrometer 6” (1 Min)  Available in Size - 7" (1 Min) & (30 Sec) also VM-1 Travelling Microscope VM-2B Travelling Microscope (Deluxe Type) VM-3 Newton’s Ring Microscope

• Type: Travelling Microscope
• Application: Science Lab
• Weight: 5-10kg
• Color: Grey
• Condition: New
• Feature: Actual View Quality
• Eyepieces: WF10X
• Portable Style: Non Portable
• Product Name: 12000

Are you looking for the best travelling microscope manufacturer in Haryana? Krishna International Co. is the best company for these kinds of products. Our company has a travelling microscope which is designed specially to meet the needs and requirements of our customers. Uses These are used in colleges, research, schools and even in industrial laboratories. These are used for accurate measurement of the diameter of nylon and wool as well. They are used in Physics Laboratories for more accurate results of liquid levels and also manometers. The refractive index of the liquids and also the surface tension and the viscosity experiments. These consists of the cast iron base with the machined top surfaces and it is fitted with three levelling screws. Being the best travelling microscope supplier we ensure that our products are delivered on time. We make sure that these are packaged well so that it doesn’t get damaged in the transit. Call us to know more about our products and services.

• Features: Easy to carry, Light weight and portable, Desirable results, Light weight and portable, Long lasting material quality .

We are offering travelling microscope the main body has 1/2mm x 165mm graduated horizontal scale. the vertical column has 1/2mm x 120mm graduated vertical scale, which take kinetically mounted carriage which is mounted the microscope. The microscope can be fitted to either side of the vertical column to suit the user’s preference, and can be set to the horizontal or vertical. The carriage has vernier and reading magnifier. both carriages have locking screws, releasing which enables free manual movement of the carriages. Fine adjustment is by means of the fine screw thread with large dia knurled head at the end of each side. The working plateform fitted with white perspex milky sheet. microscope : main tube has a side arm which attached to the vertical carriage and fitted with objective, eyepiece and cross hair / cross graticule, microscope have rack & pinion fine focusing large dia knob and can be set vertically or horizontally. objective : achromatic high resolution fl.75mm. eye piece : ramsden 10x with cross hair. horizontal scale : 165mm graduated in 1/2mm division with every centimeter numbered. vertical scale : 120mm graduated in 1/2mm division with every centimeter numbered. veriner : reading to 0.01mm

Laboratory Microscope

• Size: Standard

Travelling Microscope 2 Motion :  With horizontal and vertical scales. The bed is of cast iron and accurately machined. The horizontal carriage is machined and inters ground on the guide ways of the horizontal bed. The carriage is fitted with vertical brass pillar carrying a microscope tube on a ground fitted vertical carriage. The base is fitting with two leveling screws Horizontal scale is 20cms and vertical 15cms. Long. Both the horizontal scale and vertical carriages are provided with slow motions, which travels app. 3cms in one traverse. Microscope tube is provided with rack & pinion. A milk white Perspex platform is provided on the horizontal bed. Vernier constant 0.001cms. Having stainless steel scale. Complete in well-polished wooden case.   Application / Usage :- To determine the refractive index of a glass slab using a travelling microscope.     Deluxe Travelling Microscope 3 motion : For certain measurement it is found more convenient to provide sliding motion to the microscope tube across the stage, in addition to all other usual movements. A sliding carriage is fitted on the top carriage which moves at the right angle to the horizontal motion by means of rack and pinion. This motion is also graduated in millimeters having vernier reading of 0.1mm. Supplied in a superior quality wooden box.   Application / Usage :- To determine the refractive index of a glass slab using a travelling microscope.
