Twin Channel Dealers

• Driven Type: Hydraulic
• Condition: New
• Certification: ISO 9001:2008 Certified
• Type: Rolling Mill
• Warranty: 2 Years
• Country of Origin: India
• Brand Name: PIYALI GROUP
• Material: Stainless Steel
• Finishing: Polished
• Usage: Steel Industry
• Packaging Type: Wooden box
• Specialities: Rust Proof, Long Life, High Performance, Easy To Operate
• After-Sales Service Provided: yes

• Bar Size: Up to 40 mm in diameter
• Maximum speed: 25 meters per second

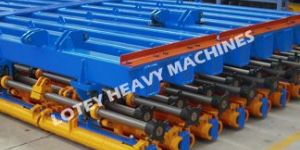

Twin channel machine is installed along the side of entrance of the cooling bed. It comprises of alternative opening flaps through a hydraulic cylinder and CAM systems. The bars enters the closed flap and falls on the straightening rake type cooling bed that moves on the fixed and moving rake to the mill. The channels are closed to ensure the complete safety of operator. It is an outstanding system because the bar is handled in a close channel, preventing any risk of accident. It is a highly demanded feature in the high speed rolling system. Special design configuration of the twin channels makes feasible to operate in combination with braking pinch rolls, reducing the length of run-in. The twin channel is the proven solution for bar handling at cooling bed at high speeds. It is an excellent system for heavy duty rolling mills.   Features Twin water cooled C-type channels with water cooling C type channels with water quenching system Support for the twin channel and drive equipments Cam system to open and close the pipes Hydraulic drive for cam operation It minimizes human involvement in hazardous zone of the mill   Applications Use in rolling mill plants High speed handling of bars at cooling beds Use in heavy production mill   We, at Harjot International are quite ahead in the field of technology. We produce the best quality technology and designs in the engineering field. If you have similar requirements and do select our product and we would give you the best price as well as the quality. We are Twin Channel India Exporters & Suppliers in India. We are ahead in the field of technology and manufacturing. So, if you have been looking for the most affordable options then you should choose something that will help you with everything. Often newer businesses look out for the good quality options. If you really wish to move ahead then opt for the best things. We are leading Twin Channel Manufacturers And Suppliers Uttrakhand. Our products are good and they would help you get better ROI. Also, you must make sure that you give us the specifications. We would design the product as per the design. We are dealer and supplier in the best heavy equipments and if you wish to stand ahead in the rat race then opt for our products.   We have global standards when it comes to project management and execution. We have big names as our customers. So, don’t look here and there as we would make your dreams come true. The products we provide would be perfect in finish and this would show how professional we are.

we are manufacturer of automtaic twin channel unit for automatic cooling beds of hot steel rolling mills. hydraulic twin channel  mechanical twin channel for cooling bed. high speed bar receiving twin channel..

We bring forth high quality Twin Channel that is manufactured using quality materials. The Twin Channel carries the bar in a closed channel, minimizing the accident hazards. Our range of Twin Channels is known for its superior quality and durability among the clients. Moreover, its operation is automated and is guided by the discharge of the rods from dividing shear. Available For Bar sizes up to 40mm in die and stock speeds as high as 25 mtrs per second

This is an excellent system as it carries the bar in a closed channel, minimizing the accident hazards. Specifically while carrying out high speed rolling the system is an absolute necessity.Its design features makes it possible to work in conjunction with braking pinch rolls, minimizing the length of run-in. The operations of twin channel are automated and are guided by the discharge of the rods from dividing shear. An innovative idea for cast iron center boxes has drastically brought down maintenance time.

• Categories: ELECTRONIC GAUGES, Microprocessor Based Twin Channel

Microprocessor based Twin Channel: 2043 Digital 8 character, LED type, 7 segment digital display shows measurements either in absolute or comparative form Exclusive 8-character alphanumeric dot-matrix type digital display for menu setting Two metric & two inch measuring ranges FEATURES: State-of-the-art technology with host of features, a must for today’s shop process quality engineering Two level password, prevents unauthorized alteration Multiple-level display intensity for operators comfort Inch & metric measuring ranges Static & dynamic measurement Permits incorporation of complex formulae for probe combination Display of tolerance and control limit status – supports process control Classifies tolerance band into uniform or non-uniform tailor made grades Permits menu entries up to 16 different settings for quick application changeover Wide range of process control based electrical outputs facilitates automation Auto calibration Compatible with half bridge and LVDT type inductive measuring probe RS232 based interface with real time tagged measurements Aesthetically appealing, sturdy and ergonomic design, suitable for shop-floor applications USB interface to PC and flash drive

We are offering twin channel. The twin channel offers solution to bar handling at cooling bed at high speeds. Twin channels are available for bar sizes up to 40mm in India and stock speeds as high as 30meters per second.

• Brand Name: AVTAR

We are offering twin channel. The twin channel is used to collect the tmt bars leaving the quenching boxes after being sheared by the flying shear in two strands. These channel comprises of ci central box, water cooled to prevent warping during rolling, and c-type ci channels which are suspended from a longitudinal structural. The closed c-type channels ensure highest level safety during the operation. This is an excellent system as the bar is carried in the close channel , minimizing the risk of accident. It is the most desirable feature in a high speed rolling system. unique design configuration of the twin channels makes possible to work in conjunction with braking pinch rolls, minimizing the length of run-in. The automatic twin channels is guided by the discharge of the rods from dividing shear. specifications bar size: upto 40mm in dia and stock maximum speed: 25 mtrs per second features twin water-cooled c-type channels with water cooling arrangement. Supporting arrangement for the twin-channel and drive system. Cam device for opening closing of the pipes. Hydraulic drive for operation of the cams.

AKSHI ENGINEERS offered high grade Twin Channel installed along entry side of the cooling bed to minimize the risk of accidents while transferring the bars. The basic and prime use of twin channel is to collect the TMT bars leaving the quenching boxes after being sheared by the flying shear in two strands The twin channels capable of guiding the discharge of the rods from dividing shear. The twin channel is capable of collecting bars with size up to 40mm in diameter and have a maximum speed of about 25 meters per second. The closed twin channels ensure that the bars do not come out and maintain safely of the people involved in the process. The opening and closing of the channels is done through cam-shaft and follower rollers. The twin channels consist of alternatively opening flaps through a hydraulic cylinder and CAM system. The bar enters the closed flap that opens when the full bar has been obtained. It has a free fall on the straightening pockets of the rake type cooling bed, which moves on the fixed & moving rakes to the mill run out table.

• Metric Ranges: ±10, ±30, ±100, ±300, ±1000 µm
• INCH Ranges: ±0.0003, ±0.001, ±0.003, ±0.01, ±0.03 inch

254 mm tall analogue red LED bar graph display with 100 segments,Variable bar graph intensity selection,5 Metric and 5 Inch ranges,Twin channel gauge units with selectable probe combinations of +A, -A, +B, -B, +A +B, +A -B, -A +B, -A -B,Inch and Metric measuring ranges,RED, GREEN and YELLOW tolerance lamps for REJECT, ACCEPT and REWORK indications,RS232 data output,Comprehensive outputs for further processing,Compatible with Half-bridge and LVDT type inductive measuring probes,Sturdy, Ergonomic design, suitable for shop floor environment,Splash proof and sealed against dust,Add-on Modules available for various applications e.g. Light Grading Module, Relay Module, etc,Mains supply 220 volts AC.
