Unitized Substation Dealers

• Certification: CE Certified
• Application: Power Supplying
• Frequency: 50hz
• Automatic Grade: Automatic
• Warranty: 1year
• Rated Voltage: 12kV & 24 kV

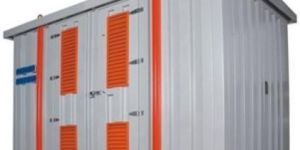

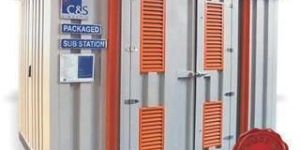

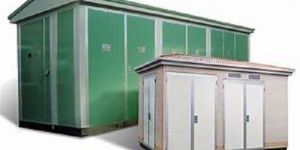

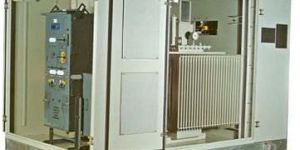

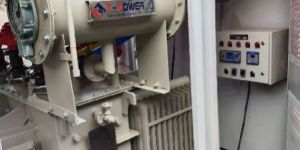

Zeba  Automation package substations are available upto 24KV. The fully equipped package substation (PSS),comprises of outdoor duty enclosure, medium voltage switchgear,distribution transformer, low voltage panel & AFPCR panel (optional) is a state of art equipment for all your power distribution requirements.The factory assembled self contained package substation is a complete weather proof solution.It only requires to connect incoming and outgoing cables and hence the site work involved is an absolute minimum.   FEATURES Self contained package substation All the equipment packed in a separate compartment All compartments are individually accessible Individual Door Operated lamp for illumination purpose   BENEFITS Complete weather Proof solution Ready to position solution Four lifting eyes for ease of lifting Minimum site   Enclosure outdoor Enclosure outdoor body is made of Galvanised sheet steel in corrugated type design for proper heat dissipation.The enclosure is painted with epoxy based powder paint (colour-RAL 7032) suitable for outdoor installations.The compartments are provided with separate doors and pad locking arrangements.Each compartment is fitted with door operated lamp for illumination purpose.For safety purpose,the transformer compartment doors are fitted with arc reflectors.   Medium Voltage (MV) switchgear The Medium Voltage (MV) switchgear compartment is equipped with C&S make SF6 insulated Ring Main Unit.The GC is equipped with SF6 insulated sealed tank, Switch disconnectors and Vacuum circuit breakers.The ring main unit is designed and tested for internal Arc as per IEC 62271-200.The product conforms to IEC62271-1, IEC 62271-100, IEC 62271-103 and IEC 622271-200.   Distribution transformer The distribution transformer is equipped with professionally designed ventilation openings for air flow to keep transformer cool.The compartment is provided with a pressure relief system integrated in the ceiling. An optional floor mesh is also provided to restrict the entry of small animals and other foreign objects.The compartment can accommodate both Oil immersed and Dry type transformers.The product conforms to IEC 2026 and IS 11171.

• Voltage: 110V, 220V
• Application: Electricity Controlling
• Power Type: AC, DC
• Power: 1-3kw, 3-6kw
• Power Source: Electric
• Automation Grade: Fully Automatic

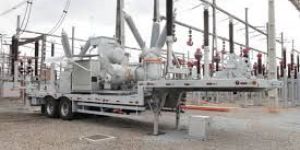

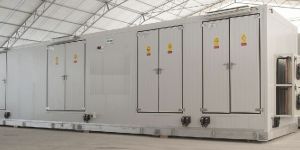

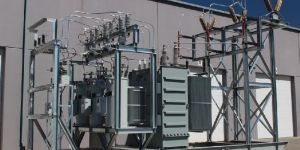

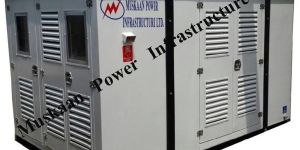

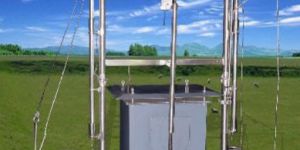

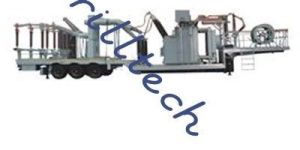

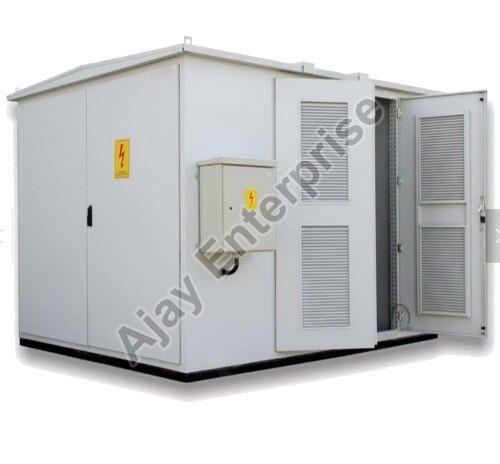

Mobile Substations are one of the most demanded products listed on theBrilltech’s product catalogue. This great surge in demand for Mobile Power Substations stems from the premium quality of the machine as well as the advanced features and functionality that is incorporated into it. The unique design and compact nature of our Mobile Substation makes it stand out among other similar products available in the market. Widely used in different electrical industries to bring electricity temporarily to regions that have lost it; Brilltech’s Mobile Power Substations come equipped with wheels that make them easy to transport and move around. We also use premium quality materials and electrical components to manufacture these electrical mobile substations that give it robust construction and durable structure. Over the years, we have been able to find Kenya,Nigeria,Qatar,Zealand,Taiwan among the best Mobile Substation Manufacturers and Suppliers in India and have also made our mark in international destinations like Middle East and African markets.

• KVA: Up to 1600
• P.V: 3300/6600/11000
• S.V: 433/550/660
• Tap: On-Load
• Vector: DYN11
• Duty: Continuous
• Winding: Copper
• Srd: IEC61330/IEC:62271/IP23D/IP54

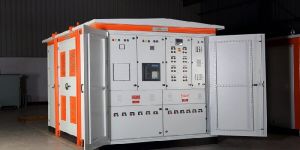

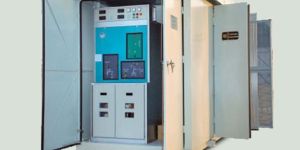

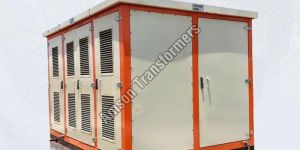

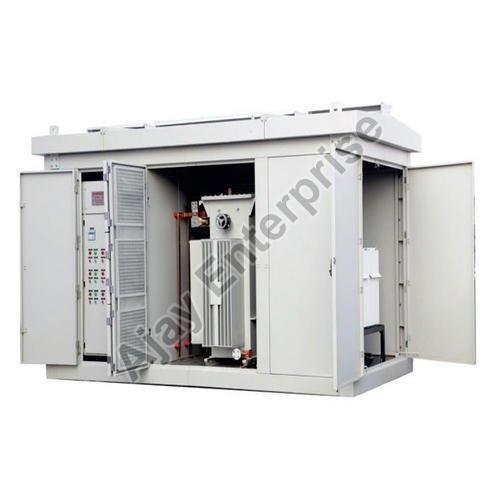

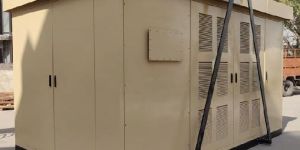

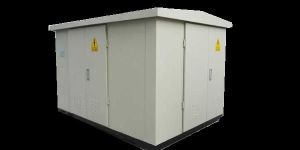

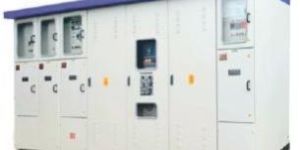

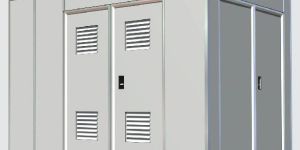

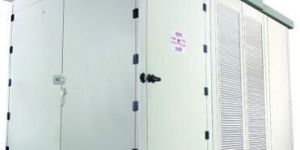

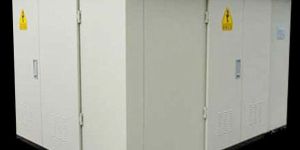

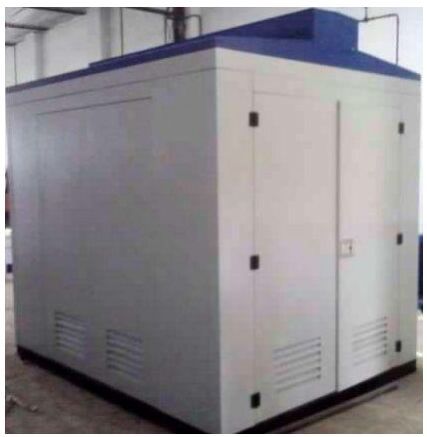

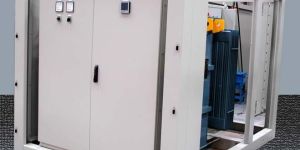

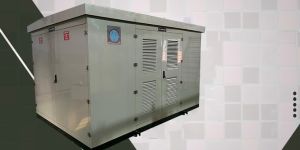

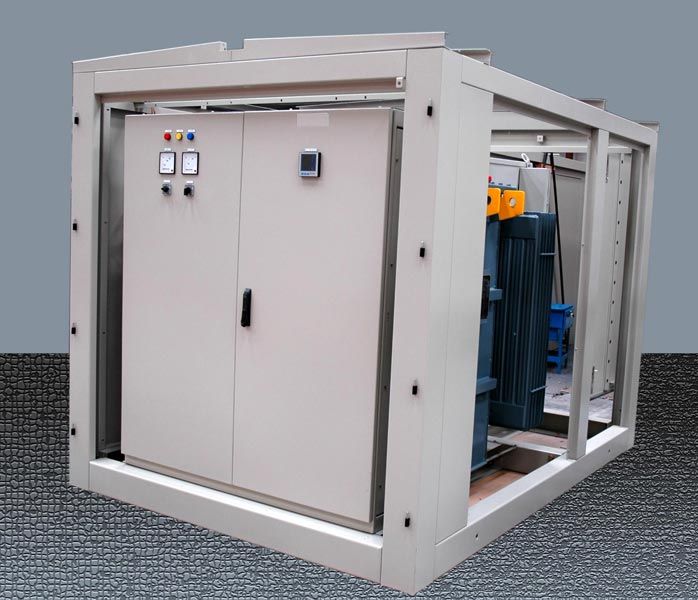

Compact substations are used for energy transformation in secondary distribution network from MV to LV or LV to MV. New India’s Compact Substations comprise of an enclosure containing medium voltage (MV) switchgear, distribution transformers, low voltage (LV) switchboards – ALL IN ONE ENCLOSURE. These are best suited for inter-connections and auxiliary equipment to supply low voltage energy from medium voltage systems. These substations are typically installed in locations accessible to the public and ensure protection for all people according to specified service conditions. These are designed to be aesthetically pleasing and secure from vandalism. A CSS saves space, extra wiring, extra connectivity and above all keeps the location clean and safe. The Substation is designed to withstand moisture, dirt and condensation in coastal areas. It is completely lockable in order to prevent unauthorized access. Apart from having obvious advantages such as space saving, plug & play type construction, portability, minimal exposed cabling / wiring etc., our Compact Substations are a very cost effective solution. SALIENT FEATURES High Safety. Good Aesthetics. Cast Saving as compared to Conventional substations. Compact size and space saving. Plug and play advantage and zero set-up and Installation time. Enclosure protects internal equipments against environmental Hazards. The compartmentalizes construction prevents accidental to energized areas. Tailored configuration to customer needs. Variety and choices for MV/LV switchgear. Low power loss and low noise transformer. Number of feeders for LV can be customer specific. Easy to install. Modern manufacturing techniques ensure cost effectiveness, relliability and long trouble free performances. Contains Pre fabricated EnclosureDistribution TransformerMedium Voltage SwitchgearLow Voltage Switchboard Connectors etc.Natural Air Cooling

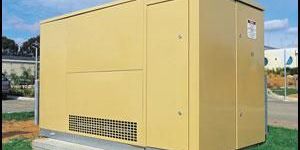

We are a prominent name offering excellent array of Compact Substation. We have incorporated latest and avant-garde machines, advanced technology along with latest manufacturing techniques and along with this, our team use certified raw component. Our veteran professionals keep a close check on the production of Substation. We are capable of delivering the same in premium packaging material.

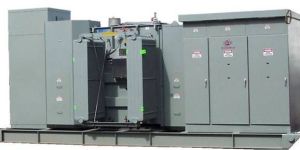

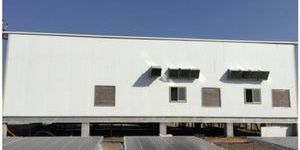

This is a portable substation. Easily assembled and highly compatible with environment. it maintains room temperature. walls are insulated with high density thermocole. it looks like a cottage.

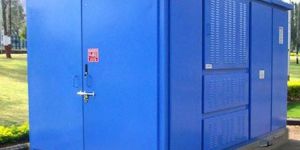

CG offers Distribution Unit Substations, including Mini and Micro type. These substations are manufactured at our facilities in India and Ireland.

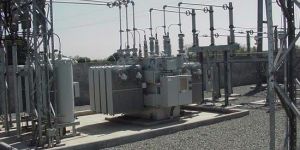

We design high grade RMW W Substations with help of our extraordinary quality raw material vendor. The substations are designed for durability, sturdiness, endurance and efficacy. We are a leading manufacturer, exporter and supplier from Nasik, Maharashtra, offering the most reputed RMW W Substations at the best prices. These power stations are modelled to offer flawless transformer features and added benefits.

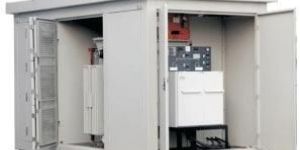

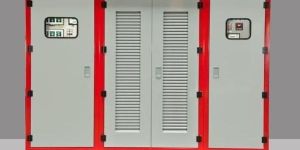

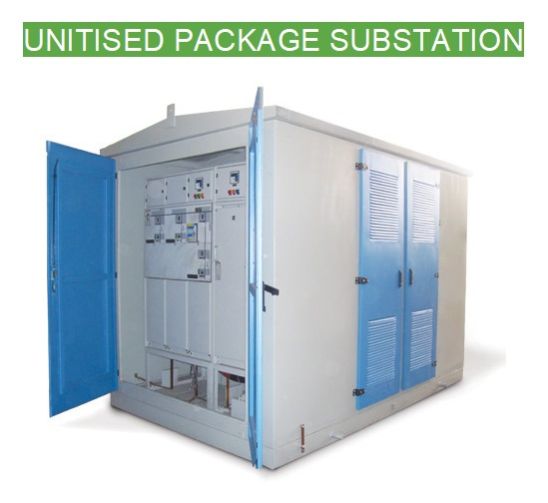

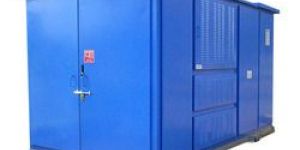

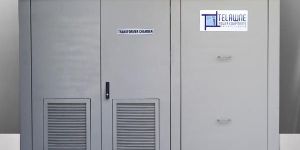

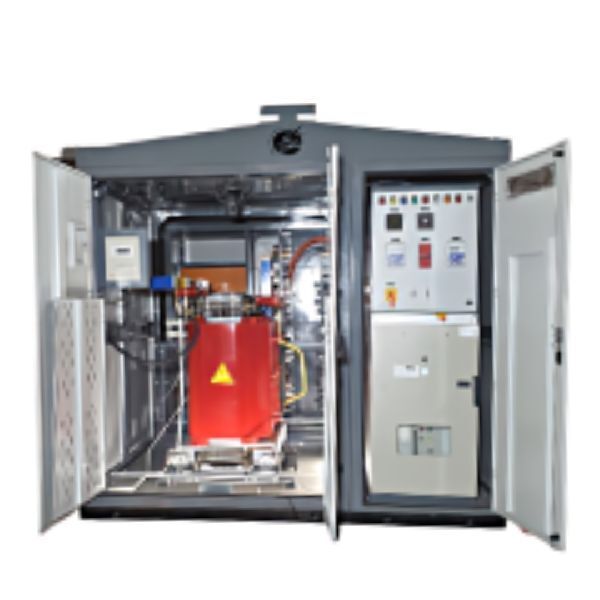

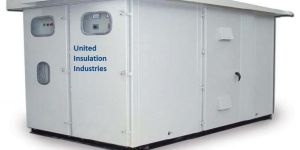

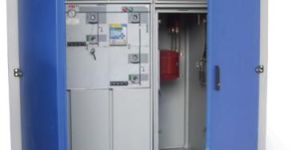

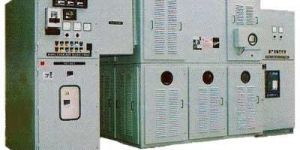

The Unitised Substation are designed for locations where space and safety is a concern, population density is high, such as urban centre. Unitised Substation is divided in three section or compartment – Medium Voltage, Transformer and Low Voltage Switchboard. The Unitised Substations offered by us, are designed in accordance with IS 14786 / IEC 61330 standards with degree of protection for IP23 for Transformer and IP 54 for MV & LV compartments or as per customer requirement.

• Certification: ISO 9001:2008 Certified
• Output Type: AC Single Phase
• Frequency: 50hz
• Cooling System: Air Cooling
• Production Power: 25-50kw
• Material: Metal
• Warranty: 1 year

Features High load bearing capacity Ability to handle fluctuating temperatures Low maintenance Integrated protection and control features Compact design that occupies small area Robust construction Mobile in nature with easy to move wheels assembly   Widely Used In Electrical Assemblies Power plants Isolated areas with no power supply

• Frequency: 50-60 Hz
• Transformer Type: Power Transformer
• Phase: Three Phase
• Rated Current: 630 A
• Ambient Temperature: -5 to +40deg C
• Output voltage: 440 kv

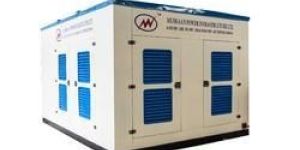

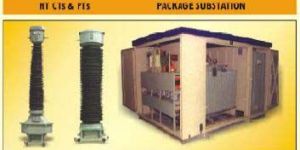

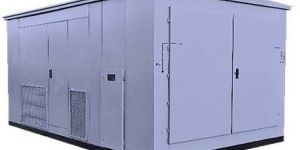

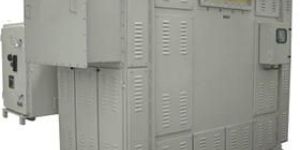

These Package Substations are largely required for fire hazardous and compact places. A unitized substation is a compact arrangement, which simplifies conventional substation design. Substation housing is divided into three compartments i.e. the HV Compartment, the Transformer Compartment and the LV Compartment.Advantages Reduced electrical losses as USS can be installed near load centres. Total economy in cost. Higher degree of safety and operational reliability is achieved by HT and LT switchgears and protective relays to avoid overloading. Reduction in logistic cost as USS is delivered as a single unit. Low civil foundation cost.

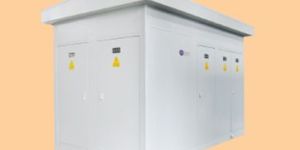

The unitized substation is a state-of-the-art system which simplifies conventional substation design. SURYA’S fully engineered factory built design, is tailor made to customer needs. the company takes the total responsibility of engineering and building the complete USS are subject to stringent internal quality checks. The housing is made from a composition of sheet steel having thickness of 2mm,1.5mm mild steel and 4mm structure member base frame and then power coated. Unitized substations may be indoor or outdoor, with a selection of high - voltage incoming sections, a choice of transformers types and an arrangement of switchgear to suit the application. Most switchgear to suit the application. Most switchgear assemblies are configured as unit substations. Unitized substation follow the system concept of locating transformers as close as practicable to areas of load concentration at utilization voltages, thus minimizing the lengths of secondary distribution cables and buses.   Features Of United Substation Transformers Specific arrangements of switchgear minimizes installation expenses. Lengths of cables and buses are minimized, reducing the likelihood of faults and improving voltage regulation. Wide choice of components and ratings to meet exact application requirement allows for extreme flexibility. Complete coordination, both mechanical and electrical ,provides for improved service continuity. Salient Features Compact in construction, occupies less floor space and does not effect the elevation of commercial complex. Easy to operate and maintain In accessible to live parts. Fully compartmentalized design. Substation housing is divided into three compartments i.e. the HV compartment ,the transformer compartment and the LV compartment All fastness are SS/Steel Zinc plated. The roof is special, heating due to solar radiation is minimized by the use of double skin roof and having slanted top. Air insulates the substation from the effect of sun radiation and specially designed ventilation opening facilitate air circulation, thereby supporting complete cooling system.

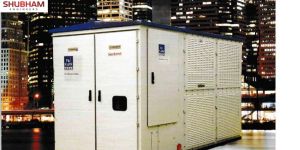

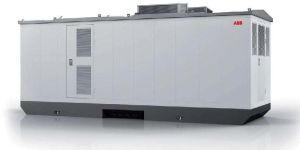

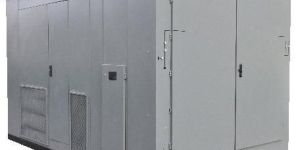

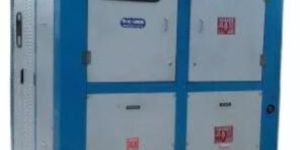

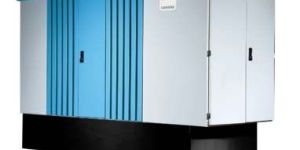

Designed and developed with perfection, our products are of unmatched standards. We are staffed with a team of professionals who hold immense knowledge in this domain. They are capable enough to rendering standard as well as tailored packaging requirements of the clients. Compact Substation has a smooth and polished surface with a lightweight body and a long service life.    Details : In accordance with the EN 61330 standard, Prefabricated Secondary Substations are defined as substations with type-tested equipment comprising distribution transformer, medium-voltage switchgear, low-voltage switchboard, connections and associated equipment in an enclosed unit. Substations are located in places to which the general public has access, and hence must provide a high level of personal safety. In substations for outdoor use all components are housedb in a building, which protects the equipment against climate effects and unauthorised access. The building will typically be divided into three rooms for the medium voltage switchgear, low-voltage switchboard and distribution transformer. A substation may be operated from the inside or from the outside. The electrical equipment is cooled by natural ventilation through openings in the substation.
