Universal Bellows Dealers

• Size: 1-3 Inch
• Material: Metal
• Connection: Flange
• Finishing: Polished
• Is it Rust Proof: Rust Proof

• Size: Custom
• Shape: Round
• Application: Industrial Use
• Technics: Casting, Forming
• Pressure: High Pressure
• Feature: Dustproof, High Performance
• Surface Finishing: Galvanised

A Universal Expansion Joint is one containing two bellows joined with a spool piece for the purpose of absorbing any combination of the three basic movements: Axial movement, Lateral deflection and Angular rotation.The primary purpose of Universal Bellows is to accept large amount of lateral deflections which in fact is a function of the amount of angulations each bellows can absorb and the distance between the two bellows. The length of the center spool piece can be adjusted so as to increase or decrease the lateral deflection capability.Flexican also designs and supplies Universal Bellows with or without tie rods, which connects the ends of the unit to each other and restrains the pressure thrust load. The number of tie rods to be provided around the circumference of the expansion joint depends on the application, for instance two tie rods are provided 180 degrees apart which enables the expansion joint to bend or deflect angularly and laterally. Similarly three or more tie rods are provided equally by pressure thrust and in such cases only lateral deflections are possible without any significant forces being applied by the adjacent piping.Universal Bellows Expansion Joints are usually long and are designed such that the thermal expansion of the entire unit's length is accepted as compression by the two bellow elements and as a result the overall length of the unit does not change when the piping is heated.

Manufacturer and Designer of all Type of Metal Bellows Expansion Joints.

The primary purpose of Universal Bellows is to accept large amount of lateral deflections which in fact is a function of the amount of angulations each bellows can absorb and the distance between the two bellows. The length of the center spool piece can be adjusted so as to increase or decrease the lateral deflection capability.flexican also designs and supplies Universal Bellows with or without tie rods, which connects the ends of the unit to each other and restrains the pressure thrust load. The number of tie rods to be provided around the circumference of the expansion joint depends on the application, for instance two tie rods are provided 180 degrees apart which enables the expansion joint to bend or deflect angularly and laterally. Similarly three or more tie rods are provided equally by pressure thrust and in such cases only lateral deflections are possible without any significant forces being applied by the adjacent piping.

Universal bellows are considered to be the widely used industrial bellows amongst the large range of industrial sectors. We are manufacturing the large range of universal bellows that are completely designed to suit the distinct requirements of a diverse range of industries. We have employed a couple of expert professionals who are proficient in investing the diverse range of industrial bellows by blending the latest technology. We are constantly upgrading our industrial bellows along with the advanced technology introduced in the market. We promise to provide the best quality of goods along with the newly introduced technology. We guarantee the diverse range of industrial bellows that range the most popular universal bellows to high tech ANFD bellows. We are offering the best kind of products at the best rates.

A pair of simple axial bellows at a specified distance functions as a universal movement absorber. This bellow is generally supplied with limit rods as guides. Another type is Tied lateral where tie rods at both ends are bolted using spherical nut and washer arrangement. This assembly is rigid axially but deflects in any lateral plane.

• Material: Stainless Steel
• Color: Silver
• Brand Name: Vallabh Engineers
• Finish: Polished
• Packaging Type: Box
• Head Shape: Round

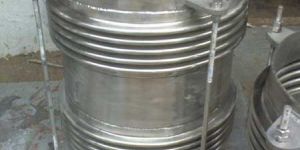

We offer universal bellows two bellow elements are jointed together by a center tube and fitted with either pipe ends or flanges. The assembly is capable of both axial and lateral movements but because of center tube instability, is limited to low pressure applications.

• Size: 100-1000mm, 1000-2000mm, 2000-3000mm
• Type: Universal Bellows
• Material: Carbon, Carbon Steel, Neoprene, Rubber
• Shape: Oval, Rectangular, Round
• Thickness: 1-5mm
• Condition: New
• Pressure: High Pressure, Low Pressure
• Country of Origin: India
• Brand Name: MB Metallic Bellows
• Certification: IBR Certified
• Standard: ASME EJMA

We hold expertise in manufacturing, exporting and supplying the finest quality Universal Bellows. The Universal Bellows, available with us, are made with premium raw materials that we obtain from reliable sources. The Universal Bellows are quality tested on various parameters. The Universal Bellows are in conformity with the highest quality standards. Specifications : Dimension : 2800 NB x 4000 mm. longAxial Movement : ±100 mmLateral Movement : ±100 mm

Universal Expansion Joints consist of two bellows elements joined together by a common spool piece so it is also called as Double Bellows Expansion Joint or Universal Bellows.

These can easily absorb a combination of axial, lateral and angular movements. The control rods helps to distribute the movement between the two bellows of the expansion joint.

• Black : * Liquid * Oil * Coolant * Dust * Hot air
• Rod ( dai ) 15mm to 1800mm: As per coustmer shedule

We are offering universal bellows. construction are especially designed for ball screws, shafts, columns and spindles. Our round bellows have a very stable form and stay perfectly in shape, which makes them suitable for long-term, highly demanding applications. our special design guarantees maintenance free operations. Round bellows joints with flange and/or sleeve are possible. Please indicate the working application position (horizontal, vertical) and the spindle diameter to provide safety and security to heavy friction machine we are there to provide bellows of round shape and they are so designed that they can cover some machine parts like lead screw pistons, shafts and spindles. The high quality of raw materials is used to manufacture these products thus our products can easily work on high temperature at greater speed. We also modify these products according to the needs of our customers
