Vertical Packaging Machine Dealers

• Sealing Type: Center Seal
• Roll Width: 120 mm - 450 mm
• Feeding System: Auger Filler / Weigh Filler / Volumetric Cup Filler
• Main Motor: 1/2 H.P, AC Drive
• Electrical Supply: 220 V, AC, Single Phase, 50 HZ OR 440 V, AC, Three Phase, 50 Hz
• Packing Film: Any Heat Sealable Laminate
• Temperature Controller: PID
• Machine Speed: 60-75 Pouch / Min ( Depends upon Pouch Size and product weight to be filled)
• Contact Parts: Food Grand Stainless Steel SS 316 / SS 304
• Compressed Air: 6 CFM @ 6 Bar (Depending On Attachments)
• Power Consumption: 3 kW
• Additional Attachments: Batch Cutting Device,  Pneumatic Coding Device, Nitrogen Flushing

Application: ultra-fine powder (e.g. Rice flour, milk powder, building materials, coffee powder, seasoning powder, toner) granular material (e.g. Forage, granular fertilizer, seeds, nuts) flaky material (e.g. Potato chips, crackers) strip material (e.g. Noodles, bean sprouts,) paste materials (e.g. Bean paste, paste, architectural coating) solid liquid mixture (e.g. Pickled pepper) technical parameter: model external dimensions (l×w×h) mm type of bag range of bag width (l×w) mm packaging speed bagsmin id of reel max. Allowable od of reel compressed air requirement power supply vfs320 1050×800×1010 pillow bag, gusset bag, die cut bag (50~200)×(80~150) 40~80 ф72mm ф400mm 0.6mpa 350 lmin 440v 50~60hz 3kw vfs5000d 1470×988×1400 (50~280)×(70~180) 30~80 ф75 mm ф400 mm 0.6mpa 0.36lmin 440v 50~60hz 3kw vfs5000b 1800×1220×1680 (50~340)×(80~250) 20~90 φ75mm φ450mm 0.6mpa 350lmin 440v 50~60hz 5.5kw vfs7300b 1854×1440×1930 (50~460)×(80~350) 30~80 φ75mm φ500mm 0.6mpa 350lmin 440v 50~60hz 6kw vfs7800 1900×1470×2080 (50~430)×(70~350) 20~70 φ75mm φ450mm 0.6~0.8mpa 350 lmin 440v 50~60hz 3kw vfs1100 2150×1750×2300 (300-650)×(300-535) 5-30 φ75mm φ600mm 0.6~0.8mpa 300 lmin 440v 50~60hz 4.5kw

We are the main supplier of this product.

• Type: SPM-4230 Packing Machine
• Power: 2.2KW
• Bag length: 80-300mm (L)
• Bag width: 50-200mm (W)
• Max width of roll film: 420mm
• Packing speed: 5-60bags/min
• Measuring range: 150-1200mL
• Air consumption: 0.65mpa
• Gas consumption: 0.3m³/min
• Power voltage: 220V
• Dimension: (L)1320 mm x (W)950 mm x (H)1360mm
• Deadweight of machine: 540Kg

• Certification: ISO 9001:2008
• Condition: New
• Driven Type: Penaumatic
• Automatic Grade: Semi Automatic
• Country of Origin: India
• Brand Name: Paqee Packaging
• Machine Size: 732 mm x 318 mm x 982 mm
• Vacuum Pump: 300 LPM, 600 LPM, 1100 LPM
• Sealing Width: 8 mm

Contact Details : paqeepackaging@gmail.com / +91 89789 81881 Youtube : https://www.youtube.com/@paqeepackaging4803/videos Brochure Url : http://paqeepackaging.com/PAQEEBrochure.pdf chamber type  :  single sealing length  :  663 mm automation grade  :  semi-automatic packaging type  :  vacuum packaging machine size  :  732 mm x 318 mm x 982 mm power  :  440 v ac (3hp) phase  :  3 phase usage/application  :  dates, peanuts, dry fruits, dairy products, sea food, namkeen, khakhra, spices, instant food, bakery i deal in  :  new only country of origin  :  made in india brand  :  paqee packaging vacuum chamber dimensions  :  730 mm x 327 mm x 756 mm sealing width  :  8 mm vacuum pump  :  300 lpm, 600 lpm, 1100 lpm air charging volume for vacuum pump  :  17 m3/hr, 35 m3/hr, 65 m3/hr body build material  :  all stainless steel food grade packing cycle  :  1 to 2 cycle/min (depend on product) sealing type  :  pneumatic electrical material  :  digital electronic control chamber material  :  aluminium dia cast   we are counted among the leading firms for providing a wide range of vertical vacuum packaging machine. features: •  packaging size : 5 kg to 25 kg ( depend on product) •  to observe packaging all process from the top of the transparent acrylic glass. •  oil mist separator to remove the oil mist from vacuum pump exhaust. •  manual vacuum stop button for liquids & semiliquids. •  easy to move machine. •  lock the side conveyor. •  base conveyor with nylon rollers for easy movement of the product. •  adjustable height of the base conveyor for products having different heights. •  can be conveyorised for heigher output. •  useful for molded vacuum packaging for cube shaped packs. •  noise free operations.   benefits of vacuum packing •  keeps food fresher & hygienic. •  no loss of weight, retention of aroma. •  protect from dust, moisture, humidity etc. •  provide the concrete protection to the product. •  increase the self life of product & save the space. •  increase the reliability and get more value of product.   useful for: dates, peanuts, dry fruits, dairy products, sea food, namkeen, khakhra, spices, instant food, bakery product, chemicals, electronics components, pharmaceutical etc.   optional features: •  inert gas flushing unit, vacuum is also available with nitrogen flushing. •  this machine is usefull for powder / solid / semi liquid / granuals bricks shape packing. •  the chamber size, sealing length are custom built. •  gas pressure monitoring device for nitrogen & carbon dioxide. •  vacuum & gas sensor control for accurate level of vacuum & gas. •  all stainless steel mold & formers to get the perfect cube shape for molded vacuum packaging. •  vibrating table for compaction of the material to be packed. •  in feed & discharge roller conveyor for easy movement of bag or mould.

• Model: SPVP600V (VERTICAL TYPE )
• Voltage (V/Hz): 380/50
• Sealing Power (W): 600 (1000)
• Motor power (W): 750
• Air Compressor Power (W): 1100
• Sealing Length (mm): 600 700 800 1000
• Sealing Width (mm): 10
• Distance from Sealing Center to Floor (mm): 1250
• Vacuum Pump Rate (m3/h): 20
• Film Thickness (Single Layer) (mm): ≤ 0.18
• External Dimensions (L×W×H) (mm): 800×900×1900
• Net Weight (kg): 255

• Packaging Type: Packet
• Film Thickness Mm: 0.01mm, 0.8mm, 5mm, 10mm, 20mm
• Brand Name: smartpack
• Condition: new
• Usage: plastic all type pouch packaging

Based in Ahmedabad, we have garnered acclaim as the Manufacturer and Supplier of quality assured array of Vertical Pouch Packing Machines across the country. Since quality is an integral concern, good manufacturing practices are embraced by our committed team. Available for packaging of Item Code: ORS, Milk Powder, Pesticides etc., these Vertical Pouch Packing Machines ensure hassle-free functioning. Avail them from us to enjoy discounted prices.   Deatils : Application : Milk Powder, Ground Spices, Pesticides, Mehndi, Chemicals, Coffee, Glucose Powder, ORS Powder & Granules etc. Filling Range : 20 gm, 509m 1oogm, 2009ms & 500 gms. Packing Speed : 40-70 pouches/minute. Depending on flow and volume of product to be packed. Type Of Sealing : Three side seal, Four side seal or Center seal Pouch Dim : Length - 40-200 mm Film Width - 60-340 mm Pouch Film Material : All types of sealable laminates Power Reo : 1/2 HP (depending on size) Single Phase/5oH: - Heater Load 2 KW Machine Dim : 75ox55ox18oomm(LxWxH) Machine Weight : 300 kgs. (approx.) Filling Material Contact Parts : Stainless Steel AISI 304 Grade Dosing System : Cup Dosing (Volumatric) with 1 2t. filling accuracy

• Brand Name: M&T
• Color: silver
• Condition: New
• Country of Origin: India

The vacuum packing machine automatically seals the packaging bag immediately after the bag is vacuum-filled, so as to reduce the residual gas in the bag,so as to inhibit the reproduction of bacteria and other microorganisms, avoid oxidative mildew and spoilage of items, and extend the storage time of items. Made of stainless steel, with reasonable strcture, beautiful appearance, stable and durable, good air tightness,high sealing quality.

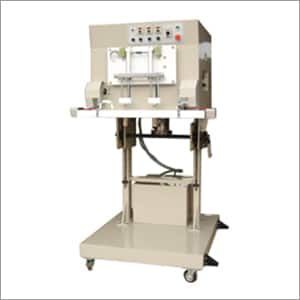

• Model: SPVP 600 V (Vertical Type)
• Voltage (V/Hz): 380/50
• Sealing Power(W): 600(1000)
• Motor Power(W): 750
• Air Compressor Power(W): 1100
• Sealing Length(mm): 600/700/800/1000
• Sealing Width(mm): 10
• Distance from Sealing Center to Floor(mm): 1250
• Vacuum Pump Rate (m3/h): 20
• Film Thickness (Single Layer) (mm): <=0.18
• External Dimensions (Lx W x H) mm: 800 x 900 x 1900
• Net Weight (Kg): 255

• Condition: New
• Size: Standard
• MOQ: As Per Client Requirement

We make sure that the products we offer to our clients will remain free from any kind of damage. Thus, we store the entire lot under secured environment in our capacious warehouse. In order to make hassle free transactions, we have adopted an online payment procedure that ensures immediate transfer of money and confidentiality of clients' information.

• Country of Origin: India
• Type: Vertical
• Shape: Rectangular
• Application: Industrial
• Voltage: 220V
• Power Soure: Electric
• Chamber dimension l x b x h (mm): 350 x 290 x 90
• Sealing (mm) l x w: 200x3

In order to keep pace with never ending demands of clients, our company offers Vertical Vacuum Packaging Machine.A wide range of Tabletop Vertical Vacuum Packaging Machine is offered by us at very reasonable price range in different specifications as per the client’s requirements. Precisely engineered in compliance with strict quality standards, this machine widely acknowledged for its high efficiency and corrosion resistant finish. The offered machine is extensively used in various industries for packing applications.

• Model: QS 500 VV Twin
• Chamber dimensions (L1xW1xH1) (mm): 550 x 500 x 125
• Seal length L2 (mm): 500
• Seal Width (mm): 10
• Max Pack Size (mm): 500X450
• Number of Sealing Jaws: 2
• Machine Dimensions (LxWxH) (mm): 1700 x 700 x 1300
• Voltage/frequency (V/Hz): 240 / 50/ 1Phase
• Power (W): 2500
• Pump Capacity ( LPM ): 20x2
• Weight (kg): 235

• Type: Automatic Form Fill Seal Machines
• Voltage: 240
• Condition: New
• Driven Type: Electric
• Warranty: 1year
• Brand Name: Eminent

m/s eminent  engineering services manufacture fully automatic collar type form fill and seal machine which is customized as an intermittent motion machine and designed for the efficient packing of the varieties of products like rice,seeds, tea , namkeen, bhujia, sugar, spices, snacks foods, wafers, detergent, henna  powder, salt, wrapper candies,cheese biscuits , pasta etc. in center seal pouches.                             the machine is equipped and controlled by plc panel (programmable logic control) and hmi (human machine interface) keywords, which makes this machine operator friendly.             this machine is suitable for a wide range of heat sealable film as a packing material such as pet+poly, pet+met+poly; laminates with aluminum foil and heat sealable bopp etc.it is a versatile machine and the pouch width can be changed by replacing the collar.m/s eminent believes in providing the best quality products available in the market to meet the global need. the machine can be provided with various optional attachments (at an extra cost) like nitrogen flushing and batch-cutting device, batch coding device etc.since continuous development is a process at m/s eminent offers tailor made solutions to the customers as per actual requirements.
