VFFS Machine Dealers

• Condition: New
• Power: 2.2KW, 220V,50/60HZ,2.2Kw
• Driven Type: Electric
• Automatic Grade: Automatic
• Voltage: 220V 50/60Hz
• Dimension(L*W*H): L1060*W870*H1750mm

We are dependable name, affianced in offering VFFS Packaging Machine across the boundaries. We have a team of efficient personnel who sternly check the raw materials before final procurement. Thus, we ensure a qualitative array of products at customer's end.

The company is a well-known Exporter and Supplier of Fully Automatic Quand Pouch VFFS Machines in Delhi. The Fully Automatic Quand Pouch VFFS Machine is best for packing extruded snacks like Kurkure and potato chips, farsan, chiwda, namkeen, dry fruits, pulses, grains, tea and sugar. Salient Features PLC Controlled machine with touch screenBuilt in self fault diagnosis systemPassword protection for settingsMinimum maintenanceIf 'No Material machine stopBatch cutting device (Optional)Epoxy powder coated structuresHigh Filling accuracyWeight adjustment through touch screenMotorized film trolley alignment systemsHigh density heaters for long life & minimum warm up time PID temperature controlled for precise temperatures.

This is automatic pouch packing machine two tracks to double the output with same floor space index. Easy to maintain and operate machine with easy conversion from Single track to twin track or vice versa feature.   Machine Application :This machine is suitable to pack powder, solid chunks, granule or liquid into a center seal pouch. Stick Pouch application.   Laminate Film: Laminate Heat sealable packing materials like OPP/PE,BOPP/OPP/PE,PET/AL etc Products:Machine is used for packaging powder, granule, liquid, paste and solid products. Such as, Turmeric Powder ,detergent, pepper, coffee, sugar, salt,sauce, ketchup, nuts, potato chips and so on. The filling device is adjustable according to the product, such as auger filler for powder, volumetric cup for granule, and piston filler for liquid and multi-head weigher for solid.   Premade Pouch Packaging Material :Laminate Heat sealable packing materials like OPP/PE, BOPP/OPP/PE, PET/AL et

We are engaged in offering wide assortment of Automatic Two Head Pouch Packing Machine to our esteemed customers. Our offered product is manufactured by using the finest quality raw material and ultramodern technology. Automatic Two Head Pouch Packing Machine is appreciated amongst customers for its less time consumption, maximum output and other features. Moreover, this product is available at nominal price. Product details :  Power Consumption: 3 HP  Pouch Length Up to 300 mm  Pouch Width Up to 200 mm  Film Thickness 50-70 Microns

• Width: 60 – 400mm
• Length: 50 – 600mm

A.M.P-Rose has seen in recent years that customers are increasingly looking for complete solutions to their weighing and packaging problems. AMP-Rose is well equipped to supply bagging machines with complete packaging systems. A typical packaging system will include bucket elevator, suitable feeding system (multihead weighers etc), vertical form, fill, and seal (VFFS) bagging machines, takeaway conveyor, rotary packing tables and gantry. All new equipment comes with after sales support and spares in stock from A.M.P-Rose; new equipment is also accompanied by a 12 month guarantee.

• Filling range: 0.5 to 250 gms
• output Speed: up to 30 PPM
• Packaging Material: Any heat sealable film, laminated film in roll srock
• Bag Size: W: 30 to 150mm
•  : L: 40 to 200 mm

For a variety of powders and granular products The MK-101 is an small automatic vertical form fill seal packging (VFFS) machine designed to package granular and free flowing powdered products. This machine uses volumetric cup dosing system and is integrated with continuous type sealing system to produce center sealed, 3 side sealed and 4 side sealed pouches / bags. Adding to its versatility, the 100 series can be integrated with most filler for granules, liquids, pastes, free flowing powder etc. Application: Free flowing powders, granules like tea grains, salt, herbs, powdered spices, grains,, sugar, detergent powder, agricultural and pharmaceutical powders. Features: Robust, compact and easy to maintain Lowest power consumption requires single phase power only Easy to operate hence no need of skilled labor All contact parts of SS food grade

• Packaging Details: wooden /As per customer requirement
• Place of Origin: Maharashtra, India

• Sealing Type: Four corner seal with side gusset Four corner & center Seal with side gusset
• Packing Range: Up to 2 Kgs. (Depends upon the product to be packed)
• Packing Size (Open roll width): Up to 400 mm. roll width (Model: EE-CTQ-500) Up to 550 mm. roll width (Model: EE-CTQ-700)
• Packing material: Heat sealable, Pet poly.
• Electric Control: PLC with touch screen HMI.
• Paper pulling: By pulling belt & pneumatic control.
• Temperature controller: PID control.
• Packing Speed: Up to 50 Pouches/min (Depends upon weight & characteristics of the product to be packed)
• Power Required: 440 VAC, Three Phase, 50 Hz, 3 kW
• Compressed Air Required: 8-10 Kg / cm Sq.
• Optional Attachments: (a) Ink Coding (b) Hot foil batch coding (c) Nitrogen Flushing (d) Infeed conveyor (e) Outfeed conveyor
• Optional Filling Systems: (a) Volumetric Cup Filler (b) Auger Filler (Servo / clutch-brake control) (c) Loadcell controlled Weigh filler (d) Multi head weigh filler

The Basic Range Vertical Form Fill Seal bagging machine is a mid-range machine designed for filling and sealing laminate film bags for a variety of product types.This machine comes with a printer and single forming set (made to size requirement) as standard and is the ideal machine for packing both food and non-food items due to its robust stainless steel construction.

Product to be filled in VFFS With Bucket Conveyor MachineThis model is suitable for packing free flow products namely hardware items, bolts, nuts, washers, O rings, compound kits, chocolates, candies, beans, kurkure, chips, fryms, mixtures, camphor tablets, medicinal tablets etc. Description of VFFS With Bucket Conveyor MachineThis is a vertical form, fill and seal machine for packing all types of granular gravity flow products. This machine shall make center seal pouches. This model is mainly designed to pack 10 gm to 100 gm product packing. Maximum reel width can be used in this model is 250 mm open width with 76 mm core ID, 250 mm OD. Pouch length is controlled by electromagnetic clutch brake and two pairs of vertical sealing rollers which is synchronized with PLC and print registration sensor as well as shaft encoder. Unprinted packing material can also be used in this machine. Technical Information About VFFS with Bucket Conveyer Machine VFFS With Bucket Conveyor Machine outputMaximum speed up to 30 packs per minute depending on properties of the powder and accuracy of filling Filling RangeMinimum 10 gm to maximum 100 gm factory set Pouch RangePouch Width : Minimum 50 mm to Maximum 120 mmPouch Length : Minimum 100 mm to Maximum 200 mm Packing MaterialMachine is designed for most types of Heat Sealable Laminate up to maximum of 200 gauge. VFFS With Bucket Conveyor Machine controlElectrical Panel with Omron Make PLC Main driveHorizontal sealers will be pneumatically actuated, Pulling with be with mechanical clutch system, Electrical DataPower supply: 230 VAC, 1 phase with ground connected Motor Drive1 Hp, 440 VAC, 50 Hz, 3 phase with VFD Air275 Liter Per Min at 6kg/CM2 Heaters250 Watt or 300 Watt X 4 heaters Temperature controllerOmron or Selectron make PID controller Photocell controlOmron or datalogic make   Length X width of machine700 mm X 2700 mm with bucket conveyer Height of machine1850 mm including roll Nett Weight of machine250 Kilogram Optional arrangements • Batch cutting facility, • Online printing, • Online label applicator, • Pouch take off conveyer, • Product infeed systems,   Optional filling systems • Cup filler • Auger Filler • Weigh Filler • Syringe Filler • Counting mechanisms   We are leading VFFS With Bucket Conveyor Machine manufacturer and supplier in Navi Mumbai, India, Contact us to know the best price of the VFFS With Bucket Conveyor Machine

vffs machine All Axis Servo Driven From Fill and Seal Machines For Packing Snacks, Sugar, Pulses, Grains, Seeds Range : CPT 325, CPT 425, CPT 525, CPT 625 For Packing 5 gms to 2 kgs

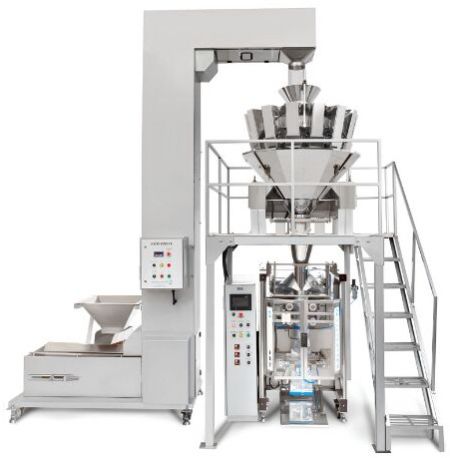

VFFS Pouch Packing Machine - VFFS Machine with 10 & 14 multihead weigher   Description:   Multihead weigher is a gravimetric filling machine & is most precise & high speed machine for solid & free flowing various products. The product is fed to the top cone of the multihead weigher by cross feeder or bucket elevator and is distributed by the linear feeders to the load buckets. Then, it is dumpled to the weigh buckets. When a combination is found between weigh buckets for the given weight, selected weigh buckets dump product in forming tube of the bagging machine. Multihead weighers are mainly used for potato chips, snacks, dryfruits, confectionary items, nuts, seeds, frozen products, etc. Features   Highly precise, accurate & consistent weighing. High speed weighing process Can be easily integrated with bagging machines. Easy to clean & maintain hygiene.

• Speed*: 30
• Power Supply**: AC 440V, 60/50Hz, Three Phase
• Compressed Air: 6
• N2 Pressing**: Optional
• Filling Method ***: Volumetric ( Auger)  or weigh  matric
• Accuracy*: + / - 1 %
• Filling Range***: 5gm to 2000gm
• Control System**: Delta PLC,HMI, Allen Bradley PLC, HMI
• Packaging Material**: LD / Bonding / Nylon Bonding / Prime Core / Laminated
• Real Diameter: 450 to 600mm
• Level Sensor**: Optional ( Ultra Sonic Sensors )
• Hopper Size**: 50 to 110 kg
• Electrical Specification**: Servo Motor, 0.75 KW / 440 Volts  / 50 Hz
•  : Induction Motor , 0.4 KW / 440 volts / 50 Hz
• Machine Weight: 780 kg (Approx.)
• Gross Weight: 600 kg (Approx.)
• Size**: 1800 X 1200 X 1000
• Optional Extra**: Takeoff Conveyor, Coding, Batch Cutting
• Height of Collection Pouch  from floor**: 360 mm to 910 mm..

Our engineers are not limited to yesterday’s technology. New highly efficient, mechanical and electrical components are available now, and we are following the latest technology. Every machine component is designed with reliability, longevity, durability and a minimum of operator involvement as its top priorities. Our Machineries are highly appreciated by our clients for its high performance, durability, low maintenance and less power consumption.

Variety of filling systems can be used in this model as suitable to products. Pouch length is controlled by electromagnetic clutch brake and vector driven draw down pair of belts which is synchronized with PLC and print registration sensor. Unprinted packing material can also be used i9n this machine

• Sealing Type: Center Seal (intermittent)
• Packing Range: 10 g to 5 kgs (Depend upon Product by different Models
• Filing system: Load cell controlled weigh fillers.
•  Pouch Length: Upto 600 mm
• Film width: upto 900 mm
• Packing Speed: upto 80 Pouches / Min. (Depends up product & weight).
• Packing Material: Heat Sealable Laminated Rolls
• Electric Control: PLC with MMI unit
• Power Required: Single/Three Phase 50-60 Hz, 3-5 kw
• Compressed Air : 6-8 kg/cm sq.
• Paper Pulling: Clutch Brake / Servo Motor Control
• Optional Fillings: Hot Foil batch coding,Nitrogen Flushing,Infeed conveyor unit,Outfeed conveyor,Pouch Gusseting unit
