Vibration Transmitters Dealers

• Feature: Low Cost, High Performance
• Output: 4-20mA – Output Voltage 0-10V
• Mounting Type: DIN
• Measuring Range: 0,5 – 1 – 2 IPS and 10 -20 mm/s
• Relative Humidity: 0 – 95 % non-condensing.
• Enclosure: Insulated ABS
• Sensor encasing: Stainless steel 316L

• Type: Vibration Transmitters
• Weight: 0-2 Kg
• Voltage: 12-24 VDC
• Condition: New
• Driven Type: Electric
• Resolution: 0-5 Mm
• Automation Grade: Automatic
• Brand Name: Yakoon

Magnetic Vibration Transmitter YKT-YB40 YKT-YB40 vibration transmitter combined vibration sensor and transmission module together.It is for real-time monitoring of vibration of rotating mechanical bearings, also known as integrated vibration sensor. It integrates the vibration sensor and the signal conditioning circuit. It can directly convert the collected vibration signal into a 4~20mA current signal or the RS485 digital output, then transmit to control system.    It is widely used in bearing vibration measurement and real-time monitoring of rotary machinery such as submersible pumps, pumps, fans, steam turbines, coal mills, oxygen generators, generators, centrifuges, compressors, motors, etc. It can also be applied to low-frequency vibration measurement of the impact of environmental vibration values on equipment such as underground pipelines, and automotive industry.   Technical Specs:   Input: +DC24V  Measuring range: 0～10/20*/50/100mm/s or  0～100/200*/500um  Output: 4-20mA (or 1-5V/1-10V or RS485)  Output Impedance :

• Feature: Field configurable by front keys and display.

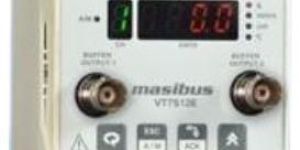

Vibration Transmitter VT7S12E is the most advanced & Compact Vibration Transmitter. It accepts input directly from ICP type Accelerometer, processes the signal and gives analog output in the form of standard current or voltage; the vibration measurement range is field configurable for acceleration, velocity or displacement. Optionally VT7S12E also accepts one RPM input. The output signal is usually interfaced with PLC or DCS for monitoring and protection. Vibration Transmitter VT7S12E Transmitter has two Relay outputs per channel for Alarm, Trip. Also has additional outputs like Buffered output on BNC connector for analysis purpose, and optional RS485 serial port for direct interface with PLC, DCS or SCADA VT7S12E is aimed for balance of plant equipments like Pumps, Motors, Fans, Blowers, etc to provide monitoring and protection, the unit Employs True-RMS and calculated RMS-Peak measurement techniques, considered best for general machine condition monitoring.

• Brand Name: Fischer
• Model Number: ME01

Working Principle: Fischer ME01 pressure sensor consists of ceramic measuring cell. The high durability of the ceramic material allows the pressure transmitter to be employed with aggressive media. A Wheatstone’s bridge is attached to diaphragm’s opposite side to the measured media. Key Features: 1.Direct measurement, without transfer fluid 2.High vibration resistance 3.High accuracy 4.High overpressure safety 5.Minimum hysteresis Key Specifications: 1.Measuring range: 0 ~ 1.6 bar to 0 ~ 60 bar (overpressure safety: 3.2 bar ~ 120 bar) -1.0 ~ 0.0 bar to -1.0 ~ 15 bar (overpressure safety: 2 bar ~ 32 bar) 2.Linearity: < 1% full scale 3.Hysteresis: < 0.5% full scale 4.Permissible ambient temperature: 0° C ~ 60° C 5.Permissible media temperature: 0° C ~ 100° C 6.Nominal power supply: 24V DC 7.Output Signal: 0~20mA 4~20mA 0~10V, 3-wire 8.Ingress protection: IP65 acc. to DIN EN 60529 9.Temperature drift, zero: 0.4% full scale 10K 10.Temperature drift, range: 0.05% full scale 10K 11.Electrical connection: connection plug M16 x 1.5 acc. to DIN EN 175301-803 12.Material, medium contact: AISI 316L (1.4404), gasket: Viton 13.Material, body: AISI 304 (1.4305) Industrial areas: 1.Chemical industries 2.Machine and plant engineering 3.Process engineering 4.Manufacturing industries 5.Glass and silicon industries

• Features: Free from defects, Maintenance free, Accurate dimensions

Overview:   During the operating life, rotating machines suffers gradual deterioration in their condition and performance due to wear and tear caused by friction between moving parts on the machines. Increase in machine wear is always accompanied by increase in vibration level, which therefore can be used as index of machine condition. If the machine is allowed to run on without corrective measures being taken, vibration levels will increase with time at increasing rate until a stage is reached where the machine fails completely. Monitoring vibration levels on machines such as Fans, Blowers, Pumps, Cooling Towers and Turbines which has to be operated continuously will help to detect increase in vibration levels that are likely to result in machine failure, so that a programmed shut down may be carried out for maintenance. PG701 series of Vibration Transmitters are designed to monitor the vibration levels of the above mentioned rotating machines. The 4-20Ma signal being proportional to the “G” level can be connected directly to the monitoring device such as a PLC, else customized display devices & data logging system, can be provided by us.

high accuracy, vibration resistant, corrosion – resistant, with LED display, pressure transmitter for aggressive mediaMake: Fischer Messtechnik (Germany)Model: ME01   Fischer ME01 is high accuracy, robust, high vibration resistant pressure transmitter with on-board display. It has inbuilt electronic module which transmits analog signals for measured positive or negative pressure of all type of liquids and gases, including aggressive one. Working Principle: Fischer ME01 pressure sensor consists of ceramic measuring cell. The high durability of the ceramic material allows the pressure transmitter to be employed with aggressive media. A Wheatstone’s bridge is attached to diaphragm’s opposite side to the measured media. As the measured pressure is applied, it causes the diaphragm to be strained. The resistance values of the Wheatstone bridge change according to applied pressure. These values are displayed and transmitted as electrical analog output signal. Key Features: Direct measurement, without transfer fluid High vibration resistance High accuracy High overpressure safety Minimum hysteresis Key Specifications: Measuring range: 0 ~ 1.6 bar to 0 ~ 60 bar (overpressure safety: 3.2 bar ~ 120 bar) -1.0 ~ 0.0 bar to -1.0 ~ 15 bar (overpressure safety: 2 bar ~ 32 bar) Linearity: < 1% full scale Hysteresis: < 0.5% full scale Permissible ambient temperature: 0° C ~ 60° C Permissible media temperature: 0° C ~ 100° C Nominal power supply: 24V DC Output Signal: 0~20mA / 4~20mA / 0~10V, 3-wire Ingress protection: IP65 acc. to DIN EN 60529 Temperature drift, zero: 0.4% full scale / 10K Temperature drift, range: 0.05% full scale / 10K Electrical connection: connection plug M16 x 1.5 acc. to DIN EN 175301-803 Material, medium contact: AISI 316L (1.4404), gasket: Viton Material, body: AISI 304 (1.4305)   Industrial areas: Chemical industries Machine and plant engineering Process engineering Manufacturing industries Glass and silicon industries

Pg701 series of vibration transmitters are designed to monitor the vibration levels of the above mentioned rotating machines. The 4-20ma signal being proportional to the “g” level can be connected directly to the monitoring device such as a plc, else customized display devices & data logging system, can be provided by us.

• Features: Loop powered 4-20mA velocity or acceleration (peak or RMS) output, Stainless steel housing, Frequency filter options, Wide selection of mounting studs .
• Wide operating temperature range: 40℃ to +120℃ (-40℉ to +248℉)

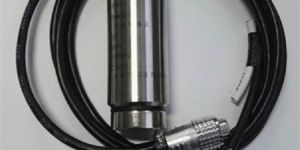

Velocity is the preferred measurement for most rotating machines with rolling element bearings and the TM016 is a precision solid state loop powered sensor that measures velocity vibration levels and provides a 4-20mA output proportional to the overall vibration level. The 4-20mA velocity output is interfaced into a PLC, DCS or other 4-20mA input devices.

• Type: Vibration Transmitters
• Certification: Yes
• Weight: 0.28 lb (0.125 kg).
• Voltage: 9.6 to 32 vdc
• Condition: New
• Driven Type: Electric
• Resolution: 5-10 Mm
• Automation Grade: Automatic, Semi-automatic
• Brand Name: Dwyer
• Application: motors pumps fans engines compressors gear boxes
• Output: 4 to 20 ma.
• housing material: 316 ss
• temperature limit: 22 to 221°f (-30 to 105°c)
• accuracy: < ±3%.
• connections: m12 connector
• enclosure rating: nema 6 (ip68)
• electrical rating: 9.6 to 32 vdc.
• mounting orientation: any position

Loop powered 4-20mA velocity or acceleration (peak or RMS) output Wide operating temperature range -40c to +120c (-40 ¸ to +248¸) Stainless steel housing NEMA4X, IP65 or IP67 environmental rating Multiple hazardous area approvals Frequency filter options Wide selection of mounting studs

Vibration transmitter vt7s12e is the most advanced & compact vibration transmitter. It accepts input directly from icp type accelerometer, processes the signal and gives analog output in the form of standard current or voltage; the vibration measurement range is field configurable for acceleration, velocity or displacement. Optionally vt7s12e also accepts one rpm input. The output signal is usually interfaced with plc or dcs for monitoring and protection. Vibration transmitter vt7s12e transmitter has two relay outputs per channel for alarm, trip. Also has additional outputs like buffered output on bnc connector for analysis purpose, and optional rs485 serial port for direct interface with plc, dcs or scada vt7s12e is aimed for balance of plant equipments like pumps, motors, fans, blowers, etc to provide monitoring and protection, the unit employs true-rms and calculated rms-peak measurement techniques, considered best for general machine condition monitoring. The unit can be field configured and operated by means of front keyboard and display, relay set points and logic can be set for all application types including fail-safe operation, all configured data is stored in a non-volatile memory. Features of vibration transmitter compact din rail mounting 4 digit led display for parameter value & 1 digit led display for channel no dual channel (optional single channel) micro controller based same model field configurable for acceleration, velocity or displacement range field configurable by front keys and display transmitterinput signal health check

• Mount Type: Wall Mount
• Surface Finish: Painted
• Packaging Type: Box
• Relays: 4 Relays
• Output Proportional: 4-20mA

Pressure sensors, Pressure transmitters with 4 20 mA & Voltage output, Piezoelectric & Piezoresistive type, High temperature sensor, Contact Pressure Sensor, Hydraulic & Pneumatic machines, Automotive & Aerospace testing.

• Warranty: 12 months
• Supply Ability: 50 Piece/Pieces per Month
• Application: Vibration Sensor
• Place of Origin: Maharashtra, India
• Packaging Details: Export Worthy
• Theory: Inductance Sensor
• Port: NA

We are supplier and exporter of this product.

• Output: 4
• Measure Range: Acceleration 0.5 to 200 m/s
• Frequency Range: 10 Hz to 1 Khz * Sensitivity relative during the frequency range meet ISO 2954
• Accuracy: ± ( 5% +2d) reading, 160Hz, 80Hz. *23±5ºC
• Calibration Point: Acceleration 50m/s
• External Adjustment: ZERO VR ( 4 mA Adjust VR) SPAN VR ( 20 mA Adjust VR)
