Vickers Hardness Tester Dealers

• Voltage: 220V
• Driven Type: Electric
• Operating Type: Automatic
• Type: Micro Vickers
• Certification: ISI Certified
• Power: 1-3 Kw
• Warranty: 1 Year

• Brand Name: Ratnakar
• Display Type: Optical
• Country of Origin: India
• Parameter: HV
• Model Name/Number: RVM 50
• Accuracy: High
• Test Loads: 5,10,20,30 & 50 kgf (optional 1kgf,2.5kgf and 3kgf)
• Optical magnification: 70X
• Scale Least Count: 0.001mm

Since the inception of our firm, we are offering a quality assured array of Vickers Hardness Tester. Owing to their sturdiness, requires minimum maintenance, lightweight, and high performance, these testers offer accurate test results during the hardness testing of various metals.Features:Testing range is very wide, from soft metal such as lead, upto the hardest, like hardeness steel.Same hardness number is obtained on the same specimen, regardless of the load applied.The indication is tiny and allows testing of a precision finished part.Loading and unloading cycle is motorised.Thin sheet metal is perfectly tested because the load applied is very small.Built-in projection screen to get accurate results.Specifications:Vickers Hardness Tester is a simple and accurate means to produce and measure the diamond indentation.These testers are suitable for measuring the hardness of precision metallic parts with wide testing range from soft to hard and their accurate results are widely acclaimed. These testers strictly conform to IS : 1754 and ISO 6507-2

• Voltage: 220-380 V
• Power Source: Electric
• Power: 15KW
• Frequency: 50 - 60 Hz
• Depth of throat: 133 mm
• Hardness: -HV/HK

• Material: Metal, MS, SS
• Finishing: Polished
• Driven Type: Electric
• Color: Available in Many Colour
• Operating Type: Automatic
• Usage: Industrial
• Voltage: 220V
• Display Type: Touch Screen
• Specialities: Easy To Use, Electrical Porcelain, Proper Working

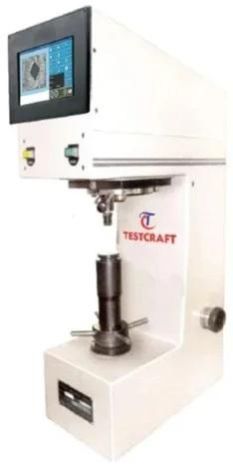

Our Touch Screen Vickers Hardness Testing Machine is efficient in estimating the Vickers hardness number by measuring the diamond’s indentation in an automated way. The result is simply to draw and is accurate enough to rely upon. It is also ideal for estimating the hardness of various metallic components. It is set in absolute accordance with IS 1754 – 2002. We are emerging as the promising Manufacturer and Supplier of Computerized Vickers Hardness Testing Machine in Maharashtra.   The Software Includes : Online indentation setting and focusing on Touch Screen Laptop / Tablet Facility for Auto / Remote Auto / semi Auto / Manual modes of operation Well managed database saves readings W.R.T. batch and certificate Report generation in the form of certificate and graph with variation and histogram Facility for calibration and check of calibration Advance image processing algorithm implemented for automatic measurement Statistical data is provided for a batch results and include standard deviation, mean, medium, minimum and maximum reading Measuring scale Calibration / Verification on Touch Screen Laptop / Tablet   NOTE : DUE TO CONSTANT R&D SPECIFICATION AND FEATURES ARE SUBJECT TO CHANGE WITHOUT NOTICE.

• Test Loads: 5,10,20,30,50kg.
• Magnification of optical projection: 70X
• Max. Test Height (mm.): 200
• Scale least count(mm.): 0.001
• Depth of throat (mm.): 133
• Dimensions of Machine (mm.): L585xW290xH860
• Weight (Approx): 73kg.
• Power Supply: 220V AC, 50 Hz, 1-Phase

Features Tiny indentation allows the testing of precision finished parts. The thin sheet metal is perfectly tested. Because the applied load is very small. Motorized loading and unloading cycle. Built-in projection screen to get accurate results. The same hardness number is obtained on the same specimen, regardless of the load applied. Wide testing range, from a soft metal such as lead, Upto the hardest, like hardened steel.   Construction To accommodate the high precision loading system & an optical projection screen, the machine frame is designed sturdy. The specimen is placed on a testing table. The test cycle is fully automatic. The accurate load is applied to a diamond penetrator by means of a lever & weights. The load is removed automatically after a specific lapse of time. The objective is indexed with the test piece & the diamond indentation is projected on the measuring screen. The diagonals of the indentation can be measured by means of the micrometer screw of the projection screen.

• Certification: CE Certified
• Color: Available in Many Colors
• Voltage: 380V
• Automatic Grade: Automatic
• Power: 6-9kw
• Driven Type: Electric
• Warranty: 1year

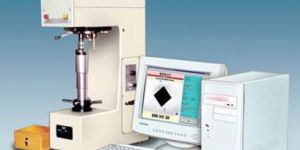

Computerised Vickers Hardness Testing Machine is fully computerized with image processing technology. The Computerised Vickers Hardness Testing Machine consists of motorized loading and unloading cycle. It also comprises of Wide Testing Range and can be connected to a PC. It is handy and can be carried anywhere. Features : High accuracy Fully computerized Motorised loading and unloading Faster measurement and higher productivity Application : It is highly suitable for measuring the hardness of metals with wide testing range from soft to hard. It can be connected to a Laptop or a Desktop.

• Hardness measuring range: 5-3000HV
• Test Force: 0.09807, 0.2452, 0.4904, 0.9807, 1.961, 2.942, 4.904, 9.807N (10, 25, 50, 100, 200, 300, 500, 1000gf
• Magnifications of the measuring system: 400X, 100X
• Min. measuring unit: 0.025µm
• Max. Height of test piece: 75mm
• Depth of throat: 110mm
• Power Supply: 220V/110V AC, 50Hz
• Dimensions: 470 x 320 x 500mm
• Weight: approx. 40Kg
• Turret: Automatic turret shifting between penetrator & object lens
• Objective Magnification: 10X, 40x
• Eye Piece: 10x
• Resolution of Micrometer: 0.01 um

Vickers Hardness Testers from 1 kg to 120 Kg Load . Standard Optical type, Built in Touch Screen type and Computerised version. Vickers Cum Brinell Model is also available.   This machine conforms to IS:1754-1986 for Vickers and IS: 2281-1983, BS: 240 for Brinell Test.   Vickers Hardness Tester(Vickers cum Brinell Model is also available) Testing range is very wide, from soft metal such as lead up to the hardest, like hardened steel Thin sheet metal is perfectly tested because the load applied is very small Same hardness number is obtained on the same specimen, regardless of the load applied. Built in projection screen to get accurate result   Vickers as well as Vickers cum Brinell Hardness Testers are suitable for Vickers and Brinell hardness of steel and other metals. These machined are designed and manufactured for very high accuracy, reliability and ease of operation. The selection of load is effected with the push button control system. The measurement of diagonal / diameter of indentation is done with the help of built-in optical system with graduated readout with micrometer. After taking indentation on the work piece, the objective lens is automatically swivelled into position and image of indentation appears on the focusing screen fitted in front of the machine. A push button is provided for starting the loading cycle and unloading is accomplished though hand lever.   This machine conforms to IS:1754-1986 for Vickers and IS: 2281-1983, BS: 240 for Brinell Test.

• Feature: Durable, Easy To Use, Superior Finish
• Warranty: 1year
• Loading and Unloading Cycle: Automatic.
• Quality: Best
• Max Height of Specimen: 165mm
• Measuring Range: 8-2900HV

Micro Vickers Hardness Tester is a simple and accurate means to produce and measure the diamond indentation. Machine is designed for very wide, from soft metal such as lead, up to the hardest, like hardened steel. This machine is ideally suitable for laboratories, tool rooms, Heat treatment shops, R&D departments, inspection departments, & educational institutions.Machine is designed with control circuit for effortless loading unloading operation. Micro Vickers Hardness Tester are suitable for production testing and precision engineered confirming to IS 1754, IS : 1501- 2013 and ISO 6507- 2   Features : Same hardness number is obtained on the same specimen, regardless of the load applied. The indication is tiny and allows testing of a precision finished part. Thin sheet metal is perfectly tested because the load applied is very small. Built-in projection screen to get accurate results with L. C. 0.025 & 0.01 µm The load application system is very high precision accurate and dependably with dead weight type mechanism. Test Load 10gms to 1 kgf, 10 gms to 2 kgf, 200 gms to 5 kgf, 5 gms to 5 kgf as per the mode and application.

• Test Loads: 5,10,20,30,50 kgf
• Optional Test Load: 1 kgf
• Maximum Height (mm): 200
• Scale least count (mm): 0.001
• Diagonal measuring range (mm): 0.05 to 0.4
• Throat Depth (mm): 135
• Machine Dimension (mm): L585 X W290 X H860
• Weight (approx): 70 kg.
• Power Supply: 220 VAC, 50 Hz, 1-Phase.

• Brand Name: Mitutoyo
• Material: Stainless Steel
• Driven Type: Electric
• Display Type: Digital
• Color: White
• Voltage: 220V

• Brand Name: Aditya Instruments
• Total Loads: 5,10,20,30,50 Kgf.
• Maximum test Height: 200mm
• Scale Least Count: 0.001mm
• Diagonal Measuring Range: 0.05 to 0.4mm
• Throat Depth: 135mm
• Machine Dimension: L 585 x W 290 X H 860 mm
• Weight: 70 Kg
• Power Supply: 220VAC,50HZ,1 Ph

We, Aditya Instruments are one of the leading manufacturers of Vickers Hardness Tester is simple & accurate in design. It is appropriate for measuring the hardness of accuracy metallic parts with a wide testing range from soft to hard & their precise results are widely acclaimed. Some of the special features of our tester are. Small indentation allows testing of precision finished parts. Thin sheet metals are perfectly tested. Because the applied load is very small. Motorized loading and unloading cycle. Internally Built-in projection screen to get exact results. The same firmness number is acquired on the same specimen, regardless of the load applied. Extensive testing range, from soft metal such as lead, up to the most solid, like hardened steel. For world, class testers contact us now.

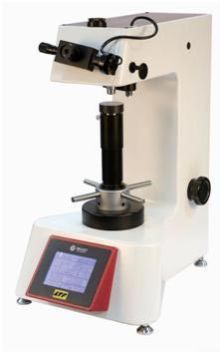

Macro Vickers Hardness Tester with 002 item code finds its application in diverse industries. Digital Auto Turret Macro Vickers Hardness Tester, offered by us, has microscope with light intensity adjustment. Moreover, our Macro Vickers Hardness Tester has built-in motorized load application device. Along with all these features, we provide Macro Vickers Hardness Tester that can automatically correct measurements on the cylindrical and spherical work pieces as per high industrial standards. Brief Description Of Our Macro Vickers Hardness Tester Handy-placed knob load selector, with following standard test loads : 10 � 25 � 50 � 100 � 200 � 300 � 500 - 1000 gf (0, 09807, - 0,2452, - 0,4903, - 0,9807, - 1,961, - 2,942, - 4,903, - 9,807 N)Microscope with light intensity adjustmentMotorized rotary turret with 5 positions adapting the indenter and two objectives (10X and 40X provided with the instrument) (other magnification objectives and Knoop indenters can be ordered separately)10X digital micrometric eyepiece featuring 0,01 µm resolution, calibrated for the use of both 10X and 40X objectivesMotorized load application deviceAutomatic test cycleColor touch screen LCD provided with alphanumerical readout and practical, quick and easy-to-use graphicsSoftware guide to correct configuration in the various scalesPossibility to save/retrieve test batches on external devices such as USB key and/or LAN company networksSoftware for the calculation of statistical parameters, such as average value, standard deviation, maximum and minimum values and number of measurements with indication of out-of-tolerance values, date, work piece No., batch No., histogram with indication of +/- 3 sigma, line chart with indication of the test trendAutomatic software updates via USB keyAutomatic conversion of the values measured in the various hardness scales: Rockwell, Brinell, Knoop, Vickers as well as tensile strength according to either �Galileo conversion tables� or ISO 18265 standardsAutomatic correction of measurements on the cylindrical and spherical work pieces as per ISO 6507 or ASTM standards on requestMaximum work piece height 85 mmThroat depth 110 mm
