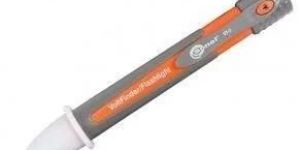

Voltage Detector
Get Price Quote
The assessment of electrical installations and equipment with respect to their voltage status (voltage present or not) is always required when working on or with such installations, or in the vicinity of them. Following the result of such an assessment are usually a number of operations, for instance to earth and short circuit in those cases when absence of voltage has been determined. Consequently it is essential to have a clear and correct indication of voltage status. Absence of voltage can be determined in different ways. Besides firmly installed measuring or signaling devices, there is also the possibility to conclude on the voltage status from the switch position of earthing switches. Yet according to EN 50110-1, absence of voltage is to be determined as close to the working site as possible. So usually a portable device for determination of absence of voltage is indispensable. Such portable detectors need to be as handy as possible, and simple to operate, considering that absence of voltage needs to be determined on all phases at the working site. We offer three high-performance product series of capacitive high voltage detectors: ARCUSBASIC: Tested to IEC 61243-1, with visual indication. The state of voltage is indicated by LEDs. This product series was specially developed for switchgear and overhead line requirements up to Un=24 kV. It features high quality at low cost. ARCUSDETECT M: Tested to IEC 61243-1, with visual and audible indication. The ARCUSDETECT M series is specially developed for the medium voltage range (up to Un=36 kV). ARCUSDETECT H: Tested to IEC 61243-1, with visual and audible indication. ARCUSDETECT H is specially developed for the high voltage range (up to Un=420 kV). ARCUSDISTANT: User-friendly construction for overhead lines 110-380 kV (distance voltage detector)

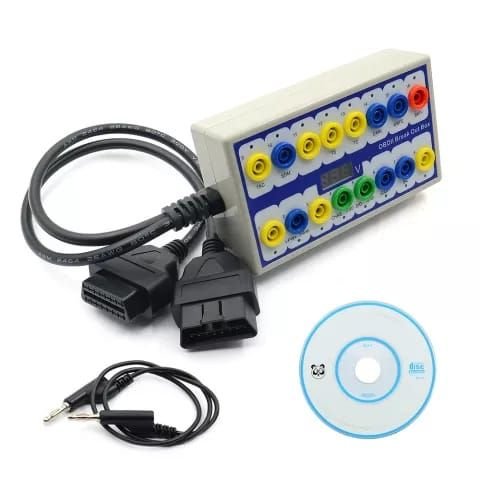

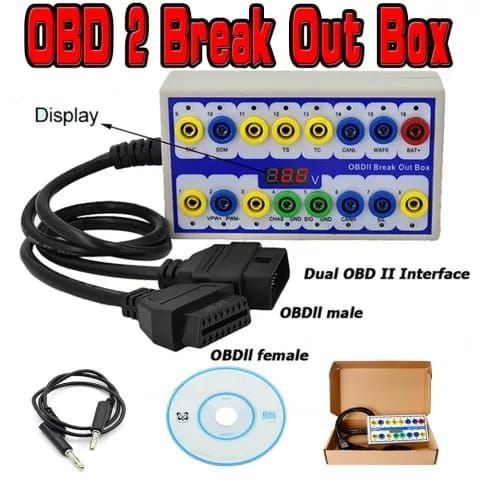

BREAK OUT BOX
5,500 Per piece
1 Piece (MOQ)
0.0
Website
Best Deals from Voltage Detector
Voltage Detecting Indicator with 2 Changeover Contact
Get Price Quote
10 Piece (MOQ)
This type of device has 2 relay changeover contacts. This feature is used to operate the system remotely.
Live Line Detector
Get Price Quote
1 Piece (MOQ)
Voltage Detector
Get Price Quote
Beimco FRP Products is recognized as a specialized Manufacturer & Supplier of high quality Voltage Detector. Beimco make Voltage Detector is available in various voltage ranges that can be used with our highly insulated glass epoxy insulated sticks. Our Voltage Detector is easy to use & it is non contact type, which gives you visual and audible indications of the presence of voltage in the line/conductor. From the ground level, without making contact with conductor, you can have perfect indication, whether line is live or it has no presence of current. Features High bright LEDs visual indication Sound indication Non-contact type Compatible with insulated sticks Light weight, easy to use Suitable for indoor and outdoor use Detect low voltage on any systems Easy access to batteries Specifications Voltage Settings : 240Vac, 2KV, 6KV, 11KV, 22KV, 33KV, 132KV, 275KV and 400KV. Weight : Approx 500g..
Multi Voltage Pinhole Detector
15,500 Per Set
1 Set(s) (MOQ)
The Multi-Voltage Pinhole Detector uses the wet sponge principle to detect through pinholes, cracks and damaged areas in coatings. Operation is by the application of a wet sponge to the coating. The water will be used as wetting agent penetrates any pinhole and makes a conductive path through to the substrate, the PD990 automatically detects this conductive path and sounds an audible alarm and also gives a visual warning by a flashing red indicator that a pinhole fault has been detected. The flaw can now be marked for repair and further testing resumed. The PD990 has selectable test low voltages of 9 Volt / 67.5 Volt and 90 Volt which comply with ASTM specifications. Generally 9V will test up to 300 micron and 90 Volt will test up to 500 micron. Pinhole / Porosity Standards ASTM G62-A, ASTM G6, ASTM D 4787, ASTM D-5162, AS3894.2, BS 7793-2, BS EN ISO 8289 A (Wet Sponge Testing), NACE RPO274-98, NACE RP 0188 and AS1580.485.1 describe the use of pinhole detection. The pinhole detector is supplied ready to use in a carrying case complete with handle / sponge, earth cable and battery fitted.

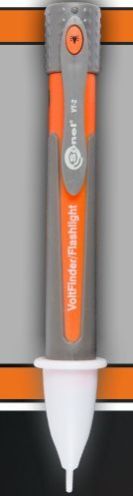

VT-2 AC Voltage Detector
Get Price Quote
We are blessed with a large storage facility that helps us in keeping large stock and meeting urgent and massive requirements of the customers. Stay confident for the delivery schedules with us as we are recognized for making on-time deliveries. Features: Advanced technology Precision made Long life & sturdy
0.0
View Profile
non contact voltage detector
Get Price Quote
Non Contact Type High Voltage Detector for presence of Voltage from 50V to 132kV with Buzzer and Light Indication.

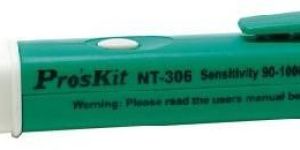

Non-Contact Voltage Detector
Get Price Quote
Non-Contact Voltage Detector Built-in white LED illumination light provides convenient work in dark areas Detects AC voltage from 90 to 1000 VAC without metallic contact Compact size with pocket clip easily fits into pockets or tool pouches Red LED and audible alarm if voltage is present Entire outer surface is non-conductive for safety, helps avoid high voltage shock Powered by two 1.5V AAA batteries (not included) CAT IV 1000V Safety rating. Applications: Electricians, maintenance staff, service and safety personnel, and even homeowners Warning:1. Never test voltage more than 1000VAC2. Test Voltage range: 90V~1000VAC
0.0
View Profile
Non-Contact Voltage Detector
Get Price Quote
Built-in white LED illumination light provides convenient work in dark areas. Detects AC voltage from 90 to 1000 VAC without metallic contact. Compact size with pocket clip easily fits into pockets or tool pouches. Red LED and audible alarm if voltage is present. Entire outer surface is non-conductive for safety, helps avoid high voltage shock. Powered by two 1.5V AAA batteries (not included). CAT IV 1000V Safety rating. Applications: Electricians, maintenance staff, service and safety personnel, and even homeowners.
0.0
View Profile
high voltage detector
Get Price Quote
Hot Sticks or HT Power Testers are used to ascertain whether a High Voltage Installation or equipment is live or dead. Hot Sticks are essential safety equipment for engineers & technicians working in high voltage installations. Before any maintenance work can be carried out Hot stick must be used to ensure that the system is dead. Hot Stick comprises of Capacitive Sensor Detector mounted on an Insulated Pole. Once the detector is taken in the vicinity (or in contact) of a charged High Voltage Object, the capacitive sensor detects the charge & gives Audible and Visual indication. The detector also has a Self Test Mode i.e. an inbuilt proving unit to check the health of the detector. Before and after every operation the detector must be checked usingthis mode for its health. Technology Products offers Hot Sticks suitable for all system voltage i.e LT to 510KV in various Ranges. The detector is mounted on a main insulated pole suitable upto 33KV System Voltage, the range of which can be extended upto 510KV after adding adequate number of insulated Extension Handles. The key features of our Hot Sticks Model S9 are: High Intensity Light & Sound Indication Sensitivity Adjustment in several steps Suitable for Indoor & Outdoor Operation Range Extendible upto 765KV Automatic Continuous Inbuilt Self Check Universal “C” size Batteries (3 nos.) for long operation life Universal Sunrise Connector Type Tested from Recognized Laboratories
0.0
View Profile
Voltage Detector
Get Price Quote
Non-metallic contact Ideal for 70 to 1000 V installations
0.0
View Profile
high voltage detector
Get Price Quote
0.0
View Profile
PAN CAKE DETECTOR
Get Price Quote
Pan Cake Detector Probe type PCP-1, manufactured and supplied by NUCLEONIX SYSTEMS is an ideal choice for Contamination Monitoring both with bench model and portable type of units. It has a wide circular viewing area of 1.75” dia window to allow Beta. Detector body is enclosed in a thin SS enclosure having a lid which is closed for gamma doserate measurements. This probe measures gamma doserates upto 500mRhr & Beta contamination in both CPS and CPM. Probe is provided with a black nylon handle.
0.0
View Profile
Voltage Detector
690 Per Piece
50 Piece(s) (MOQ)
0.0
View Profile
Voltage Detector
9,000 Per Piece
0.0
View Profile
non contact voltage detector
Get Price Quote
0.0
View Profile
high voltage detector
Get Price Quote
Hot Stick (Live Line Indicator) Model TP-S9 Hot Sticks or HT Power Testers are used to ascertain whether a High Voltage Installation or equipment is live or dead. Hot Sticks are essential safety equipment for engineers & technicians working in high voltage installations. Before any maintenance work can be carried out Hot stick must be used to ensure that the system is dead. Hot Stick comprises of Capacitive Sensor Detector mounted on an Insulated Pole. Once the detector is taken in the vicinity (or in contact) of a charged High Voltage Object, the capacitive sensor detects the charge & gives Audible and Visual indication. The detector also has a Self Test Mode i.e. an inbuilt proving unit to check the health of the detector. Before and after every operation the detector must be checked usingthis mode for its health. Technology Products offers Hot Sticks suitable for all system voltage i.e LT to 510KV in various Ranges. The detector is mounted on a main insulated pole suitable upto 33KV System Voltage, the range of which can be extended upto 510KV after adding adequate number of insulated Extension Handles. The key features of our Hot Sticks Model S9 are: High Intensity Light & Sound Indication Sensitivity Adjustment in several steps Suitable for Indoor & Outdoor Operation Range Extendible upto 765KV Automatic Continuous Inbuilt Self Check Universal “C” size Batteries (3 nos.) for long operation life Universal Sunrise Connector Type Tested from Recognized Laboratories
0.0
View Profile

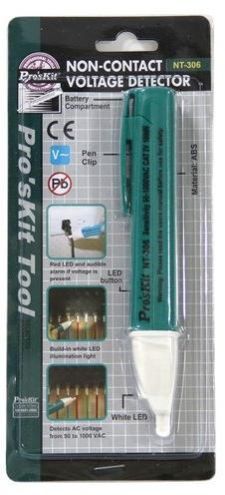

Proskit NT-306, Non-Contact Voltage DetectorNT-306
799 Per Piece
1 Piece(s) (MOQ)
features: built-in white led illumination light provides convenient work in dark areas detects ac voltage from 90 to 1000 vac without metallic contact compact size with pocket clip easily fits into pockets or tool pouches red led and audible alarm if voltage is present entire outer surface is non-conductive for safety, helps avoid high voltage shock powered by two 1.5v aaa batteries (not included) cat iv 1000v safety rating. applications: electricians, maintenance staff, service and safety personnel, and even homeowners warning:1. never test voltage more than 1000vac 2. test voltage range: 90v~1000vac

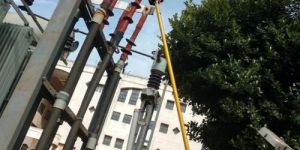

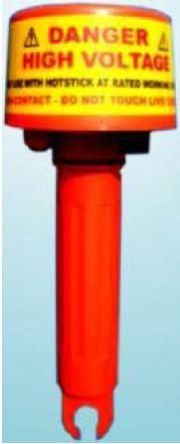

Non Contact HV Detector
Get Price Quote
1 Piece (MOQ)
Features : Non-contact principal by proximity Compatible with Insulated FRP sticks Light weight, robust and compact Suitable for indoor and out door applications Detect even Low voltage on any systems Easy access to Batteries No special part needed Simple and efficient to use
