VTL Machine Dealers

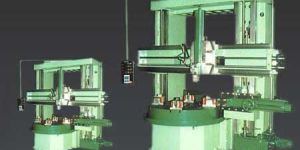

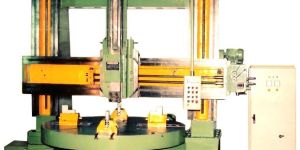

Description: Machine Type: Vertical Lathe Machine Machine Make: Stanko Machine Model: 1525   Features: Flawless Performance, Robust & Rigid  design.   Technical Specifications: Diameter of Chuck 2250 mm Maximum Turning Diameter 2500 mm Maximum Turning Height 1600 mm Maximum Workpiece Weight 15000 kg Machine Weight 30000 kg

• diameter: 2500 mm

Vtl machine heavy-duty capabilities to turn and bore 2500 mm dia work pieces, Supplementing our Horizontal turning capabilities.

Standard Accessories :One Ram Head on Cross Rail, Automatic Lifting & Lowering of Cross Rail, Centralized Control Station With Interlocked Electrical Control Pannel. Special Accessories :Turret Head On Cross Rail, Threading Head On Cross Rail, Anti-Friction Material Coating On Sliding Surfaces.

We take pleasure introducing ourselves as Quality used CNC machine for sale in India, we are pleased to state that our cnc machines are completely refurnished, sparingly used in very good condition. All the machines which we deal are completely under power and job trial can also provide on request.

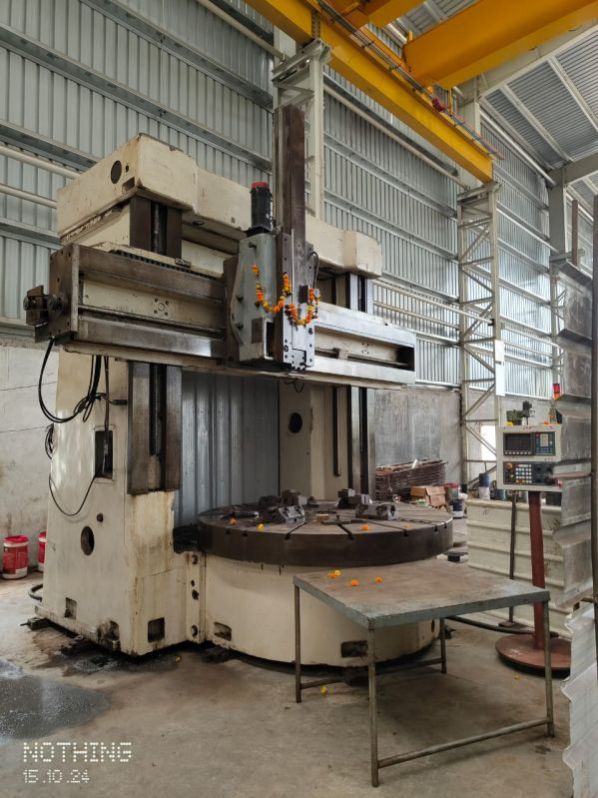

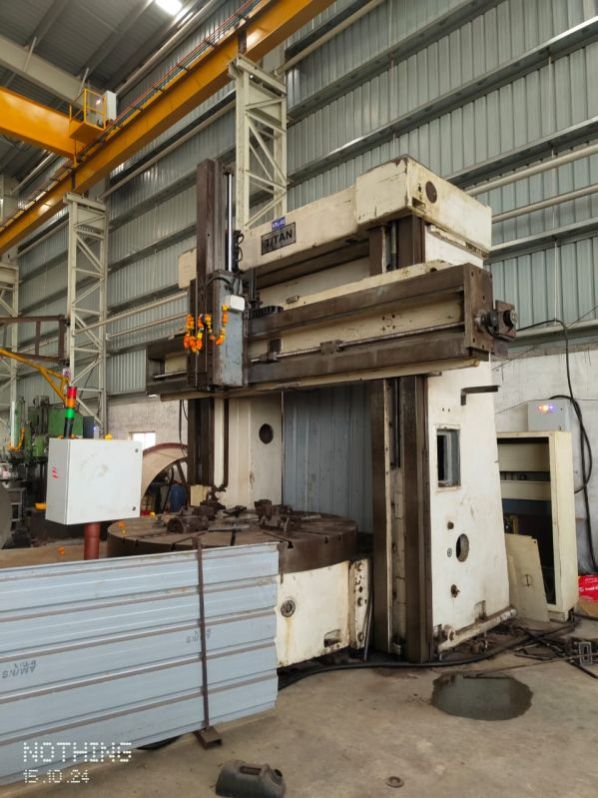

Berthiez make single column VTL with 5 mtrs swing dia. Retrofitted with 4 axis CNC after reconditioning and extending the swing to 6 mtrs. Customer : Bay forge Ltd, Chennai

We are into offering best quality VTL Machine that manufactured in accordance with set industrial standards. These VTL Machine are widely demanded by various industries as known for precision operational and longer working life. We offer this VTL Machine in different specification as per the client’s requirement. Salient FeaturesRust free surfaceCorrosion resistanceAbrasion resistanceMulti speed supportFriction free operation Used InAutomobile industryEngineering industry » Specifications ParticularsUNITVTL-1.0VTL-1.2VTL-1.5VTL-2VTL-2.5VTL-3VTL-4VTL-5VTL-6Table Diameter Max. Turning Dia withmm100012001500200025003000400050006000Side head below the table topmm126016001750225027503500450055006500 Max. Turning Dia with Side head in working position mm110015001700250028003500450055006500Max. working height under cross railmm100012001200

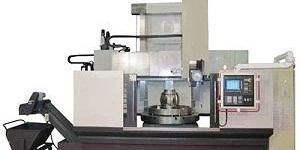

• Type: Cnc Vtl Machine
• Certification: CE Certified
• Application: Industrial Use
• Weight: 100-1000kg
• Condition: New
• Brand Name: JAGDEEP
• Packaging Details: Export packaging.
• Supply Ability: As per requirement.
• Place of Origin: Punjab, India

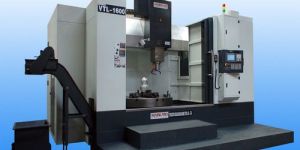

technical specification of cnc vtl machine standard features table with manual 4-jaws chuck as specification automatic lubrication system work light coolant system with motor, tank, piping etc complete splash guard telescopic covers & bellows cnc system variable frequency drive (vfd) for table all casting's machining on cnc machines optional accessories moving cross rail ac for control cabinet chip conveyor hydraulic chuck extend travel of ram live spindle with c-axis atc extra day light collant through spindle .

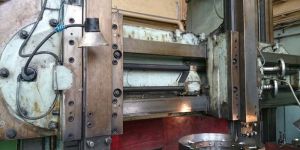

We are counted amongst the prominent Suppliers of Used VTL Machine in Pune, Maharashtra, India. We obtain them from our esteemed vendors. Our offered Used VTL Machine is highly acknowledged for its smooth functioning, great performance, robust structure, and long lifespan. These machines are easy to install and demand a negligible maintenance cost. We are competent to deliver them in bulk quantities, within the given time frame.

VTL-500 CNC Vertical Turret Lathe is designed to cater to the needs of small components like valves, pumps and auto components. This machine is very compact and cost effective. This Vertical Turret Lathe is designed with the high output user in mind. It features high torque drives for your toughest cuts and provides a greater level of support to enhance accuracy and finish. Massive castings and extra-wide way systems assure accurate and stable machining on our CNC Vertical Turret Lathe. Heavy duty transmissions allow stock removal at high spindle speeds.

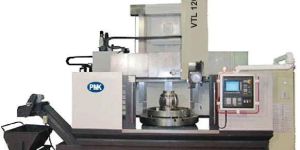

We, at Precision Machinekraft (Rajkot) manufacture CNC VTL Machines (Model No. - VTL 400 using top-grade raw materials and latest manufacturing technologies. This Model is a well-known CNC Machine and has numerous features that make it suitable for use. Features Fanuc, Siemens, Mitsubishi CNC Control System A2-8 Spindle Nose 8 stations in turret Capacity of 7.5-11 KW in Spindle Motor Technical Specifications Capacity Swing Over Bed 500 mm Max. Turning Dia. 300 mm Max. Turning Length 500 mm Max. Work Piece wieght 200 Kg Main Spindle Spindle Nose A 2-8 Chuck Size 250 mm x 3 Jaw Spindle Motor 7.5 11 kw Speed Range 750 1500 RPm Slide X Axis Travel 250 mm Z Axis Travel 525 mm Rapid Traverse (X - Axis) 15 M/Min. Rapid Traverse (Z - Axis) 12 M/Min. Ball Screw Dia (X-Axis) 31 x 10 mm Ball Screw Dia (Z-Axis) 40 x 10 mm Z Axis Drive 18 Nm X Axis Drive 8 Nm Turret No. of Stations 8 Max. Boring Bar Dia. 40 mm Tool Cross section 25 mm Control System Control System Siemens/Fanuc/Mitsubishi Size L x B x H 1610 x 1945 x 2730 mm Machine weight 5500 kg Note : Roller Guide for both Axes

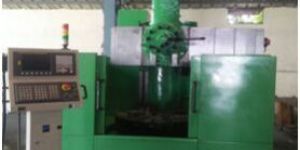

Machine Name : BULLARD CNC :- Fanuc Oi Mate TD Warranty :- 1 year for CNC system Chuck Dia = 800 mm SWING = 1000 mmX = 1000mm dia Z = 500 mm Height = 550 – 600 mmChuck Speed 0 - 200 RPMChuck Speed commendable from CNCTurret 5 – station with manual lockAutomatic lubrication Chuck Power 15HP motorComplete new wiring with elements / switch gears.Repeatability / Accuracy 0.010 mmFull enclosure guard

cnc vtl machine SERVICING OF ALL KINDS OF IMPORTED AND INDIAN CNC MACHINES such as CNC LATHE, VMC, HMC, DRILL TAP CENTER, CNC VTL, CNC MILLING MACHINE, CNC TOOL AND CUTTER GRINDER AND ALL TYPES OF CNC MACHINES. Our skilled Professionals Having More than 25 Years Hands on Experience in CNC Machine Maintenance Offers Quality, Reliable, Cost Effective Solutions & In time Service For Your CNC Machines. Aug 30, 2017 SERVICING OF ALL KINDS OF IMPORTED AND INDIAN CNC MACHINES such as CNC LATHE, VMC, HMC, DRILL TAP CENTER, CNC VTL, CNC MILLING MACHINE, CNC TOOL AND CUTTER GRINDER AND ALL TYPES OF CNC MACHINES. Our skilled Professionals Having More than 25 Years Hands on Experience in CNC Machine Maintenance Offers Quality, Reliable, Cost Effective Solutions & In time Service For Your CNC Machines. " We can Take Care of All Your CNC Machines Maintenance Needs " We are Offering Following Services * Retrofitting of CNC Machines * Geometrical Correction of CNC Machines * Axis LM Guides & Blocks Replacement * Electrical, Mechanical & Electronics Break Down Maintenance of CNC Machines * Annual Maintenance of CNC Machines * System & Servo Drives, PCB cards & CRT Monitor Servicing * Servo Motors Servicing & Rewinding * CNC Machines Spindle Bearing Replacement * CNC Machines BT Tapper & Spindle Housing Reconditioning * Ball Screws Servicing * Telescopic Covers Servicing

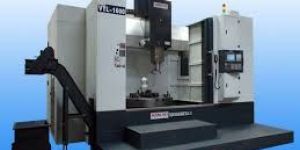

Standard Features Table with manual 4-jaws Chuck as Specification Automatic Lubrication System Work Light Coolant System with Motor, Tank, Piping etc Complete Splash Guard Telescopic Covers & Bellows CNC System Variable Frequency Drive (VFD) for Table All Casting's Machining on CNC Machines Optional Accessories Moving Cross Rail AC for Control Cabinet Chip Conveyor Hydraulic Chuck Extend Travel of Ram Grinding Attachment Angular Milling Attachment Live Spindle with C-Axis ATC Extra Day Light Collant Through Spindle Jig & Fixtures Linear Scales for X/Z axis

Ace Vertical Turning Center combine power, rigidity and versatility with increased capacity. Wide access to the chuck zone facilitates ease of loading and unloading of parts. Rapid traverse rates of 20mmin reduce cycle times. Linear motion guideways on X & Z axes ensure better positioning and repeatability. This machine is ideal for turning heavy, large diameter components like fly wheels, brake drums, big size gears, etc. The machine is conducive for easy loading and unloading of heavy components. This machine occupies smaller floor space than a horizontal turning machine that can turn comparable sized parts.

Macpower introduces VTX series – CNC Vertical Turning Centers designed and developed by team that has abundance experience in manufacturing CNC turning centers and machining centers. It is a combination of high power performance and excellent unyielding construction. It is designed to operate in medium and high production environments. Machine is equipped with robust structure design to ensure rigidity, stability, accuracy and flexibility for the machining of chucking parts.

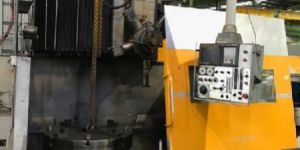

MAKE - OM MODEL- TM2 -10N CONTROL - Fanuc 21 T Specification : Table Diameter - 1000 mm Maximum Cutting Diameter - 1100 mm Maximum Cutting Height - 750 mm

Heavy and rigid single piece structure. Heavy duty box type guide ways. High performance rigid spindle. Counter balance Z axis Hydraulic chucking. Auto and manual coolant system. Electrical with quality devices & panel with A.C. Centralized & programmable lubrication.

cnc vtl machine is a pioneer in the manufacturing of state-of-the-art CNC Vertical Turning Lathes (VTL), with sizes ranging from small VTLs to large VTLs. Based on the sizes the products are classified into PTA,PTB,PTC and PTD series.

The cross slide has a clear travel of 2500mm vertically with a clear distance of 2800mm horizontally between 2 heads mounted on it.All the movements of the machine is been controlled by individual VFDs viz horizontal movement of the heads, vertical movement of the spindle, vertical movement of the cross-slide, horizontal movement of the table, rotational movement of the chuck giving precise RPM as required.All the gear boxes are Planetary gear boxes with precise ratios as per the requirement.
