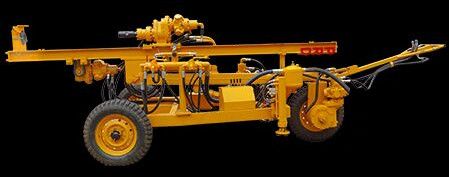

Wagon Drill Dealers

• Usage/Application: Mining
• Brand: GETECH
• Model Name/Number: WAGOR DRILL G30
• Drilling Rig Type: Land Based Drilling Rigs

We are renowned Manufacturer, Supplier and Exporter of Pneumatic Wagon Drills. The Pneumatic Wagon Drills are made using high-grade metal under the supervision of expert professionals. The Pneumatic Drills have sturdy construction and are technically accurate as well. Reliability, high performance, accurate results and durability are some of the factors for which our Pneumatic Drills are widely acclaimed. Also, the good quality Wagon Drills are available with us at modest prices.

• Version: Top Hammer
• Pneumatic Drifter: RMT 120F | BBC 120F
• Drilling Depth: 20 - 40 meter (66 feet - 131 feet)
• Hole Diameter: 48 - 76 mm
• Drill Steel: R32 / R38 / T38
• Drill Steel Length: 1.20 Meter, 2.50 Meter, 3 Meter
• Air Consumption: 400 cfm at 7 bar
• Details of Feed and boom: As below
• Feed Type: Chain Drive
• Feed Beam Length: 5430 mm, 4425 mm, 2825 mm

• DIAMETER DTH: 4″ – 4.5″ dia up to 30m
• PULL DOWN FORCE: 2200 kg
• COMPRESSOR: 450 cfm – 100 psi
• ROTARY HEAD SPEED: 0 – 50 rpm
• ROTARY HEAD TORQUE: 1125 Nm

• Country of Origin: India
• Type: Drill Grinders
• Material: Metal
• Condition: New
• Driven Type: 1000-2000kg
• Warranty: 1 Year

• Type: Hammer Drill
• Model Number: BBC 120F
• Material: Alloy Steel
• Chuck Capacity: 38.10 mm ( Hole Dia - 48 to 75 mm)
• Max Drill Depth: 50 feet
• Brand: IMT
• Air Pressure: 90 cfm
• Air Consumption: 350 cfm
• Item Weight: 70 Kgs
• Vibration: 2100 Blow Per Minute
• Length: 780 mm
• Discount: On quantity order.
• Original: Original Make also available

By using high-grade raw material, these Wagon Drills are offered with the locking arrangement. These Wagon Drills are fixed on wheels and help them to shift properly and able to drill holes from horizontal to vertical. Available in the diameter of 102-114 mm, these Wagon Drills are offered at affordable rates. These Wagon Drills are suitable for blasting and drilling in cast mines. Highly rigid and stable, these Wagon Drills can handle 76 mm diameter × 2 meters & 3 meter pipes. Features : Stable drilling capabilitiesStructural designed for extra rigidityBase frame in box-constructionAnchoring arrangement ensures perfect stability during drillingRear wheel swivel able by 90 to prevent movement during toe hole drillingEffectively braked wheels with hydraulic stabilizer in the front, holding the unit firmlyLocking arrangement between mast and boom provides extra rigidityEasy maneuverability - both in manual and self propulsion modesCentralized sensitive controls with auto feed arrangement ensure easy of operations

• Warranty: 3years
• Brand Name: PRL
• Application: Water Well.
• Hole Diameter: Dia 4
• Depth: 40 Meters
• Carrier: 3 Wheel Mounted on Wagon
• Air Compressor: 450 cfm @ 150 psi (Trolley Mounted)

PWD - model, top drive dth drill rig is capable of drilling in different formations such as hard rock by dth.

• Brand Name: MMR Mining Equipment
• Automatic Grade: Semi-Automatic
• Features: Well equipped, Long lasting, Self propulsion arrangement for easy movement
• Usage/Application: Drilling purpose
• Hole Diameter: 0-25 mm

• Pneumatic drifter: VK – 12
• Hole Diameter: 48 - 76 mm
• Drill Steel: R32, R38, T38
• Drill Steel Length     : 1.20 Meter, 2.50 Meter, 3 Meter
• Air consumption: 400 CFM @ 7 Bar

Vikay Pneumatic Wagon Drill suitable for Top Hammer and Down the Hold Drilling. A robust rubber tyre three wheel pneumatic Wagon Drill, with the option of TH version – Top Hammer and DTH Version – Down-the-hole Hammer, which is an alternative to mechanization of hand held drilling. The Wagon Drill design for production drilling in open-cast mines and quarry, grouting, anchoring with special shortened mast, used for production drilling in underground mines. Optional – Conversion Kit to convert TH version to DTH Version and Vice-versa. TH version (Top Hammer) The TH version of is equipped with the robust Pneumatic Top Hammer with rifle bar rotation model VK-12 Pneumatic Drifter, well known for its simplicity and reliability. Suitable for hole sizes from 48 – 76 mm and depth upto 20 – 40 Meters.

• Warranty: 1 yr
• Condition: New
• Certification: ISO
• Type: WELL DRILLING RIG
• Brand Name: JCR DRILLSOL
• Application: Oil Well
• Voltage: CUSTOM NEED
• Power Type: Diesel
• Packaging Details: As per customer requirement
• Power(W): CUSTOM NEED
• Lead Time: 4-6 weeks
• Supply Ability: 6 Unit/Units per Month
• Model Number: -

HCM provides experienced Divers, Khalasis, Seamen, other skilled workers and site engineers for executing the works such as drilling large diameter holes by using drilling platform and wagon drilling machine, charging the holes with the help of Divers, mucking the blasted materials by using crane and grab and dumping the materials in the dumping area, etc

Wagon Drill JRD-120(DTH) : JRD - 120 Wagon Drill, capable for Drilling 90-115mm dia holes to a depth of 36mts. Used in open Cast mines for drilling and blasting purposes. Pneumatic Drifter can be mounted to carry out Drifter Drilling. Mounted on Rugged Box Frame, Fitted on wheels for easy shifting from hole to hole can drill holes from Vertical to Horizontal. The drills are available to handle 76mm dia x 2 mtrs. (6 1/2 ft) & 3 mtrs.(10 ft) drill pipes. Special Features : Stable drilling capabilities Structurals designed for extra rigidity Base frame in box - construction Anchoring arrangement ensures perfect stability during drilling Rear wheel swivelable by 90o to prevent movement during toe hole drilling Effectively braked wheels with telescopic adjustable stabilizers in the front, holding the unit firmly Locking arrangement between mast and boom provides extra rigidity Easy maneuverability - both in manual and self propulsion modes Centralized sensitive controls with Auto feed arrangement ensure easy operation and reduction of operators fatigue Rotation and winch units modified to provide additional power for faster drilling and rapid withdrawals, longer tool life etc. Heavy duty steel castings & Forgings Precision machined components Durable alloy Bronze bush bearings supported by sturdy retaining rings Heavy duty rotation gear box with involute profile gear tooth, duly corrected to prevent failure Rigid out-put shaft with extra bearings support and thicker thread profile Specially designed fluid seal to prevent Air leakages

Beaver Tracks Pvt. Ltd. is renowned as one of the primary Wagon Drill Suppliers in India. Our suppliers deal with super quality Wagon Drills which are acknowledged for durable construction and high performance. Our machines are manufactured using high grade crude materials and are sourced from reliable merchants of the company. In addition to it, wagon drill suppliers follow the international norms to manufacture these drills. Offered products are available in standard as well as in customized forms. Due to high quality strength, robust structure and corrosion free nature, our manufacturers are hugely demanded in many states and countries. We offer the best quality wagon drill at affordable costs and with specified time duration.

• Usage/Application: Water Well
• Model Name/Number: PWD-30
• Drilling Rig Type: Land Based Drilling Rigs
• Drilling Depth: 30 Meteres
• Hole Diameter: 100-200 mm
• Automation Grade: Semi Automatic
• Air Compressor: 493CFM/203PSI
• Carrier: Skid Mounted

Features: Higher Penetration rate Better safety and stability Enhanced productivity Lower operating cost Extra heavy duty traction motor Optional provision for Dust suppression Salient Features Rugged box section base frame for stability, ease & secure setup Powered adequately with Extra Heavy Duty SPM of 8 HP to easily move the unit from hole to hole on rough terrain Centralized control panel for easy operation Additional mechanical locking arrangement for drill mast for safe and secure drilling operations at different angles Adequate features incorporated for better safety and stability of the unit during Drilling, Shifting and Towing Lower initial and long term economical operational cost backed up by effective after sales service Optionally can be supplied with water injection system at extra cost for dust suppression Tyre Mounted Wagon Drill Model KWD – 125 KALA Wagon Drill, Model KWD-125 is capable of 102-115 mm dia-holes up to a depth of 30 mts. Used in blast hole mainly for various Mining, Construction and Excavation applications. The improved features incorporated have enhanced it’s suitability for safer, more, Efficient & Economical drilling operations. Besides advanced safety and operational features, the unit can be optionally equipped with water injection system for dust suppression. The Wagon drills are designed to handle 76mm dia x 3mts, drill tubes and also available in shorter versions to handle 2 mts long drill tubes.   KALA Wagon drill model KWD – 125H is specially designed with Hydraulic power pack consisting air motor coupled to hydraulic pump of adequate capacity for actuating Hydraulic stabilizers rising and lowering of Mast and Boom desired to set up the unit with individual separate Hydraulic directional control valves and double check valves.

Clients can avail from us high quality Wagon Drill that is used in open cast mines for drilling and blasting. It is manufactured from quality approved base material in compliance with international quality standards. To ensure its quality, this drill is stringently tested on various parameters. Offered drill can be availed in various specifications which can also be customized as per the needs of the clients. This drill is also supplied in bulk quantities by our renowned clients at rock bottom price.Specifications:102-114 mm diameterHoles to a depth of 36.5 mtsHandle 76 mm dia x 2 mts3 mts. drill pipesFeatures:Easy to moveRobust constructionCorrosion resistanceAdditional Information:Item Code: Wagon-drill-JRD-120
