Warping Machine Dealers

We are elastic name tape ( narrow fabrics ) manufacturing company based in Surat. We are currently running 28 high speed needle loom machines with jacquard attachment on all machines. There are 5 rubber covering machines with one bobbin winding machine, 2 warping machines for making beams, 2 finishing machines for packaging in carton boxes, 2 festooning machines, 1 metering roll machine, and other machines including aluminium beams and other spares. We want to sell our complete machines with all the spares etc. The manufacturing unit is about 2-3 years old and is in completely running condition and very well maintained. You can visit and check the machines running any time. We are mainly manufacturing elastics for men’s underwear and tracks. We are successfully running the manufacturing unit from past 2-3 years but we want to diversify into our other businesses of trading and sell the complete machinery of this unit. We have regular sales of name tape elastics in Kolkata market and Delhi market which we can share with you if you are interested in purchasing the complete machinery as we do not plan to continue this manufacturing business in future.

• Speed: 200 Mtr/min. forn synthetic yarn 100 Mtr/min. for covered rubber
• Beam Size: 450 Dia. X Width max upto 400mm
• Warping Motor: 2 HP / 105 kW AC Brake Motor
• Creel Motor: 1 HP / 0.75 kW AC Brake Motor

Features: Pneumatic control for constant tension Digital preset counter meter for exact length Suitable machine for warping all sort of synthetic yarn and covered rubber / Lycra with positive Creel Beam driven by drum surface

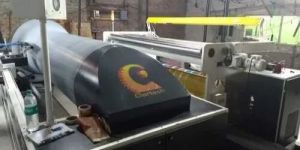

Sectional Warping Machine Automatic with Auto Stop Motion & Electro Magnetic Brake with Digital Counting Meter & Drive for variation of Warp Speed with different types of Gear Ratio as per Your Requirement.

• Working Width: 1600 mm to 4200 mm
• Beam Flange Diameter: 800/1000/1250 mm
• Cone Angle: 7 Deg/9 Deg/11 Deg
• Warping Speed: 0-1000 mts/min
• Beaming Speed: 0-100 mts/min (Higher on request)
• Drum Circumference: 2.5mtr / 3mtr

Special Features : Auto Re- Position Warp Table : Variable speed of warp table out of 500 steps gear ratios. Auto Re-position of every next section. Flat reed with fine angular adjustment for section width. Two roll attachment for section tension control. Warp Length Meter : Digital warp length measure meter. Machine automatic stop after predetermine warp length. To get desire actual warp length. Yarn length meter re-set by press and push button. Disc Brakes : A hydraulic disc brake of special conception which absorbs the possible irregularities of brake drum makes, at the same time, quick & exact braking of warping drum & the obtaining of a regular tension Beam Tension : Special designe develop by 'Bobbiler' to produce perfect weaver beam to get optimum efficiency for automatic looms. Boths pressure relief valve are separate for warping and beaming to get require beam tension control increase and decrease by manually of Leasing Device : With this device Yarn layers do not accumulate any where, but they pass through the crossing comb & the guide thread comb, in open state, directly to the drum. So the tangle of threads among themselves is avoided. The crossover for the placing of crossing cords is very wide and permits the worker to introduce them comfortably & without any auxiliary means. Beaming Device : This assembly is of very strong construction & suitable for the beaming of very heavy warpings. The starting is carried out by a drive placed in both supports of the beam. Both beam supports can move easily separately or coupled, which allows an exact alignment of the beam on the warping. Beaming speed without graduation until 100 mtr/min. Salient Features : Dynamically Balanced Metallic Solid drum with Fixed cone height. Robust Separate Warping & Beaming structure. Motorised Movable Beaming structure. A.C. Frequency variable speed drive with fully Servo & PLC control Fully servo system for precise warp table traverse motion, warp table cross motion & machine head stock motion in synchronization. Accurate length warp measuring with lost end memory. Auto section advancing. Constant warping & beaming speed.Friendly user operational panel having colour touch screen display for all desired process data. Effective caliper Hydraulic Disc brakes on both side with power failure. Hydraulic doffing and donning device.

• Country of Origin: Made in India
• Automation Grade: Semi-Automatic
• Material: Mild Steel
• Power Source: Electric
• Beam Flange Diameter: 1000 mm
• Shape: Round
• Brand Name: Phoenix

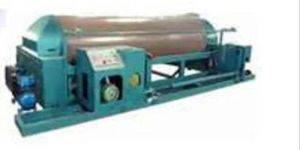

We offer Textile Machine like Hydraulic Automatic Warping Machine.

Sample Warping Machines are used in the requirement of Sample Design length, which is constantly changing in fashion industry. All these sample warping machines can be integrated with sample warper automation system. This system consists of window programming based computer and dedicated electronics hardware to control the machine. The PC communicates with the control electronics for commands to and status from the machine

• Material: Metal
• Color: Metallic
• Durability: Long Life
• Surface Finishing: Polished
• Resistivity: Rust Resistant
• Application: Industrial

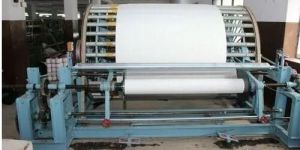

We are a renowned Manufacturer, Exporter and Supplier of high grade Yarn Warping Machine that are used to fill yarn in the Beems used for plastic mats. With the use of latest technology and certified components, we produce optimum Yarn Warping Machine in compliance with internationals standards of quality. Before supplying Yarn Warping Machine are tested on all quality parameters to make sure that only the best reaches our buyers. For competitive prices and timely delivery, contact us.

• Working Width: As per Requirement
• Application: Textile Industries
• Material: Mild Steel
• Finish: Coated
• Feature: Rust Proof
• Automation Grade: Semi Automatic
• Minimum Order Quantity: As per Customer Needs

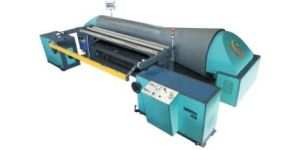

Sectional Warping Machine

Robust separate warping and beaming structure. Hightech cradle type Beaming structure. Extremely effective air cooled hydraulic disc brakes. Constant beaming tension with beam oscillation function. Three servo systems for warp table traverse motion, warp table cross motion and machine head stock motion in synchronization with each other. Yarn Built-up through Laser Sensor Kick Back type Feeler Roller for Compact Beam Programmable Leasing Device Section Tension Control Reverse/Forward Drum Rotation

• Type: Automatic
• Certification: iso 9001 2008
• Application: warp
• Color: Green
• Condition: New
• Model Number: vi gold 350
• Brand Name: Vishwakarma
• Use: warping
• Product Type: warp
• Place of Origin: india
• Computerized: no

We are one of the renowned manufacturers and suppliers of handloom weaving machines such as Peg Warping 14 mtr. Our company has established a modern infrastructure and formed a team of competent professionals that helps us in fulfilling the varied market demands. Handloom weaving machines of our company are highly appreciated for the well known properties like superior design, easy installation method and high efficiency. Our handloom weaving machines are extensively used in Textile industry.   Specific properties: Excellent performance Attractive design Manual operation Long service life

• Brand: Susmatex
• Feature: Heavy Duty round pipe supporting structure, Both sides draw-out frames helps to easy spool changing & balloon breaking
• Machine Type: Semi-Automatic
• Capacity: 100-2000 bobbins
• Power Consumption: 150 Watt
• Material: Mild Steel
• Frequency: 60Hz
• Model Name/Number: WC192
• Power Source: Electric
• Voltage: 440V

• Country of Origin: India
• Material Capabilities: 5000 meter to 10000 meter
• Capacity: 10000 meter
• Power Consumption: 5hp
• Automation Grade: Automatic
• Beaming Speed: 120 mtr/min Easy operating system
• Section Speed: 600 Mtr/min
