Wing Pulley Dealers

• Usage: Industrial
• Type: Automotive Pulleys
• Number Of Grooves: Multi-Groove
• Standard Lift: 12 M
• Country of Origin: India
• Capacity: 1 Ton
• Material: Mild Steel
• Diameter: 68 mm

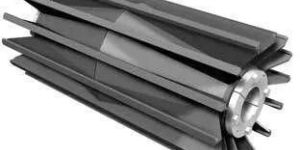

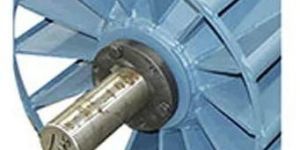

APPLICATION The belt conveyor wing pulley is known as self-cleaning pulleys. These wings serve several purposes, including improving belt tracking, reducing material spillage, and enhancing overall conveyor system efficiency. It has the ability of belt tracking and self-cleaning, and it can reduce material spillage.   Like other types of conveyor pulleys, wing pulleys may be equipped with lagging material on the surface to improve traction between the pulley and the belt. It is widely used in Aggregate & Cement, Mining, Paper & Forest, Power Generation, Unit & Baggage Handling, etc. FEATURES Winged Tail Pulley Mine duty and quarry duty and heavy duty pulleys provide effective self-cleaning action reducing material build-up. The duty construction reduces the possibility of metal fatigue and enhances the dependability of the pulley. Ideally suited for harsh application and abrasive conditions. DIAMETER: 6” – 60”(152mm – 1524mm); FACE WIDTH: 12” – 78”(305mm – 1980mm); It is Customizable.   Spiral Wing Pulley Available in crow spiral wing pulleys are formed by winding flat bar spirally from the center of a wing pulley to the outside ends. This continuous belt contact design eliminates excessive noise and vibration, while still providing a cleaning effect and allowing a path for debris to escape rather than being trapped between the pulley and belt. n or Flat Face. Diameter: 12" – 60"; FACE WIDTH: 12" – 75"; It is Customizable.   Chevron Wing Pulley Before the chevron pulley, traditional wing pulley designs were notorious for trapping rocks, gathering fugitive material and bending prematurely.Chevron Wing Pulleys reject and repel any incoming fugitive material, which significantly extends the operating life of your conveyor and many of its components. DIAMETER: 10” - 42”; FACE WIDTH: 12” - 75”; It can be tail and gravity take-up; It is Customizable.   Herringbone Wing Pulley Herringbone wing pulley was designed for those applications where conventional wings suffer from excessive material lodging and wing folding. The extreme wing angles of up to 45 degrees, use the rotation of the pulley to eject material out the sides of the pulley rather than recirculating it as a conventional wing often does. DIAMETER: 12” - 60”; FACE WIDTH: 12” - 78”; This is a precision pulley. It is Customizable.     Belt Conveyor Wing Pulleys Specification Standard You can get DIN/ AFNOR/ FEM/ ASTM/ CEMA standard wing pulleys from our company. DIA. 6"-60", 152-1524mm FACE WIDTH 12"-102", 305-2590mm Types 1. Mine Duty Wing Pulley, 2. Heavy Duty Wing Pulley, 3. Wing Tail Pulley, 4. Spiral Wing Pulley, 5. Chevron Wing Pulley, 6. Herringbone Wing Pulleys. Customizable When selecting a conveyor wing pulley, factors such as the type of material being conveyed, belt width, load capacity, and environmental conditions should be considered.
