Wire Butt Welder Dealers

Welding Process: - The ends of the wires to be joined are 'prepared' on the special shearing attachment (optional) - Welding current and initial up-set gap set according to the size of wire, the up-setting pressure being preset at works - The wire ends are rigidly clamped by special quick acting clamps and viewed through an illuminated magnifying glass (optional), to ensure correct alignment of the wire ends - By pushing the button, butt welding cycle is initiated and completed automatically by built-in controls - Weld completed, the job is then de-clamped and annealed in the annealing device (optional), if necessary Features: - Specially designed for Butt Welding of ferrous and non-ferrous wires in the range of 0.30 to 2.50 mm diameter, to withstand subsequent drawing - The automatic welding process ensures high tensile and uniform welds - Upset Travel - Movable platen travel on two parallel guides - Upset Pressure - Provided by a precision spring action on the movable platen, precalibrated - Electrodes - Special wear resistant copper alloy electrodes provided with precision 'V' grooves, permit rapid and accurate alignment of wires - Adjustment of welding current by 8 position rotary switch

• Features: Optimum performance, Easy to maintain, Precisely engineered

• Phase: 3 Phase
• Weight: 115 Kg
• Welding Type: AC Wire Welding
• Capacity: 6 mm
• Material: Mild Steel
• Automation Grade: Manual
• Model Type: DHB-10
• Brand: DH
• Frequency: 50-60 Hz
• Voltage: 415V

Owing to our rich domain expertise, we are manufacturing and supplying a wide gamut of Wire Butt Welders that is extensively used for butt joining of wire. These welders are fabricated with utmost precision as per the latest technological advancements under the guidance of our skilled professionals. Our offered welder is highly admired by clients due to its low maintenance, enhanced performance, sturdy construction and longer service life. These are available in various sizes as per the varied needs of clients. Apart from this, these are strictly tested on various quality parameters to assure their flawlessness.

The welding process on these machines is automated and the setup are not difficult Upsetting pressure is set-up by means of a dial calibrated for wire diameter Welding current is picked by a rotary switch Releasing the foot pedals leaves the wire clamped under adequate pressure Wires to be joined should be cut straight, exactly at right angles and free from burrs Electrode positioning is altered by a lever set against a plate calibrated for wire diameter Wire ends are clamped by spring loaded clamping tool which can be opened singly or collectively through foot pedals

• Phase: 2 Phase
• Country of Origin: Made in India
• Material: Mild Steel
• Usage/Application: Welding Industry
• Frequency: 50 Hz
• Rated Voltage: 415 V

• Condition: New
• Certification: --
• Lead Time: as per buyer demand
• Current: 56 amp
• Place of Origin: Maharashtra, India
• Dimensions: 30" X 30" X 48"
• Packaging Details: in wooden crates as per international standards
• Supply Ability: 3 Unit/Units per Week
• Power: 20 KVA

• Phase: 3 Phase
• Weight: 115 Kg
• Welding Type: AC Wire Welding
• Capacity: 6 mm
• Material: Mild Steel
• Automation Grade: Manual
• Model Type: DHB-10
• Frequency: 50-60 Hz
• Voltage: 415V

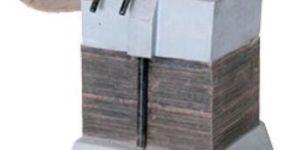

Micro Wire Butt Welder suitable for butt welding of ferrous and non ferrous wires from 0.3 mm to 2.5 mm. Easy to operate, the table top model can withstand subsequent drawing of the wires.» Welding ProcessMicro Wire Butt Welder automatic welding machine has a set value of 10 for welding current and the initial upset gap. The upsetting pressure can be set according to the size of the wire. Special quick acting clamps are used to hold wire for perfect alignment of the ends to be welded. Welding is simply initiated by a press of button and the complete cycle is automatically completed with built in controls.

JK manufactures these efficient machines for butt-welding of all profile wire of Iron,Steel, Alloy and Carbon Steel, Copper, Aluminum, Brass and other light metals and their alloys. These machines are designed as portable models mounted on a moveable stand with the foot operation. They are constructed with particular regard for quick and easy operating; the settings for electrode spacing and upsetting pressure are calibrated directly for the different wire size to be welded. The welding process being automatics permits even unskilled workman to operate the machines faultlessly, and ensures uniform welds of high tensile strength, capable of withstanding subsequent drawing. Depending upon the material to be welded and the size wire four different models are available one model for iron and mild steel wire, one model for alloyed steel and carbon steel, and two for copper, brass, alluminium and light alloy wires. All machines are equipped with annealing facility.
