Wire Winding Machine Dealers

• Maximum Diameter of Coil: 450 mm
• Layer Width: 15 to 300 mm

Wire winding machine is provided with machine for gradual increase & decrease the machine�s speed. Provision for change of speeds through gear unit is incorporated inside the gear box of the machine. Two hand lever is provided with the machine, one lever for precise setting of layer for different wire size and other lever for manual reverse of wire at the end of each layer.

• Condition: Brand New
• Material: mildsteal
• operating Type: Manual

• Type: Layer Winding Machine
• Color: Grey
• Condition: New
• Automatic Grade: Automatic
• Power: 1-3kw
• Driven Type: Electric

We offer high grade Layer Winding Machine that has no alternative available in the market when it comes to precise fabrication. The Layer Winding Machine provided by us can be availed at reasonable prices. Moreover, we are one of the reliable Manufacturers and Suppliers of Layer Winding Machine in the domain.

We provide modern Submersible Winding Wire Plant that comprises of latest equipments and machines such as Wrapping Machine (Vertical), Wrapping Machine (Horizontal), Slitting Machine with single colour printing and Industrial Oven. We use only good quality material to manufacture all aforementioned products. Our highly proficient and efficient engineers and technicians are fully motivated and dedicated to manufacture machines and equipments conforming to high national and international quality standards.

To keep our pumps and motors in top gear we have installed latest modern in house facility to manufacture and test, Oswal Power - Poly wrapped submersible winding wire, PVC insulated submersible winding wire and Super Enamel Wire. Our existing production is of capacity of Polly wrapped wire - 5000 Km per month and of Super Enamelled wire 40 ton per month and PVC wire 500 Kg per day.

• Weight: 100-1000kg
• Material: Metal
• Surface Finshing: Polished
• Resistivity: Rust Resistant
• Uses: Remove the Braze Frames
• Drive Type: Electric

We are counted as one amidst the preeminent Single Head Wire Winding Machine Manufacturers & Exporters from India. The Single Head Wire Winding Machines are widely demanded in the market due to the unmatched quality and excellent performance. Application : Condensers Evaporators Air Conditioning Heat Exchangers Engineering Companies

• Type: Wire Winding Machine
• Certification: CE, ISO 9001:2008 Certified
• Weight: 1000-2000kg
• Color: BLUE
• Voltage: 110V
• Condition: New
• Automatic Grade: Automatic, Customized
• Power: 3-6kw
• Driven Type: Electric
• Warranty: 1year
• Country of Origin: India
• Brand Name: TRANSWIND TECHNOLOGIES PVT LTD
• Color: Blue

• Weight: 46 kg
• Automation Grade: Semi-Automatic
• Diameter of wire winding: OD 10-25mm & OD 15-40mm
• Model Number: HM1008E
• Supply voltage: AC 220V
• Tie length: 90-120mm & 120-180mm
• Input and output: 7 inch touch screen display
• Dimension: 65*50*45cm
• Frequency: 50/60HZ
• Rated power: 200 W
• Tie speed: 2-8 rounds/sec
• Coil External Diameter: 100-200mm

• Type: Layer Winding Machine
• Certification: CE
• Weight: 2000-3000kg
• Color: Green
• Voltage: 440V
• Condition: New
• Automatic Grade: Semi Automatic
• Power: 32 Kw
• Driven Type: Electric
• Warranty: 1year
• Brand Name: Jiangsu Bamboo
• Conductor Material: Na
• Insulation Material: Na
• After-Sales Service Provided: Yes
• Conductor Type: Na
• Product Name mig layer winding machine: For 0.80 to 2.0 mm

• Spindle Motor: 180W / 1/4HP, 180VDC, 3000RPM, PMDC
• Power Supply: 220/240V AC, 50HZ, 0.5KVA

With the aid of our updated transit facilities, we are capable of delivering the orders at requested destinations with ease. Buyers across Bangalore(India) and other markets can contact us for purchasing our product all year round.

• Country of Origin: Made in India
• Voltage: 230 V
• Power: 2 HP
• Power Source: Electric
• Body Material: Mild Steel
• Surface Finish: Color Coated
• Automation Grade: Automatic
• Frequency: 50 Hz
• Capacity: 150 m/min

• Automatic Grade: Automatic

• Brand Name: Sunny Engineering
• Voltage: 415 V
• Country of Origin: Made in India
• Material: MS
• Power Source: Electric
• Maximum Coil Dia: 5 Inch
• Capacity: 45 Mtr/Min
• Automation Grade: Automatic
• Frequency: 50 Hz
• Layout: Vertical

• Maximum Coil Height (Coil Length): 1500 mm
• Maximum Outside Diameter: 1000mm
• Max Coil Weight: 2000 Kg
• Mandrel RPM: Up to 400 RPM Max., variable speed

we offer tailor made automatic layer winding machine to suit your; maximum coil outside diameter coil inside diameter coil height  maximum size of wire / rectangular conductor material : copper / aluminium enamelled wire from 0.3 mm to 6.0 mm  rectangular conductor up to 70 sq.mm       mandrel : we provide two options for mandrel; machine with shaft for loading the mandrel expandable mandrel    expandable mandrel specifications: diameter of the mandrel is finely adjustable with 8 number of segments. expansion range in each stage is 40 mm to 100 mm depending on the diameter  segments can be added to increase diameter range maximum coil weight 2000 kg  drive : ac motor with variable frequency drive   machine is operated by a foot switch. Reverse running is also provided tail stock : expandable mandrel or mandrel shaft loaded between head stock face plate and tail tail stock pintle. Tail stock is assembled on a swiveling frame for easy removal of coils. Screw type arrangement provided for pintle movement guide carriage : guide carriage is mounted on lm guide system with rail and runner block. Separate guide assembly is provided for wire and strips. Carriage will be moving and supporting the wire / strip with its guide along the length of machine.tensioning roller assembly with 6 no rollers is mounted on the guide carriage. Guide assembly for wire provided with pneumatically braked pulleys, and pulley mounted on an adjustable rod to guide the wire close to mandrel traverse assembly : traverse assembly operated with ball screw, servo motor, servo drive, hmi, plc is provided for accurate control of winding guide carriage is suitably mounted on lm block and rail winding sequence according to the transformer design specifications can be programmed and recalled, through the hmi brake : pneumatic disc brake control panel : control panel with ac variable frequency drive, servodrive, plc, and accessories are supplied. Operating desk with hmi is suitably mounted on the machineoptional accessories un-winder for wire with pneumatically controlled tensioning arm de realer for rectangular conductor. Bobbins mounted on motorized trolley full width insulation de-coiler (paper / ddp) de reels for edge strips

• Feature: Wire cut detector,199 Program non-volatile memory

PROGRAMMABLE COIL WINDING MACHINES machine are microcomputer controlled to attain high winding accuracy, consistency and low maintenance. Menu-driven programming through alphanumeric dialogues display and a 5-Key joystick pad help to realizing complex winding programs with exceptional ease. A powerful set of programmable parameters and multi program memory makes it possible to wind simple relay coils to complex switching transformer & variable pitch coils with equal simplicity. Robust construction, design and standardized practices coupled with a responsive service back up ensure long operational life and uninterrupted performance.

• Capacity: 300 kg.

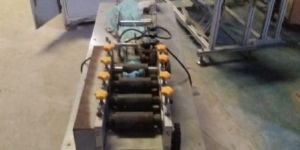

The CO2 welding wire is available on a spool of almost 300 kg. The wire is wound on smaller spools with accurate length measurement & weight measurement. The winding is done in layer form. The bigger spool is driven by servo drive & motor. The wire is let off by the big spool & is pulled by a servomotor on smaller spool. The wire length is measured by encoder on a measuring wheel. The operator enters wire diameter, the density of material & the required weight of smaller spools. The weight measurement is done indirectly by measuring length. The wire is guided by a linear axis so as to form a uniform layer with an angle entered by operator.

• Application: The machine is mainly used for multiple pair laying of data cables, HDMI cables, power cables, bare copper wire (fine wire), Multicore shielded cables, control cables, etc.
• Configuration: Single twist main unit, electric control panel, Central taping machine, side-way longitudinal taping device.

• FEATURES: Easy of Winding :- Our winding wires have lesser O.D. than conventional PVC Winding Wires hence, they have lesser winding resistance and easy to wind. eTC.

ASHOK INDIA winding wires are manufactured with required diameters of copper conductor as per the wire sizes and uniformly wrapped with electrical grade polyester and BOPP films, and fused at 140 degree centigrade, then tested as per IS - 8783, part - IV section 3. We have well equipped testing lab for the testing of the wires for better quality inspection purpose. To keep our pumps and motors in top gear, we have installed latest modern In-house Facility to manufacture and test, ASHOK INDIA Power - Polyester Wrapped Submersible Winding Wires. To feed our submersibles by our winding wire manufacturing facility, we have installed a set of semi-automatic Wire Drawing Plant with one Annealing furnace. We are using 99.999 % pure certified copper from INDIA 's most well known, reputed industries, like, Ms. Sterllite and Ms. Hindustan Copper for our winding wires.

• Max diameter: 200mm
• Max Length: 200mm
• Max dia: 150 mm

Fabricated table stand for the above models. Jar type carriers for wire gauges above 40 swg. & upto 52 swg. Pre. Set electronic LED revolution counter. Electro magnetic brake with rectifier for instant stopping. 18 Coils winding machine with manually operated paper cutting arrangement (for Ignition coils).
