MID POINT ENGINEERS (P) LIMITED Bhilai, durg, Chhattisgarh

We manufacture a wide range of Wheelbarrows which are developed at our facilities and made by using latest machinery. Our Wheelbarrows feature an advanced design that not only makes the storage but also the disposal of garbage easier than other wheelbarrows available in the market. Array Includes : Standard WheelbarrowContainerised WheelbarrowRickshaw WheelbarrowFiber Wheelbarrow Features : Sturdy constructionCorrosion resistant finishEasy to maneuverLong service life Demanded By : Municipal establishments

We provide Vacuum Suction Machines which are used for sucking excreta or sludge from cesspools and septic tanks. Tank capacity varies between 3000 to 6000 liters and it is mounted on a trolley or truck. Normal suction head is 5 m water column. For a trolley mounted tank, pump is driven by diesel engine. In case of truck mounted tank, PTO of truck gear box is used to supply power. At the time of emptying, pressure is generated inside the tank by the pump. The pump is with Blow Back Facility with a 4 way valve for pressure and vacuum selection. A 30 m long hose is provided for sucking the sludge. For discharge, a butterfly valve is provided at the bottom of the tank. We can also provide the unit with high pressure jetting pump to dislodge any jamming in the open ditch / drainage. The tank is divided in two parts, Fresh Water for jetting and empty tank to store sludge. When not is use, the Jetting hose (with suitable nozzle) is stored in the reeling drum. We Offer : Vacuum Emptier TruckVacuum Emptier TrolleyGully Emptier Trolley Known For : Robust constructionEasy operationEasy maintenanceRust proof bodyWeather proof finishDemanded By Municipalities

The rear door forms a ramp. With this feature, loading of material is easy. Person can walk in to the trolley or drive 3-wheeler of 4-wheeler Auto Rickshaws for discharging material. Even charging from side is very easy. Side wall height is 1400 mm. Wheels being outside the framework, it will never over turn. Discharging is by tipping hydraulically. This being 2-wheel trolley, It is easy to reverse and handle on the streets. Technical Parameters : Capacity : 200 CFT Operated by : Tractor of 30 HP and above Height from Ground Level : 500 mm Wheel Location : Outside the framework Hydraulic Cylinders : Telescopic type, 2 nos. Rear Door Type : Folding type, hinge at top & bottom for charging and discharging Length of Door : 1500 mm

We are a recognized as a major Garbage Container Manufacturer and Supplier in India. Manufactured using high grade material and making use of latest machinery, our Garbage Containers are widely appreciated by municipalities across India due to their quality and durability. Why Our Garbage Containers? Robust constructionPerfect finishingLong lasting Specifications :Capacity2 Cu.M. to 4.5 Cu.M.7 Cu.M.Bottom Sheet3 mm4/5 mmSide Wall2.5 mm3 mmTop Sheet & Hatches2 mm2 mmDoor2 mm2 mm

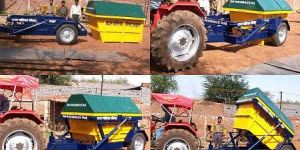

Container Carrier which is a Multipurpose Tractor Operated Hydraulic Carrier system is ideal for managing Garbage Container as well as water tank having capacity up to 2500/3000L. Construction It consists of lower and upper frame which are fitted through lever to make a parallelogram assuring parallel lifting of frame. Further, it has single acting double stroke cylinder ideal for lifting and dumping. Being 2 wheeled trolley, it facilitates convenient maneuverability. Salient Features : Does not need any separate hydraulic systemRugged constructionHigh efficiencyDurableEconomical Used For : In case of garbage container :Lifting garbage containerCarrying trenching to groundDumping garbagePlacing the container back to its position In case of water tank : Lifting stand mounted water tankCarrying stand mounted water tankPlacing the tank for filling up water again

We manufacture high grade Elevated Work Platform (Skylift) which is used for maintaining electrical fittings at the elevated height. It is fabricated on 4 - wheel trolley which can be to towed by jeep or tractor. It can also be assembled on truck when fast movement is required. It comprises of an upper boom and a lower boom which is lowered and lifted by hydraulic cylinders. A high quality cage made out of the FRP which is insulated for 600 V is fitted at the top end of the upper boom.The boom assembly can rotate by 360°by hydraulic motor to enable the electrician to position himself accurately. Further, it consists of two out riggers which protrude on both sides of the trolley or truck that ensures stability. A separate diesel engine is provided to power hydraulic system for Trolley Mounted Sky Lift whereas for Truck Mounted Sky Lift power is taken using PTO of the gear box. Manually operated direction control valves are mounted on block located on rotating support according to operator’s choice. We offer Twin Control also, one on platform and other on Cage. For Emergency, Manually Operated Hand Pump is also provided to bring the cage and Out Riggers to parking position. Lifting Capacity : 2 persons plus 40 kg material Ideal For : City electrical poles having height up to 13 meter

The Dumper Placer is aptly made to place garbage container from 2.5 m3 to 4.5 m3 capacity on mini truck or trolley. In case of high capacity containers like 7 m3 to 10 m3 normal truck can be used. Dumper Placer can be made to handle two containers at a time where loading & unloading of twin container is done from sides. Construction : It consists of stabilizer and lifting & lowering arms which are operated by hydraulic cylinders. For lifting and lowering, 4 chains on 2 arms are used whereas dumping is conducted by engaging additional 2 chains at lower pins while lowering. It comprises of one stabilizer roller that arrests overturning of truck while loading the container. Salient Features : It is powered by PTO of truck gear box by universal shaftHave manually operated direction control valvesFacilitates convenient speedy method to remove garbageCost effective and economical

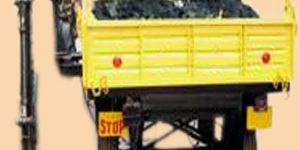

We manufacture high quality Ditch Cleaning Machine. The machine collects sludge from open ditch and charges into the trolley built together. The power to hydraulic system is taken from PTO of the tractor. All operations are by hydraulic cylinders. The Ditch Cleaning Machine offered by us is made from quality raw materials that assure high strength and durability to the structure. Salient Features : Rugged constructionDurableHigh efficiencyDuly painted to avoid corrosion

We manufacture Bio Fertilizer Screening Plant which is used to screen the composted municipal waste to separate various fractions. Being highly efficient, our Bio Fertilizer Screening Plant can screen up to (-) 3 mm particle size which is accumulated at the bottom of the plant and then packed in bags which is bio-fertilizer. Components : 3 Stage ScreenBucket ElevatorStructure and Chutes to discharge various fractions separately Working of Bio Fertilizer Screening Plant : The composted mixture is loaded in hopper manually. There after Bucket Elevator takes the mixture to the top screen where material slowly passes through various screens separated according to size. The chutes are provided to direct the screened material to the desired spot. We manufacture both, mobile as well as stationery plant. The capacity of the plant can vary from 2.5 to 8 tones of composted garbage per hour.

We manufacture Auto Tipper which have a good demand from municipal establishments and Dealers of Auto Rickshaw across India. The Auto Tipper consists of a container with 1 to 1.2 m3 capacity, which is pivoted at the back end and is lifted using two hydraulic cylinders for the purpose of dumping. To prevent overturning of the auto rickshaw while dumping, a stabilizer is provided at the rear end. The hydraulic power pack receives power from the flywheel of the auto rickshaw. Manually operated Direction control valves control the dumping and can be operated from inside the cabin. Similarly, plain tippers are also being manufactured by us on 4-wheeler Mini Truck. Range : Tipper on Tata AceTipper on Ape 4 WheelerTipper on Bajaj 3 WheelerTipper on Ape 3 Wheeler Attributes : Advanced designEasy to operateStrong constructionResistant to wear and tearDurable Used For : Door to door garbage collectionRemoval of drainage sludge
