The High Quality Spiral Wound Metallic Gaskets, manufactured and supplied by us, is highly demanded by the clients owing to its excellent ability to recover under variable loads. V One Gaskets Pvt. Ltd. holds expertise in manufacturing these Spiral Wound Metallic Gaskets. Spiral Wound Metallic Gaskets are skillfully manufactured by spirally winding a preformed metal strip and filler on the outer periphery of metal winding mandrels. Its winding mandrel outside diameter forms the inner diameter of the gasket and the laminations are continually wound until the required outer diameter is attained. We offer these Spiral Wound Metallic Gaskets in customized thickness and sizes as per the client�s requirements. Spiral Wound Metallic Gaskets have proven to be the most reliable sealing element for use in difficult, critical and arduous duties. Spiral Wound Metallic Gaskets are used in refinery, petrochemical, chemical, steam lines and process industries, where they have many advantages over older types of gaskets. These Spiral Wound Metallic Gaskets are manufactured to international specifications such as BS, API, ASME, DIN. We also manufacture Spiral Wound Metallic Gaskets as per the client�s specifications. We have a huge capacity to produce precision machined components. Specifications : (Any Type And Any Dia.) Pressure Rating : 150/300/600/900/1500/2500 Types : Filler Gasket Gasket With outer ring Gasket with inner ring Gasket with inner & outer ring Material Construction : Winding material : SS304/304L/316/316L/410/410SMonel/Duplex/Incone1600 etc. Filler : CAF/Graphite/PTFERings : CS/SS304/316/316L/As per customer specification Standard : IS7719/ASME B16.20/BS3381/As per customer specification Flange Standards : ASME/ANSIB16.5MSS SP44 (ASME B16.47 SERIES A) (AWWA)BS 1560, BS10, BS4504DIN FlangesAPI 605 (ASME B16.47 SERIES B) Inner and Outer Ring : Carbon Steel, Stainless Steel 304,304L, 316,316L,316Ti,321,347, MONEL® 400,Inconel® 600,625,800, Incoloy® 800, 825, Nickel 200, Titanium, Hastelloy, Copper.

We are offering spiral wound gaskets. Pressure rating : 150/300/600/900/1500/2500 type : filler gasket,gasket with outer ring,gasket with inner ring, gasket with inner & outer ring winding material : ss304/304l/316/316l/410/410s filler : caf/graphite/ptfe rings : cs/ss304/316/316l/as per customer specification standard : is7719/asme b16.20/bs3381/as per customer specification

We are offering serrated metal gaskets, kamprofile gasket. Type : serrated and kamprofile material : ss304/304l/316/316l/copper (kamprofile) graphite tape stick on serrated face standard : as per customer specification

We are the reliable Manufacturer and Supplier of Ring Type Joint Gaskets, based in Kerela (India). V ONE Ring Type Joint Gaskets are designed to seal by "initial line contact" or wedging action between the mating flange and the gasket. By applying pressure on the seal interface through bolt force, the softer metal of the gasket flows into the imperfections of the harder flange material, creating a very tight and efficient seal. Moreover, we manufacture these Ring Type Joint Gaskets in all shapes and sizes. Specifications : Type : R Type-Oval & Octagonal Shape Rx & Bx Material construction : Soft Iron/SS304/316/316L/347/327/410/Monel Etc.Standard : ASME B16.20 Standard Ring Joints : Style R (Oval Octagonal ) : The contact face is in oval shape. It provides a high reliabililty seal. These gaskets are manufactured in accordance to API 6A of ASME B16.20 to suit API613 and ASME/ANSI B16.5 Flanges. Fits the round and flat bottom ring groove flange.Style R ( Octagonal ) : More accurate in dimensions and surface finish than oval type because it consists of straight surfaces only. A higher torque load is required to flow the gasket material into imperfections of the flange facings. These gaskets comply with API6A of ASME B-16.20. to suit API 6B and ASME/ANSI B16.5 Flanges Fits only the modern flat bottom groove flange.Style BX : The BX type RTJ gaskets are manufactured in accordance with API 6A and are suitable for use in high pressure API 6BX flanges. The gaskets form a metal to metal seal on assembly and the efficiency improves as internal pressure increases. All BX sizes have a pressure relief hole to equalize pressure across sealing faces.Style RX : The RX type RTJ gasket is manufactured in accordance to API 6A and ASME B16.20 to suit API 6B and ASME/ANSI B16.5 flanges. The RX is a pressure energized version of the R octagonal gasket and fits the R type flat bottomed groove. The RX has an increased height and utilizes the internal system pressure to energize and improve the seal as internal pressure increases. Some RX sizes have a pressure relief hole to equalize pressure on both sides of the sealing faces. All markings should be on the inside of the ring.

We are offering ring type joint. type : r type-oval & octagonal shape and rx & bx material : soft iron/ss304/316/316l/347/327/410/monel etc. standard : asme b16.20

We are offering ptfe sheets, rods, bushes. ptfe moulded rod /round bar : dia 25mm - 500mm ,dia length upto 500mm ptfe moulded bush sleeve & hollow bar : custom made outer & inner dia,length 100, 300, 500mm ptfe moulded sheet : 'thickness 2.5mm to 100mm, length & width - 300mm2 to 1200mm2.

We bring forth highly demanded PTFE Rod. Our PTFE Rod is often chosen to produce bearings because of its very low friction and also for its free running ability. Because of its ability to conform to shape otherwise known as flow, PTFE Rod is used for seals in valves, this is because it can conform to shape and create a high specification valve seal. PTFE Rod can easily be machined but due to the surface softness, care must be taken in lathe jaws or high compressive loads, which may cause distortion. Another important element to remember regarding PTFE Rod is the coefficient of expansion due to heat changes; this can be uneven with PTFE and may cause distortion in components. PTFE Rod is manufactured in two distinct ways, extruded PTFE Rod is the most popular and is relevant to smaller sizes, Moulded PTFE Rod is relevant to the diameters over 100mm in size, smaller sizes are also available in extruded form. Sizes Diameters : Ranging from 3mm up to a maximum of 300mmLength : Range from 100mm to 1000mm

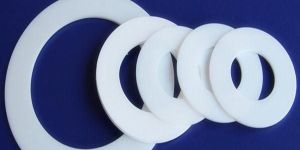

We feel pride in introducing ourselves as one of the renowned Manufacturers and Suppliers of PTFE Ring Gaskets. Our range of PTFE ring and gasket is manufactured using molding method with PTFE method with PTFE granular resin. The PTFE Ring Gaskets, offered by us, are highly admired by all our clients due to their high reliability as well as durability. These ring joint gaskets are especially designed to withstand exceptionally high assembly loads over a small area, thus producing high seating stresses. Moreover, PTFE, compared with other plastics, has superior properties against chemicals and temperature. Highlights : DurabilityVaried SizesBest qualityAffordable

The company is the leading Manufacturer and Supplier of PTFE Envelope Gaskets. These PTFE Envelope Gaskets are manufactured as per the latest technology. Moreover, we offer these PTFE Envelope Gaskets in varied grades and specifications. Clients are free to place the bulk orders of PTFE Envelope Gaskets as per their requirements. Types : Slitted Type : It is available in 0.5 mm to 0.5 mm thick or thickness as per customer requirement. Milled Type / �U� Type : It is available in manufactured with 0.5 mm flange & gas per customer requirement. Envelope Gaskets are also available with Asbestos / Non-asbestos & Steel Filler.

PTFE Bushes can be used in glass equipments because of its wear life when compared to other thermoplastics is very low. PTFE bushes have cryogenic stability with non-wetting property. A bush made of PTFE provides easy application and low maintenance. PTFE gaskets, rings etc are machined from bushes. PTFE �T� Bushes are also available. Sizes Bushes are available in standard length of 100mm. Larger sizes are made on request only. Generally the OD is from 19mm to 250mm and ID is from 12.5mm to 200mm

We are offering metal jacketed, heat exchanger gasket. Type : single jacketed/doublejacketed/corrugated/plain metal gasket material : mill board/asbestos/graphite /crca/ss316/ss31/410s/monel/inconel/aluminium/copper/brass etc. Standard : asme b16.20/as per customer specification.

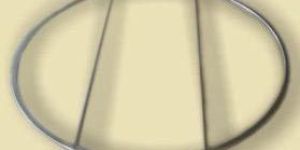

The company has emerged as one of the topmost Manufacturers and Suppliers of Heat Exchanger Gaskets. Metal Jacketed Gaskets are specially designed as Heat Exchanger Gaskets and are widely used on smooth flange applications. Heat Exchanger Gaskets are ideal for heat exchangers, Auto claves, columns, flue stacks, boilers, gas mains, valve bonnets, pumps and similar services. Cladding Metal : Soft Iron Low carbon steelMonel AluminiumCopperBrassCupronickel 90%/10%, 70%/30%Inconel 600,800 Different grades of Stainless Steel Filler : Common filler materials used are Asbestos mill board, CAF, Non asbestos, PTFE and Grafoil. We have adequate capacity to produce any shape and size with many compartmental ribs out of different materials for heat transfer equipment, coolers, condensers, joints etc. Heat Exchanger gaskets are more compressible than sole-metal corrugated types and offer better compensation for flange irregularities when high pressures are to be sealed. Specifications : Type : Single Jacketed/Double Jacketed/Corrugated/Pain Metal Gasket Material Construction : Mill board/Asbestos/Graphit CRCA/SS316/SS316L/410S/Monel/Inconel/Alminium/Copper/Brass etc. Standard : ASME B16.20/As per Customer specification

We are engaged in offering wide assortment of Pure Flexible Graphite Sheets to the clients. These Graphite Sheets are manufactured with pure graphite ensuring the long service life. Our Graphite Sheets are widely used in kinetic and static sealing for machine, pipe pump and valve in power, oil, chemical and light industries. Our Graphite Sheets are available to the clients in 1000 mm x 1000 mm of size. These Graphite Sheets have the thickness of 1 mm to 3 mm and the density of 1.0 gms / cm3. Features : High temperature resistance Corrosion resistanceExcellent self-lubricity

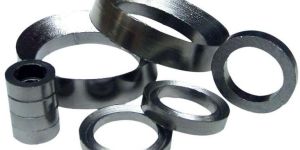

We are offering Graphite Rings, Packings, Gaskets. 1. Pure Flexible Graphite rings (non metallic ) Flexible Graphite Rings (metallic) Flexible Graphite cut rings (single and double cut ). Flexible Graphite Self Sealing Rings. Sizes : ID upto 6 mm to 500 mm. Thickness : 1 mm to 100 mm 2. Pure Flexible Graphite Braided Packing (Rope) and Ring As per Customer Requirement.

V ONE Graphite Gasket is made from 100% pure flexible graphite with SS316 sheet and wire mesh insert. The gaskets are available in wide range of densities as per client�s requirement. Graphite Gasket is very versatile in its range of application suitability and this could be attributed to its unique properties such as excellent resiliency, compressibility & inertness. The metallic reinforcements of Graphite Gaskets provide mechanical strength which enhances its temperature & pressure taking capacity. Applications : Flanges handling superheated steam, as cylinder head & exhaust gaskets in automobiles, Nuclear & aerospace applications. It can also be used for sealing flanges handling acids, alkali, solvents & other aggressive fluids. Technical Parameters & Chemical Content : Temperature : -200oC to +650oC (in steam)Pressure : Upto 650 bar (for Metallic)pH Range : 0 to 14Chloride Content : < 50ppmAsh Content : 0.5% max

We are offering caf cut gaskets. Caf gaskets : asme b16.21/as per customer specification.
