Diameter 4 12" dia bore holes Depth 150 mtr Application Water Well Drilling Rig Formation soft hard PRIME MOVER Diesel Deck engine of 15 bhp for hydraulic operated rig from compressor air for Pneumatic operated rig MOUNTING Stand base MAST Max Capacity - 8 tons (17600 lbs) Height- 2.4 mtr (8 ft) Rod handling - 1.5 mtr(5ft) PULL UP SPEED 8.5 mtr min (28 ft min) PULL UP FORCE 2694 kg 5926 lbs PULL DOWN FORCE 1814kg (3990 lbs) PULL DOWN SPEED 12.5mtr min HYDRAULIC SYSTEM 140 kg cm2 (2000 psi) JACKS Manual screw jack COMPRESSOR SUITABLE COMPRESSOR

Drilling depth : 750 m

Hole Diameter : 165 - 508 m

Application : Cathodic protection, De-watering & Monitoring holes, Irrigation

Drilling depth : 750 m

Hole Diameter : 165 - 508 m

Application : Cathodic protection, De-watering & Monitoring holes, Irrigation

Drilling depth : 600 m

Hole Diameter : 165 - 356 mm

Application : Domestic water wells, Monitoring holes, Irrigation

Power Source : Hydraulic

Hole Diameter : 100-150 mm

Drilling depth : 600 m

Hole Diameter : 165 - 356 mm

Drilling depth : 16 m

Hole Diameter : 100-200 mm

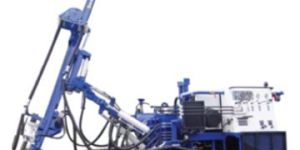

Diameter 90 mm - 127 mm (3 12" - 5") Depth up to 15 m (50 ft) Application Blast hole Rig Formation Soft Hard PRIME MOVER From tractor engine MOUNTING The rig unit is mounted on suitable crawler MAST Medium duty channel structure weight - 2,540kg Height - 2,350 mm Length - 5,160 mm PULL UP SPEED 2.5 kmhr PULL UP FORCE 1,500 kgf(14.7 kN) PULL DOWN FORCE 1,500 kgf(14.7 kN) PULL DOWN SPEED 2.5 kmhr HYDRAULIC SYSTEM 160 kg cm2 ( 2250 psi ) JACKS Three Hydraulic jacks COMPRESSOR SUITABLE COMPRESSOR Select Product to Compare Compare with this rig
