MODEL A B C ØD X L E G H ØT TIGHTENING TORQUENM MAX.* CLAMPINGFORCE MAX. N. W. KGS.(INCLUDINGCLAMPING BOLT) MIN. OPTIMUM MAX. TWC-8P 27 29 ~ 30 32 31 16 M8 X 20 2 7.5 12 M-5 40 2500 KGS. 0.09 TWC-12P 42 45 ~ 46 49 42 23 M12 X 30 3.5 11.5 18 M-5 140 5000 KGS. 0.26 TWC-16P 57 61 ~ 63 66 58 30 M16 X 35 4 15 26 M-5 350 10000 KGS. 0.66

These have extra material on jaws(soft) to machine as per the workpiece shape enabling fixturing of uneven or unusual shape workpieces.

'TOOLFAST' manufactures all models of wedge clamps with new patented design now in India.

These toggle clamps have a flanged base with holes for mounting on the fixture plate. Handle remains in vertical position while clamping. Available in two types of clamping arms as shown below:Optional Accessories : User can select an optional clamping spindle assembly as per the application from the different types of clamping spindle assemblies shown on one of the following pages and order these separately.

Steel V-Blocks are made of tool steel, hardened, tempered & precision ground on all sides. These are supplied in matched pairs having both sides ‘V’ with one clamp. Parallelism & Squareness of all faces & 'V' within ± 0.005mm. Inspection certificate is furnished.

'TOOLFAST' Universal Strap Clamp is most suitable for die clamping on power presses and a very useful clamp for job clamping on 'T' slot table of Drilling, Milling, Shaping, Boring and other machine tools. No supports are required at the rear of the clamp since the body of the clamp is self-positioning as the rear part rests on the table and front holds the job. The body positions itself with the help of swival hinge pin according to the thickness of the woi'Kpiece, the T-Bolt remaining in vertical position and the nut is tightened on the flattened portion of swival hinge pin. Clamp is supplied complete with hardened T-Bolt & special nut.

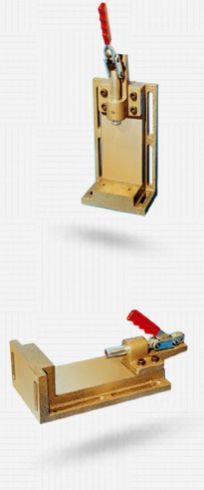

'TOOLFAST' Toggle vice cum press is a multifunction quick action vice cum press having a unique design with precision machined body on which Push Action Toggle Clamp of suitable model is mounted to make it a very versatile tool.Toggle Vice : When side 'B' is used as base, it can be used as a quick action vice as shown in picture (b) or you can make your own drill Jig on it.Toggle Press : When side 'A' is used as base, it can be used as a toggle press for light press operations.

'TOOLFAST' Tapped End Clamps are Straps having special threaded adjustable support at the rear which can be adjusted to required height. Most useful clamp for plastic injection moulding or pressure die casting machines where mould I die is clamped in vertical position and these clamps with screwed in adjustable support are convenient to the operator as other loose supports tend to fall down while setting. Hardened adjustable support with large diameter forged base gives rigid clamping support and ensures machine bed safety. Extra thick body of the clamp accommodates more number of threads for rigidity of screwed support.

  The most popular sizes of strap clamps are now made in forged body with additional benefit of tapped end for threaded supports.

  Stop or stopper blocks in different sizes as shown in table below are available to suit all above models of low height pinch clamps (PC Series) and Heavy Duty Pinch Clamps (HDPC Series). These stops are to be mounted on the opposite side of workpiece as shown in drawing above. All faces are ground for precise stopping of workpiece. Available separately in all below sizes.

These Strap Clamps have teeth at rear matching to that of Step Blocks for the Step Blocks to be used as supports. Unlike other clamps, single piece of Step Block not a pair can be used as support with Stepped Strap Clamp.

‘TOOLFAST’ Steel V-Blocks are made of tool steel, hardened, tempered & precision ground on all sides. These are supplied in matched pairs having both sides ‘V’ with one clamp. >> Unbreakable Steel Clamp.>> All Hardened & Tempered 52 - 56 HRC.>> Parallelism & Squareness of all faces & 'V' within ± 0.005mm.>> Inspection certificate is furnished.

‘TOOLFAST’ Screw Jack-Heavy Duty is meant for heavy applications and with more height upto 660 mm. In this series of screw jacks the screw rotates while going up or down. Body is rigid, steel fabricated.

PushPull Action Toggle Clamp - Centre Base has its base at the centre and the bigger two sizes have more centre height than the front base model to accommodate larger work pieces. Width of the mounting base is also less in this case which makes this type of push action clamp more compact. Other features of this clamp are same as in case of front base model.Standard Accessories provided with Clamp : Standard Hex. Head Clamping Spindle assembly is provided as standard accessory.

Standard Accessories provided with Clamp:Standard Hex. Head Clamping Spindle assembly is provided as standard accessory.Optional Accessories:User can select an optional clamping spindle assembly as per the application from the different types of clamping spindle assemblies shown on one of the following pages and order these separately.

'TOOLFAST' Push/Pull Action Toggle Clamps have a straight line action as the plunger moves in straight line forward & backward with easy to operate handle. The plunger moves forward and locks as the handle is moved forward and plunger also locks in retracted position when handle is moved backward. Hence these clamps can be used as push as well as pull action clamps. Hardened & ground plunger moves in precision machined bore.This model with front base is most popular because of its rigidity due to mounting base just under the load bearing surface of plunger movement.

'TOOLFAST' Push/Pull Action Toggle Clamp - Centre Base has its base at the centre and the bigger two sizes have more centre height than the front base model to accommodate larger work pieces. Width of the mounting base is also less in this case which makes this type of push action clamp more compact. Other features of this clamp are same as in case of front base model.Standard Accessories provided with Clamp : Standard Hex. Head Clamping Spindle assembly is provided as standard accessory.Optional Accessories : User can select an optional clamping spindle assembly as per the application from the different types of clamping spindle assemblies shown on one of the following pages and order these separately.

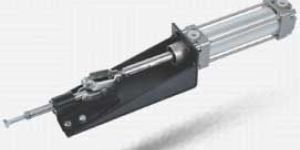

'TOOLFAST' Push Action Toggle Clamps with Pneumatic Operation are available in following sizes.

These are newly introduced models having same dimensions of mounting etc. as PAC-HV series given on previous page but with a modified low height handle suitable for only horizontal locking.

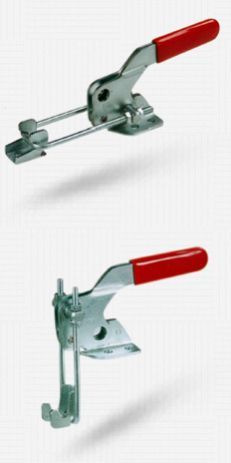

Pull Action Clamps are Latch type clamps used for sealing chambers, lids, doors of moulds, drums, containers or other vessels etc. Also suitable for clamping moulds in industries such as resin, fibre glass, chemical & food.'TOOLFAST' Pull Action Clamp has a unique design which enables use of the same clamp as a horizontal pull action clamp as shown in figure (A) as well as a vertical pull action clamp as shown in figure (B) below by using two different holes H1 and H2 for pulling pin P to be located in. Clamp is supplied complete with U-bolt & Latch Plate.
