Casing Centralizer Dealers in Faridabad

• Size: 2 7/8" to 30 " sizes. Any special sizes or combination can be made available on request.
• Use: Casing Pipe
• Condition: New
• Feature: Non Breakable, Rust Proof
• Color: Brown
• Surface Finished: Polished

• Type: Bow Spring Centralizer
• Shape: Round
• Application: Casing Pipe, Downhole
• Feature: Flexible, Non Breakable
• Country of Origin: India

Available in 4-1/2″ to 20 ” sizes. Any special sizes or combination can be made available on request Special zinc Phosphate and powder coating process to prevent from Rust and ensure stocking in the open for a long time.

• Material: Metal & Plastic
• Shape: Round
• Color: Any
• Size: As per customer requirement
• Country of Origin: India
• Standard: API 10D

• Country of Origin: India
• Size: Standard
• Type: Casing Centralizer
• Material: Aluminium
• Shape: Round
• Color: Silver
• Feature: Light Weight
• Condition: New

• Feature: Durable wear resistant engineered polymer,High compressive strength
• Type: Investment casted
• Certification: ISO 9001:2015 Certified.
• Shape: Customized as per Requirement

Hinged Non-Weld Bow Spring Centralizer Designed for high restoring force combined with low starting force for centralizing the casing pipe in vertical, deviated and horizontal wells. High performance characteristics are combined with easy field assembly Bow springs are of high quality alloy steel, hot bent to shape using dies and then heat treated under controlled temp time cycles for consistent spring characteristics. Collars are of widened design for greater frame strength and to prevent bows hitting casing. Integral hinges are designed to wrap to the inside and are with eight sections and seven shear points for minimum disorientation even under severe stress. Hinge locking pins are of high strength steel for maximum structural strength. Bows can be configured for any hole dia from choice of five standard bow heights for optimum starting and restoring forces. Compatibility of the bows with various end collar sizes reduces inventory requirements and provides tremendous flexibility of casing and hole size combinations. . They are available in 2 78” to 20 ” sizes. Any special sizes or combination can available on request.

ledgeHammer's Welded Spiral Vane Solid Rigid Centralizer Fixed is designed same as Welded Spiral Vane Solid Rigid Centralizer except rows of set screws on the outer periphery of centralizer to restrict rotation. It can be easily converted from fixed to non fixed design by detaching set screws and positioning with stop collars.     All centralizers are stored painted or coated with polyester powder. These are available in all sizes ranging from 3 1/2" to 20". Any special sizes can be made available on request.

SledgeHammer's Hinged Non Welded Stainless Steel Bow Spring Centralizers are special purpose centralizer, it's used where the chances of corrosion and contamination are present, or it can be use for water well also. It's a 100% stainless Steel Manufacturing along with stainless steel nails Premium quality Bows are made of stainless steel material and hot formed in totally controlled Heat Treatment Plant to achieve the uniform hardness all over and good spring action.   End Collars are designed with self-locking action, which are easy to assemble, time saver and having strong grip. The five standard size Bows can be configured to any hole dia. These Bows with extended profile prevent them from hitting against casing collars. These can be shipped in half assembled condition for economy in shipping and storage costs. These are available in 4 1/2" to 20" sizes. Any special sizes or combination can available on request.

Oilmec Slip-on welded centralizers are manufactured with solid end rings that can be easily slipped on the casing OD during installation. Oilmec Slip-on welded centralizers, available in slip-on, are designed for high restoring force combined with low starting force for centralizing the casing pipe. High performance characteristics are combined with easy field assembly. Bow springs are manufactured of high quality alloy steel, hot bent to shape using dyes and then heat treated under controlled temp and time cycles for consistent spring characteristics to ensure a crack free weld with a minimum amount of distortion and maximum amount of rigidity. Collars are made of widened design for greater frame strength and to prevent from Rust then coated with special Polyester PowderThey are available in all sizes ranging from 4 ½ “ to 20 ”.

• Material: Metal, Plastic, Stainless Steel, Steel
• Application: Signals, Transmit Electrical Power
• Color: Black, Blue, Grey, Red
• Voltage: 110V, 220V, 380V, 440V
• Condition: New, Used
• Power: 1-3kw, 3-6kw, 6-9kw, 9-12kw
• Driven Type: Electric
• Phase: Single, Three, Two

We are the main supplier of this product.

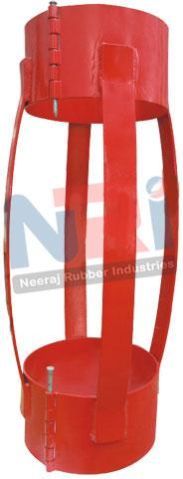

HINGE TYPE WELDED SPRING BOW CENTRALIZER More Restoring force as compare to Non Weld Spring Bow Centralizer. Centralizers spring bow have strongly welded to the End Collar under required temperature and condition with extra low Hydrogen coated Electrodes. Integral hinge folded on the inside stay intact even under extreme stress. End Collars are designed with a Reinforcing Rib stamped into the End Collar to give maximum structural toughness. Available Size: 4-1/2? to 20?. (Any special sizes or combination can available on request). These are generally shipped in half assembled condition for economy in shipping and storage costs.

We are offering hinged non weld bow spring centralizer. Crimson offers a complete range of non weld bow spring centralizers which are designed and manufactured as per api spec 10d. Non weld bow centralizers are used to position the casing in the centre of the wellbore in vertical, deviated as well as horizontal wells. the non weld bow centralizers combine the highest non weld centralizer restoring force with the lowest starting force. High quality bows made of special alloy steel with uniform hardness provide optimum performance. The bows with extended profile prevent them from hitting against casing collars. The bows are available in a range to accommodate any well profile. Hinge locking pins are of high strength steel for maximum structural robustness . bows are then flattened several times on a special machine to get permanent setting. Bows can be configured for any hole size from choice of five standard bow heights for optimum starting and restoring forces. non weld design features self-locking of lips for holding bows to end collars . Centralizers undergo a special process of rust prevention before powder coating. the non weld bow spring centralizers are available in sizes 4½" to 24". recommended for use with all standard casing grades.

crimson offers a complete range of Non Weld Bow spring Centralizers which are designed and manufactured as per API Spec 10D. Non Weld Bow centralizers are used to position the casing in the centre of the wellbore in vertical, deviated as well as horizontal wells.The Non Weld Bow Centralizers combine the highest Non Weld Centralizer restoring force with the lowest starting force. High quality Bows made of special alloy steel with uniform hardness provide optimum performance. The bows with extended profile prevent them from hitting against casing collars. The bows are available in a range to accommodate any well profile. Hinge locking pins are of high strength steel for maximum structural robustness . Bows are then Flattened several times on a special machine to get permanent setting. Bows can be configured for any hole Size from choice of five standard bow heights for optimum starting and restoring forces.Non Weld design features self-locking of lips for holding bows to end collars . Centralizers undergo a special process of rust prevention before powder coating . The Non Weld Bow spring centralizers are available in sizes 4�" to 24".

Hinged Non Welded Bow Spring Centralizer, Hinged Spiral Nail Stop Collar

We are offering solid rigid centralizer. They are designed to reduce the amount of friction between the casing and the hole, allowing the casing to be inserted more easily into the wellbore; and help prevent the casing string from becoming differentially stuck.

Solid Rigid Centralizer, Cementing Plugs, Pressed Steel Couplers
