Coiling Machine Dealers in Faridabad

• Country of Origin: India

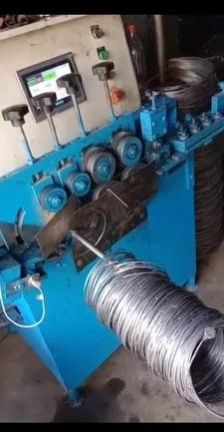

• Type: Wire Ring Making Machine
• Certification: gst
• Weight: 100-500kg
• Color: Light White
• Voltage: 220V
• Condition: New
• Automatic Grade: Automatic
• Rated Power: 3-5kw
• Warrenty: 1 Year
• Brand Name: BMT
• Voltage: 220 V
• Rated Power: Electric
• After-Sales Service Provided: Yes
• Wire Diameter: 1.2-4.5 mm(Spring Steel) 2.0-7.0 mm(Iron wire)
• Brand: Grey

We have garnered appreciation as the Exporter and Supplier of Spring Testing Machine from Patiala, Punjab. The dependable Testing machine we offer is preferred in various industries across the globe. To cater to customer’s divisive requirement, we are offering Spring Testing machine in various models and even provide customized models. Buyers can obtain the Spring Testing machine from us at highly economical rates.   Description : Spring testing machine enable load deflection tests of tension and compression springs to be carried out accurately and quickly. The Cabinet contains the hydraulic unit the hand wheel of the pump and the release valve handle are outside the cabinet for easy operation. This compact base carrier two fixed upright and four horizontal plates. The first and the third plates with two small uprights from an adjustable frame. The second and the fourth plates are fixed. A square threaded wheel arrangements provided for adjusting the height of the springs. A Bourdon type gauge is fixed for direct load measurements. One fixed upright is graduated to denote the deflections or tension of the springs for direct readings. A thimble with on arrow mark is provided to facilitate the readings. The machine is capable of accommodating 8" length 1/2" dial. rod up to 4" dia. springs for tension, 6" length 1/2" dia. rod, 4" springs for compression. Scale graduations are made up to 15 cms

• Voltage: 220V
• Power Source: Electricity
• Wire Material: Stainless Steel
• Material: Mild Steel
• Automation Grade: Automatic
• Phase: Three Phase
• Frequency: 50-60 Hz

• Overall W x H x L: 18 x 19 x 29
• Cable Capacity Cable Size #1: 250'
• Wt. (lbs.): 49
• Shipping Weight lbs kg: 46 21
• Amperage (A): 10
• Distribution cable length (m): 12
• Max Power (kW): 2.3
• Power Voltage (V): 230

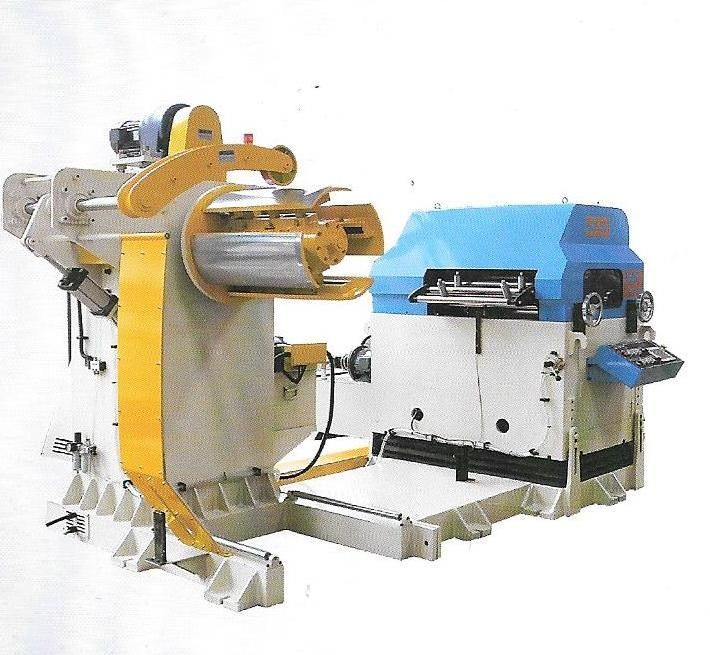

We are one of the reputed Coil Reels & Straighteners Manufacturers, Exporters, and Suppliers from Faridabad, Haryana. The machine is suitable for strips below 1 mm thickness.   Combination Straighteners & coil reels Pressmaster variable speed driven combination Straightener cum coil Reels and combined coil Cradle cum Straighteners speed output and reduce cost by removing coil stock curvature prior to feeding. Uncoiling and straightening are combined in an integral unit.   Combination straightener cum coil Reels Suitable for strips below 1 mm thickness. Rigid all steel welded construction. Available with straighteners which have either individually adjustable striaghtening rolls or straighening rolls in tilting cradle. Also available with power driven 4 drive rolls models. Fitted with loop arm control with cam switches to start and stop motor. Speed can be varied by using variable speed pulleys.

• Automation Grade: Automatic
• Material: MS
• Brand Name: GSI
• Capacity: 10-50 Kn
• Frequency: 50-60 Hz
• Operating Temprature: 50-100 Deg C
• Phase: Single Phase
• Accuracy: 0.1-1%

The  SAI automatic coiling machine is designed to fulfill a wide variety of different coil with very simple operating process, our coiling machine is of a basic frame is electro welded steel that ensure a perfect base for the rest of the equipment.   On the other side of the machine, we find the rotor that is composed of coiling forms that can be opened automatically with the help of Pneumatic system. The coil forms are interchangeable depending on the coil size and cable size. The machine is also equipped a meter counts that checks precisely the length on the coil, When the preset length is achieved, the roter forms 1800 and the operation in cut the wire length a cutting device placed in front of him. Automatic coiling cable from an extrusionline or a payoff rewinding line. The activating a push button the line starts coiling by ramping up and down and stop at the exact length. During the coiling process, the finished coil can be extracted manually or automatically. PLC+ touch screen control for easy operating system. The Complete line is composed of a single driven pay off that receives the cable to be coiled along with the payoff, a dancer accumulator regulates the speed and ramping phases of the pay off. The winder is powered by a A/c motor with A/c frequency drives. Traversing, through ball screw. Features Cable diameter max : 0.75 sq.mm to 10 sq.m. Coil outside diameter max : 350 mm Winding height adjustable : 150 mm Operating height : 1000 mm Total Power : 7.5 Kw Pass through direction : Right to left or left to right Air Pressure supply : 6 bar (10 kg. /cm2) Weight(Approx.) : 2.2 Ton(approx.) Average Speed : 2.0 coils/min of 100 meter Color : Blue L x W x H : 3600mm x 1200mm x 2300 mm Coil Size : Height 60-100 mm Outside diameter 150 to 350mm Inside diameter 100 to 150 mm Cable diameter 0.75 sq. mm to 10 sq. mm.

• Features: Long working life , High performance and Hassle free operation
• Application: Suitable for Braiding machines/Extruders/Knitting machines etc.

We are amongst the reputed organizations, highly engaged in manufacturing an optimum quality range of let off stand coilers machine. Take-up shell be fitted with torque motor and dc drive take -up shell work in torque controlled.

• Features: Optimum strength, Intricately manufactured, Long service life

• Features: Superior functionality, Excellent performance, Hassle free operations

• material width: 400 / 500 / 600 / 800 / 1000 mm
• material thickness: 0. 6 – 6. 0 mm
• coil weight: 000 / 5000 / 7000 kg.
