Crimson Oil Tools Private Limited Pali Road, Faridabad, Haryana

We are offering steel solid body rigid spiral blade centralizer. Crimson steel solid rigid centralizer it makes the casing centralized in wellbore and improves cementing quality. features: rigid centralizers are an integral part of the cementing process. They provide the mechanism that centres the casing in the hole and allows uniform cement flow around the casing to help protect it at all points. Several styles of centralizers are available for matching different well specifications and hole sizes, including turbulence generating designs that help clean the annulus and distribute the cement more evenly and uniformly. All models offer ample clearance for fluid passage and are extra effective in centering the casing, even in highly deviated holes and improve cement flow by reducing the effects of channeling. Spiral blades increase annular turbulence. With the shape of stream- lined, it enables casing run easily in wellbore. both straight blade and spiral blade are available. The material can be cast steel or cast aluminium. crimson steel solid rigid centralizer are available for casing sizes 4 ½” to 20”

We are offering spiralizer. Crimson slip on welded spirolizer are specially designed for centralization of casing pipe in highly deviated and horizontal wells. The steel construction ensures extra strength and superior toughness. The design of the blades provide minimum friction reducing drag forces while running in the pipe. The spirolizer have spiral vanes strongly welded onto the outside of the slip-on end collars under required temperature and condition with correct grade electrode. vanes can be selected to meet any hole-diameter from a choice of seven boat profile depths. The spirolizers are available in r/h , l/h side spiral vanes and straight vanes which resist high side loads. Slip on welded spirolizer is shipped in assembled condition only. The spirolizer undergo a special process of rust prevention before powder coating. the slip on welded spirolizer are available in sizes 3½" to 13 3/8".

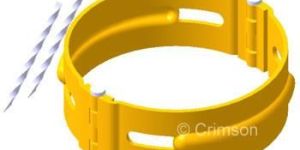

We are offering spiral nail stop collar. Crimson spiral nail stop collar uses two spiral locking pins which when driven in firmly lock the collar into position around the casing. this stop collar can be used in both upset and non-upset casing provides maximum annular clearance. They can be latched on to the casing pipe without having to be slipped on at the end of the casing pipe, thus allowing quick and easy installation. These stop collar undergo a special process of rust prevention before painting . The spiral nail stop collar are available in sizes 4 12" to 20" .

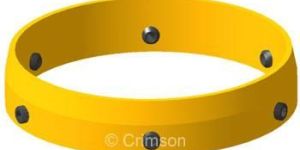

We are offering slip-on set screw stop collar. Slip on set-screw type is a one-piece stop collar. Crimson also offers a premium one-piece stop-collar, with set screws for superior holding capability the outside ends of these collar are generally tapered to a degree which helps to hold the centralizer and avoid the ends to hit the bows vanes when the centralizers are placed over them. The slip on set screw stop collar are available in sizes 2 78" to 20" .

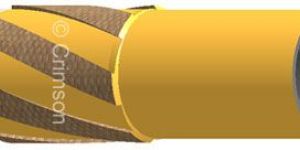

CRIMSON Reamer Shoe is designed specifically to be installed on Casing or Liner and Screen where operators have concerns about potentially difficult wellbore conditions such as, swelling shale's, ledges and washed out areas of wellbore, post drilling and prior to running casing. The aluminium eccentric guide nose climbs ledges and negotiates obstructions while the cutting structure reams out tight spots or obstruction in the wellbore. Compatible with all casing and liner hanger assemblies, our Reamer Shoe provides highly effective protection- against unexpected or anticipated casing and liner running problems, and has been specifically designed for potentially difficult wellbore conditions such as swelling shales, ledges and washed out areas of wellbore. The high strength profiled alloy nose will anchor even in uncured cement to facilitate ease of drill out. The aluminium eccentric nose is easily drilled with both PDC and Rock bits. The chip breaker holes in the nose assembly are designed to create small aluminium chips to avoid “bird nesting” on the bit. Benefits to customers include improved drillout times without compromising the reaming capabilities, a reduction in NPT and increased opportunities to reach TD. CRIMSON Reamer Shoes are available in Sizes From 2 7/8” to 20” or other special combinations as per requirements.

We are offering hinged non weld bow spring turbolizer. Crimson non weld turbolizer with metal fins installed on the bows to help induce turbulence in the cement slurry during pumping operations. Like the spring bows, the fins are made of heat-treated alloy steel. This makes them flexible, which minimizes damage while moving down hole. Meet api specification 10-d requirements for starting, running and restoring force in most casing and hole combinations. the fins direction can be made in both right and left hand versions to assist in the uniform displacement of the cement. collars are of widened design for greater frame strength and to prevent bows hitting casing. Integral hinges are designed to wrap to the inside and are with eight sections and seven shear points for minimum disorientation even under severe stress. turbolizers are available in the same sizes and bow heights as centralizers. Turbolizer undergo a special process of rust prevention before powder coating. hinged non welded turbolizer are available in sizes 4½" to 20". recommended for use with all standard casing grades.

We are offering hinged non weld bow spring centralizer. Crimson offers a complete range of non weld bow spring centralizers which are designed and manufactured as per api spec 10d. Non weld bow centralizers are used to position the casing in the centre of the wellbore in vertical, deviated as well as horizontal wells. the non weld bow centralizers combine the highest non weld centralizer restoring force with the lowest starting force. High quality bows made of special alloy steel with uniform hardness provide optimum performance. The bows with extended profile prevent them from hitting against casing collars. The bows are available in a range to accommodate any well profile. Hinge locking pins are of high strength steel for maximum structural robustness . bows are then flattened several times on a special machine to get permanent setting. Bows can be configured for any hole size from choice of five standard bow heights for optimum starting and restoring forces. non weld design features self-locking of lips for holding bows to end collars . Centralizers undergo a special process of rust prevention before powder coating. the non weld bow spring centralizers are available in sizes 4½" to 24". recommended for use with all standard casing grades.

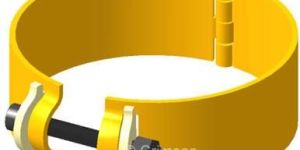

We are offering hinged bolted stop collar. Crimson hinged bolted stop collar is designed to latch on the casing pipe without having to be slipped on at the end of the casing pipe allowing quick and easy installation. The friction grip type is hinged and incorporates a nut/bolt assembly which, when tightened, draws the stop collar into a friction grip around the circumference of the pipe. A valued point is that the stop collar should always have a stronger holding force than starting force.the hinged bolted stop collar are available in sizes 4 1/2" to 20" .

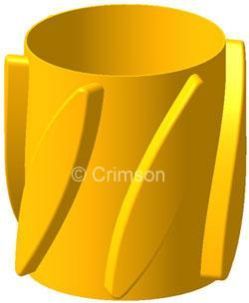

We are offering heavy duty spiralizer. Crimson’s heavy duty slip on spirolizers are specially designed for heavy load in highly deviated horizontal wells and for use with liner hangers. Steel construction provides superior toughness over other materials .one piece roll formed collars & spirally oriented vanes strongly welded under required temperature and condition with correct grade electrode. the spirolizers are available in rh , lh side spiral vanes and straight vanes which resist high side loads. Heavy duty welded spirolizer are provided for direct installation on the pipe by slipping on and can be provided with compatible stop collars beveled from one side positioned by set screw. Heavy duty welded spirolizer is shipped in assembled condition only. The spirolizer undergo a special process of rust prevention before powder coating. the heavy duty welded spirolizer are available in sizes 3½" to 13 38".

We are offering float shoes. Crimson poppet valve type float shoes is designed with a spring loaded valve and constructed from special high-strength material and pdc drillable. The shoe’s rounded nose assists the running of casing in horizontal or deviated. When landing the casing, the drill fluid have no resistance to float shoes. The pressure of circulating mud make the valve head down a displacement, the disc of valve rod’s end will fall off automatically; after stop pumping, the valve press the valve seat upwards under the action of spring, the float valve becomes one-way valve. So that can pump the drilling fluid and cement slurry into it from up to down, but the fluid in the casing or outside casing annulus can’t be return to prevent from back flow. Nose area is designed with combination of both concrete and aluminium. Internal parts are made of high quality material to achieve high strength and pdc drillable. Cement float equipment are available in all grades of steel like j-55, k-55 l-80, n-80 c-90, t95, p-110, q125 . crimson cement float shoe are available for casing sizes 3 ½” to 30”

We are offering float collar. Cement float collar : the using method is the same as float shoes except the lower end is pin thread. It is connected with casing. High strength concrete for maximum resistance to circulating erosion, as well as bump and back pressures . The usage of float collar is to make the casing landing easily by reducing the loading. When landing the casing, make sure to prevent from the drill fluid flow into the casing. After cementing, the float collar can prevent the cement slurry returning to the casing. . Internal parts are made of high quality material to achieve high strength and pdc drillable. The float collar are also available in non-rotating plate that is require with non rotating cementing plugs. Crimson cement float collar are available for casing sizes 3 ½” to 30”

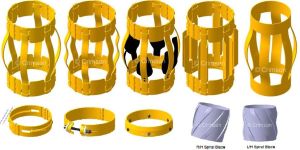

We are offering centralizer. Hinged non-weld centralizer, rigid centralizer, solid centralizer, stop collar, bow spring centralizer.

We are offering Cement Guide Shoe. The rounded Cement nose with a generous radius which assures smooth running . Both have flat-finished concrete tops to provide strong surfaces for landing cement plugs . The Cement Maximizes Shock Resistance and Minimizes drill-out time .This Guide Shoe may be used in combination with any type of collar. All cement guide shoes are PDC drillable. Crimson Cement Guide Shoe are available for casing Sizes 3½” to 30”

We are offering cement basket. Slip-on welded cement basket crimson cement basket is an effective aid in retaining and supporting the cement where weak formations and stage cementing is encountered. It is designed with flexible bow springs, heat-treated under controlled conditions for maximum strength and uniformity , are welded to slip-on collars and overlapping metal fins for flexibility and strength to support long columns of cement during primary cementing operations. Not infected by the temperature and causticity liquid and can be used with relevant small casing. This type of cement basket can be rotated and reciprocated. The cement basket also available in hinged type welded cement basket. the cement basket are available in sizes 4½" to 20".

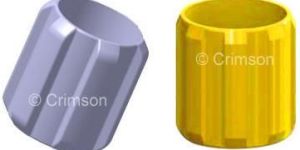

We are offering aluminium solid body rigid straight blade centralizer. The straight-blade solid rigid centralizer is used during operations in which casing centralization is a primary objective. applicable for horizontal and highly deviated well designs, the rigid centralizers center casing in previous run casings and can assist in aligning casings through well heads near surface. The straight blade centralizer can be attached to the casing with set screws located between each vane, preventing casing rotation or reciprocation during cementing operations. If the casing will be rotated or reciprocated during cementing operations, the straight blade centralizer can float on the casing joint between the stop rings. A flexible ceramic coating can be applied to the entire turbulator to reduce friction. Crimson straight blade centralizers are wellhead friendly and have high impact with shock resistance, along with optimum tensile and yield strength. the straight blade rigid centralizer is normally 8" long, but it can be manufactured to any length the customer requires. The straight blade solid rigid centralizer is an aluminium zinc centralizer with similar design features of the steel solid rigid centralizer these centralizers are available with or without set screws for eliminating of stop collars. crimson aluminium straight blade solid rigid centralizer are available for casing sizes 4 ½” to 20”

We are offering aluminium solid body rigid spiral blade centralizer. Crimson spiral blade solid rigid centralizer are designed to meet the needs for better cementing in high deviated and horizontal well. The smooth spiral 360 overlap solid vane design of centralizers provide wall bore contact will not damage wellhead equipment ,has high impact and shock resistance comand fluid swirl. The 30° slope of the vane ends reduce drag and aid the casing in reaching td. solid rigid centralizers are cast of a high grade aluminum alloy with one-piece construction. They give optimum flow area in highly deviated and horizontal wells .spiral rigid centralizers increases induced swirl which increases the displacement efficiency. The solid cast aluminium centralizers bine with high tensile and yield strengths as well as corrosion resistance . Casting not only makes a well designed touch tool , but reduces manufacturing costs . the spiral solid rigid centralizer is an aluminium zinc centralizer with similar design features of the steel solid rigid centralizer. The spiral blade solid rigid centralizer are available in rh and lh side . Crimson aluminium spiral blade solid rigid centralizer are available for casing sizes 4 ½” to 20”
