Dyeing Jigger Machine Dealers in Faridabad

- Dyeing for Silk ,Cotton ,Nylon etc.. - Capacity 1200-1500 Meter per lot - Stainless Steel Roll 5.5 inch od and Length - 72 inch - Water Tank Made up with Stainless steel 304 grade 16 gauge sheet with platter. - Break drum 8 inch Od C.i material - Heavy duty Frame Structure Made up with Ms Iron Fabrication. - Motor 2.5 Hp 3 phase or Single phase as per requirement.

• Dia of Roll: 7.5" & 10 "
• Lenth of Roll: 60", 72", 102" upto 140"
• No. of Drum Roll: 2 Nos.
• Roll in Trough: 2 Nos.
• Dia of Trough: 3" , 4"
• Motor: 3 H.p. / 5 H.P.

SPECIFICATION Dia of Roll            :     7.5" & 10 "Lenth of Roll        :     60", 72", 102" upto 140"No. of Drum Roll   :     2 Nos.Roll in Trough       :     2 Nos.Dia of Trough       :      3" , 4"Motor                  :      3 H.p. / 5 H.P.HEAVY DUTTY CAST IRON WALLS ARE CONNECTED BY HEAVY CHANNEL TIR BARS. 16 SWG 304 QUALITY STAINLESS STEEL SHEET TANK FITTED IN MACHINE WITH TWO NOS. 3", 4" DIA SS. ROLL AND TWO EXPANDING PIPES ARE FIRRED WHICH CONTROLS THE TENSION OF CLOTH BY BRAKE SPRING SYSTEM. THE EBONITE ROLLS ARE DRIVEN BY DEFENTIAL GEAR SYSTEM WITH FITTED IN GEAR BOX DRIVEN BY MOTOR. OUR MANUFACTURING RANGE CURING MACHINE(POLYMERIZER) THERMO PAC, SEMI DYEING JIGGER, JUMBO JIGGER WINCH MACHINE, PADDING MANGLE POWER & HAND DRIVEN, DRYING RANGE S.S. BATHING TROLLIES , FELT CALENDER MACHINE.

Rayon Fabrics like Viscose Rayon, High wet Modulo Rayon, High Ten city Rayon, Cup ammonium Rayon.1 Semi Automatic flatbed printing machine 8 colors up to 48” printable width.

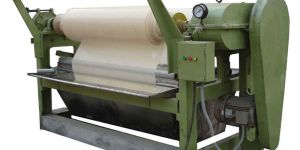

We have semiautomatic dyeing jigger, semi-automatic jumbo jigger, heavy duty dyeing jigger with SS structure, Semi-automatic jumbo jigger(for bleaching), semi-automatic maxi jigger, fully automatic maxi jigger, having roll center 31"c, 36"c, 41"c ,46"c , 48"c, and capacity(250gsm)- 350kg,500kg,750kg, 1000kg,1500kg,Batch dia. - 900mm, 1100mm, 1300mm, 1500mm, 1600mm. available width - 48" to 150" roller width.

• Voltage: 220V
• Machine Type: Automatic
• Power Source: Electric
• Usage/Application: Industrial
• Material: Mild Steel

Semi Automatic Jigger Machine
