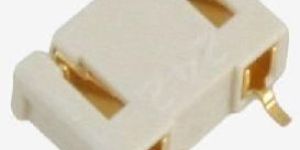

Wire-To-Board Connector
Wire-To-Board Connector, L1 Series LED lighting Connectors, Solder, Plug, 2, 2.4 mm - AYL121240 Features :- Small and low profile design does not obstruct the LED light Floating design Safety covered by ensuring insulation distance (Min. 1.6 mm) Mating lock construction using molded lock Unmating configured with jig Applications :- Straight LED tube lights, LED base lights, etc.
...more
voltage monitoring relay
32 Amp 230V/50Hz SPST Powerful , Voltage Monitoring Relay - RN-102 Features :- It is equipment includes a surge protector which protects the switched load against high-frequency and highvoltage impulse interference. The device front panel features load status indicator on and off and three-digitseven-segment display which displays depending on the device status. Load is connected to the relay either directly via relay terminals or through a magnetic starter, depending on the wattage. Applications :- Industrial Equipments Consumer Electronics
Number of Poles : 2 Pole
...more
Voltage Miniature Relay
2 Amp 24 Vdc 4PDT (4 Form C) Non-Latching PCB Low Signal Relays - DS4E-S-DC24Vdc Features :- DIL terminal array enables use of IC sockets Breakthrough height of 9.8 mm Gold-clad twin contacts ensure high reliability Polarized magnetic circuits realize resistance to shock and vibration Suitable for use in difficult environments Applications :- Industrial equipment. Telecommunications Office equipment Business devices Audio systems
Power Consumption : 200 mW
...more

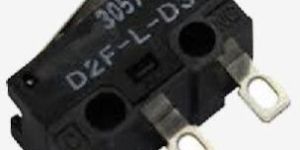

Ultra Subminiature Basic Switch
Micro Switch D2F-L-D3 ON-OFF Solder Lug Type Ultra Subminiature Basic Switch with plenty of terminal variations Features:- Incorporating a snapping mechanism made with two highly precise split springs that ensures long durability. In addition to self-clinching PCB, left-angled, right-angled terminals, 2 types of soldering terminals are available. Using insertion molded terminals that prevents flux penetration.
Ambient Temperature : -40°C to +85°C
Contact Material : Silver Alloy
...more

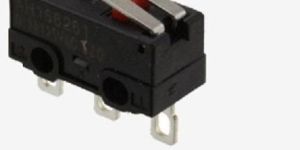

Ultra-Miniature Size Switches
0.49 N SPDT Hinge LVR PCB Basic / Snap Action Switches - AH1762619 -A Features :- Switches that can be used with M2 general-purpose screws Lineup also includes low-level circuit types (Au-clad contacts) optimized for low-voltage current loading Compact size, light weight and high precision Self-standing terminal easily mounted on PC boards Integrally molded terminals that discourage inflow of solder flux provide and also switch body has stand-off Protection grade: IP40 Applications :- Electric pot Computer mouse Automobiles (Detection of key position), etc. Charger unit for portable terminal
...more

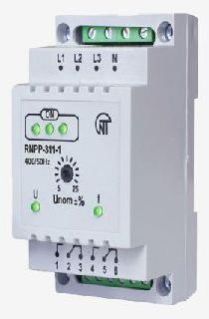

Two-Channel Voltage Monitoring Relay
35 mA 380 Vac/50 Hz Two-Channel Voltage Monitoring Relay - RNPP-311-1 Features :- It is self powerd by 3 phse voltage It Provide a high degree of accuracy and reliability. Hysteris voltage 5 -6 V t is a microprocessor device. Protection class IP40 for Device Applications :- Protection of refrigerating, compressor, air-conditioning, and other equipment with electric motor loads. It is used in devices that require continuous monitoring of circuit voltage quality, availability and phase content, e.g. in automatic transfer schemes.
Number of Poles : 3 Pole, 4 Pole
...more

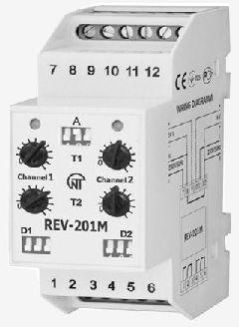

Two Channel Timer Relay REV
7 Amp 230 Vac DPDT 2 channel timer relay (Multiple functions) - REV-201M Features :-The REV-201M two-channel time relay with a delay-on-make feature is designed to switch 220V/50Hz AC electric circuits and 24 - 100V DC electrical circuits with an adjustable time delay-on-make from 0 to 36000 sec. Applications:- On delay Off delay Cyclic timer Pulse timer & Star-Delta relay
Number of Poles : 2 Pole
...more

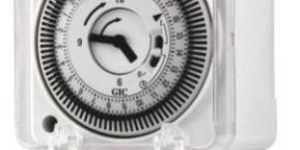

Time Switches
Switch Type : Time switcher temperature
Display Backlight : Yes
Brand Name : GIC
...more

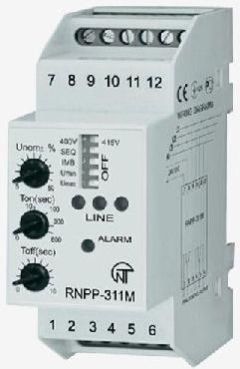

Three Phase Voltage Monitoring Relay
5 Amp 220Vac 3 Phase Voltage Monitoring Relay - RNPP-311M Features :- This device performs monitoring of the main circuit parameters and de-energizes (trip) load when the parameters fall beyond specified boundaries. Applications :- 3 Voltage monitoring relay is designed for protection of three phase loads against major types of mains faults Phase loss or Single phasing Phase sequence order violation or reverse phase sequence
...more
Three Phase Sequence Relay
Omron 5 Amp, 200/480 VAC SPDT (1 Form C) Three Phase-Sequence Relay -K8DS-PH1 Features :- Greater resistance to inverter noise Supports phase loss detection when the motor is operating. Lineup includes a 17.5-mm slim, compact model Ideal to prevent reverse operation of motors. Distinguishes between correct phases, phase sequence, and phase loss when power is turned ON. Applications :- Industrial Equipments
...more

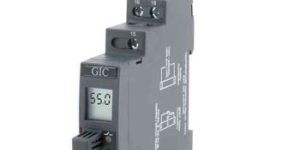

Temperature Monitoring Relay
Brand Name : GIC
Temperature Controller
110 -240 VAC Temperature Controllers, 2 Relays - 151A12B Features: Universal Input Configurable Output combination Configurable: Band, Deviation, Sensor break & Loop break alarms Rapid Set Point change feature RS 485 Communication Bumpless Auto-Manual transfer IP 20 (for Terminal & Enclosure) IP 40 (for for Front Panel only.
Weight : 0.13
Material : Plastic
...more

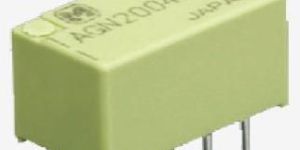

telecom relays
1Amp DPDT 6Vdc 100 mW Nominal operating power, 2 Form C Slim body Type Telecom Relays - AGN20006 Features :- High sensitivity single side stable type (Nominal operating power: 100mW) is available The use of twin crossbar contacts ensures high contact reliability Slim compact size 10.6 (L) × 5.7 (W) × 9.0 (H) mm Outstanding surge resistance Applications:- Security Equipment Telephonic Equipment Electronic Consumer and Audio Visual Equipment Telecommunications Equipment Test and Measurement Equipment
Coil Type : Non-Latching
Power Consumption : 140 mW
...more
Tactile Switch
Tactile Switch, Non Illuminated, 12 V, 50 mA, 2.55 N, Solder B3WN-6005(S) Features:- Sealed construction conforming to IP67 (IEC60529) provides high reliability in dusty or humid environments. (* Excluding the terminal section) As compact as 8 mm × 8 mm. Allows the use of radial-taping part insertion machines. Applications :- Industrial
Weight : 0.01
...more
Switched Mode Power Supply
4Amp, 230V AC, 24 VDC Switched Mode Power Supply 24AS244D6D Features :- Excellent Load & Line Regulation High Noise Immunity & Low Ripple No Load Power Consumption of less than 0.5W Overload & Short Circuit Protection High Efficiency of Operation Suitable for Temperatures upto 55 C Small Form Factor Peak Power Capacity 230V AC, 24 VDC / 4A, Switched Mode Power Supply
...more

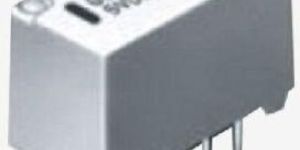

Surface Mounting Relay
2 Amp DPDT(2 Form C) 5Vdc PCB Signal Relays - G6S-2 DC5 Features :- Low power consumption of 140 mW High dielectric withstand voltage of 2,000 VAC between coil and contacts (standard type); 1,500 VAC between contacts of different polarity Available in through-hole and SMT terminals. Meets FCC Part 68 and Telcordia 2.5 kV surge withstand. Tape and reel or tube packaging Standard models conform to UL/CSA standards. BSI (EN60950) certified models available (-Y versions) Applications :- Telecommunication equipment Audio-visual products Industrial equipment Building automation equipment
Power Consumption : 140 mW
...more

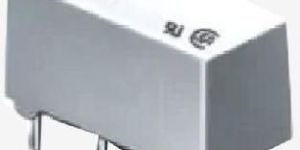

Surface Mount DPDT Relay
2 Amp PCB ThruHole 2 Coil Latch DPDT (2 Form C)12VDC 200mW - G6SK-2 DC12 Features :- Meets FCC Part 68 and Telcordia 2.5 kV surge withstand Low power consumption of 140 mW (Non-latching) High dielectric withstand voltage of 2,000 VAC between coil and contacts (standard type); 1,500 VAC between contacts of different polarity Tape and reel or tube packaging. Available in through-hole and SMT terminals Applications :- Audio-visual products Industrial equipment Home appliances Office automation machines Security equipment
Power Consumption : 200 mW
...more

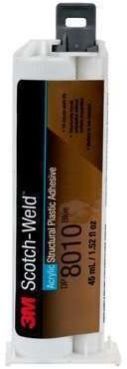

Structural Plastic Adhesive
500 Piece(s) (MOQ)
Brand Name : 3M Scotch Weld
Standard and Slight Motion Detector
Panasonic 2.2 m , 170uA Digital Detection Standard and Slight Motion Detection type Pir Sensor - EKMC1693111 Features :- Economy type suitable for a wide range of applications. Line up with Horizontally wide detection type. Applications :- Lighting control, lighting equipment, heaters Ventilators or air conditioners Security equipment for IP cameras Intrusion alarms, digital signage, vending machines Multi-function printers, display panels for meeting rooms, PCs
...more
Solid State Relays AQJ119V
10 Amp Industrial Mount 10 TO 18VDC SPST(1 Form A) Small Tab Terminal Solid State Relays - AQJ119V Features :- Labor Saving (tab terminal) Compact Size W 28 × L 38 × H 30 mm Output arrangement 1a and 1a × 2 available in the heat sink combined type Reverse input connection prevention function Heat sink combined types ready to mount on DIN rail added Applications:- Injection molding machine Amusement machine Kitchen appliances Packing machine Vending machine
...more
Solid State Relays
900 mA 600VAC CROSS PCB SSR-AQH2223 Solid State Relays Features :- Supports 0.3 A, 0.6 A, 0.9 A and 1.2 A ON-state RMS currents. The 1.2 A type saves space with a DIP 8-pin package. Handles both 100 and 200 V AC loads High dielectric strength: 5,000 V AC Two types available: Zero-cross type and Random type Applications :- Industrial equipment Home appliances - air conditioner, microwave oven, washing machine, personal hygiene system, refrigerator, fan heater, inductive heating cooker, rice cooker and humidifier etc.
...more

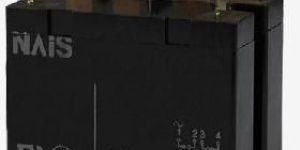

Solar Power Relay
25Amp 24Vdc DPST(2 Form A) Non-Latching Panasonic General Purpose Relay - HE2AN-Q-DC24Vdc Features :- HIgh capacity and long life Terminals are available Excellent Surge Resistance Compatible with all major safety standards Excellent resistance to conatct welding Applications :- Industrial Equipments Home Appliances Office Equipments
Power Consumption : 1.92 W
...more
Solar Inverter Power Relays
31 Amp SPST(1 Form A) 12 Vdc Compact Size Power Relay - ALFG2PF12 Features :- Long insulation distance High capacity Coil holding voltage contributes to saving energy of equipment Contact gap: 1.5 mm .059 inch and 1.8 mm*** .071 inch Applications :- Home appliances Photovoltaic power generation systems (Solar inverter) Office equipment Uninterruptible Power Supplies (UPS)
Weight : 0.02
...more
Small Screw Solid State Relays
25 Amp 75V to 250V ac Din Rail Type Screw term Zero cross Solid State Relays - AQA411VL Features :- Mounting pitch 47.5mm With LED indication for operation status verification Compact Size W 40 X L 58 X H 25.5mm With terminal cover for safety Built in varistor for excellent surge absorption Applications:- Heater Control Business Use: Cooking machine , Vending machine Industrial Use: Moulding Machine,Packing Machine
...more
