Lubsa Multilub Systems NIT, Faridabad, Haryana

AKE Off metering injector works on a different principle than the normal metering injectors. Normal metering injector discharge the oil at the ON position of pump. The Take Off injector gets charged at the ON position of pump and the spring loaded piston (indicator pin) ejects out. This injector discharges the oil at the OFF condition of pump and the spring loaded piston (indicator pin) will go back. A non return valve has been provided at each injectors to retain the oil in the injectors. It is available in the different dosages and can be supplied as per customers' requirement.

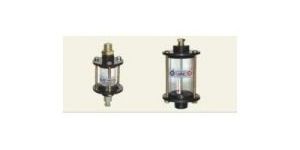

Model LM SG-25 LM SG-38 Description Tube dia 25mm. OD, Inlet & Outlet port 1/8” BSP. Tube dia 38mm. OD, Inlet & Outlet port 1/8” BSP.

Supplier & Manufacturer of ROTARY PUMPS Flange or Insert Type & Rotary Pumps (Flange Or Insert Type). Our product range also comprises of Motorised Lubrication Units, Grease Lubrication System and Air-Oil Mist Lubrication System

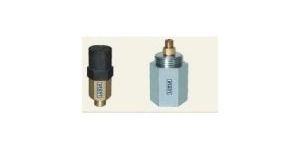

Model LM RV-030-A LM RV-030-B Description Used for pressure setting in Lubricating units. Used for pressure setting in Lubricating units.

Supplier & Manufacturer of 12 24 V DC Radial Lubricator. Our product range also comprises of Motorised Lubrication Units, Grease Lubrication System and Air-Oil Mist Lubrication System.

Progressive distributor blocks of LPB-4555 (Secondary Line) / LPB-6080 (Primary Line) series are meant for distribution of grease/oil delivered by a pump. From this progressive block we get lubricant in sequently one after another. Any one outlet is blocked then the progressive block will stop functioning, with suitable monitoring devices, this blockages is sensed and suitable warning is given to avoid running the machine without proper lubrication. These blocks can be used for intermittent / continuous lubrication.

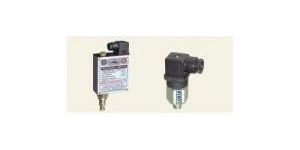

Supplier & Manufacturer of PRESSURE SWITCH. Our product range also comprises of Motorised Lubrication Units, Grease Lubrication System and Air-Oil Mist Lubrication System.

Supplier & Manufacturer of PRESSURE GAUGE. Our product range also comprises of Motorised Lubrication Units, Grease Lubrication System and Air-Oil Mist Lubrication System

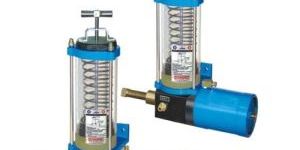

He pneumatic grease pump is suitable for dispensing of grease & automatic feeding of grease to bearing and other moving parts of machines. Such as milling machine, rolling machine, presses & hammers, rubber processing machine, die casting machine, furnaces etc. This pump is suitable for grease upto NLG-2. For distribution we used progressive blocks through this pump. Working Pneumatic grease pump are operated through pneumatic line, connected to the ports of pneumatic cylinder. The cylinder is built in with the pump housing. During on period of the pneumatic line a piston inside the cylinder is pushed ejecting out grease from the outlet port of the pump housing. During the reverse flow of pneumatic line grease is sucked through the suction port. In the pump spring force through follower plate exerted on the top surface of the grease make the suction of the grease positive & easier. Pn. pump is available in adjustable discharge & multiport with adjustable discharge in each port.

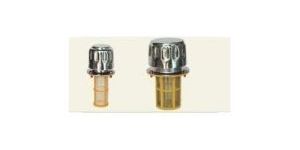

Model LM B-03 LM B-05/08 Description Used for oil filling cum air breathering in lubricating Units. Used for oil filling cum air breathering in lubricating Units.

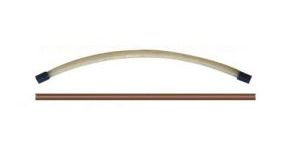

Supplier & Manufacturer of Nylon & Steel Tubes. Our product range also comprises of Motorised Lubrication Units, Grease Lubrication System and Air-Oil Mist Lubrication System

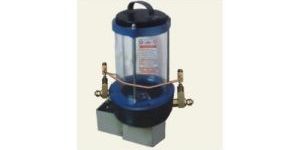

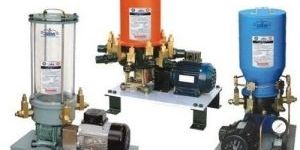

Multiline radial lubricator is best suited for machine /plant where lubrication is required with high pressure continuously / intermittently for individual point. This lubricator are used for machine / plant like rolling mill, sugar plant, cement plant, rubber mixing machine, forging hammer, stone crusher, spong iron plant etc. This lubricator comprise of a single pumping station having a number of plunger pump placed radically and fitted on to the outer periphery of the housing. Each plunger unit is given a reciprocating motion with the help of a cam. The cam rotates with the help of an electric motor and speed reduction gear box. The dose per plunger pump / cycle is 0.05 to­ 0.25cc (adjustable) with maximum pressure 200 Kg/cm2. These all plunger pump are connected to the lubrication point directly / progressive block by mean of tube, rubber hose, compression type fitting, clamping etc. Grease filling in the reservoir can be done manually as well as with the help of other pump. For pump ¼ BSP port is provided on reservoir. Always use proper & clean lubricants. Avoid foreign particles in the pump. The foreign particles or dust items are the main responsible factor to damage physical components of the pump and chocking in the plunger body. Always fill the lubricants before it is empty to avoid air in the pump. The presence of air may be resulted in improper quantity of discharge. Should always careful with regular maintenance of plungers and reservoir for its long life. Do not plug out put of any pumping unit.

LMGFS-25 (Mobile) Motor0.25HP„ 1440rpm.440V.AC Three Phase Reservoir Cap.-15 Kg. Discharge-04 Kg per hours, Max. Pr.-125 Kg/Cm2, with Trolley mounted.

Metric Pumps are used in chemical and other industries where fluid translation is required. because it has the ability of exact flow regulating. However,replica watches its operated with the help of hand wheel in the pump so as to regulate the flow of the pump.

These valves have been designed for discharge the oil continuously drop by drop under low pressure of 2-4 kg/cm2. The efficiency of these valves are depend upon the purity of oil and viscosity of oil. The viscosity of oil should not be more than 68 cst. These valves can be operated with motorised / pneumatic / manual pump. These valves are available in different input thread size i.e.1/8"B.S.P.,1/8"N.P.T.,M8x1 taperetc.and outlet is suitable for4mmOD tube.

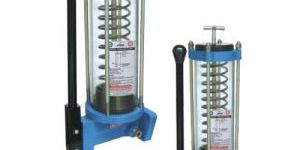

Manual grease pump meant for feeding grease to bearing & other moving part of machines & other lightly machines having 1 to 20 lubrication point. These pump is made up of purely transparent acrylic reservoir for storage of grease. For sensing the Grease level a tell tale rod is provide and follower plate assembly for help in positive suction of grease. It contains two outlet part of M10x1 BSP right and left side in which one is used as air bleed valve & second port used as a outlet. To check reverse flow of grease, a non return valve is provide in the system atthe outlet port. Grease can be filled manually or with another pump. Filling from pump M10x1 BSP/ grease nipple port is provide. Manually, we have to remove follower plate, spring, top cover and fill the grease from the top of the reservoir and to fit all the components by pressure . For air removing unscrew the bleed plug pull the handle maximum out and press the follower plate by knob till grease comes out from bleed plug. A Progressive block is used to distribute the grease to the available lubrication points in sequence one after another. Progressive Blocks are added as per requirement.

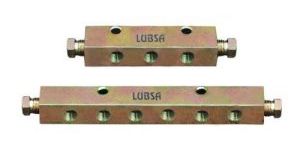

Manifold are required for mounting of oil distributors. These having two ports of 6mm OD tube and few side outlets. Oil metering cartridge are screwed directly on side outlets of manifolds.

Hydraulic power packs are are designed in a way to meet the requirements to clients. They are supplied in various ranges in terms of pressure and depending upon the flow of its applications

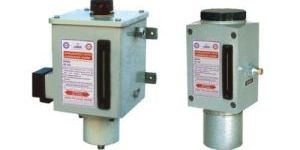

LUBSA pumps are piston type pump and used for automatic lubrication with the help of hydraulic/ pneumatic power. These pumps are operated intermittently with the help of direction control valve and timer

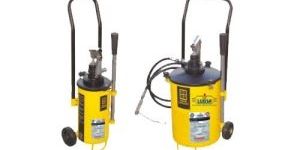

LHMGFS-5 (Reservoir Cap.-5 Kg.) Discharge-8 gms per stroke, Max. Pr.-100Kg/Cm2, with Rubber hose & grease adopter. LHMGFS-10 (Reservoir Cap.-10 Kg.) Discharge-10 gms per stroke, Max. Pr.-125Kg/Cm2, with Rubber hose & grease adopter. LHMGFS-20 (Reservoir Cap.-20 Kg.) Discharge-10 gms per stroke, Max. Pr.-150Kg/Cm2, with Rubber hose & grease adopter. All above mentioned models are mobile type. The pressure plate or dead weight has been provided in all the models to avoid the air gap. These pumps are suitable for pressurized greasing of machine parts.

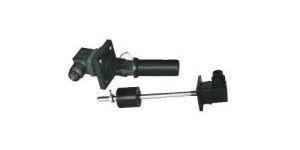

Supplier & Manufacturer of FLOAT SWITCH. Our product range also comprises of Motorised Lubrication Units, Grease Lubrication System and Air-Oil Mist Lubrication System.

This is a manually operated type of grease pump with two outlets 'A' & 'B'. The line can be changed with the help of lever as per requirement. It is available in the different transparent poly carbonate (imported) reservoir capacity i.e. 3kg, 4kg, 5kg. It can be used for feeding grease to bearings, bushes, chains, slides and other moving parts of a machine.
