Motor Pumps Dealers in Faridabad

• Color: Grey,Other
• Phase: Three Phase
• Certifications: ISO 9001:2008
• Weight: 10-20kg,Other
• Pressure: High Pressure ,Medium Pressure Low Pressure,Other

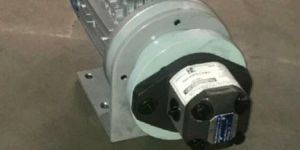

• Type: Three Phase Motor Pump
• Voltage: 110V,380V,440V,Other
• Warranty: 1year
• Speed: 1000-2000rpm

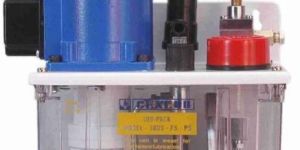

motor pump assembly, oil transfer motor pump, oil resecoolating systems, oil pump assembly, use for industrial machinery

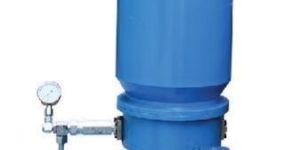

Motorised grease transfer pumps or very useful in the field where pneumatic line is not available. Wide range of options to choose from like 3 phase motor, single phase motor, battery operated, can be fitted over standard barrels and buckets, trolley mounted, etc. Common Applications   Grease Transfering, Girth Gear Lubrication, Point to Point Lubrication, Dual Line Lubrication Systems

Over the years, we have catered to the voluminous and urgent requirements of our clients from Haryana(India). As we have a wide distribution network, we are able to ensure our payment procedures are fast and simple. Additionally, we are capable of providing prompt payment discounts.

• Voltage: 220 V
• Automation Grade: Automatic
• Power Source: Electric
• Motor Phase: Single Phase
• Frequency: 50 Hz
• Material: Stainless Steel

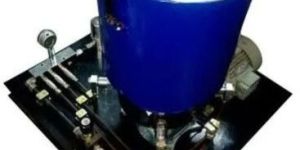

We are one of the highly acclaimed and most sought-after Manufacturers, Exporters and Suppliers of Motorized Grease Pumps in Faridabad. The Motorized Grease Pumps, offered by us, are widely appreciated for their efficiency and durability. These Motorized Grease Pumps are quality assured products with a long service life. Details For Motorized Grease Pump PMLR-03 : Reservoir Cap. 3Ltrs., Discharge 1Lpm, Motor 0.20kw, 230V AC, Single Phase, Pressure Setting 12kg/cm2.PMLU-03 : Reservoir Cap. 3Ltrs., Discharge 1Lpm, Motor 0.12kw, 4 pole, 3 phase, 415V AC, Single Phase, Pressure Setting 15kg/cm2, With Pressure Switch & Float Switch.PMLU-2700 : Reservoir Cap. 2.7Ltrs., Discharge 1Lpm, Motor 0.9kw, 4 pole, 3 phase, 415V AC, Single Phase, Pressure Setting 12kg/cm2, With Pressure Switch & Float Switch.PMLU-05 : Reservoir Cap. 5Ltrs., Discharge 1Lpm, Motor 0.12kw, 4 pole, 3 phase, 415V AC, Single Phase, Pressure Setting 15-20kg/cm2, With Pressure Switch & Float Switch.PMLU-08 : Reservoir Cap. 8Ltrs., Discharge 1.5Lpm, Motor 0.18kw, 4 pole, 3 phase, 415V AC, Single Phase, Pressure Setting 20kg/cm2, With Pressure Switch & Float Switch.PMLU-20 : Reservoir Cap. 20Ltrs., Discharge 2Lpm, Motor 0.37kw, 4 pole, 3 phase, 415V AC, Single Phase, Pressure Setting 30kg/cm2, With Pressure Switch & Float Switch.PMLU-30 : Reservoir Cap. 30Ltrs., Discharge 2Lpm, Motor 0.37kw, 4 pole, 3 phase, 415V AC, Single Phase, Pressure Setting 5kg/cm2, With Pressure Switch & Float Switch.HYLU-30 : Reservoir Cap. 30Ltrs., Discharge 2Lpm, Motor 0.37kw, 4 pole, 3 phase, 415V AC Pressure Switch Float Switch, return line filter with 2 port, 1st for continuous lubrication, (Low Pressure setting 5kg/cm2) 2nd for international lubrication, (High Pressure setting 20 kg/cm2).

• Max Flow Rate: 3 LPM
• Material: SS and Acrylic Body
• Phase: Single Phase
• Voltage: 220 V
• Capacity: 2.7 Ltrs
• Pump Rpm: 1440 RPM
• Number Of Pole: 4 Pole Motor
• Working Pressure: 18 kg/cm Squire

• Discharge of Pump: 350 cc / min.
• Reservoir Capacity: 3.0 ltrs. (in polycarbonate material)

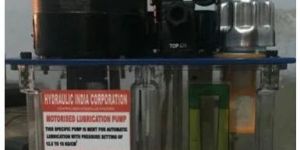

This is mini hydraulic power pack fitted with a motor and rotary positive displacement pump. The unit is designed for intermittent run only and is best suited for Single Shot Lubrication. Unit is fitted with a suitable pressure switch, float switch and a transparent reservoir (for visually checking the oil level). During ON cycle, the electrically driven pump discharges the oil with high pressure, adjustable between 25-28 bars, with the help of an in-built relief valve, which is also safeguarding the system from over–loading and the pressure can be read on the Pressure Gauge fitted on the unit. During OFF cycle the pressure in the lubrication line is reduced to 1 kgsq.cm. and so on. The system is also provided with a Bleed Valve near the outlet port to automatically bleed air if entrained in system. For vertical mounting of the unit, two holes are provided at the back of the system. There is an inbuilt check valve and pressure reducing system incorporated in the pump. Outlet port is suitable for 6mm OD tube.

Motorized Grease Pump, lubricating systems, Motorized Grease Pump

motor pump, Oil Contractor Coil, Submersible Motor Stampings

Submersible Motor Pump, Open well Submersible Pump
