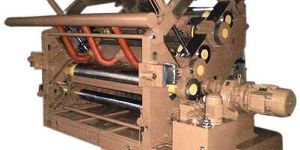

Lower Flute Roll Dia 284mm. Vacuum suction fingerless design provides prefect flute formation driven by heavy duty Blower. Pressure Roll dia 305mm. Twin Facer structure One Flute Unit working and another having for immediate order change. Heavy Duty Quick Roll change cassette system is controlled by hydraulic System for change of flute rolls as per order specification. Corrugated rolls are made of Special Alloy Steel. Build in Pre heating & Pre-condition Rollers Ensures absolutely secure bonding. With Heavy duty Hydraulic Power pack. With Gum Circulating System. With Helical gear Box. With Dam System for control of gum transfer width wise. With A.C. Frequency Drive for speed control.

Lower Flute Roll Dia 320 dia. Pressure Roll dia 250 dia. Single Profile with one set of Flute Roll. Flute Roll & pressure Roll Gap Machanical adjustment. Gum Roll, Gum Pipe duty H.C. Plated. Flute Roll made from special Alloy Steel. With Motorised Lubrication System. With Glue Circulating System. Machine Driven by A.C. Frequency Drive attach to helical Gear box for Speed Control. Circulating glue supplying system is available with the Tank Pump & Motor.

Machine is utilized for evenly setting of corrugated sheets processed on sheet pasting machine with following specifications: With e-tra heavy duty steel structure. Upper & Lower platform covered with steel plate & waterproof ply. Mechanical drive with limit switch arrangement & reversible starter. With Motor.

With 4 Nos. Special Coated Rollers. With Electric motor & Starter. S.S. tray for Gum. Single Side Control System, helps in quick and even setting of gum and pressure rollers on both sides. Single Side Control System for gum tray lifting. Precise quantity transfer of gum helps in fast drying of corrugated sheet and also reduces Corrugated Liner's impression on the top. All Rollers are ground for smooth ad even application of gum, on 2 ply sheets.

Heavy duty reel stand. Individual center shaft are provided for each side of reel stand. Stand can work independently from each side while working without disturbing the other side. Extra heavy duty cast iron arms are provided for holding the paper reels without inserting the shaft. Special system is provided to align the paper reel while running the corrugator machine. Motorized rotation type Hydraulic Controlled. Paper roll diameter : 350 ~ 1500 mm. Pneumatics tension control friction Brake assembly. With dancing roll for face paper. With heavy duty power pack, solenoid valve and control panel for controlling hydraulic operations. With remote control system or reel stand arms.

This machine consists of two units, chain feeding & slotter-slitter cum creasing units. This machine is used for slotting & flap cutting of corrugated board with manual easy phase adjustment, able to slit score, flap cut in one pass. Board is fed with chain drive. Hole making equipment can be provided, hand holds etc. at extra cost.

This machine is design to cut paper as well as 2 ply corrugated board (without damaging the flutes) in the form of sheets. This machine can be used as an independent unit or can be attached to a corrugating machine for direct & accurate sheet cutting.

This machine features die cutting, creasing and cutting hand holes. Suitable for solid board and medium or small-caliper board. It is designed for double roll rotary pressing, electromagnetic speed adjustment and motorized die cutting register adjustment by planet gearing mechanism.

With extra heavy duty C.I. Frame & M.S. Base. With special ground shafts duly hardchrome plated. With Oil dip chain gear train. With 4 sets of cutting dies. With 4 sets of creasing dies. With hand wheel for adjustment. With Motor & Starter. Minimum distance between two creasing dies - 4" With two C.I. heavy duty guide. With extra heavy duty C.I. feeding table.

With extra heavy duty C.I. Frame & M.S. Base. With special ground shafts duly hardchrome plated. With Oil dip chain gear train. With 4 sets of cutting dies. With 4 sets of creasing dies. With hand wheel for adjustment. With Motor & Starter. Minimum distance between two creasing dies - 4" With two C.I. heavy duty guide. With extra heavy duty C.I. feeding table.

Extra heavy duty C.I. Frame & E-tra heavy duty steel base frame. Extra Heavy duty gear train with oil dip arrangement. The Printing cylinders, after mounting the blocks, can be adjusted lengthwise. These cylinders are duly balanced and hardchrome plated. Extra heavy duty feeding table with feeding measures to ensure the proper feeding of board & paper. Induction motor is provided in the machine with provision of speed changing with step pulley to ensure the different speeds for different types of printing jobs. Ink tray is provided with inflow and outflow pipe lines made from special S.S. 304 steel.

Extra heavy duty C.I. Frame & E-tra heavy duty steel base frame. Extra Heavy duty gear train with oil dip arrangement. The Printing cylinders, after mounting the blocks, can be adjusted lengthwise. These cylinders are duly balanced and hardchrome plated. Extra heavy duty feeding table with feeding measures to ensure the proper feeding of board & paper. Induction motor is provided in the machine with provision of speed changing with step pulley to ensure the different speeds for different types of printing jobs. Ink tray is provided with inflow and outflow pipe lines made from special S.S. 304 stee

Corrugated roller made of Ni-Cr-Mo-alloy steel with heat treatment (hardness 55-58 HRC). Roller Surface plated with Chrome Treatment. Lower Flute Roll dia 320mm dia. Individual Gear bo- Drive separating dynamic oscillating improves running stability. The Glue application Unit can be engaged and disengaged with the corrugation roll under the parallel movement of pneumatic cylinder. Vacuum suction fingerless design provides prefect flute formation driven by heavy duty Blower. Adjustment of upper corrugated roll and preasure Roll and glue Roll controlled by Pneumatic System. Glue Roll is duly engraved and glue dam is provided for accurate transfer of Glue to the Flute Roll while formation of 2-Ply. With Dam System for control of gum transfer width wise. With preheating and pre conditioning roller.

Width : 1400mm – 2500mm.

Extra heavy duty C.I. Frame & Extra heavy duty steel base frame. Extra Heavy duty gear train with oil dip arrangement. The Printing cylinders, after mounting the blocks, can be adjusted lengthwise and widthwise for proper registration of the second colour. These cylinders are duly balanced and hardchrome plated. Extra heavy duty chain feeding table with feeding measures to ensure the proper feeding of board & paper. Induction motor is provided in the machine with provision of speed changing with variable speed A.C. Frequency Drive. Ink tray is provided with inflow and outflow pipe lines made from special S.S. 304 steel.

This heavy duty platen punching and embossing press is utilized for creasing and cutting punching of cardboard as well as corrugated board. Heavy Duty C.I. Platen. Heavy Duty Steel Arms. Fine Impression adjustment. Dwell Timing Device. Multiple Safety Guards. Auto Sheet Counter. Centralized Lubrication System. Normal Chase. Adjustable Guide System.
