Oil Pump Dealers in Dlf Industrial Area, Faridabad

Economical, easy to use and simple to install. These pumps are suitable for manual centralised lubrication system of light duty automatic machines such as small power presses, packing machines, die punching machines, milling machines, single spindle automats, looms, surface grinders, pouch filling machines, concrete pumps etc.

• Pressure setting: 12 kg/cm2.

The construction is spring return piston type the piston is operated by pulling a cam handle. The other salient features are strainer at the inlet port, a pressure reducing system which is very important for proper operation of metering cartridges. Always fill clean oil to get better life and trouble free operation of these pumps. It is not recommended to operate dry pumps. Pumps are suitable for oil with viscosity range 40-1000cst.

• Discharge of Pump: 350 cc / min.
• Reservoir Capacity: 3.0 ltrs. (in polycarbonate material)

This is mini hydraulic power pack fitted with a motor and rotary positive displacement pump. The unit is designed for intermittent run only and is best suited for Single Shot Lubrication. Unit is fitted with a suitable pressure switch, float switch and a transparent reservoir (for visually checking the oil level). During ON cycle, the electrically driven pump discharges the oil with high pressure, adjustable between 25-28 bars, with the help of an in-built relief valve, which is also safeguarding the system from over–loading and the pressure can be read on the Pressure Gauge fitted on the unit. During OFF cycle the pressure in the lubrication line is reduced to 1 kgsq.cm. and so on. The system is also provided with a Bleed Valve near the outlet port to automatically bleed air if entrained in system. For vertical mounting of the unit, two holes are provided at the back of the system. There is an inbuilt check valve and pressure reducing system incorporated in the pump. Outlet port is suitable for 6mm OD tube.

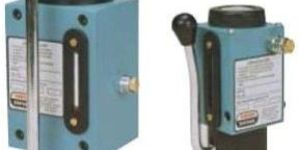

Hand Operated oil piston pump, Manual Grease Pump
