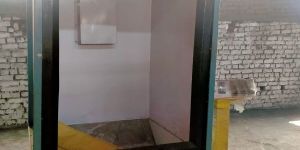

Powder Coating Booths Dealers in Faridabad

• Type: Powder Coating Booths
• Certification: CE Certified
• Application: Industrial
• Weight: 1000-2000kg
• Color: Natural
• Voltage: 110V
• Automatic Grade: Automatic
• Power: 1-3kw
• Driven Type: Electric

Being a client-centric company, we are committed to offering superior quality Powder Coating Booth to our clients. Our dexterous professional have made the entire range of this Coating Booth using premium quality raw material in compliance with the international quality standards and norms. These booths are proficient of providing a qualitative coating of various powders effectively. All across the world, it is highly applauded for its high performance, effectiveness, easy installation and longer service life. It is available to our clients at an affordable range of price.   Details : The powder coating booths are not simple spray chamber of sheet metal with some recovery, but they are the output of engineering and dedicated R&D staff working round the clock. Each and every equipment designed & manufactured by us is fruit of continual improvement going at our R&D. Why our powder recovery booth: The carbon steel powder coated spray chamber with the multi-cyclone recovery gives almost 100 % powder utilization. It is maintenance free and has a very long life. The powder booth is easy to clean, resulting in a quick color change and is safe to operate. No powder spillage out of the booth and maximum recovery through the multi-cyclone results in pollution control. Improved Transfer efficiency. Pollution free operation. Safety measures. Maximum recovery efficiency. Durability. Quick colour change. Velocity of booth should be: Appropriate enough so that maximum powder should be attracted on the article. If suction velocity is more, more amount of powder will be sucked towards cyclone & less on article. If suction velocity is less, then powder will come out from cutout & surroundings will be polluted. Selection Criteria: Easiness in colour change , No. of colour change ,Frequency of colour change. Selection of Booth design. Size of Article ,Weight of Article. Selection & type of Track / Trolleys from 1 side or 2 sides. System of track / trolleys. Any other type of material handling.   Recovery Booth The carbon steel powder coated spray chamber with the multi-cyclone recovery gives almost 100 % powder utilization. It is maintenance free and has a very long life. The powder booth is easy to clean, resulting in a quick colour change and is safe to operate. No powder spillage out of the booth and maximum recovery through the multi-cyclone results in pollution control.   Powder coating booth : The powder coating booths are not simple spray chamber of sheet metal with some recovery, but they are the output of engineering and dedicated R&D staff working round the clock. Each and every equipment designed & manufactured by us is fruit of continual improvement going at our R&D.Why our powder recovery booth : The carbon steel powder coated spray chamber with the multi-cyclone recovery gives almost 100 % powder utilization. It is maintenance free and has a very long life. The powder booth is easy to clean, resulting in a quick color change and is safe to operate. No powder spillage out of the booth and maximum recovery through the multi-cyclone results in pollution control. Improved Transfer efficiency. Pollution free operation. Safety measures. Maximum recovery efficiency. Durability. Quick colour change.  Velocity of booth should be :Appropriate enough so that maximum powder should be attracted on the article.If suction velocity is more, more amount of powder will be sucked towards cyclone & less on article.If suction velocity is less, then powder will come out from cutout & surroundings will be polluted. Selection Criteria : Easiness in colour change , No. of colour change ,Frequency of colour change. Selection of Booth design. Size of Article ,Weight of Article. Selection & type of Track / Trolleys from 1 side or 2 sides. System of track / trolleys. Any other type of material handling. Powder recovery booth :Multicyclone type of booth consists of a coating chamber, multicyclone with blower, motor & bin. Each part of the booth is designed considering its importance in the system. The purpose of each component is different which should be considered from all angles. Chamber : The chamber is having panel type construction, square in shape made up of 1.2 mm GI sheet. For better life, these are pre-treated & Powder Coated. For better visibility, it is coated by white colour from inside & by green from outside. Chamber bottom is slopping in shape. So powder collection is easy. To suck the powder, at the bottom there is canopy & a loose 'C' channel which sticks to the side wall when blower is on. Multicyclone : This consists of the cluster of very small cyclones which are less in diameters & height. The Powder sucked from the chamber gets distributed in to each small cyclone. Due to small diameter & very high air velocity, maximum powder moves along the periphery of cyclone. As each small cyclone handles small amount of powder, the efficiency of complete multicyclone is as high as 98.5%. Due to such high efficiency maximum powder is saved & so cost of the booth is recovered within very less time. Bin : For Powder recovery a conical bin is designed to be attached below multicyclone. To remove the bin with powder, a separate trolley is given below the bin. Ductless Construction : In between multicyclone & chamber there is no separate duct piece with bends. There is no nut bolting construction which is very very tedious for colour change & takes lot of time. As a duct there is just a loose 'C' channel. So this booth is very easy for cleaning. Saving time and labor. Material Handling : For article loading & handling we give overhead track & loose trolley type system. There can be number of trolleys which are not interlinked & can be moved independently, just by pushing or pulling the article hooked Illumination : Chamber is provided with enough tube lights for better visibility. Safety : At the side of chamber loose flap in given for safety. This also helps for cleaning. Optional- Integration : The bin can be used as a bin cum hopper & powder can be fed directly to spray gun. When bin is used for this purpose a fluidization tile is attached at the bottom & powder suction control block can be mounted on the bottom plate (Cover for bin) of multicyclone.   Different Models :Depending upon size of the article, coating requirements, material handling requirements we have designed some standard models. As a special requirement different customized models are also developed. Powder Coating Booth - IN-I : In this booth article loading will be on overhead track & loose trolley & only from front side. Normally this is suitable for small component like clutch lever, Oil/ Air filters, Kitchen trolley, small washing machine, Water filter etc. Booth bottom is sloping, so powder collection is easy. Powder Coating booth - IN-IA : It has a wider front cutout with the specification as mentioned in IN -I. Powder coating booth - IN-IB : This is a smallest booth in the series & most suitable when fast colour change is required. Chamber is very small to clean & it can be given on wheels. Many chambers can be used for dedicated colours & it is easy to move. It is suitable for fan blade like article. It can be also used for trial, training purpose. Booth has very small chamber can be used for Laboratory purpose. Powder Coating Booth - IN-II : This booth is having side doors & article holding track entry & exit is also from side through doors. By this way material handling is systematic i.e. from one side entry, coating & then exit from other side. Medium size front cut out .side loading facilities. In exceptional case, if article is very long then a door can be kept open & coating is done step by step by moving article slowly. In this case recovery will be reduced. Powder coating - IN-II A : Side door is split into two pieces & a small slit remains open continuously. Long article like Aluminum channels can be inserted through this slit & coated step by step by continuous movement. This can be also used for bigger article by opening doors. (If door is kept open then efficiency will be reduced, but at least coating can be done) Specially made for Aluminum Channels. Slit remains constantly open even after closing side doors. Powder Coating Booth - IN-II B : It comprises of a continuous side opening. It is suitable for conveyorised plant. Powder coating Booth - II C : Bigger continuous side opening. Can be used for conveyorised plant with large articles. Powder coating Booth - IN-II D : This model is especially suitable for aluminum channels or any longer article. Specialty is, this chamber is having two doors on opposite side (In front of each other) All channels on jig can be coated from one side while it's pushed from one side to other. While coating from other side, earlier door should be closed, opposite side door to be opened to coat from back side. Article can be coated from both sides easily avoiding turning of longer article outside the booth. In side door a narrow slit can be given on demand. 2 operator cutouts, opposite to each others with doors. Both sides for the article can be used without reversing. Powder coating Booth - IN-II E :  Especially utilized for cupboards. Article can be loaded in the booth after mounting on trolley. Powder coating Booth - IN-II G : Big front cutout. As well as side cutout. Powder coating Booth IN-III : Booth has sliding doors from both sides Powder coating booth IN-IIIA : Large & heavy article- Big panels, Valves weight more-say around 100 kg/ trolley -261 type weight very high- say more than 150 kg/trolley -262 type. Coating process - Coat from front side, by sliding doors one by one. Then backside can be coated same way.      Advantage - Even if article is very big, only one small door remains open at a time. So power required is very less.      After coating, article is moved by track & loose trolley just by hook. (Without touching the article) Its very easy. No fear of touching the article while holding it. Big front cutout 2 miltycyclone modules with 2 motors. Powder coating booth IN-IV : Flexible opening for opening for operator with sliding doors on both sides. Loose track and trolley arrangement for hanging heavy and bulky control panels.

• Country of Origin: India
• Type: Powder Coating Booths, On Demand
• Application: Industrial
• Color: On Demand
• Condition: New
• Automatic Grade: Automatic
• Warranty: 1year
• Material: on demand

powder coating booth attached with dust collector

• Type: Automatic
• Voltage: 220V/380V
• Condition: New
• Power: 5-10Kw
• Warranty: 1 Year
• After-sales Service Provided: Spare Parts

Features : Longer functional life Robust structure Easy operations

Our company is looked upon for the manufacturing of Powder Coating Booth, specially designed as an environmental "clean room" to ensure trouble free powder application and dirt free parts. This Powder Coating Booth consists of Clean rooms that are equipped with automatic climate control systems designed to maintain an environment for optimal coating conditions. Powder Coating Booth has smooth interior wall surfaces with anti-static panels that minimize the attraction of powder coatings, making the booths more efficient and easier to clean. Features Of Powder Coating Booth : One can easily move or expand the instruments in and out of units, by fitting the walls with custom conveyor openingsBooth in Powder Coating is of cylindrical shape with a round floor which can be easily rotated about the longitudinal axis of the spray boothA base frame is constructed separately from the floor, which helps in supporting the booth canopy and topFor continuous pressure, particulate control, and uniform temperature and humidity, our engineers always construct the walls systems with ceiling, floor, and mechanical components. The whole process helps in controlling volatile organic compounds with the help of concurrence with solvent recovery systemsWhen the spraying operation is on, the mining duct is stable at the rotating floorIn a position where the floor can rotate and afterwards in other position it gets preserved by lower edge of the booth canopy wall, at that time floor can easily move along the axis of rotationIt includes a wall arrangement type booth canopy which contains powder during a spraying operationDuring a spraying operation, the booth floor rotates in relation to the booth wallThe canopy and floor of the booth are made of less conductive composite materials to minimize powder adhering to the booth walls and floorIt is easy to clean the booth in shorter span of time required for color changeThe anti-static panels of the smooth interior wall surfaces minimize the attraction of powder coatings and make the booths more efficient and easier to clean

• Air-Flow Direction: Cross-Flow Type, Fully Undershot Type
• Booth Size (mm X mm X mm): 2000 2500 3000 mm ......
• Heating Mode: Gas
• Material to be painted: Aluminum, Steel, Iron

Product Details: We are manufacturer of Cyclone Powder Booth Our range of Cyclone Powder Booth facility includes basic batch booth to conveyorised with auto reciprocators and auto guns. The powder recovery is offered in all denominations from basic mono cyclone to multi cyclones and finally cartridge recovery system. We also offer ductless powder coating booth which are apt for small size components and also useful to contain terminal fines to the atmosphere even if it is 2% or less. We offer multiple color cartridge systems where there are number of color changes are envisaged frequently. The booths are offered in SS, CRCA-Powder Coated, CRCA-Liquid Painted as per agreement. Their basic purpose is to collect the over sprayed powder throws off the powder coating gun. The recovery booths are of various types depending upon their increasing efficiency; they are single cyclone, multi cyclone and cartridge type. Some of the advantages which our unique design which makes us stand apart from our competitors are: Provides Maximum Efficiency in its Class Durable & Long Life Maintenance Free Environment Friendly Provides Quick Color

• Air-Flow Direction: Cross-Flow Type, Fully Undershot Type, Lateral Undershot Type
• Booth Size (mm X mm X mm): 3 m
• Material to be painted: Steel, Aluminum, Iron
• Heating Mode: Diesel, Electric, Gas

Our Powder Coating Booth or also called as Powder coating Multi-Cyclonic Recovery Spray Booth is a revolutionary new concept gradually becoming popular in Indian powder coating market. Powder Coating Booth gives excellent 98% over sprayed powder recovery against single cyclonic recovery system. Our Powder Coating Booth is widely used at the places where we require large volumes and high powder coating recovery efficiency for application. Multi Cyclonic Recovery System Four Major Parts : Booth : The enclosed zone in which gun operator applies virgin powder film through electrostatic charging is called booth, this is the effective volume in which powder coating process takes place.Multi-Cyclone : In Multi-Cyclonic Recovery System instead of one cyclone of large diameter, we introduce three or four clones of fewer diameters, depending upon the effective working volume to enhance the suction power. Since powder enters from the top of every clone through the stabilizing chamber access to clones for cleaning is extremely easy. Access door is provided on the stabilizing chamber resulting in the super quick clean up.Blower : This is mounted at the end of the vertical cylinder to suck out the air from the booth along with over sprayed powder particles. Over sprayed powder particles get settled due to gravitational force in the collector bin at the conical end of cyclone.Exhaust Duct : This duct is always attached to blower to discharge the over fine particles of powder collected during the recovery of over sprayed powder from booth.
