Universal Jack
The company deals highly efficient Universal Jack in the market. The Universal Jack Scaffolding provides a method of fine adjustment which can be used at either the top or bottom of a Vertical with socket base or fixed fork head. Moreover, we are reckoned as one of the renowned Universal Headset Jack Exporters and Suppliers in the business. The Universal Jack provides a method of fine adjustment which can be used at either the top or bottom of a Vertical with socket base or fixed forkhead. Available Sizes 760 mm long with effective range of 530 mm 600 mm long with effective range of 450 mm S.W.L. 6000 Kgs. Socket Base This components is used both at the bottom and top of the Vertical with the Universal Jack. Fixed Forkheads Used for traditional timber or steel beam support. Designed for use with single or double timbers of 75 mm nominal width. Used with a Universal Jack to give height adjustment. Available Sizes 86 mm wide and 200 mm Long. 186 mm wide and 200 mm Long.
...more
U Head Jack
The U Head Jack made available by us has curved head that gives enough support to hold the load of the item to be lifted. Our Adjustable U Head Jack can be adjusted in different lengths according to the requirements. In addition to this, we are one of the chief U Head Screw Jack Manufacturers and Suppliers in India.
...more

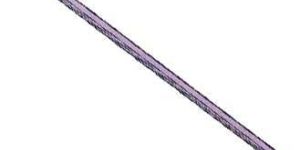

Transom
For use with Hop-up brackets where distance between standards exceeds the span of scaffold boards Cuplock intermediate transoms are available for 2 boards and 3 boards. Size Size (Meter) Weight(kg)1.05.001.36.301.57.001.88.002.08.602.39.602.410.003.012.00 Specifications Pipe : 48.3 mm O.D. , 3.00 to 3.10 mm Wall Thickness Plates : 6 MM Code No. : 1078 Centres of Standards : 1.25M The Transom has a T section with wedge lock fittings at each end. It is used for locating the timber battens or steel frame as platform.
...more

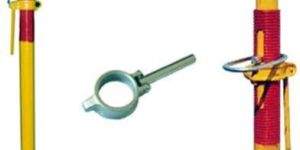

Telescopic Props
We deal in highly quality Telescopic Props in the international market. Adjustable Telescopic Props are the economic and popular methods of support in the building industry today. They are ideally suited to all kinds of building construction and repair. We are regarded among the foremost Steel Telescopic Props Manufacturers and Suppliers in India. The following are some of the features of Telescopic Props Five sizes range from 1.10 m to 4.65 m. Completely adjustable for height. Extremely robust, easy to handle, compact to store. Quickly and simply erected. No loose parts, no any tools necessary. Head plates suit modern frame work systems for slab construction. Sizes 0M to 4M confirms fully to BS 4047: 1966Specifications Outer : 60.3 mm O.D. ,3.8 mm Wall Thickness Inner : 48.3 mm O.D. , 3.00 to 3.15 mm Wall Thickness
...more

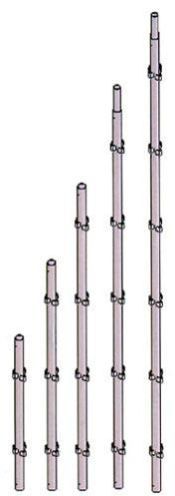

Scaffolding Standard
Code No.Effective Length (M)10593000With Spigot End10592000With Spigot End10602000Open Ended10611500Open Ended10621000Open Ended Wedgelock Standards are made from standard scaffold tubes or heavy duty tubes depending on the loading conditions. They have V pressing welded at 495 mm centres which provides 4 way connections for the ledgers. When adjustable stirrup heads are to be used over the standards, open ended standards are used at the top of the scaffold. For additional information on load capacity, consult our Design office.
...more
Spigoted Standards
Cuplock Standards have cup joints welded at every 500mm or 1000mm intervals, thus offering levels for working & also for bracing the standards while using in the slab support when loaded. Pigot are permanently welded to the Standard. Code No.Length1084 3.0 M1085 2.5 M1086 2.0 M 1087 1.5 M 10881.0 M
...more

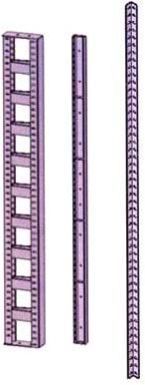

Heavy Duty Soldier
Code No.Size in mm20592500 x 100 Heavy Duty Soldier20602060 x 100 Light Duty Soldier20672500 x 45 x 45 Ext. Corner Angle
...more
Shuttering Plates
Shutting Plates are used for making platform for lentils. Our Steel Shuttering Plates are highly durable, economic and most suitable for finishing in lentil. They are made from Plate and angle available in different sizes and thickness as per buyerâs requirements varying from 600 X 900 to 1200 x 900 made in 3 MM to 4 MM Plate and 50 x 50 x 5 Angle. Additionally, we are reckoned as one of the principal Round Shuttering Plates Manufacturers in India.
...more
Scaffolding Planks
We present superior quality Scaffolding Planks in the international market. We have carved a niche as one of the most reputed Aluminum Scaffolding Planks Exporters from India. They are very effective for making working platform for scaffoldings. Steel scaffolding planks and battens are lightweight non-slip working surface, which can be used with omega transoms.
...more
Pressed Couplers
We bring forth exceptional quality Pressed Couplers in the national as well as international markets. Our Pressed Coupler is available in different ranges such as Pressed Swivel Coupler, putlog coupler, girder coupler etc. They are used for joining different ends of tube of the scaffoldings. Additionally, we are counted as one of the Pressed Swivel Coupler Manufacturers and Suppliers from India.
...more
Ledger
The Ledgers once inserted into the V pressings on the standards, automatically space them to the required grid size for the slab support system or regular scaffolding. Code No.Centre to Centre No. of Standards (M)10652.510662.410672.010681.810691.510701.2510710.910720.6
...more
Ledger
The Ledgers used in general support of framework, carefully selected range of sizes to meet the varied demands of grids system framework. Many of these can also be used for access structure. Each has forged blade ends with the minimum projection to resist site damage. Specifications Pipe : 48.3 mm O.D. , 3.00 to 3.10 mm Wall Thickness Ledger Blade : 210 Grms (malleable castings) The Ledgers have forged blade ends which fit in the cup joint on the standard. They can be used in variety of Ledger size combinations to suit required bay size & loading conditions. Code No." L" Length (mm) centre to centre of standards10892.5 M10902.4 M10912.0 M10921.8 M10931.5 M10941.25 M10951.0 M10960.9 M10970.6 M
...more

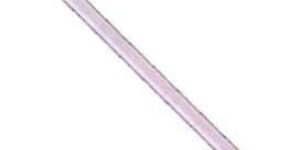

Intermidiate Transom
Intermediate Transom provides a safe mid-bay support for 38mm scaffold boards. They hold the ledgers in their jaw sections and prevent the central bending of the platform boards. Code No.Length20001.5 M20011.25 M20021.0 M20030.9 M
...more

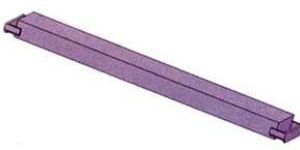

Infilled Beam
Decking Infill Beams Code No.Length (m) Centres of SupportsSWL(Kn) (UDL)10541.21010550.91010560.610 The Decking In Fill Beams span between the main Decking Beams or between Dropheds, to support the steel panels or plywood.
...more

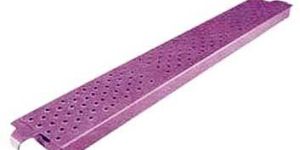

Hook Plank
Hook Plank serves as an effective scaffolding platform. The Steel Hook Plank made accessible by us is not only endurable but also has the good strength to withhold heavy loads. These planks are available in various sizes as required by the clients. In addition, we are one of the major Aluminum Hook Plank Manufacturers and Suppliers in India.
...more
H Frame Scaffolding
We bring forth superior quality H Frame Scaffolding in the national as well as international market. H Frame Suttering Scaffolding is an effective means of erecting scaffolding. The Two rectangular frames, which are also called H Frames, are braced with cross bracing that are secured on H Frames by split pins. They are suitable for heavy loadings on the scaffolding frames. These H Frame Scaffoldings are manufactured from high quality metals. Besides, we are considered as one of the foremost Frame Scaffolding Exporters and Suppliers in India.
...more

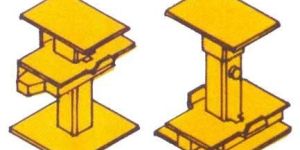

Drophead
The slab support system is designed to support a large combination of grid sizes for maximum reusability of formwork & economy. Drophead offers the facility for early striking of the formwork. The wedge plate on the Drophead can be conveniently struck so that the Drophead remains in position to support the slab, but the decking beams can be dismantled & assembled on next location enabling optimum utilisation of the formwork. The essential part of the Quick Strike Decking system, is provided with a strong steel wedge which supports the beam & infill beams at desired height. One hammer stroke is enough to lower the beams & infill beams, so that same can be removed with plywood. While slab support remains undisturbed.
...more

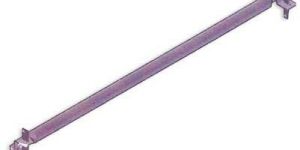

Diagonal Bracing
Code No. : 1077 Centres of Standards : 2.50M The Diagonal Brace is used for bracing the scaffolding diagonally with the pivoting wedge lock fitting by inserting in the V pressing on standard.
...more
Decking Beam
The Decking Beams span between Dropheads or between Beams, they can be very convenient during constructions with waffle or trough forms. During such application, the beams run in one direction only & they are located in position by In Fill Beams. The standards are spaced transversely to ledgers. Steel panels or strips of plywood are then bolted to the top of the Beams through the bolting holes. The waffle or trough forms are then placed over the Beams in position. 1.6m and 1.2m Beams
...more
Cuplock Scaffolding System
Cuplock
Cuplock (Statared) Cuplock verticals are provided in Ten different sizes with cup joints welded at 500 mm or 1000 mm intervals. The captive mobile top cups are malleable castings which endure rough site handling whilst the fixed bottom cups are pressed from high quality steel. Painted in durable pleasant colours as per buyers requirements. Available Lengths: (mm) 3000, 2500, 2300, 2000, 1800, 1500, 1300, 1200, 1000, 800. Specifications Pipe : 48.3 mm O.D. , 3.00 to 3.10 mm Wall Thickness Top Cup : 440 Grms (malleable castings) Bottom Cup : 195 Grms (pressed from high quality steel)
...more
Challiâs
Working surface well known as “Challi’s” are commonly used in India made from square specially designed for providing safe platform with proper placement & support. Available in different sizes varying from 450 X 900 to 4500 x 1200 made from 25 x 25 x 3 MM Square pipe. Challi is the most economical system available for making surface to work.
...more

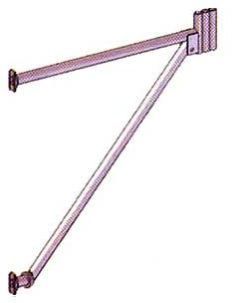

Cantilever Frame
CodesLengthLift Height10981250 mm1.5 M10991250 mm1.0 M Cantilever Frames support the formwork beyond the external periphery of the slab. The frames have blade ends for locating in the cup joint & accept adjustable jacks in three positions of 1.2m, 1.25m & 1.3m.
...more
Beam Bracket
Code No : 1057 SWL 5.0kN The Decking Beam Bracket receives 6"x2" timber (152mmx51mm) and provide support to steel panels or plywood in make up areas where standard Infill Beams are not suitable. Timber of upto 2.4mts length can be fixed on the Bracket and supported on Dropheads or Beams.
...more
Fabrication Work
The company specialized in offering end to end solutions of Metal Fabrication Services in the industry. We have state of the art fabricating unit at our plant which is well equipped with modern and sophisticated machinery for providing unbeatable Industrial Fabrication Services for Cable Tray, Electrical boxes, Tube Patti, Window Frames, Door frames, Machine covers etc. Our team of domain experts is capable of fabricating any metal products in the exact specification demanded by the valued clients. Apart from that, when it comes to offer the best Fabrication Services in India, we are counted on the top of the list.
...more
