Shekhar Brothers Sector 6, Faridabad, Haryana

  Cup Filler Machine is used to pack granular and powder items by volume. This machine has volumetric cups in which the material is filled from the top hopper. The volume of the cup is adjusted in a manner by the adjusting nut that the volume of the material in the cup can be adjusted and the final desired weight of material can be achieved. As this is a volumetric cup filler the end accuracy in net weight depends on the consistency in bulk density of the material being packed. The volume of the cups can be maintained consistently by a rigid construction of the disc of the cup filling machine, however if the bulk density of the material is varying then the net weight also varies. Another very important aspect of this machine is the flow characteristic of the material being packed. If the material does not have good flow characteristics then it poses two problems either the volumetric cups do not get filled completely or they may not get emptied completely, in both the cases there is a variation in the net weight of the pouch.It is ideal to use a cup filler where the weight variation is not a very high concern specially in products which are relatively cheap, also where the product has a good flow characteristic and high production speeds are required with a lower equipment cost. Cup filler machine is also easy to setup and involves more of mechanical parts and is easy to maintain. Our machine comes with double motors one for the rotation of disc and the other for the pulling of the laminate is recommended for a better control as both these motors have independent drives and sensors for motion they can be easily setup. The horizontal and vertical sealing are both done pneumatically. This ensures that the sealing is done properly and the temperature control is by PDI temperature controllers. Having a consistent temperature for sealing is critical to the quality of seal which ultimately affects the shelf life of the pouch.  The machine comes with a camera for sensing the location of the eye mark. The batch coder prints the date code, mrp, lot code at the relevant location on the pouch.

Fill the material in hopper and adjust the weight and flow of material in vibrator by the key board. This Packing Machine will weigh the material and discharge on its own or by the press of a foot switch. This Packing Machine is ideal for packing products by weight, where the bulk density is not consistent. Ideal for start-up units or those packing manually. Save labour and pack at high speed. Changing over from one product to the other is very simple and fast. Optional attachments are available for the discharge mouth so that small pouches can also be used in the same machine. The foot print of the machine is very small and can be mounted on a small table. The electricity consumption for this packing machine is only 250W and it runs on single phase 220V supply. It has a facility of saving upto 10 program settings which can be recalled easily by the click of a button. Packing on the basis of weight Ideal for all granular, powders and free flowing material Ideal for products with variable density Range available 20 gm to 1 kg Compact modular Design Simple User Interface, 1 display and 5 Keys Drop speed 4-6 per/min

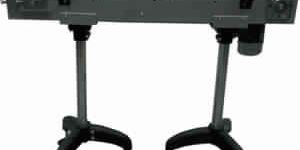

Slat Chain Modular Conveyor Conveying Bottles, Bags, Boxes, etc. Integrated operation with filling Machine Speed Control by AC Drive 1Φ & 3Φ operation available

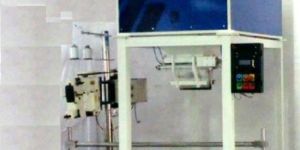

5-50kg bag packing machine, that fills on the basis of weight. Empty bag is clamped in the machine. The material is weighed and then discharged in the bag. Once the bag is released from the machine it falls on the optional conveyor which takes it to the stitching head where the mouth of the bag is stitched and it then falls out of the machine. This machine is ideal for 10kg, 25kg Rice Bags.     Applications Rice Grains Fertilizers Granular free flowing Products Sugar, etc.
