Shri Balaji Industrial Products Ballabhgarh, Faridabad, Haryana

Strip-Straightener is manufacturer as per customer requirement. But following standards models are available with following specification: Heavy fabricated structure Loop control electric panel and works in both reverse and forward direction, Hardened roller up to 55-58 HRC, Hard Chrome Plated & Ground Roller, Hard and Ground Gears Branded Electric Motor (Crompton/Siemens) Hardened guiders on both Front and rear side to control the width

Material : Steel

Brand Name : Korean

Our bunch of imported products comprise of high quality PU rods and pads that have varied applications in a large number of industries. These are available with us in different specifications that enable us to successfully cater to the needs of our clients even on receiving urgent order. We strive to ensure that these rods & pads conform to the industry standards and uphold qualitative feature which fulfill industrial requirements at the actual site of use.Polyurethane Springs comes in Rod as well as Tubular. The outer diameter of these springs ranges from 12mm to 120mm. All sizes are available in our ex-stock. Polyurethane is a new wonder material, which combines the strength of plastic and elasticity of rubber. Polyurethane can sustain very high loads and higher hardness than rubber, Corrosion resistant, Low noise and Low cost. PU-springs exceed the capacity of coiled springs in generated forces and strokes in a similar space. This is accompanied by the non-compressibility and resiliency. Life expectancy is also very good. PU springs and pads are ideally used in Press Tools, Jigs, Fixtures etc., where the action of stamping, forming, damping, cushioning involved.Pads / Mats: The Pads and Mats are available in standard size ranges from 5mm to 40mm and size is 300mm x 300mm.

We deal in Pneumatic Stripe Feeder as well as Gripper/mechanical Feeder as per Italian Standards of extremely high quality. These are perfect replacement of imported feeders at very reasonable price. All of our customers are very much satisfied with the quality of our products as well as services. We are getting repeated orders from our customers. Not only this, they are referring to others. More than 120 models available in Pneumatic feeders width ranging from 0-50mm, Pitch 0-50mm, thickness 0.05-1.8mm and sheet width up to 900mm, Pitch up to 600mm. Gripper Feeders are available in two models: 130 x 130 and 200 x 200mm.

We offer Bordignon, Italy make nitrogen cylinders and nitrogen gas spring and they are designed and built to guarantee the longest service life. We have more than 300 models of cylinders and mostly in stock for immediate delivery in Italy. It have six series of self contained cylinders like CS, C, CSM, TOP, SML, CISO having different sizes, load parameter, fitments and work at different temperature etc. The life of these cylinder is up to 10 Crores strokes if used according to the manufacturer advices.

Material : Metal and PU

Color : Orange

Thickness : 10 mm - 24 mm

We offer wide assortment of high performing marking machines that are sourced from well-renowned vendors who are located in technologically leading countries. Our bunch of products comprises of precision engineered marking machines which ensure deliverance of output to the optimum level. These are available with us in various technical specifications such as capacity, working speed and many more. Electrolytic Etching machine are used to mark LOGOS or identification on untreated or finished surfaces (both flat as well as round surfaces). These machines are mostly used to mark on Bearing, Engine Valve, Piston Rings, Tools, Scissor, blades etc. To ensure the highest levels of marking, please use reliable Stencils and electrolytic liquid. This Liquid consists of non-toxic and non-acidic mineral salts to avoid oxidation and corrosions. Another indispensable element in the marking system is the Stencil, which bears what must be marked on the metal piece. With this stencil all the type of logos and images can be etched with surprising precision and faithfulness to the original.

We take care that these industrial decoilers are constructed from superior grade material of construction by utilizing latest technology as per the industry standards.Both motorized as well as non-motorized decoilers are available. This is used along with Straightener and feeder in order to automate the process for power press. This is used to hold the coil of sheet and de-coil the sheet as per the speed of power press. De-coiler posses the following characteristics: Heavy fabricated base, Self-Centering type Jaws (4 Nos.) Easy opening & closing of jaws controlled by handle Loop control System to control the speed of decoiling in case of Motorized and mechanical break in case of non-motorized Safety Covers to avoid accident;Decoiles are manufactured according to requirement of customer. The details of our standard models are as below:

Imported Guide Post Sets are available according to Misumi Standard. The quality is very high at very reasonable price and short lead time. The life of die depend on the quality of Guide post Sets. It has of highest accuracy under strict quality Control. The details of accuracy are as below:

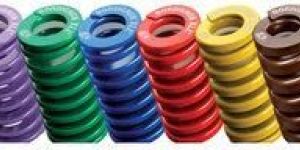

Die-Springs JIS Standard: IMPORTED FROM JAPANWe are importer and stockiest for JIS B5012 Standard Springs from Italy and Japan. These springs are perfect to be used with high deflection and different from the traditional round wire because flat / heteromorphic cross section materials are used in them. Our products ensure high quality and safety due to the constant performance of severe fatigue testing. These springs comes in five Series as mentioned below: Extra Light Load SF Series, Colour-Yellow, Max.working Deflection 50% Light Load SL Series, Colour-Light blue, Max.working Deflection 40% Medium Load SM Series Colour Red, Max.working Deflection 32% Heavy Load SH Series Colour- Green , Max.working Deflection 25% Extra Heavy Load SB Series, Colour-Brown, Max.working Deflection 20%

Die Springs ISO standard : IMPORTED From ITALYWe are importer and stockiest for Flat Wire Mould & Die Springs as per ISO 10243 Standard from Italy and we are authorized representative of Bordignon, Italy. Bordignon is top most & First manufacturer of Die Spring since 1958 and have their own test / research laboratory. The life of our springs is extremely high in compare to others and the user of our springs has not to worry about replacing springs. This results in net saving of money, time and hassles. These springs comes in six series as mention below: Extra Light Load 1L Series, Colour-Pink, Max.working Deflection 50% Light Load 1S Series, Colour-Green, Max.working Deflection 40% Medium Load 2S Series, Colour Blue, Max.working Deflection 37% Heavy Load 3S Series, Colour- Red , Max.working Deflection 30% Extra Heavy Load 4S Series, Colour-Yellow, Max.working Deflection 25% Super Heavy Load 5S Series, Colour-Brown, Max.working Deflection 15%

Color : Purple,Green,Blue,Red,Yellow,Brown

Material : Stainless Steel

Brand Name : Bordignon

Length : 25mm-305mm

Our collection of industrial products comprises of qualitative die spares that are procured from reliable vendors who are well-known for their quality standards.  We import die spares such as Spool Retainers, Wear Plates, Guide Post/Pillar Sets, Cam Units and Ball / Pin Plunger (lifters) charged with springs as well as Nitrogen Gas from Italy and Japan against requirement of customers. We also offer Sprue bushes, Sine plate, Push back pins, Date marking pins, Date inserts, Parting locks, Ball Cages etc.

Ball cages are made from specially treated solid Aluminum alloy and Brass. These are available in standard size and according to customer’s drawing also. We have following standard sizes and available in our ready stock :

These mounts have an adjustable bolt, which moves the center wedge between top and bottom stationary wedges to provide lift, to the top wedge. Anti-Skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity. Vibration reduction is possible through assembling respective insulation plates.Our Anti- vibration damping and machinery installation solutions are characterized by: - Reduce Vibration of industrial machinery. Fast, easy and inexpensive installation on working machines with minimal down time. Flexible shop floors plan due to ease in machine relocation - Permanent mobility of machines. Enhanced component finish, accuracy and part tolerance. Increase tool and machinery life. Undesirable vibration and noise reduction. Installation of sensitive equipments and heavy machinery possible in the same workshop through vibration isolated foundation. Installation of machines at recommended height of 100 -150mm for Easy cleaning and repairing (recommended by IMTMA). Optimal space utilization and substantial reduction in foundation costs for new installations with no or minimal floor damage. High precision leveling and accurate alignment possible. Wide range of solutions for both anchored and free standing machines and of varied weight carrying capacities; suits almost all applications. Composite nitrile rubber insulation plates resistant to moisture, almost all kinds fuels, lubricating oils, acids etc. used in the shop floor. Unique cell design and high coefficient of friction facilitates good adherence to
