Straightening Machine Dealers in Faridabad

• Usage: Industrial
• Belt Size: 5 X 30 X 1015 MM - 01 Nos
• Ball Bearing: 6007zz - 02 Nos, 6002zz - 09 Nos
• Finish: Coated

Tejinder round bar straightening machine of reeling type are must for all manufacturers of bright bar drawn shafting will find better advantages and finish to straighten bars before turning components being manufactured. The beauty of our design are to incorporate maximum possible facilities their users incurring extra investments. We have a standard practise of seasoning our casting and stress relivnig our all fabricated structures.

Accessories : With Coil Stand and Pay Off Stand. With 12.5 H.P and 2 H.P Motor. With Panel Board & SLD Break. With 1 Limit Switch. Size : As Per Customer Requirement Note : As we are constantly striving for improvement, we reserve the right to modify the design and price of the machines without notice..

• Voltage: 220 - 380V
• Brand Name: Tsai
• Capacity: 08 mm-25 mm
• Motor Power: 7.5 HP to 20 HP
• Automatic Grade: Automatic
• Speed: 20 ft/min to 30 ft/min
• Features: Roller Material H.c.h.c, Gear Box Radicon Make,Steel Fabricated Heavy Duty Body
• Technical Specifications: Suitable for all Types of Sections

Introduction: The Section Straightening Machines are used to Straighten Rolled Steel Sections like of any rolled, Drawn, Ferrous or Non Ferrous solid section in cold condition etc. TSA is supplying these machines to many reputed concern firms. Straightening machine made up of steel fabricated M. S. plates of amply thickness with outer lining of same plates to strengthen the body will carry gears to run the rolls. The Straightening Machines are fitted with inbuilt reduction gear box on frame

• Condition: New
• Long Life: Low Cost Automation
• Variety: Strip leveller, with/without entry pinch roll setting
• Thickness mm: 0.3 TO 0.8
• L W H: 600 x 1000 x 1200
• Function: For metal sheet straightening

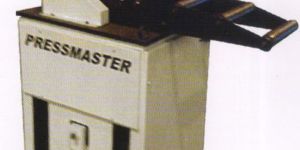

Emco Pressmaster Pvt. Ltd. a renowned Manufacturer, Exporter, and Supplier of Automation Strip Straightener.   Motorised Strip Straighteners Pressmaster Variable speed Motorised Strip Straighteners speed output and reduce costs by removing coil stock curvature at controlled speeds prior to feeding to presses. Uncoiling and straightening operations are combined in an integrally mounted unit with synchronised payout. Strip Straighteners are offered as 'Cabinet Based' free standing machines.   Main Features : Two techniques are used in these machines :  Cradle : - The straightening Rollers are positioned in a tilting cradle. Straightening consists of creating the maximum strain and then flattening progressively. This technique to be used with thin metal strip. Where flatness requirements are high. These machines are suitable for more fibrous metals, stainless steel, silicon sheet, bimetalic strip etc.  Independent Rollers : - The Straightening Rollers are individually adjustable, 4 pinch rollers (2 at the input 2 at the output) provide the stress and feed of the strip. This is suitable for medium strenght strip.   Other Features  Pinch rolls and lower straightening rolls are power driven and made from special steel, hardended and ground and run on antifriction bearings. Loop control system to start and stop the motor automatically. Uniquely mounted drive package shortens transmissionless vibration – easily removeable for maintenance. Variable speed pulleys for standard variable Drive Alternately Dc / Ac drives on demand. Scales are incorporated for precision depth setting. Entry and exit guide roller are hardened and ground for longer life. The control box comprises 2 selectors : (1) Forward / Reverse (2) Manual / Automatic

• Type: Round Bar Straightening Machine
• Color: Grey
• Condition: New
• Automatic Grade: Automatic
• Driven Type: Electric

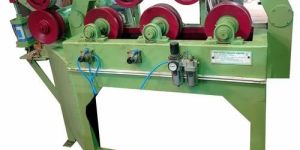

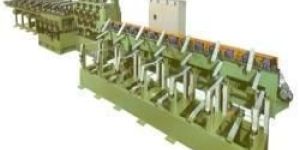

We offer wide range of Bar Straightening Machine that is sold under the brand name- UMT. This Round Bar Straightening Machine is used for straightening & polishing of drawn bar. Our Round Bar Straightening Machine considerably improves surface finish and removes any band in this bar. We are reliable Manufacturer and Supplier of Bar Straightening Machine, from Faridabad (Haryana). Minimum Order Quantity : 2 set

• Weight: 100-1000kg
• Color: Green
• Voltage: 380V
• Automatic Grade: Automatic
• Driven Type: Electric
• Features: Easy to Use, Low Maintenance

• Application: For Bar Straightener
• Voltage: 415V
• Material: Mild Steel
• Automation Grade: Fully Automatic
• Gauge: 26 SWG
• Capacity: 1500 m/min
• Power Consumption: 2 kW
• Phase: Three
• Size: 45x20 Inch LxW
• Body Material: Mild Steel
• Suitable For: Stainless Steel

Accurate Pipe Straightening without surface blemishes. FixedVariable Speed. Hydraulic lift in entry bottom roll for smooth entry of tube. No guides required to control tube passing. Built-in indicators for accurate roll setting. Easy and quick changeover from one tube size to another. Pressure sensing unit with digital display for thin wall Tubes. U-Type inlet and L-Type Outlet semi automatic tube handling system. Totally enclosed vanishing roller type automatic tube handling system.

• Rated Power: 1-3kw
• Driven Type: Electric

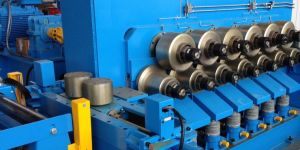

Tubetech Straightening Machines for round tubes are multi cross roll type, based on well proven principle of rotation & deflection through hyperbolic profiled rolls mounted in pairs, hence delivering high degree of straightness up to 1 in 3000. A verity of optional features are offered to comply with customer’s requirement. Features: Fixed / Variable Speeds Built-in Dial Indicators for accurate settings Digitally displayed Pressure indicators for highly accurate settings Hydraulic lift of entry bottom roll for smooth tube entry Paraffin oil feeding & collection system for lubrication Automatic / Manual tube handling system

H-BEAM ASSEMBLING, WELDING AND STRAIGHTENING INTEGRAL MACHINE This is special machine for H beam assembling, welding and straightening, it combines the three processes into one machine, thus improves productivity, reduces cost, and saves the installation space. It can produce H beam and T beam with high efficiency Performance and characteristic The main assembling machine adopts heavy duty assembling structure which has applied invention patent, web plate and flange plate centering and positioning automatically, to make the assembling precision and efficiency greatly improved. Firm welding torch fix mechanism is set up separately, it not only can adjust height and horizontal moving position, also can adjust the angle of welding torch on two directions, it guarantees the nice seam form. Assistant straightening machine has special designed structure, the two straightening rollers can straighten work piece automatically under the pushing of oil cylinder, straightening mechanism will not block the line of sight on seam, it is convenient to see the adjustment of welding torch and seam quality. Assembling machine and assist straightening machine can be discharged and work separately. Assistant straightening machine can work as small straightening machine after refit.

Emco Pressmaster Pvt. Ltd. a renowned Manufacturer, Exporter, and Supplier of Automation Strip Straightener. Motorised Strip Straighteners Pressmaster Variable speed Motorised Strip Straighteners speed output and reduce costs by removing coil stock curvature at controlled speeds prior to feeding to presses. Uncoiling and straightening operations are combined in an integrally mounted unit with synchronised payout. Strip Straighteners are offered as 'Cabinet Based' free standing machines.

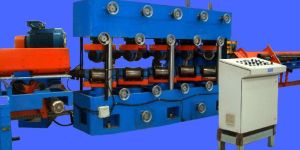

Cross Roll Type   GMT 6/10 DRIVE CROSS ROLL tube straightening Machines are designed to handle tube of Outer Dia from 6 mm to 170 mm in different models. These machines are based on well proven rotary pressure and deflection principle of straightening, which gives very high degree of straightening ranging from 1 mm to 0.3 mm in 1000 mm. The rolls are mounted in pairs  and are drive by two identical motors through totally enclosed gear boxes and box and universal spindel couplings.   Features   6/10 work rolls arranged in pairs. Two identical motors driving top and bottom rolls, fixed/variable speed. The Machine can easily and quickly be set when changing from one size of tube to another. Tube can be straightened accurately without surface blemishes. As the tube is retained between each pair of rolls no guides pairs of rolls no guides are required to control the pass of the tube. Machines can be supplied with manual, semi automatic and automatic handling system. Machines can be supplied with pressure sensing unit.

Rim Straightening Machine is widely used for repairing the damaged alloy or steel rim wheel. Rim Straightening Machine that we offer is highly durable and requires very low maintenance. Our Rim Straightening Machine is available in different varieties that include Rim Straightening Machine HRS-330 and Rim Straightening Machine HRS-370. The Rim Straightening Machine, we offer, is perfect for any size of rims that are used in cars or light trucks. Our Rim Straightening Machine is easy-to-operate and requires less manual force for straightening different kinds of car rims.

• Features: Easy to operate, Rugged structure, Optimum functionality

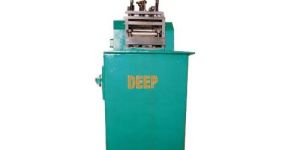

Strip-Straightener is manufacturer as per customer requirement. But following standards models are available with following specification: Heavy fabricated structure Loop control electric panel and works in both reverse and forward direction, Hardened roller up to 55-58 HRC, Hard Chrome Plated & Ground Roller, Hard and Ground Gears Branded Electric Motor (Crompton/Siemens) Hardened guiders on both Front and rear side to control the width

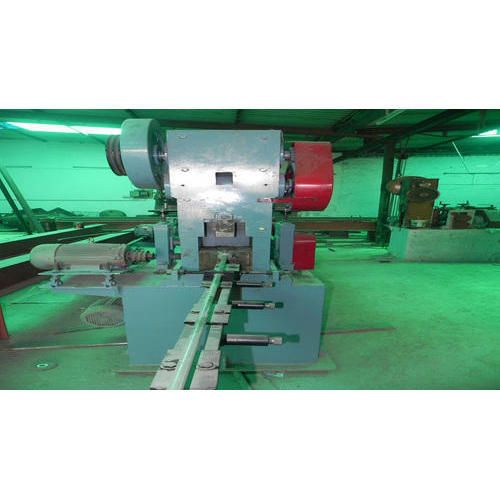

Wire Straightening & Cutting Off Machine, welded wire mesh machines
