Wire Rope Hoists Dealers in Faridabad

• Capacity: 5 Ton
• Trolley Option: With Trolley
• Insulation Class Of Motor: A
• Max.No.Of Starts Per Hour: 20
• Wire Row Dia: 5.1 mm
• Wire Length: 15 M

Capacities from 0.5 T to 30 T.Standard lift in 6 & 8 meters.Crane Hoist duty (S3S4) TEFC SCSR motors.Extra low head room on request. Under slung and over riding trolley travel. Lifts up to 40 meters on specific requirement.A.C. D.C. fail to safe brakes. Overload and over travel protection. Complete conformity with design standards IS-3938, IS-807, and IS-800. A.C. Variable Frequency Drive (Optional). Remote Control Operation (Optional).

High on demand by different industries, we put forth in the markets finest quality electric wire rope hoists. Electric wire rope hoists are made in accordance with set industrial requirements and widely acclaimed for their unmatched quality. These electric wire rope hoists are obtainable in most reasonable prices and within the scheduled time-frame. specifications : designed in confirmation with is 3938 class ii duty operations apt for :high liftscross travel speedfaster hoisting easy moving on curved tracks features : robust designability to operate under different conditionslonger service lifelow maintenance costtrouble free functioningsuperior performance

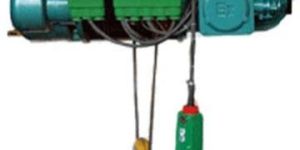

ELECTRIC WIRE ROPE HOIST, Electric Wire Rope Hoist are suitable for Medium Heavy duty, Seamless Pipe Drum is machine grooved to IS-3938, Wire rope as per Is:2266 with minimum factor of safty of 6 is provided. Push Butons operating on low voltage of 110 volt to ensure safety of the operator. Electric Wire Rope Hoist are suitable for Medium Heavy duty operation and are designed in accoundace with IS:3938. Light lift Hoist are desigined in modular construction with each component easily accessible for maintenance. The Rope drum, Gear Box, Motor, Brake and panel can be easily attended to, the frame is of study design fabricated from steel plates & is welded bolted type.

Designed to perfection, Electrical Wire Rope Hoist ensures efficient material handling. Electrical Wire Rope Hoist features low headroom, spur/helical gears moving on lubricated ball bearings, allowing hassle free carrying of heavy material. Our Electrical Wire Rope Hoist has sturdy alloy body, which ensures longer service life. Our clients can avail Electrical Wire Rope Hoist in different specifications.

We are offering electric wire rope hoist. Product highlights electric wire rope hoist are suitable for medium heavy duty seamless pipe drum is machine grooved to is-3938 wire rope as per is:2266 with minimum factor of safty of 6 is provided. push butons operating on low voltage of 110 volt to ensure safety of the operator.

• Lift Speed: 3mpm

We are a leading manufacturer and of high quality electric wire rope hoist that find application for the purpose of lifting & transporting the loads over 10 t.

• Country of Origin: Made in India
• Type: Rope Hoist
• Capacity: 2 ton
• Usage/Application: Industrial
• Trolley Option: Without Trolley
• Rope Length: 20 Meter

• Condition: New
• Automatic Grade: Semi Automatic
• Application: Weight Lifting
• Driven: Hydraulic, Mechanical
• Capacity: 35 Ton
• Trolley Option: With Trolley
• Control Voltage: 230 V
• Material: Mild Steel
• Finishing: Powder Coated

• Brand Name: Veto
• Voltage: 220-440 V
• Frequency: 50/60 Hz
• Maximum Lifting Weight: 60 Ton
• Maximum Lifting Height: 18 m
• Features: High load bearing capacity, Sturdy construction, Wear & tear resistant

Features CONSTRUCTION - Hoist is steel plate fabricated construction machined and Hoist consist of motor, Brake, drum , gear box, electric panel and travelling trolley. All these are easily accessible forRepairs and maintenance. MOTOR High starting torque, crane duty, squirrel cage, fan cooled, continuos Rated. Suitable for frequent reversing and braking. Induction motors are provided. Motors are suitable for 3 phase 415V, 50Hz, AC supply. GEARS The reduction gear train is mounted on needle rolled bearing in a dust proof oil bath housing, Pinions are made of EN-24 and gears of EN-8 EN-9, Cover is provided on top of housing for easy maintenance and inspection. BRAKE Adjustable, self re- setting, electro-magnetic disc or shoe type Brakes are used in Hoist. Brake on trolley are available at extra cost. WIRE ROPE Ungalvanised extra flexible wire rope of 636 constructions of braking strength 180 KGmm2 made of plough steel. ROPE DRUM Drum made of seamless steel pipe or fabricated steel plates revolves on heavy duty bearing. Rope grooves are accurately machined for proper setting of wire rope. Specially designed arrangement is made so that one complete turn of rope is clamped.
