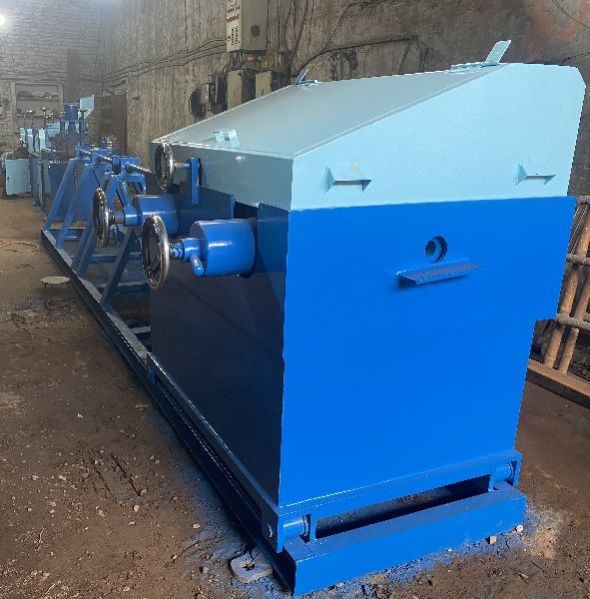

Automatic Wire Drawing Machines Dealers in Faridabad

• Portal Type: Pay off 1000 - 2200
• Main Gear Box: Elicon
• Ratio: 20:1
• Multipeed Gear Box: Kateel Make
• Main and all small Motors: SIMENS/ABB Make with 15 HP Motor

• Material: MS
• Driven Type: Hydraulic
• Surface Finishing: Polished
• Shape: Rectangular
• Color: Grey
• Condition: New

• Application: Industrial
• Power: 3-6kw
• Driven Type: Electric
• Automation Grade: Semi Automatic
• Feature: Low Maintenance
• Finish: Coated

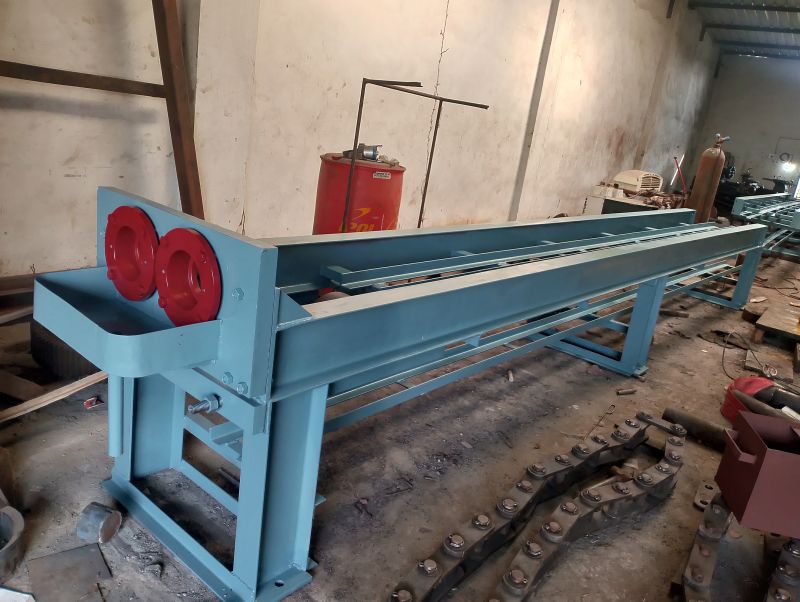

The length of the machine will be of 30 ft. approx. The gear box will have four speed change system having casehardened gears. The machine will be proved with drawing carriages fro single drawing. Carriage and die head block for double drawing will have extra price.   ength of The Machine : The length of the machine will be of 30 ft. approx. Construction of The Frame : The Frame of the machine will be of channels and the chain on the upper and lower side will be supported by channels. Gear Box :The gear box will have four speed change system having casehardened gears. Drawing Carriages & Die Block :The machine will be proved with drawing carriages fro single drawing. Carriage and die head block for double drawing will have extra price. Carriages Back Mechanism :An Automatic Carriage back mechanism will be provided with the machine.

• Application: Such As Changing The Shape Of The Metal Without Applying Heat
• Voltage: 380v
• Inlet Diameter: 0.5-1.0mm
• Brand Name: TSAI
• Outlet Diameter: 0.15-0.35mm
• Power Consumption: 34kw

• Brand Name: TSAI
• Color: Blue
• Material: SS
• Condition: New
• Country of Origin: India

• Surface Finishing: Polished
• Feature: Rustproof
• Appearance: Antique

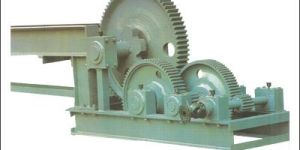

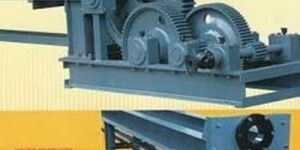

Draw benches are available for single or double rod process simultaneously. Features Main Shaft is mounted in the Bearing. Gear coupling are used to connect drive elements like main shaft, Gear Box Shaft, and Motor Shaft. Main Chain, hook and Sprocket are hardened. Idler drum for chain Tensioning. Trolley return by Wire rope and pulley arrangement or sprocket driven roller chain. Spherical die holder with 4 points leveling.

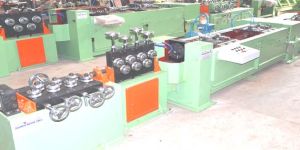

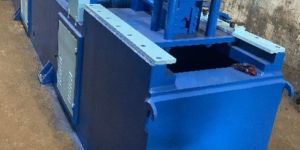

We are offering combined drawing machine backed by a team of highly experienced professionals, we are involved in providing a wide range of combined drawing machine.

Single/Double/Triple Automatic Feed Type   GMT offers Single/Triple tube type draw benches with automatic operations, designed for high yield, perfect quality and precise applications.   Features   Heavy duty, high reduction gear box Carriage driven by Duplex/ Triplex type double sprocket & chain having rupture strength 6 times of the draw force. Spherical die holder for self alignment. Round tooth type pneumatic clamps to avoid tube slippage. Fully guided carriage with automatic fast return. DC Regenerative Drive for power saving. Automatic tube feeding mechanism. Motorized rotating / indexing type back bench with automatic plug positioning device to minimize handling time. Automatic tube discharge at front frame.

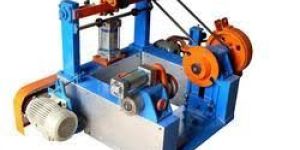

• Type: Pay Off Stand
• Material: Mild Steel, Stainless Steel
• Length: 0-1000 Mm, 1000-2000 Mm
• Color: Blue, Orange, Silver, Yellow
• Condition: New, Old
• Finishing: Non Polished, Polished
• Power Source: Electricity
• Warranty: 1 Yr, 2 Yrs
• Lifting Capacity: 0-100 Kg, 100-200 Kg
• Uses: Engraving Machine, Wood And Metal Cutting
• Auutomation Mode: Automatic, Semi Automatic

• Capacity: 05-15MM.
• Min Finish Wire Diameter: 5MM.
• Usage/Application: PRODUCTION
• Types Of Metal: SS AND ALLOY STEEL
• Production Capacity: 300 MT PER MONTH
• Automation Grade: Automatic
• Design: Standard
