M.K. Engineering Solutions Mandi Gobindgarh, Fatehgarh Sahib, Punjab

Application : Industrial Use

Weight : 10-20kg, 20-30kg, 30-40kg, 40-50kg, 50-60kg, 60-70kg, 80-90kg

Color : All Color

Voltage : 110V, 220V, 440V

Condition : New

Power : 1-3kw, 3-6kw, 9-12kw

Speed : 1000-2000rpm, 2000-3000rpm, 4000-5000rpm

Machine Power : 0-5hp, 10-20hp

Vertical Edger Possess the following Technical Specifications and Features: 40 HP Electric Motor Indepenent Hydraulic power source Double keyed mandrel is 2 15/16" Utilizes 2" bore hydraulic cylinders to enable saw shift Saw collars are shiftable also These are easily operable, Highely durable and Cost effective. Equipped with 20" diameter inserted tooth F Pattern saw blades

Finishing : Polished

Power : 1-3kw

Packaging Type : Carton Box

Condition : New

Driven Type : Electric

Our Bar Bending Machine Possess the following Technical Specifications and Features: Available Size :  150mm - 3500mm Material :  CI Casting Best Quality Bearings & Plummer Blocks. A Pulley is a power transmission cum speed controller device which can be used at various places depending on the application and size. In Rolling Mills it is used between motor to flywheel so as to control speed, input speed as per the application. It is duly machined and balanced and comes in all groove sizes and bores.

Type : V Belt Pulleys

Application : Industrial

Condition : New

Width : 5-10Inch

Material : CI Casting

Material : Metal

Color : All Color

Finishing : Polished

Our Bar Bending Machine Possess the following Technical Specifications and Features: Frame on base plate with 4 guiding wheels Binding unit with feeding and twisting unit and wire guide track. Hydraulic unit with pump and electric motor. Control console with control panel and programmable controller (PLC) Wire magazine for the binding wire

Type : Tying Machine

Condition : New

Driven Type : Electric,Motor

Power Source : 110V or 220V

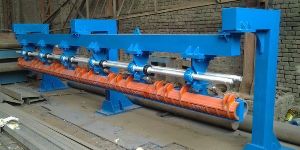

The Twin-Channel bar receiving mechanism comprise of the Following Twin water-cooled C-type channels with water cooling arrangement Supporting arrangement for the twin-channel and drive system Cam device for opening closing of the pipes Hydraulic drive for operation of the cams Prevention from warping Prevention from warping Highest level of safety since it is a closed channel for transferring bars It can be attached to braking pinch rolls

Type : Twin Channel

Application : Industrial

Weight : 1000-2000kg

Color : Blue

Condition : New

Automatic Grade : Automatic

Driven Type : Electric

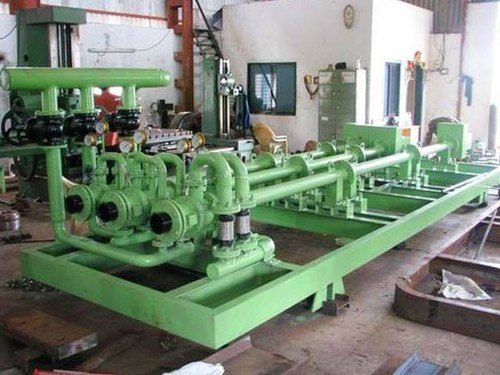

Our quenching boxes comprise of the Following Features Consistent ring formation Uniformity of the tensile strength along the length of the bar Motorized valves Corrosion free Less time consuming Supreme design Robust construction Closed frame to accommodate the forces in the sizing press Can operated under harsh conditions

Condition : New

Voltage : 220-440 V

Power : 10-25.8kw

Type : Tmt Bar

Material : Mild Steel

Application : High Way, Industry

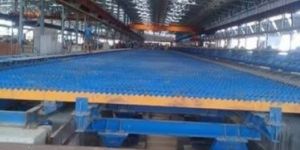

Features : We hold expertise in providing rack type automatic cooling beds from 9.5mtr up to 66mtr These can also be developed as per customer’s requirement We have with us rich industry experience of commissioning more than 20 automatic beds on a global scale The use of cooling bed of rack design is for providing uniform air-cooling to TMT bars It also helps in transporting in phased manner from entry of cooling bed to the discharge side Front end of bars leveled at discharge side with fixed number of bars provided for final length cutting through cold shear as well as bundling process Superior working mechanism of the bed ensures bars are positioned uniformly over toothed racks Cooling bed designed keeping in consideration smallest and maximum size of bars that need to be rolled from finishing mill stand as well as cooling time needed for different sizes of bars

Feature : Attractive Designs, Durable, Fine Finishing, High Strength, Quality Tested

Application : Industrial Use

Color : Blue

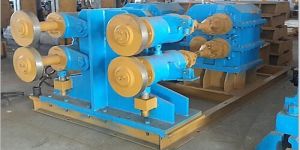

Feayures : Cantilever and pneumatic type Pinch Roll & Tail Breaker up to 360 MM CRS. Top roll raised pneumatically or lowered with bottom roll in adjustable finish. Pinch roll housing comprising sturdy welded construction. Pinch rolls feature wear resistant surface with anti friction bearing mounting support. Spindle provided for meeting the needs of adjustment of bottom pinch rolls Pinch rolls featuring use of sensors that allows precision breaking up to speed of hot flowing material.

Material : M.s. Prime Plate, Graded Cast Iron

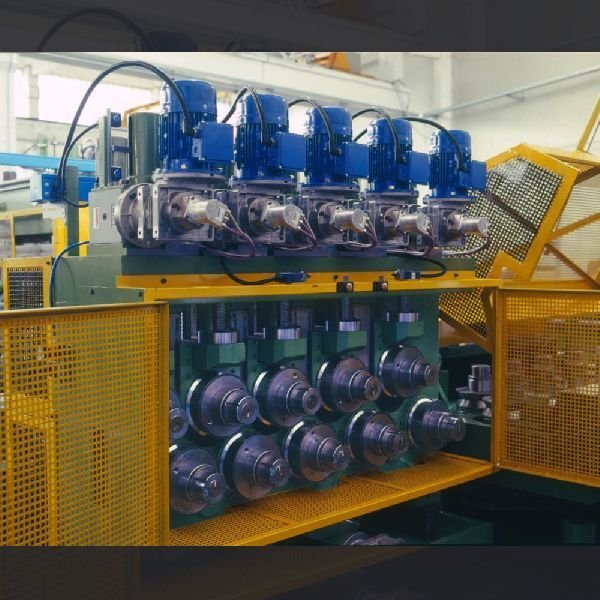

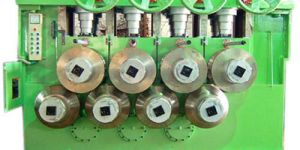

Straightening Machines Possess the following Technical Specifications and Features: It compromises two straightening disks; one mounted on a straightening shaft and other against the flanges of the beams. These straightening disks are backed by a support ring of larger size. There are hydraulic cylinders, which aligned with the axially displaceable discs via adjusting pistons. Pr-hardened rolled beams are fed into the machine, which are used for straightening any rolled, drawn or extruded metals. Our Straightening machines are also equipped with all safety standards. These are easily operable, Highely durable and Cost effective. These are made to deliver highest output with highest efficiency.

Voltage : 220-440 V

Condition : New

Rated Power : 15 HP

Warranty : 5 Years

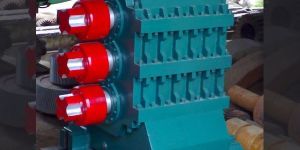

Technical and Design Specification Of The Speed Increaser: The bodies of the Speed Increaser Gear Boxes are accurately machined, totally enclosed, oil tight, having a sufficient lubrication system and dust proof. The bodies are made from M.S. steel plates to cover the risk of any breakage. The gears of Speed Increaser Gear Box are made of EN- Series Forged Steel for Gear Material as per customer’s Requirements. The gears are made with D.P. and module formula with single or double helical teeth. The Speed Increaser Gear Box is manufactured for as per Rolling Mill & Other Industry’s Requirement. Imported bearings are used and the oil seals are provided to protect the oil leakage. All Parts are checked during and after manufacturing. A trial is carried out to verify smooth operation.

Packaging Type : Wooden Box

Type : Speed Reducer Gearbox

Condition : New

Warranty : 5 Years

Brand Name : MK

Driven Type : Electric

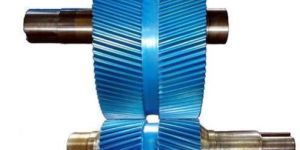

Technical and Design Specification Of The Reduction Gearbox: The reduction gearbox includes two gears of same size teeth but different diameters. The number of teeth is kept proportional to the circumference of the gear; greater the diameter more the number of teeth. The gear with small diameter makes two revolutions for every one revolution of the gear with larger diameter. The amount of torque available on the larger shaft would be twice as much as that on the smaller one. Reduction gear box is a closed system in which the amount of input and output power remains constant. With the increased torques the speed decrease proportionally.

Type : Gearboxes

Material : Mild Steel

Color : Green

Condition : New

Finishing : Polished

Input Speed : 1400rpm

Condition : New

Production Capacity : 2 M. Ton/Hr.

Machine Type : Semi Automatic

Features : Used in form of pairs between roughing as well as intermediate finishing stands for cropping front & back ends in TMT Bars/Wire Rods Extensively finding application in cropping front, tail and also scrapping pre quenched bars at times of emergency Shears specifically designed for trimming of hot rolled bars at lower speeds Precision engineered frame fabricated using stress relived structural sheet flats Drive Gear Box developed using quality steel plate body and backed by superior oil lubrication support Shearing blades of superior grade steel Precision engineered forged shafts coming mounted to roller bearings with gear box connected through V-Belt and pulley Pneumatic cylinder for controlling shearing as well as swiveling operations of shears blades Dual rotary helical cutting blades that deliver excellent cut quality

Weight : 100-1000kg, 1000-2000kg, 4000-6000kg, 6000-8000kg

Color : All Color

Voltage : 110V, 220V, 440V

Condition : New

Rated Power : 1-3kw, 3-6kw, 9-12kw

Automatic Grade : Automatic, Fully Automatic

Warranty : 5 Years

Brand Name : MK

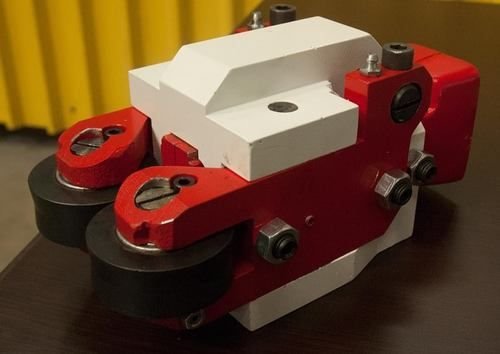

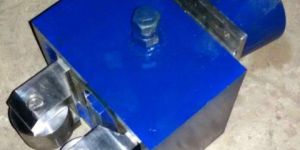

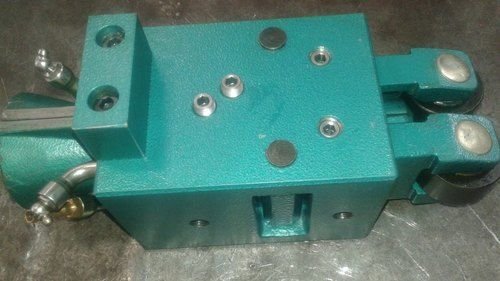

Types of Roller Guide Boxes Roller Entry Guide Box Roller Mill Entry Guide Roller Guide Boxes Without Holder Entry Guiding Roller Boxes S S Body Roller Guide Box Industrial Roller Guide Box Stainless Steel Roller Guide Box

Type : Roller Guide Box

Color : Red and White, Green, Blue

Condition : New

Finishing : Polished

Driven Type : Electric

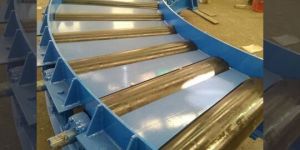

Roller Conveyor Features Chain Driven V-Belt / Pulley Drive Quality bearings Seamless pipe with tested shafts Quality Bearings for smooth running

Finishing : Polished

Application : Packaging

Condition : New

Thickness : 20-30mm

Material : Metal

Color : Grey, Silver, All Color

Condition : New

Finishing : Polished

Driven Type : Electric

Motor Power : 1-3hp, 3-5hp, 7-10hp

Input Speed : 1400rpm, 2100rpm, 700rpm

Type : Helical

Orientation : Horizontal, Vertical

Input Speed : 0-2000

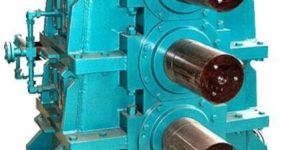

Technical and Design Specification Of The Pinion Gearbox: Precision engineered range of pinion gear boxes Gearboxes designed to achieve reduction in input speed to slower output speed Gearboxes featuring connected set of rotating gears that allow force to be transmitted or motion or torque to be changed Can deliver double/triple output shafts as demanded Heavy duty and sturdy finish designs that allows bearing overload conditions Stress relieved and aligned casing / housing / structure of Gear Box All gears ultrasonic tested to ensure superior finish All pitches of gears precisely checked

Color : Grey, Silver

Condition : New

Finishing : Polished

Driven Type : Electric

Motor Power : 1-3hp, 3-5hp, 7-10hp

Input Speed : 1400rpm, 2100rpm, 700rpm

Material : Iron

Gear Type : Helical

Orientation : Vertical

Style : Vertical & Horizontal

Application : Industrial Use

Weight : 10-20kg, 20-30kg, 40-50kg, 50-60kg, 70-80kg, 80-90kg

Color : Green, Grey, Silver

Condition : New

Finishing : Polished

Driven Type : Electric

Motor Power : 1-3hp, 3-5hp, 7-10hp

Input Speed : 1400rpm, 2100rpm, 700rpm

Type : Lubrication System

Application : Filling Tubes

Condition : New

Power : 1-3kw, 3-6kw

Driven Type : Electric

Our Gear Coupling Possess the following Features: Duly machined, Incomparable quality and durable Simple design, Easy to maintain Easily adoptable and usable Versatile design, Tailored to customer’s requirements Convey the drive even at 30 Degree Mal-Alignment Made from Forged Steel and High Quality Cast Steel Noise-free function High performance

Type : Industrial Spindles

Material : Metal

Diameter : 100-200mm

Application : Industrial Use

Condition : New

Load Capacity : 5-10 ton

Application : Industrial
