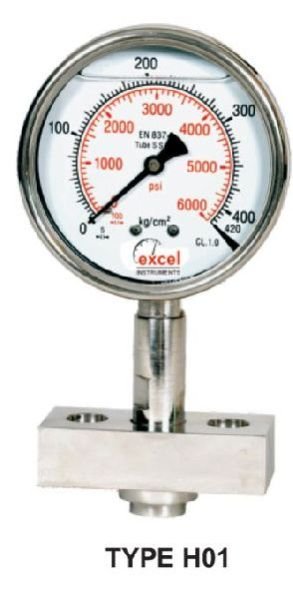

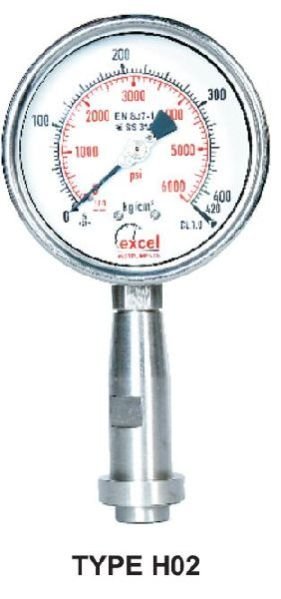

Diaphragm Sealed Pressure Gauges Dealers in Gandhinagar

• Application: Chemical and Petrochemical, Plastic and paper, Pharmaceutical, Water treatment.
• Nominal Size (mm): 50, 63, 100
• Scale Range: 0.. to 0.6..to 100 kg/cm2
• Accuracy in FSD: 1%
• Thread Connection: 1/4", 3/8", ½ ", BSP & NPT, M-10, M-12, M-20
• Mounting of Gauge: Direct Bottom
• Case and Bezel: SS 304
• Pressure Elements: Bourdon Tube
• Diaphragm: YES
• Wetted Parts: Brass, SS304 & SS 316
• Optional: Back Mounting & Liquid Filled

• Instrument connection: 3/8” BSP (F)
• Process connection: Flange (As per DIN/BS/ANSI/JIS), 40 NB (1-½”) & above
• Fill fluid: Silicon Oil - DC 200
• Flange finish: 125-250 AARH
• Diaphragm: AISI 316L SS
• Top chamber: AISI 304 SS
• Flange: AISI 316 SS

Special Features : Welded diaphragm Most suitable for slurry & corrosive service Flushing ring, flange & diaphragm are Available in various type of ss & exotic materials. Application : Diaphragm seals are provided in the instruments like pressure Gauges, switches, transmitters in order to isolate the sensing Element from the main service due to its corrosive, viscous and Sedimented nature and to avoid clogging and solidification. These kind of seals are widely used in the viscous & corrosive services where flushing is required periodically & frequently

• Application: Chemical & Petrochemical, Food & Beverage Indus try, Mechanical Engineering Plant & Apparatus Constr
• Nominal Size (mm): 100, 150
• Scale Range: 0..to 60 00 mmWC Low Pressure & 0..to 0.6 to 25 kg/cm2 High Pressure
• Accuracy in FSD: 1.6%%
• Thread Connection: 3/8″, ½ “, BSP & NPT, M-20 and Flanged connecti on
• Mounting of Gauge: Direct Bottom
• Case and Bezel: Drawn steel, SS 304
• Pressure Elements: Schaffe r’s Diaphragm
• Diaphragm: Nil
• Wetted Parts: Spring Steel Teflon Coated, SS 304, SS 316 and other material on request
• Optional: Teflon lining, Electric Contact and Liquid Filled

• Accuracy: 1.6 % (EN-837 & IS-3624)
• Size: 100mm, 150mm
• Range: ± 25mbar to 10 kg/cm2 , ± 250 mmWC to 150 psi
• Wetted Material: SS316, SS316L, PTFE

Features Stainless steel constructionSuitable for corrosive environmentsProtection IP54Usable to full scaleOverload protection 130 %   Application Chemical & petrochemical industry, machine & apparatus construction, food & beverage industry, pulp & paper industry, etc.

• Accuracy Class 1.6: 130% of full scale over-range protection

We are offering schaffer diaphragm pressure gauge. Dial size: 100 mm 150 mm range: 0 to 300 mmh20 up to 10000 mmh20 (positive negative pressure) mounting: direct bottom mounting connection: 12" npt (male) accuracy: +- 1.6% of full scale over-range protection: 130% of full scale case bezel: ss304, bayonet type internal parts and connection: ss304 dial and pointer: aluminum

Nominal Size (mm) 63, 80 ,100, 150, 250 Scale Range 0.. Vacuum to 700 kgcm2 & above on request Accuracy in FSD 1% Thread Connection 38", ½", BSP & NPT, M-20 and Flanged connection Mounting of Gauge Bottom, Surface Case and Bezel SS 304 Pressure Elements Bourdon Tube Diaphragm YES Wetted Parts SS316, SS316L, Teflon, Monel, Hastalloy & other on request Application Chemical and Petrochemical, Plastic and paper, Pharmaceutical, Water treatment. Optional Electric Contact, Back Mounting & Liquid Filled
