Excel Instruments Chhatral, Gandhinagar, Gujarat

Special Features : Stainless steel case & measuring system Rugged construction Dry or Liquid filed Standard followed in general EN 837-1 Application : Food & beverage Pumps Engine compressors Chemical Diesel engines Conventional Equipments Presses Nuclear power plants Pharmaceutical Turbines Hydraulic Petrochemical industries Hydro-cleaning machines Refrigerating plants and gaseous 1 liquid media that will not obstruct the pressure system.

Accuracy : 1.6% of F.S.

Operating Temperature : - 25“C to + 65'C

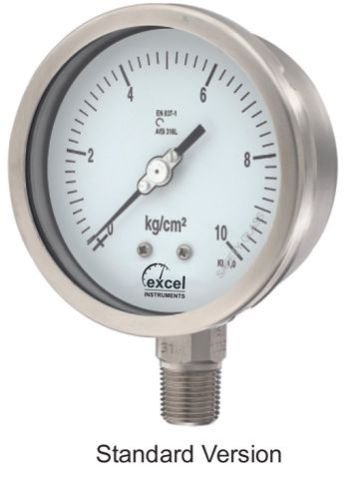

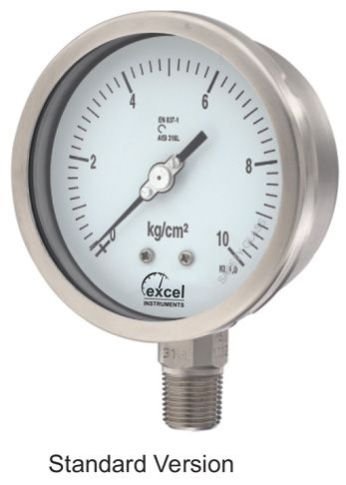

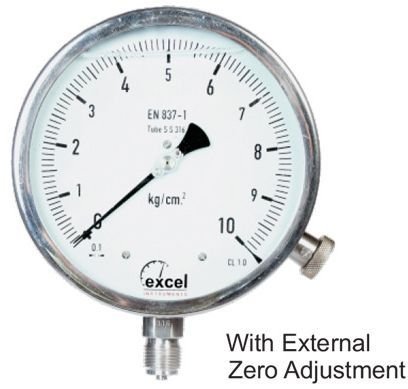

Special Features : External zero adjustment (optional) Stainless steel case & measuring system Socket directly welded to case Dry and liquid filled version Standard followed EN 837-1 (for NS 100, 150 & 250 mm) CE marking (as per PED 97/23/EC) (for NS 100 mm & 150 mm) Application : Food & beverage Pharmaceutical Cryogenics Pumps Suitable for corrosive Hydro-cleaning machines Presses Engine compressors Turbines Environments & gaseous or liquid media that will not obstruct the pressure system. Diesel engines & Refrigerating plants Chemical & Petrochemical industries Conventional & nuclear power plant

Accuracy : ±1.0% of F. S.

Operating Temperature : - 25°C to + 65°C

Special Features : External zero adjustment (optional) Stainless steel case & measuring system Socket directly welded to case Dry and liquid filled version Standard followed EN 837-1 (for NS 100, 150 & 250 mm) CE marking (as per PED 97/23/EC) (for NS 100 mm & 150 mm) Application : Cryogenics Pumps Hydro-cleaning machines Presses Engine compressors Turbines Environments & gaseous or liquid media that will not obstruct the pressure system. Diesel engines & Refrigerating plants Chemical & Petrochemical industries Conventional & nuclear power plants

Accuracy : ±1.0% of F. S.

Operating Temperature : - 25°C to + 65°C

Features : Fix/Adjustable Differential Field Adjustable Set Point Flameproof To Gas Groups Ingress Protection Ip 67 Rigid Construction Scale Provided Application : Marine Application Textile Machineries Power And Steel Plants Oil And Gas Refineries Petro Chemical And Fertilizers Cement And Glass Industries Railway Engine And Turbines

Design : BS 6134

Sensing Element : Diaphragm

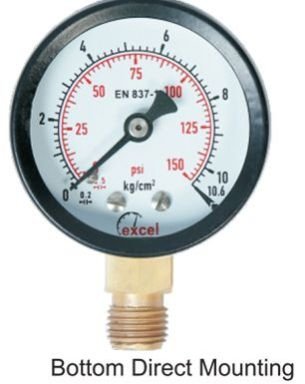

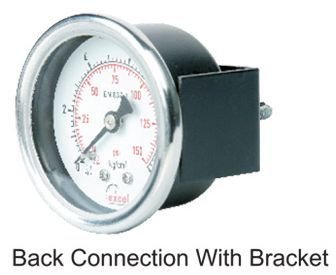

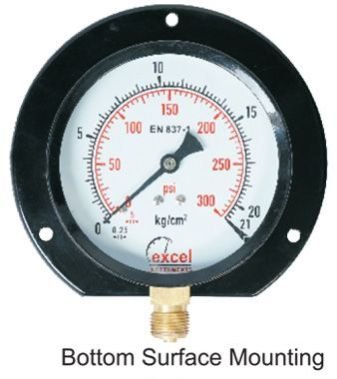

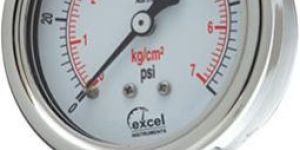

Special Features : Economical version General purpose application Application : HVAC Filter-Regulator-Lubricator (FRL) Units Water Air Allied process industries Hydraulic Pneumatics Valve positioner Sugar mills Irrigation Equipment

Accuracy : 1.6% of F.S. ( For NS 63 mm, 80 mm, 100 mm, 150 mm, 20omm & 250 mm)

Operating Temperature : - 20°C to + 65°C

Features : 360 Visibility With Tie Rod Design Offset Isolating Valves Permit Glass Removal /Replacement Available In Various Material Application : Chemical/Petrochemical Fertilizer Power Generation Pharmaceutical Automobile Water/Waste Water/ETPs Etc

Type : Rectangular “C" Channel tie Rod.

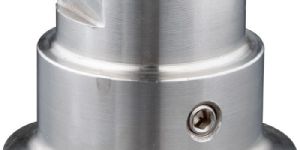

Special Features : Laser Welded Flush Diaphragm Quick Connect/Disconnect For Easy Cleaning Suitablr For Full ,Diary And Pharma Industries Application : Diphragm Seal Are Provided In The Instrument Like Pressure Gauges,Switches, In Order To Isolatet The Sensing Element From The Main Service Due To Its Corrosive,Viscous And Sendimented Nature And To Avoid Dogging And Solidification.These Seals Are Used In Hygein Apllication Where Purity In Process Is Essential -Typically In Food,Diary Beverages And Pharmaceutical Industry

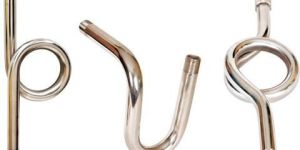

Special Features Pigtail, Coil and “U” type shapes Maximum temperature up to 400°C Nominal pressure up to 160 kg/cm2 TIG welded & hydro tested Made with seamless pipes   Application Siphons are used mainly to protect pressure instruments, gauges, switches and transmitters directly coming in contact with high temperature process fluids or vapours These are mounted between process and pressure instrument They reduce process pulsation and generate cooling effect to save the instrument

Thickness : 15-30 Mm

Length : As Per Clients Requirement

Outer Diameter : 1/2 Inch

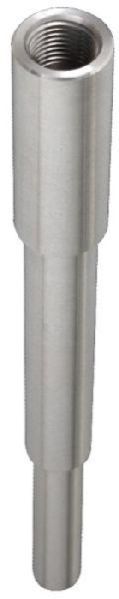

Features : Design as per PTC 19.3 These Thermowells are machined from solid bar stock and inserted into the process through direct welded attachment This design is suitable for all type of RTD’s, Thermocouples, mechanical as well as Digital Thermometers Available in various shapes like Straight, Straight with reduced tip, Partial taper & full taper and various exotic materials Application : Chemical Plants Petrochemical Plants Engineering Plants On Shore Off Shore & Other Similar Process Industries

Material : Stainless steel, Nickel Alloys

Features : Designed to reduce dampening effect of process fluid Working pressure up to 400 kg/cm 2 Working temperature up to 120oC All stainless steel construction For corrosive media & environment Application : This device can increase the service life of pressure instruments in critical conditions found at reciprocating Pumps Hydraulic machines Compressors Process plants Clean air,Non crystallized liquids

Special Features : Stainless steel case & measuring system Selectable ranges from -1  to 14 Bar Pressure and Vacuum & Compound Flanged or screwed connection Standard followed in general EN 837-3 CE approved electrical contacts Application : Suitable for clean air Corrosive environments & Gaseous or non crystallized liquid media that will not obstruct the pressure system.

Special Features : Spring loaded design for positive contact with thermowell Available in various connectioins & sheath deameters Reference Standard - IEC -751/DIN 43760 Application : Such assemblies are generally inserted in existing Thermowells/protection tubes. This assembly can be provided with threaded connection and Thermowell.

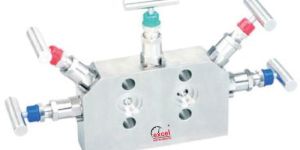

Coplanar Mounting Five Valve Manifold with Drain Plugs. This Manifold Has Two Isolating Valves ,One Equalizer Valve & Two Vent Valve. When Assembled To Transmitter Has The Advantage Of Compact Size With Easy Operation With Minimum Space. The Direct Mounting Facility To The Base Of The Differential Pressure Transmitter Re Salt In Less Lockage Points And More Accurate Measurement. The Model Mainly Suitable For Transmitter. The Manifold Dimensions Illustrated For Standard 54 mm instrument Are Also Available For Other Center On Request Center.

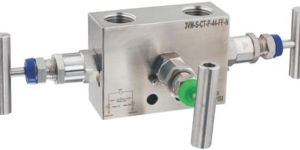

We are a high-flying name in this arena and thus, strive hard to deliver the best in class products to the clients. Also, we source the basic material from the reliable places. Noteworthy Supplier of Remote Mount 3 Valve Manifold, we are customers' favored option in this domain.

Material : Stainless Steel

Type : Sight Glass

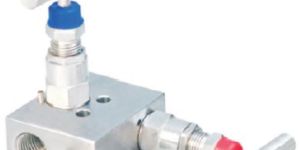

Customers can contact us for obtaining superior grade Remote Mount 2 Valve Manifold at the most competitive prices. With the complete help and support of our team members and management, we conduct strict checking on the quality of raw inputs used for manufacturing.

Material : Stainless Steel

Type : Sight Glass

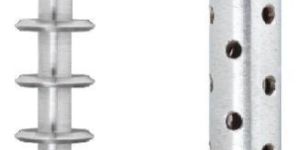

Special Features : Stainless Steel Construction Suitable For Clean Air Gases And Non Crystallized  Liquid Application : Cooling Tower Used Mainly To Protect Pressure Instruments , Gauges ,Switches And Transmitters Directly Coming In Contacting With High Temperature Process Fluids Or Vaporous Filled In Condensation Fluids. These Are Mounted Between Process And Pressure Instrument These Are Mounted Between Process And Pressure Instrument. They Reduce Process Pulsation ,Act As Heat Dispenser  And Generate Cooling Effect To Save Instrument From  Working At Dangerous Temperature.

Material : Stainless steel

Construction : Made from AISI 304 SS   Standard Accessories :Pointer Puller, ‘O’ Ring Set Adaptors of 1/4", 3/8” & 1/2" BSP

Type : Pneumatic

We undertake online payment procedures which are completely safe and hassle free. The online transactions are supported by advanced security features. Due to our streamlined packaging system, we are capable of meeting both standard and customized packing needs of the clients. Moreover, we make use of quality packaging material.

Material : Stainless Steel

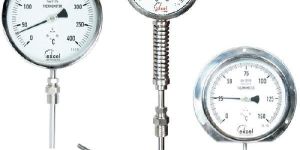

Special Features : CE approved electrical contacts. Mercury filled expansion system. Stainless steel case & stem With or without thernmowell Silicon oil filled (optional) Standard followed EN 13190. Application : All stainless steel inert gas filled thermometers are Suitable for corrosive media/environments in process industry chemical Pharmaceutical Pulp Paper Refinery Cement & many more.

Accuracy : Class 1 as per EN 13190

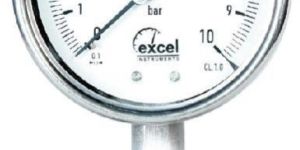

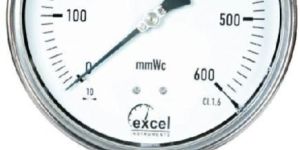

Special Features : Stainless steel case & measuring system Selectable ranges from 0 to 250 mmwc to Max. 6000 mmWC Pressure and Vacuum Flanged or screwed connection Syandard followed in general EN 837-3 CE approved electrical contacts Application : Suitable for clean air Corrosive environments & Gaseous or non crystallized liquid media that will not obstruct the pressure system.

Features Mounts n Industry Standard Holes Accuracy2% Die Cast Aluminum Housing Accuracy - ±2% full scale (±3% on -0 and ±4% on -00) throughout range at (21 degree C)   Application Filter Status Duct Static Pressure Clean Room Pressure Building Pressure Fan ard Bower Ressure Paint Booths Dust Collectors Glove Box Pressure Bubbler Systems Cabinet Purging
