Filter Assembly Dealers in Gandhinagar

Product Description: With the help of our team of experts, our company known as a leading Manufacturer & Supplier of Cotton Filter Cloth in Gandhinagar, Gujarat, India. Industrial woven filter fabrics Precision, high tech equipment and manufacturing craftsmanship . Step-by-step process for designing, measuring and creating your filter cloth. Stronger, more durable high performing cloths customized for your exact application. Woven Filter Fabric with Full range of synthetic and natural fibers. Lightweight to heavy woven fabrics . Monofilament, multifilament,staple (spun) fibre and combination yarn design. Satin,twill, plain and special weave patterns . Particle Retention Capacity from 1Micron to 1000 Micron based on the Manufacturing craftsmanship in respect with Yarn Quality. Excellent Cake Release & Filtrate Clarity.

• Size: 2-8 micron
• Type: perlite filter aid
• Brand Name: hyflosupercell
• Material: perlite
• K2O Content (%): 5-6
• Country of Origin: India
• Easy Cake Release: Economical – offers twice as much filtration Rupees of Rupees
• Non – toxic / non – carcinogenic: Lightweight – up 50% density advantage
• No color, taste and odor: Usable with standard filter equipment

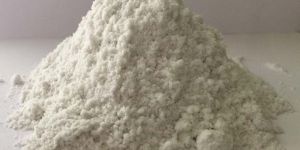

The Benefits of perlite as a HyfloSupercell TM Filter Aid Perlite filter aids are lightweight, inert, impart no taste or odor to liquids being filtered and are virtually insoluble in mineral and organic acids at all temperatures. Solubility in strong alkaline solutions varies depending on temperature and contact time. Without using a filter aid the solid particles in the liquid will soon accumulate on filtering surfaces and block them. A perlite filter aid makes a filtering layers (cake) that transfers the actual filtering from the septum to the whole mass of filter aid. Filtration occurs in the tiny pores formed by the fine particles of filter aid. Easy Cake Release Additional benefits of perlite filter aids come at the end of the filter cycle. Perlite filter cakes remain porous and do not compact. Filter cakes built up under pressure release easier when perlite is used. This release facilitates cleaning, potentially reduces manpower requirements, and increases productivity. The lower weight of perlite filter cakes may also reduce disposal costs.

• Size: 10inch, 20inch
• Material: Foam, Rubber
• Shape: Square
• Application: Filter Use
• Color: Off White
• Outside Diameter: 30-32mm
• Inside Diameter: 20-22mm

Being a client-centric firm, we are dedicatedly involved in making available quality Membrane Filter Plate.For the utmost convenience of our customers, we ensure that the transaction is done only under the stern supervision of experts and professionals. This makes our payment procedures more secured and transparent.   Advantages of Membrene Filter Plates Short filtration Cycles Short Washing Cycles Detachable Membrane High Elasticity of Membrane Even in the empty Chamber Large Cross-sectional area of Filtrate Outlet

• Shape: CYLINDRICAL
• Color: White
• Material: Non Woven
• Thickness: 1mm to 3mm
• Resistant Type: High Temperature

• Brand Name: Filter Plates

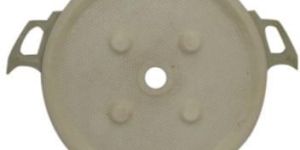

we are offering filter press plates. catering to the requirements of several industries, we bring forth the precision-engineered hydraulic filter press plates. the hydraulic filter press plates that we provide are made from the finest polypropylene. the hydraulic filter press plates, offered by us, are high in demand as they are highly corrosion resistant and durable. further, our hydraulic filter press plates can be used for virtually all types of filtration processes requiring normal dry solids filtration. available in gasket and non-gasket stylessizes ranging from 305mm to 1500mm about gaskated and non-gasketed filter plates gaskated filter plates ensure less chance of seepage and non-gaskated type of plate owing to an o-ring seal around the chamber and the filtrate pots. highlights about the plates and frames ideal for basic filtration processesmade from chemical resistance, light, hygienic polypropyleneeasy to handle maintenance freereliable and efficient in chemical processesbiochemical applicationspharmaceutical applicationsbeverage industriesblood and plasma applications sizes range : from 610mm to 1200mm advantage of plate & frame v/s chamber plate corner feed plates are widely used owing to their plentiful design advantages for almost every filter press installation.with plate and frame type plates, the most efficient cake formation and solid distribution throughout the plate stack is easily possible. removing a center feed eye enables formation of a sturdy plate requiring no backing stay bosses which impede through cake discharge as well as cake washing.with a hydraulic filter press plate, cake washing is difficult due to wash water '' short circuiting" through the open center feed eye. corner feed is the only plate design which ensures through cake washing integrity. sizes & style full range of plate sizes and styles recessed chamber plategasketed chamber platenon-gasketed chamber platemembrane / squeeze plateplates and frames5 kg/cm2 to 15kg/cm2 operationscenter feedcorner feedcake thickness up to 50 mmsuitable for any style of filter press sizes available 470mm x 470mm610mm x 610mm760mm x 760mm800mm x 800mm/li>915mm x 915mm1000mm x 1000mm1200mm x 1200mm round plates : 800 & 610 choice of filter pressure thick and thin webs on chamber plates for 100 psi (7 bar) and 225 psi (15 bar) operations.plates and frames operating up to 100 psi (7 bar) drainage pips advantage excellent cloth supportminimum cloth weargreater plate strengthhigher filtration ratesoptimum cake formationminimum web definition manufacturing process polypropylene : most application up to 100ocglass reinforced polypropylene : special applicationspvdf : special application up to 120oc

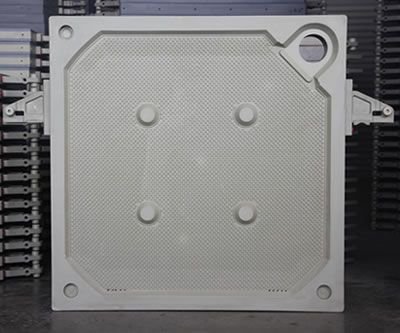

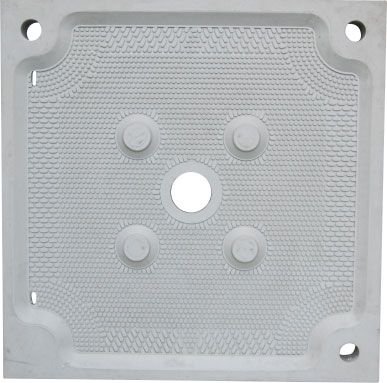

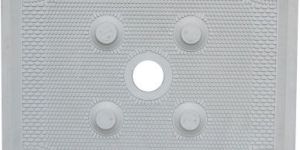

The recessed chamber filter plate made from polypropylene. A recessed chamber filter plate is a development of the plate and frame filter plate and has the same functionality.The Recessed plate frame is however integrated within the Recessed filter plate thus significantly enhancing the plate’s stability. This enables Recessed filter plates to be used at much higher filtration pressure levels. Optional cake and plate thicknesses are available depending on the specific filtration conditions and application. The Recessed filter plates are made of polypropylene and feature excellent chemical resistance and simple in handling.
