Flat Cables Dealers in Gandhinagar

• Working Voltage : Up to 1100 V.
•  : Temperature range
• -15° C to + 70° C:
• Size: 1.50 to 4.00 Sq. mm with ISI mark 6.00 to 95.00 Sq. mm generally conforming to IS : 694
•  : Color codes
• 3 Cores - Red, Yellow and Blue Black or Grey outer sheath:
• Specification : IS : 694
•  : Packing
• 500/1000 meters on drums.:

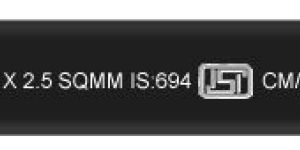

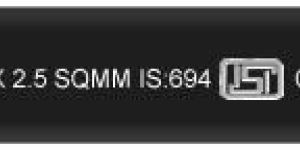

Three Core Flat Submersible Cables offered by us are manufactured especially for applications that require their indefinite immersion in water. The superior construction of these cables provides them protection against rain water as well as from ingress of small solid foreign bodies. Available in flat cable varieties, these are produced from quality electrolytic copper and come with conductors that are insulated with special grade PVC and outer sheath comprising abrasion resistant PVC compounds. With these cables meeting the demanding working conditions of providing power supply to submersible pump motors, these are also useful in areas where installation is physically restrictive.

• Working Voltage: Up to 1100 V.
• Temperature range: -15° C to + 70° C
• Size: 1.50 to 4.00 Sq. mm with ISI mark
• 6.00 to 95.00 Sq. mm generally conforming to IS: 694
• Color codes: 3 Cores - Red, Yellow and Blue
• Black or Grey outer sheath:
• Specification: IS 694
• Packing: 500/1000 meters on drums.

Cable features Manufactured from bright-annealed 99.97% pure bare copper conductors these cables have low conductor resistance. The inner cores are insulated with a special grade PVC compound formulated and manufactured in-house. The tough robust outer PVC jacket protects it from the oils, greases, various chemicals and abrasions, thereby giving long life and electrical safety.   Application The PVC insulated and sheathed 3 core flat cables are used for giving electricals connection to the submersible pump motors. These are manufactured keeping in mind the severe, tough and difficult conditions in which they have to operate. The slot available in the tube well being narrow the shape of the cables has to be suited for such an application. These cables conform to and are marked IS 694:1990 upto 4.00 sq. mm. The sizes above 4.00 sq. mm. cables generally conform to IS 694:1990. Technical Data
