Multi Mill Dealers in Gandhinagar

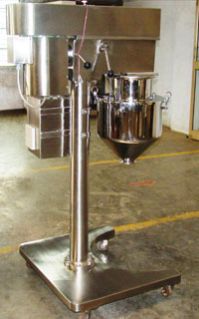

• Brand Name: MULTI MILL
• • Direction of beaters can be changed by reversible switch from knife to impact forward and vice-versa. : • All contact parts can be easily and quickly dismantled and cleaned. Machine is designed for continuous operation.
• • Cylindrical screen for higher output.: • Castors provided for mobility.
• • Flame proof electrical can be provided at extra cost. : • Beaters and scrapper blades of SS 410 quality are hardened and hard chrome plate

introduction:- multi mill is widely used for wet and dry granulation, pulverization etc. in pharmaceuticals, chemicals, cosmetics, ceramics, colours, dyestuff, food products etc. it also finds application in pesticides, fertilizers, spices, detergents, insecticides, plastic and resins industries.  operation:- it operates on the principle of variable force swing beaters having both knife and impact edges rotating within a selected screen to get the required size reduction. material fed in the hopper, goes down to the processing chamber where it moves to the periphery and passes through the screen radially and tangentially. finally the processed material gets collected in the container kept below the processing chamber. output and quality of the final product depends on three main factors:-  shape of beaters (knife/ impact edges)  speed &  screen  description:- unit consists of s.s. 304 quality hopper and processing chamber (can be provided is s.s. 316 quality at extra cost) with beaters assembly, motor, reversible switch, dol starter, four speed step pulley, suitable screen with painted pillar mounted on base plate, with castors.  optional sieves on demand ss perforated screen sizes (holes diameter in mm) (a) 0.5, 1.0, 1.5 (b) 2, 3,4,5,6 (c) 7,8,10,15,20,25. ss wire mesh sieve (a) 4,6,8,10,12,14,16,20,24,30,40,50,60 (b) 80,100.

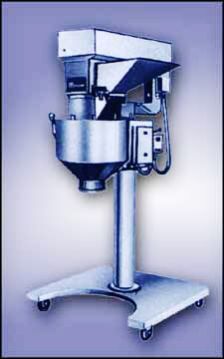

Ideal for various purposes like granulation, shredding, pulverising etc. A vertically mounted 3 HP motor drives the rotor, provided with knife blades and scraping blades. A screen of suitable mesh is fitted outside the rotor through which the material passes out after size reduction. The unit is supplied complete with stainless steel feeding hopper, and is mounted on a heavy duty stand with castor wheels etc. The unit is provided with starter, reversible switch etc.

J.K.Industries Multi Mill is a self contained portable unit useful for high speed GRANULATING, PULVERISING, MIXING, SHREDDING AND CHOPPING, etc., of a wide range of wet and dry materials without special attachments. As compared to the four common principles of size reduction i.e. grinding, compression, impact and shearing, which often do not produce controlled size reduction, this machine utilises the principle of variable force swing hammer blades having both knife and impact edges rotating with a carefully selected screen to control size reduction. Flow path of material in vertical rotor machine is streamlined. During comminution, material entering the chamber travels to the periphery and passes through the screen tangentially and radially, avoiding chocking and temperature rise. Operation : MULTI MILL is designed to utilise the principle of variable force swing beaters having both knife and impact edges rotating within a selected screen to control the particle reduction. Material fed in to the processing chamber moves to the periphery and passes through the screen radially and tangentially. Finally the processed material gets collected in to the container kept below the processing chamber.   Special Features : Suitable for dry and wet granules. All contact parts are made out of SS304 quality material.( SS316 quality is optional ) Castore wheel provided for the ease of mobility. Seaves available in sizes of 0.5 to 12mm hole dia. 12 nos. beaters with knife edges & impact edges & 02 nos. scrapper blades. In GMP Model complete body claded with SS304 and polished to the matt finish & in Standard Model excluding product contact parts, all other parts made out of C.I. or M.S. and coloured Machine rated for continuous operation. Higher output with process uniformity. All contact parts can easily be dismantled and cleaned for change of product. Wide range of SS perforated screens available Machine portable on castor wheels. Reversible direction of blade rotation. Different size of screen / speed / number of blade / direction of rotation of blade can be selected. Technical Specifications : Drive motor : 3HP / 1440 rpm / 3 Phase / 440V / AC D.O.L. starter provided with reversible switch. Rotor Diameter 89 mm ( approximate ) Rotor RPM : 50 / 1400 / 2200 / 2800 ( approximate ) Screen Diameter : 60 mm Blades 2 nos. With Knife & Impact Edges & 02 nos. Scraper Blades Out put 5 to 175 Kgs / Hr. Depending upon the products and the reduction required in sizes) Foundation not required. Castore wheel mounted base. Appro. charging/discharging height : 1445/730mm Appro. floor space required in mm : 870 X 965 Appro. net weight in Kgs. 275 Appro. gross weight in Kgs. 565 Case dimensions in mm 300 X 1080 X 1900 mm( ht ) Option : (Will be provided on extra cost on your demand )Contact parts made out of SS316 instead of SS304.Providing flame proof drive motor along with flame proof push button station and flame proof reversible switch. Vacuum loading system fore charging the material. Stand for IPC. ( Intermediate product container ) Application : Pharmaceuticals, Chemicals, Cosmetics, Ceramics, Colours, Dyestuff, Food products, Pesticides, Fertilizers, Spices, Detergents, Insecticides, Plastics and Resins Industries.

J.K.Industries Multi Mill is a self contained portable unit useful for high speed GRANULATING, PULVERISING, MIXING, SHREDDING AND CHOPPING, etc., of a wide range of wet and dry materials without special attachments. As compared to the four common principles of size reduction i.e. grinding, compression, impact and shearing, which often do not produce controlled size reduction, this machine utilises the principle of variable force swing hammer blades having both knife and impact edges rotating with a carefully selected screen to control size reduction. Flow path of material in vertical rotor machine is streamlined. During comminution, material entering the chamber travels to the periphery and passes through the screen tangentially and radially, avoiding chocking and temperature rise. Operation : MULTI MILL is designed to utilise the principle of variable force swing beaters having both knife and impact edges rotating within a selected screen to control the particle reduction. Material fed in to the processing chamber moves to the periphery and passes through the screen radially and tangentially. Finally the processed material gets collected in to the container kept below the processing chamber. Special Features : Suitable for dry and wet granules. All contact parts are made out of SS304 quality material.( SS316 quality is optional ) Castore wheel provided for the ease of mobility. Seaves available in sizes of 0.5 to 12mm hole dia. 12 nos. beaters with knife edges & impact edges & 02 nos. scrapper blades. In GMP Model complete body claded with SS304 and polished to the matt finish & in Standard Model excluding product contact parts, all other parts made out of C.I. or M.S. and coloured Machine rated for continuous operation. Higher output with process uniformity. All contact parts can easily be dismantled and cleaned for change of product. Wide range of SS perforated screens available Machine portable on castor wheels. Reversible direction of blade rotation. Different size of screen / speed / number of blade / direction of rotation of blade can be selected. Technical Specifications : Drive motor : 3HP / 1440 rpm / 3 Phase / 440V / AC D.O.L. starter provided with reversible switch. Rotor Diameter 89 mm ( approximate ) Rotor RPM : 50 / 1400 / 2200 / 2800 ( approximate ) Screen Diameter : 60 mm Blades 2 nos. With Knife & Impact Edges & 02 nos. Scraper Blades Out put 5 to 175 Kgs / Hr. Depending upon the products and the reduction required in sizes) Foundation not required. Castore wheel mounted base. Appro. charging/discharging height : 1445/730mm Appro. floor space required in mm : 870 X 965 Appro. net weight in Kgs. 275 Appro. gross weight in Kgs. 565 Case dimensions in mm 300 X 1080 X 1900 mm( ht ) Option : (Will be provided on extra cost on your demand )Contact parts made out of SS316 instead of SS304.Providing flame proof drive motor along with flame proof push button station and flame proof reversible switch. Vacuum loading system fore charging the material. Stand for IPC. ( Intermediate product container ) Application : Pharmaceuticals, Chemicals, Cosmetics, Ceramics, Colours, Dyestuff, Food products, Pesticides, Fertilizers, Spices, Detergents, Insecticides, Plastics and Resins Industries.
