Multifunction Meter Dealers in Gandhinagar

• Feature: Available in Accuracy class 1.0 as per Is13779/ IEC 62053-21,Optional Accuracy class 0.5s or 0.2s as per IS14697/ IEC 62053-22,True RMS measurement,ON Hour, LOAD HOUR & IDLE HOUR register in Non-Volatile Memory

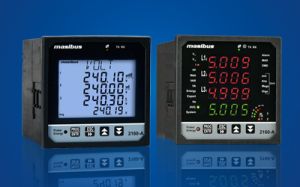

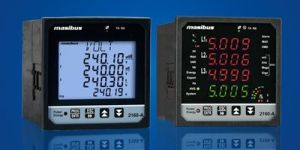

Multi Function Panel Meter 2160-A is an easy-to-use, cost effective electrical energy meter that offers all the basic measurement capabilities required for monitoring an electrical installation. Multi Function Panel Meter 2160-A is available in three display options either 16 x 4 LCD or bright LED or large multi-line backlit LCD panel for superior readability in poor lighting conditions. It provides four parameters display at a same time. Based on field requirement 2160-A offers various accuracy class options like Class 0.2s Class 0.5s accuracy as per IS14697 IEC 62053-22 and Class 1.0 accuracy as per Is13779 IEC 62053-21.

• Type: MFM
• Voltage: 415 V
• Display Type: LED
• Country of Origin: Made in India
• Model Name/Number: VIPS
• Phase: 3

Multi Function Panel Meter 2160-A is an easy-to-use, cost effective electrical energy meter that offers all the basic measurement capabilities required for monitoring an electrical installation. Multi Function Panel Meter 2160-A is available in three display options either 16 x 4 LCD or bright LED or large multi-line backlit LCD panel for superior readability in poor lighting conditions. It provides four parameters display at a same time. Based on field requirement 2160-A offers various accuracy class options like Class 0.2s Class 0.5s accuracy as per IS14697 IEC 62053-22 and Class 1.0 accuracy as per Is13779 IEC 62053-21. The CTPT ratio and installation type are site selectable, making it possible to use the meter in various types of three phase installations. Multi Function Panel Meter 2160-A provides four-quadrant energy measurement along with ON (working) hour, RUN (Load) Hour, thus helping to measure and control energy cost. More than basic metering, it optionally provides RS485 port supporting Modbus-RTU protocol, RJ45 port supporting Modnet protocol, THD measurements, Maximum Demand and Programmable pulse output. Along with Maximum Demand option 2160-A can store Power Interruption count with (Last Power OFF & Latest Power ON) Time & Date Meter stores energy and programmed parameters into non-volatile memory.
