Uma Fabrication & Engineers Chhatral, Gandhinagar, Gujarat

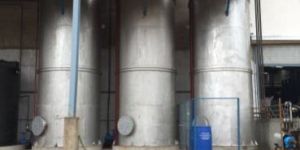

We manufactures Storage Tanks for the Pharma and Chemical Industries ranges from 0.5 KL to 60 KL capacity and storage Tank can be made of Mild Steel or Stainless Steel as per application of the user. Storage Tank is designed for Mechanical / Process Chemical as per IS-2825 / ASME Section-VIII, Div. – 1 / API 650 / IS 803. Storage Tank is utilized at Pharmaceuticals, Fine Chemicals, Petro-Chemicals, Dyes and Intermediates, Fertilizers, Refineries, Dairies and Food Product Industries.

The RIBBON BLENDER is an efficient and versatile blending machine for mixing of dry granules & powders homogeneously. Approximate two third of the volume of the container of Ribbon Blender is filled to ensure proper mixing. The Ribbon Blender gives best result for mixing of dry powder & granules due to the design and shape of the mixing ribbon and product container. It can be used for Pharmaceutical, Food, Chemical and Cosmetic products etc.Material should be charge from the top side. There are port/ports should be provided on the top cover to charge the material as well as for air vent. One discharge valve provided at the bottom side at centre of the container. The discharge height could be adjust as per the requirement, so that material gets discharge in the other container directly, so that material handling time for discharge is nil and the operation is dust free In Ribbon Blender the powder moves from centre to the end of container and end of container to the centre of container. Hence requirement of total mixing time is very less and the RPM required are also very less.

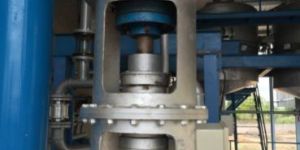

Lenton Assembly contains Bearing Housing with TOP Tapered Roller Bearing for High Accuracy and resistance to impact load & vibratory load and Ball Bearing at the bottom for smooth rotation. Stuffing Box is provided with Jacket for Cooling arrangement to give long life to Gland rope. Gland pusher is provided with Gunmetal Bush Bearing thus ensuring Minimized Friction giving longer life to the Gunmetal Bearing. Bearing Housing and Lenton Assembly are steel Fabricated made from M.S. Plates of suitable strength.

In Jacketed reactor, a jacket is welded on the shell to provide steam, thermic fluid circulation etc. This jacket can be made of Mild steel or Stainless steel as per the application of the user. The design of jacket can be of two type .i.e. Single stage or Double stage. A stiffener is welded on shell to withstand the pressure developed in the jacket and it also helps in proper distribution of steam and oil.

The company has earned huge accolades in the market for manufacturing and supplying Mild Steel Chimney, Industrial Chimney, Self Supported Chimney, Structural Chimney as per IS-6533 Standard. Designed with precision and to suit the clients exact requirements, Mild Steel Chimney is high on demand in the local markets. To suit the needs and demands of the clients, we make structural or self supported chimney. Moreover, we also provide erection and commissioning services for Mild Steel Chimney to the clients.

Our Industrial Sheds are made with Steel Portal frame structure having cladding of Pre-painted coloured profile sheets. Further, we made these sheds according to client's needs and provide solutions that fit to their budget We cater some of the fabrication works such as All Type Of Fabrication Work , Chemical Plant Equipment Fabrication , Chemical Plant Fabrication , Customized Fabrication Providing you the best range of Industrial Factory Shed such as Shed Steel Structure, Prefabricated Shed, Heavy Fabricated Structures, Ware House Shed, Workshop Shed and Factory Shed with effective & timely delivery. We are manufacturer of Shed Steel Structures for various industries as per customers requirement and specifications. We are providing the shed structures manufacturing from Indian Standard Steel sections. We designs the shed structures as per crane capacity and other norms.We offer best designed workshop shed for various works and as per customers requirements. We can Provide turnkey workshop shed with crane.

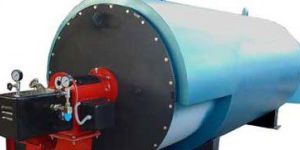

We deal in the highly efficient Oil & Gas fired Hot Water Generator that is high on demand in the international market. It is available in vertical and horizontal types. These generators have single stage, two stage and step less modulating burner control.Units are available from capacities of 30,000 Kcal/hr to 30,00,000 Kcals/hr. Imported & indigenous burners can be supplied with various firing options like light oil, heavy oil & gas. Units can be manufactured in various materials of construction like MILD STEEL, STAINLESS STEEL.

Hot air generators are offered in vertical or horizontal designs, either as standard models or tailor-made models to match customer's specifications and applications. Designed in DIRECT and INDIRECT heating types, these systems are practically free from any maintenance and are highly efficient. Units are available from capacities of 30,000 Kcal/hr to 30,00,000 Kcals/hr. Imported & indigenous burners can be supplied with various firing options like light oil, heavy oil & gas. Units can be manufactured in various materials of constru

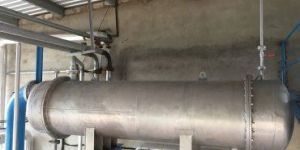

A Heat exchanger is a piece of equipment built for efficient heat transfer from one medium to another. The media may be separated by a solid wall, so that they never mix, or they may be in direct contact. They are widely used in space heating, refrigeration, air conditioning, power plants, chemical plants, petrochemical plants, petroleum refineries, natural gas processing, and sewage treatment. We designs as per design Code IS-2825, AMSE SEC. VIII, TEMA, API-660 etc.•    SHELL AND TUBE HEAT EXCHANGERS Shell and tube heat exchanger is the most common type of heat exchanger in all Industries. Mostly used in higher-pressure and Higher Temperature applications. These types of Heat exchangers are having two divisions one is shell and other is Tubes. Here One fluid runs through the tubes, and another fluid flows over the tubes (through the shell) to transfer heat between the two fluids. For this purpose seamless/ERW or Rolled pipes are used for shell. And Seamless tubes are used for Tubes. •    U TUBE BUNDLE HEAT EXCHANGERSU tubes can duplicate any existing bundle to include dimensions, materials and performance. A heat-exchanger system consisting of a bundle of U tubes hairpin tubes surrounded by a shell outer vessel. one fluid flows through the tubes, and the other fluid flows through the shell, around the tubes. One of the most common applications is the cooling of Hydraulic Fluid and oil in engines, transmissions and hydraulic power packs.

Reaction vessel is the heart of the chemical, food and pharmaceutical industries. We manufacture reaction vessels ranging capacity from 100 to 20,000 liters in material of construction stainless steel, Mild Steel & Rubber lined depending on the requirement of the material to be processed, and we offers well designed & engineered in accordance of ASME / IS  / API Code with optimum solutions to suits the customer requirements for application. There are various types of reaction vessel like JACKETED, LIMPET COIL, AUTOCLAVE ,BODY FLANGE or WELDED Types, TOP DISH type etc. Reactants may be pumped into the vessel through pipes attached to inlet nozzles, Also we provide connections as per customer’s requirement.

Various types of Blades & Agitator can be used in reaction vessel for    Anchor stirrer without baffle    Anchor stirrer with baffle    Propeller type stirrer    Flat blade type stirrer
