Agitator Seals Dealers in Ghaziabad

• Material: MS
• Finishing: Polished
• Color: Silver
• Condition: New
• Usage: Industrial
• Packaging Type: Carton Box
• Specialities: Good Quality, Fine Finish, Easy To Install
• Size (Inches): 6Inch, All Size
• Type: Agitator Seal
• Country of Origin: India

• Material: Metal
• Finishing: Polished
• Use: Industrial
• Pressure: up to 1.40 MPa
• Temperature: (-)10c to (+)150c
• Speed: up to 1 m/s
• Sizes: 25 mm to 100 mm

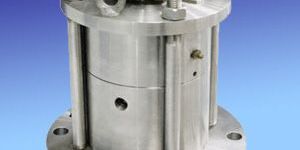

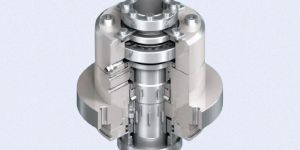

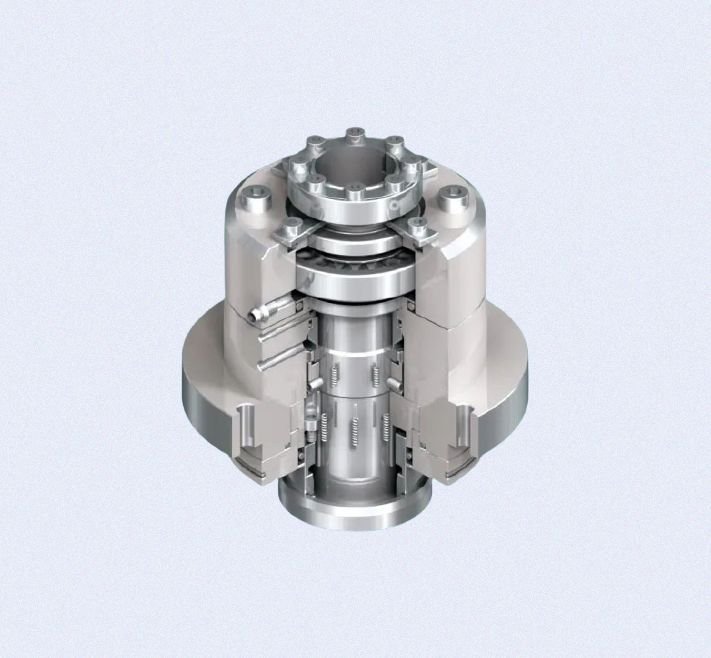

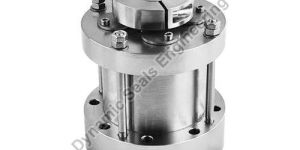

We are the prime Manufacturer, Exporter and Supplier of Agitator Mixer Seals in India. The product range is prepared as per the industry norms and widely demanded in various industrial applications. Owing to equipped with the latest technology, we are capable to provide Agitator Mixer Seals in customized specifications, defined by buyers.   Description : “Agitator Mechanical Seals" are top entry agitator double mechanical seal designed for medium to high pressure applications. These seal are successfully used for many years in all kind of mixer, reactors, paints and pulps etc. these seals can be easily installed without disturbing the delicase mating faces.Application : Used in top entry mixer vessels in pharmaceuticals & chemical industries. Operating Limits Material : Seal Face - Carbon, Silicon, Ceramic, TC Secondary Seals - Viton / PTFE Metal Parts - SS 316, SS-304

Applications : General Chemicals and its vapours. Petrochemicals and its vapours. Light Hydrocarbons and its vapours.          Material :                          Seal Faces - Carbon, SiC, Tung, Ceramic   Metal Parts - SS316, Hastelloy-C Alloy 20 O-rings - Elastomers, PTFE         Seal Characteristics :                              Single Seal / Double Seal Unbalanced / Balanced Independent on direction of rotation    Operating Limits :                      Shaft Diameterdl - 25 150mm        Pressurep - vaccum 40 bar (max)        Temperature : -20 to 220oC        Velocityv - 4 m/sec Product Code : PS - 300 are preset factory assembled cartridge seals for use in Agitators, Mixers and Reactor Vessels. The seal construction varies slightly for top entry vessels, side entry vessels and bottom entry vessels. The seals are designed to the shortest shaft length and the bearings are located as close to the vessel body to minimize the deflection.
