The least expensive and simplest device for producing heavyweight bundles is the riding stripper. When the stripper is full, it is removed from the Wire Drawing Machines and collapsed over the center of a wire carrier onto which the wire drops. The Stripper is then reinserted into the finishing block and the cycle repeated. The figure illustrates such a stripper without wire.

We offer Wire Straightening Machines. Wire Straightening and Cutting Machines are used to straighten & cut wires to make cut length rods out of coils. This machine is used wherever wire is further processed in form of Rods and where accurate straightening of coiled wire with clean cut, tolerances and high outputs are of importance. They are widely used in Industries concerned with Manufacturers of Locks, Umbrellas, Electrodes, Toys, Fan Cover, Kitchen wares, Auto parts, Rib and Tor Steel Wires, Aluminum, Copper, Brass, S.S Wire & PVC Wire etc.

We offer complete range of Wire Flattening Mills for both Ferrous and Non-Ferrous Wires. Though most features of our mills are standard, we can produce entire line as per the exact production requirements of the customers. Besides this, we also offer the complete line of accessories that are used with Wire Flattening Mills.

Brand Name : Assomac

We are leading manufacturers of Wire Coiler Packing Machine. SALIENT FEATURES: Automatic wrapping machine capable of wrapping large range of OD & ID of coils. Multiple coils can be wrapped using one roll of wrapping material. Unwrapping or winding back possible. Variable overlap of packing material possible through speed control as per requirements. The machine height is adjustable for different OD & ID of the Coils. Packing Tape tension is adjustable. Automatic cutting of tape after coil length completion. Pneumatic draw out of coils after completion.

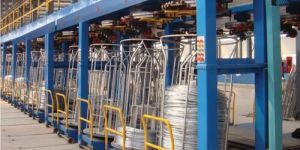

We offer Vertical Drop Coilers. The application of Vertical Drop Coiler Covers Coiling of low and high carbon steel and stainless steel wires, bare or coated, following heat treatment, surface treatment, galvanising or coating lines. The wire coiled is collected on formers (StemsSpidersBaskets), in to drums, or collected in catch weight coils.

Every Single product that we are manufacture is a result of utmost care, attention to details, precision that we put in to it.

We offer the complete range of specialized die boxes, which are used for different types of Wire Drawing Machines. Using the best available raw materials, we manufacture die boxes that provide efficient and durable usage. We offer standard as well as custom designed die boxes.

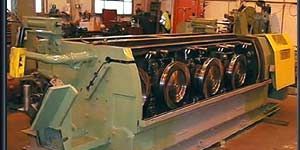

We offer a wide range of Rod Breakdown Machines, which are highly effective in drawing and coiling aluminum and copper wires. Our machines are available in single or multi-cone options that are designed to fulfill varied requirements of the user. In addition, there are ring type drawing capstans for convenience and low maintenance of the machine. Besides this, all the transmission gears and bearings are enforced with lubricants. We also offer customized designing and developing Rod Breakdown Machines as per the client's requirements.

The distinguished characteristics of our Butt Welding Machines include accurate welding pressure and a stronger welding strength. high quality of transformer primary and secondary materials provide long and trouble free service life. Features: High speed ensures higher level of performance Several steps for different size ranges Option to have integrated burr grinder to reduce time cycle. Available in various specifications of voltage, circuit currents, wire size etc.

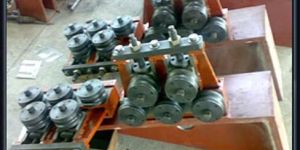

Our excellent range of Killing Roller Sets comprises of equipment in various working specifications and constructions. This product is manufactured of high quality material as per the industry norms and it requires least maintenance. We assure its long lasting and hassle free performance. Moreover, this wonderful assortment is available at market leading prices.

Assomac group provides its customers the most modern, cost effective, efficient and fast operating lines for hot dip galvanized wire plant. We provide equipment right from drawing lines flattening mills, complete galvanizing lines with vertical drop coilers, horizontal side winder take ups or strip take ups. By excellence in design, engineering, manufacturing and service we are able to offer most relevant technology for Galvanizing of High Carbon and Low Carbon Steel Wires.  Assomac has become the pioneers in supply of turnkey projects for the wire industry; we will maintain this position trough reliable equipment and service to our customer's world wide.   The plant consists of the following : Pay Off Stands: Revolving Turn Tables with brake tensioners for wire formers and spools, overhead coil opener type Pay Off, Pintal Type Pay Off for Spools and Basket Type Pay Off for Coils. Open Hearth Furnace or Lead Bath Furnace with electric heating or Natural gas/LDO/FO combustion systems with top cover and recuperator for energy conservation. Online Fumeless Pickling System with water curtains to prevent any acid fumes form exiting the pickling system. The wires travel straight with lower tension and react with invigorated acid traveling against the wire, followed by triple stage water wash system. Intermediate wiping system in between chambers to prevent excessive carry over of fluids from one chamber to another. Vertical Gland / Seal Less Pumps for zero down time as no seal change over and routine maintenance required. Stainless Steel SS-316 fabricated Flux Tank with flue gas heating and temperature control system for energy efficiency and coating consistency. Option of Dipping type or straight path type with flux pumping system. Flux Dryer before the entry to the galvanizing bath hot plate assembly is provided for quick drying of flux which has heating through flue gases of the zinc bath furnace as rising energy costs has made conservation a prime criteria in today's plants. Zinc Bath furnace consisting of Structural Steel Frame which is completely lined using several layers of ceramic refractory. Best quality refractories ensure reliability and durability. Zinc Tank made out of low carbon low silicon steel plate with side bended at 90 degree welded with specialized electrodes and duly ultrasonic tested for any internal cracks. Options for light / medium and heavy coating available. Zinc coated control through pad wiping, spring wiping for low & medium coating & vertical charcoal or nitrogen wiping for heavy coating can be provided. Finally wire is coiled on finishing Take ups where ASSOMAC offers several options depending on the industry use and coil weight requirements right from 25Kg. to 1000Kgs. Horizontal side winder take ups, Vertical drop coiler with or without pattern lay and strip take ups in our manufacturing programe.

The fabrication of a Flux Cored Electrode begins by slitting steel coiled sheet into strips. The strips are passed through rollers that form it into a U-shaped cross-section. In the same operation, the formed strip is filled with a measured amount of core ingredients. The U-shaped strip is passed through closing rolls, forming it into a tube and tightly compressing the granular core material.The tube is then passed through drawing dies that reduce the diameter and compress the core ingredients to prevent any movement within the tube.  Equipments Required Rewinding line composed of : Strip Coil Pay Off. Strip Butt Welding Strip Washing Unit Strip Spooling Machine Forming and Pre Drawing Line Composed of : Spool Pay Off. Tube Forming, filling and closing unit. Wire Drawing machine Spooler Redrawing Line Composed of : Spool Payoff Wire Baking oven. Wire drawing machine. Lubrication unit. Spooler Layer Rewinding Line composed of : Motorized spool payoff. Pneumatic dancer synchronizer Layer winder for steel baskets or plastic spools. Flux Core Wire Advantages : The Flux Cored Wire (FCW) offers many advantages, including excellent weld metal quality, high deposition rates, and ease of operation. Labour and overhead are the most expensive factors in any welding operation, usually comprising 80 to 85 percent of the total cost. Welding with high deposition FCW electrodes provides an immediate means of cost reduction without a major investment in specialized equipment. Excellent weld quality due to deep penetration and lower root opening of the joint. All position versatility with the right filler metals (the consumable electrode) with or without gas shielding reduces setup time and requirement of special fixtures. Shielding gas not necessarily needed making it suitable for outdoor welding and/or windy conditions. A high-deposition rate process because of the relatively high current density (speed at which the filler metal is applied). Less post cleaning of metal required as weld joints are smooth with almost no ripples and very little spatter. Metallurgical benefits from the Flux such as the weld metal being protected initially from external factors until the Flux is chipped away.

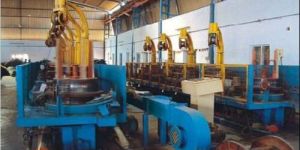

Straight Line Wire Drawing Machines were developed for straight or deflection free drawing of wire to provide better drawability, lower frictional contact and lower operator interference. Theoretically there is no limit as far as the wire material or wire diameter is concerned to be drawn on these machines. ASSOMAC has pioneered to indigenously develop the Straight-Line Wire Drawing Machine Technology in India. Presently the range available is capstan diameter 900mm, 750mm, 600mm, 550mm, 500mm, 460mm, 400mm and 300mm for inlet wire diameter 16mm down to 0.5mm. Line speeds upto 25 Mtrs / Sec. These heavy Straight Line Wire Drawing Machines provide remarkable drawing performance for Low, Medium and High Carbon Steel Wire, Stainless Steel Wire and special Alloy Steel Wire and Non-Ferrous Alloy Steel Wire. This machine has a sensor roller between the drum and the next die such that the wire passes in contact with this roller. These rollers have sensors to detect the position of the arm and maintain tension on the wire by regulating speed of the drums. The drums of this machine are inclined to the vertical axis to effect fill on the drums. Principally this machine is best suited for thick wires. Features of Straight Line Wire Drawing Machine: Machines are built on modular structure, in combination of Blocks and do not require any special foundation. Better productivity due to higher drawing speeds, twist-free operation & better cooling. Easy operation and faster threading. High pressure Narrow gap, internal water cooling for high efficiency cooling of wire. High degree of reliability, low downtime due to lower no. of wear parts. Much better finish wire quality due to a gentler handling of the wire during the drawing process (less wire deviations, low torsion etc.) as well as an optimized wire cooling. Highly effective pneumatic braking system in case of emergency. Better environmental conditions due to increased dust protection. Greater flexibility and lower current consumption due to modern AC drive technology and efficient power transmission system. PLC based control with profibus digital communication and fault diagnostic system. Optional Fitment: Stripper Block Rotating Die Boxes Motorized Soap Applicator Die Boxes Die less drawing trough Rolling Cassette Laser wire diameter measurement system Dust Suction System Online Modem based PLC support

The distinguished characteristics of our Butt Welding Machines include accurate welding pressure and a stronger welding strength. high quality of transformer primary and secondary materials provide long and trouble free service life. Features: High speed ensures higher level of performance Several steps for different size ranges Option to have integrated burr grinder to reduce time cycle. Available in various specifications of voltage, circuit currents, wire size etc.

We offer cut to length machines. Cut To Length Lines is used for uncoiling, straightening, gauging, cross-cutting to length and stacking work. It perform a variety of operational functions including cut sheet leveling, edge trim (if required), cut to length and stack sheets and plates. The cut to length line can make sure of accurate feeding and shearing. It can be widely used in cold or hot rolling carbon steel, tinplate, stainless steel and all the other kinds of metal materials with surface coating.
